ACR50L-GRPDKV (2012)
Toyota Previa/Tarago

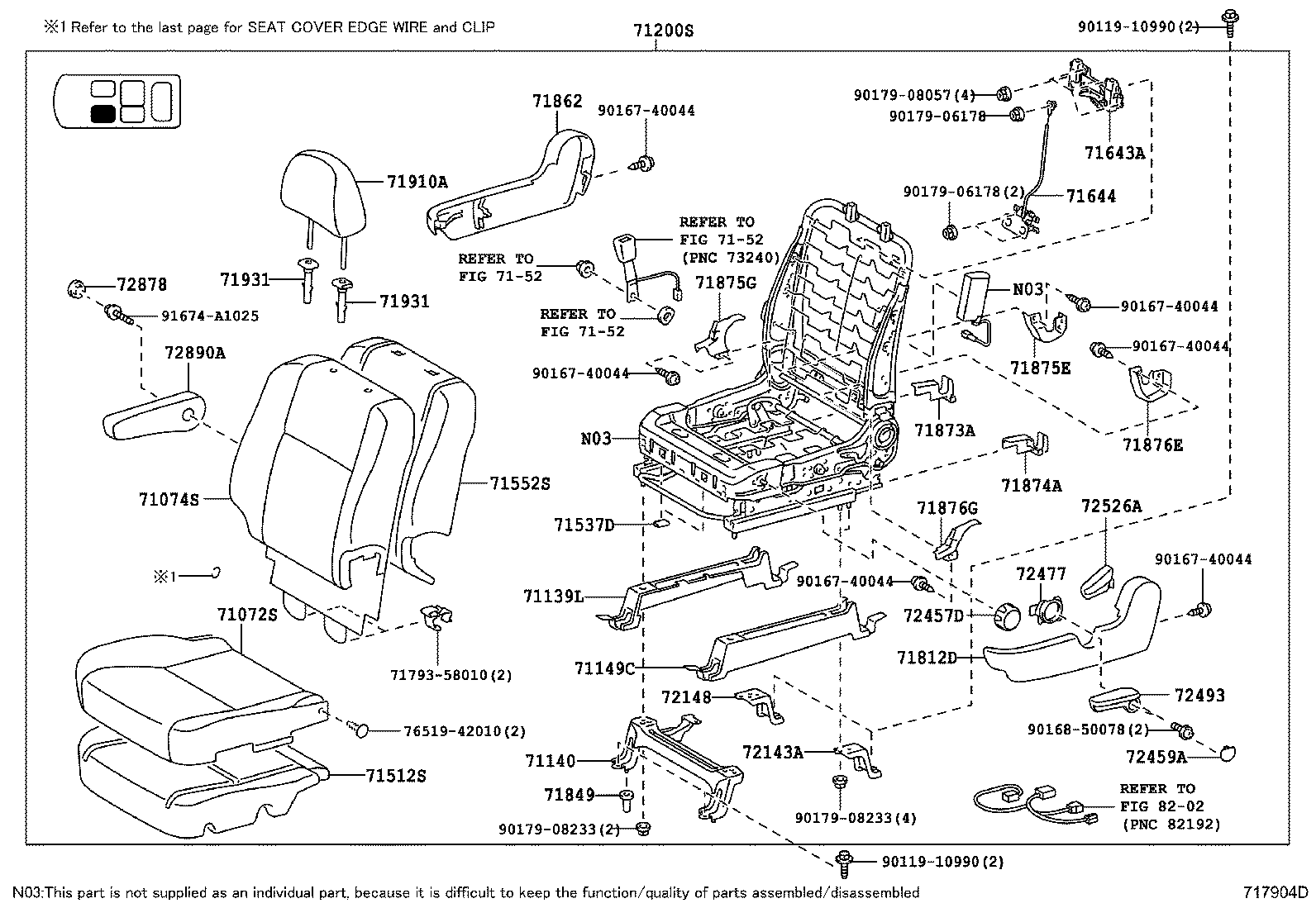

(1204- )LHD
DRIVER,MANUAL & W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-28B50E1 |
ACR50..LHD..DLX GREGE,TRIM4# |
1 | ||
| 71072-28D51A0 |
ACR50..DLX..GCC SHELL,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-28C40E1 |
ACR50,GSR50..DLX PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4# |
1 | ||
| 71074-28C30E1 |
ACR50,GSR50..DLX GREGE,TRIM4# |
1 | ||
| 71074-28E91A0 |
ACR50..DLX..GCC SHELL,TRIM0# |
1 | ||
| 71139L - COVER, FRONT SEAT LEG, RH(FOR LH SEAT) | ||||
| 71139-28140E0 |
ACR50..LHD..DLX GREGE,TRIM4# |
1 | ||
| 71139-28140A0 |
ACR50..DLX..GCC SHELL,TRIM0# |
1 | ||
| 71140 - LEG ASSY, FRONT SEAT, LH | ||||
| 71140-28050 |
ACR50,GSR50 |
1 | ||
| 71140-28060 |
GSR50..ARL;ACR50..RHD..CVT;ACR50..DLX..GCC;ACR50..RHD..4FC..GEN |
1 | ||
| 71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT) | ||||
| 71149-28120E0 |
ACR50..LHD..DLX;ACR50,GSR50..RHD GREGE,TRIM4# |
1 | ||
| 71149-28120A0 |
GSR50..ARL;ACR50..DLX..GCC;ACR50..RHD..(DLX,GL)..GEN SHELL,TRIM0# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-28G40E1 |
ACR50..LHD..DLX PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-28250 |
ACR50..DLX..GCC |
1 | ||
| 71512-28250 |
ACR50..LHD..DLX |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-26010 |
ACR50,GSR50 |
2 | ||
| 71537-26010 |
GSR50..RHD;ACR50..RHD..CVT;ACR50..DLX..GCC;ACR50..RHD..4FC..GEN |
2 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-28330 |
ACR50,GSR50..DLX |
1 | ||
| 71552-28390 |
ACR50..DLX..GCC |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-28350E0 |
ACR50..LHD..DLX GREGE,TRIM4# |
1 | ||
| 71812-28350A0 |
ACR50..DLX..GCC SHELL,TRIM0# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
ACR50,GSR50 |
2 | ||
| 71848-33010 |
ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-28020E0 |
ACR50..LHD..DLX;ACR50,GSR50..RHD GREGE,TRIM4# |
1 | ||
| 71862-28020A0 |
GSR50..ARL;ACR50..DLX..GCC;ACR50..RHD..(DLX,GL)..GEN SHELL,TRIM0# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-28011 |
ACR50..DLX..GCC;ACR50,GSR50..RHD |
1 | ||
| 71873-28010 |
ACR50..LHD..DLX;ACR50,GSR50..RHD |
1 | ||
| 71873-28010 |
GSR50..RHD;ACR50..RHD..CVT;ACR50..DLX..GCC;ACR50..RHD..4FC..GEN |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-28011 |
ACR50..DLX..GCC;ACR50,GSR50..RHD |
1 | ||
| 71874-28010 |
ACR50..LHD..DLX;ACR50,GSR50..RHD |
1 | ||
| 71874-28010 |
GSR50..RHD;ACR50..RHD..CVT;ACR50..DLX..GCC;ACR50..RHD..4FC..GEN |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
ACR50..LHD..DLX;ACR50,GSR50..RHD |
1 | ||
| 71875-58060 |
GSR50..ARL;ACR50..RHD..CVT;ACR50..DLX..GCC;ACR50..RHD..4FC..GEN |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-58040E1 |
ACR50..LHD..DLX;ACR50,GSR50..RHD GREGE,TRIM4# |
1 | ||
| 71875-58040A2 |
GSR50..ARL;ACR50..DLX..GCC;ACR50..RHD..(DLX,GL)..GEN SHELL,TRIM0# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
ACR50..LHD..DLX;ACR50,GSR50..RHD |
1 | ||
| 71876-58060 |
GSR50..ARL;ACR50..RHD..CVT;ACR50..DLX..GCC;ACR50..RHD..4FC..GEN |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-58040E1 |
ACR50..LHD..DLX;ACR50,GSR50..RHD GREGE,TRIM4# |
1 | ||
| 71876-58040A2 |
GSR50..ARL;ACR50..DLX..GCC;ACR50..RHD..(DLX,GL)..GEN SHELL,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-28A70E1 |
ACR50,GSR50..DLX GREGE,TRIM4# |
2 | ||
| 71910-28C30A0 |
GSR50..DLX;ACR50..DLX..(GCC,GEN) SHELL,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020E1 |
ACR50,GSR50 W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-42020E1 |
ACR50,GSR50 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020A5 |
GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..(DLX,GL)..(GCC,GEN) W(LOCK)&W/O(BUTTON),SHELL,TRIM0# |
2 | ||
| 71930-52030A2 |
GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..(DLX,GL)..(GCC,GEN) W(LOCK)&W(BUTTON),SHELL,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020E1 |
ACR50,GSR50 W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-42020E1 |
ACR50,GSR50 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020A5 |
GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..(DLX,GL)..(GCC,GEN) W(LOCK)&W/O(BUTTON),SHELL,TRIM0# |
2 | ||
| 71930-52030A2 |
GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..(DLX,GL)..(GCC,GEN) W(LOCK)&W(BUTTON),SHELL,TRIM0# |
2 | ||
| 72143A - BRACKET, FRONT SEAT TRACK, LOWER REAR(FOR LH SEAT) | ||||
| 72143-28100 |
ACR50..LHD..DLX;ACR50,GSR50..RHD |
1 | ||
| 72143-28100 |
GSR50..ARL;ACR50..RHD..CVT;ACR50..DLX..GCC;ACR50..RHD..4FC..GEN |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72143-28100 |
ACR50..LHD..DLX |
1 | ||
| 72143-28100 |
ACR50..DLX..GCC |
1 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-58010A2 |
ACR50..DLX..GCC SHELL,TRIM0# |
1 | ||
| 72457-58010E2 |
ACR50..LHD..DLX GREGE,TRIM4# |
1 | ||
| 72459A - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-60020E1 |
ACR50..LHD..DLX GREGE,TRIM4# |
1 | ||
| 72459-60020A1 |
ACR50..DLX..GCC SHELL,TRIM0# |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-33030C0 |
ACR50..LHD..DLX BLACK |
1 | ||
| 72477-33030C0 |
ACR50..DLX..GCC BLACK |
1 | ||
| 72493 - HANDLE, VERTICAL ADJUSTING, NO.2 | ||||
| 72493-60020E1 |
ACR50..LHD..DLX GREGE,TRIM4# |
1 | ||
| 72493-60020A1 |
ACR50..DLX..GCC SHELL,TRIM0# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040E3 |
ACR50..LHD..DLX;ACR50,GSR50..RHD GREGE,TRIM4# |
1 | ||
| 72526-58040A2 |
GSR50..ARL;ACR50..DLX..GCC;ACR50..RHD..(DLX,GL)..GEN SHELL,TRIM0# |
1 | ||
| 72878 - COVER, SEAT ARMREST, LH | ||||
| 72848-28030E1 |
GSR50;ACR50..GL;ACR50..LHD..DLX GREGE,TRIM4# |
1 | ||
| 72848-28030A2 |
GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..(DLX,GL)..(GCC,GEN) SHELL,TRIM0# |
1 | ||
| 72890A - ARMREST ASSY, FRONT SEAT, INNER LH | ||||
| 72890-28A30E1 |
GSR50;ACR50..GL;ACR50..LHD..DLX GREGE,TRIM4# |
1 | ||
| 72880-28D12A1 |
GSR50..DLX;ACR50..DLX..(GCC,GEN) SHELL,TRIM0# |
1 | ||
| Common parts | ||||
| 71793-58010 | ||||
| 76519-42010 | ||||
| 90119-10990 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90179-08233 | ||||
| 91674-A1025 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
(1204- )LHD
DRIVER,POWER & W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-28B50E1 |
ACR50..LHD..DLX GREGE,TRIM4# |
1 | ||
| 71072-28D51A0 |
ACR50..DLX..GCC SHELL,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-28C40E1 |
ACR50,GSR50..DLX PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4# |
1 | ||
| 71074-28C30E1 |
ACR50,GSR50..DLX GREGE,TRIM4# |
1 | ||
| 71074-28E91A0 |
ACR50..DLX..GCC SHELL,TRIM0# |
1 | ||
| 71139L - COVER, FRONT SEAT LEG, RH(FOR LH SEAT) | ||||
| 71139-28140E0 |
ACR50..LHD..DLX GREGE,TRIM4# |
1 | ||
| 71139-28140A0 |
ACR50..DLX..GCC SHELL,TRIM0# |
1 | ||
| 71140 - LEG ASSY, FRONT SEAT, LH | ||||
| 71140-28050 |
ACR50,GSR50 |
1 | ||
| 71140-28060 |
GSR50..ARL;ACR50..RHD..CVT;ACR50..DLX..GCC;ACR50..RHD..4FC..GEN |
1 | ||
| 71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT) | ||||
| 71149-28120E0 |
ACR50..LHD..DLX;ACR50,GSR50..RHD GREGE,TRIM4# |
1 | ||
| 71149-28120A0 |
GSR50..ARL;ACR50..DLX..GCC;ACR50..RHD..(DLX,GL)..GEN SHELL,TRIM0# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-28G40E1 |
ACR50..LHD..DLX PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-28250 |
ACR50..DLX..GCC |
1 | ||
| 71512-28250 |
ACR50..LHD..DLX |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-26010 |
ACR50,GSR50 |
2 | ||
| 71537-26010 |
GSR50..RHD;ACR50..RHD..CVT;ACR50..DLX..GCC;ACR50..RHD..4FC..GEN |
2 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-28330 |
ACR50,GSR50..DLX |
1 | ||
| 71552-28390 |
ACR50..DLX..GCC |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-28350E0 |
ACR50..LHD..DLX GREGE,TRIM4# |
1 | ||
| 71812-28350A0 |
ACR50..DLX..GCC SHELL,TRIM0# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
ACR50,GSR50 |
2 | ||
| 71848-33010 |
ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-28020E0 |
ACR50..LHD..DLX;ACR50,GSR50..RHD GREGE,TRIM4# |
1 | ||
| 71862-28020A0 |
GSR50..ARL;ACR50..DLX..GCC;ACR50..RHD..(DLX,GL)..GEN SHELL,TRIM0# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-28010 |
ACR50..LHD..DLX;ACR50,GSR50..RHD |
1 | ||
| 71873-28011 |
ACR50..DLX..GCC;ACR50,GSR50..RHD |
1 | ||
| 71873-28010 |
GSR50..RHD;ACR50..RHD..CVT;ACR50..DLX..GCC;ACR50..RHD..4FC..GEN |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-28011 |
ACR50..DLX..GCC;ACR50,GSR50..RHD |
1 | ||
| 71874-28010 |
ACR50..LHD..DLX;ACR50,GSR50..RHD |
1 | ||
| 71874-28010 |
GSR50..RHD;ACR50..RHD..CVT;ACR50..DLX..GCC;ACR50..RHD..4FC..GEN |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
ACR50..LHD..DLX;ACR50,GSR50..RHD |
1 | ||
| 71875-58060 |
GSR50..ARL;ACR50..RHD..CVT;ACR50..DLX..GCC;ACR50..RHD..4FC..GEN |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-58040E1 |
ACR50..LHD..DLX;ACR50,GSR50..RHD GREGE,TRIM4# |
1 | ||
| 71875-58040A2 |
GSR50..ARL;ACR50..DLX..GCC;ACR50..RHD..(DLX,GL)..GEN SHELL,TRIM0# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
ACR50..LHD..DLX;ACR50,GSR50..RHD |
1 | ||
| 71876-58060 |
GSR50..ARL;ACR50..RHD..CVT;ACR50..DLX..GCC;ACR50..RHD..4FC..GEN |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-58040E1 |
ACR50..LHD..DLX;ACR50,GSR50..RHD GREGE,TRIM4# |
1 | ||
| 71876-58040A2 |
GSR50..ARL;ACR50..DLX..GCC;ACR50..RHD..(DLX,GL)..GEN SHELL,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-28A70E1 |
ACR50,GSR50..DLX GREGE,TRIM4# |
2 | ||
| 71910-28C30A0 |
GSR50..DLX;ACR50..DLX..(GCC,GEN) SHELL,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020E1 |
ACR50,GSR50 W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-42020E1 |
ACR50,GSR50 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020A5 |
GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..(DLX,GL)..(GCC,GEN) W(LOCK)&W/O(BUTTON),SHELL,TRIM0# |
2 | ||
| 71930-52030A2 |
GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..(DLX,GL)..(GCC,GEN) W(LOCK)&W(BUTTON),SHELL,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020E1 |
ACR50,GSR50 W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-42020E1 |
ACR50,GSR50 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020A5 |
GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..(DLX,GL)..(GCC,GEN) W(LOCK)&W/O(BUTTON),SHELL,TRIM0# |
2 | ||
| 71930-52030A2 |
GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..(DLX,GL)..(GCC,GEN) W(LOCK)&W(BUTTON),SHELL,TRIM0# |
2 | ||
| 72143A - BRACKET, FRONT SEAT TRACK, LOWER REAR(FOR LH SEAT) | ||||
| 72143-28100 |
ACR50..LHD..DLX;ACR50,GSR50..RHD |
1 | ||
| 72143-28100 |
GSR50..ARL;ACR50..RHD..CVT;ACR50..DLX..GCC;ACR50..RHD..4FC..GEN |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72143-28100 |
ACR50..LHD..DLX |
1 | ||
| 72143-28100 |
ACR50..DLX..GCC |
1 | ||
| 72878 - COVER, SEAT ARMREST, LH | ||||
| 72848-28030E1 |
GSR50;ACR50..GL;ACR50..LHD..DLX GREGE,TRIM4# |
1 | ||
| 72848-28030A2 |
GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..(DLX,GL)..(GCC,GEN) SHELL,TRIM0# |
1 | ||
| 72890A - ARMREST ASSY, FRONT SEAT, INNER LH | ||||
| 72890-28A30E1 |
GSR50;ACR50..GL;ACR50..LHD..DLX GREGE,TRIM4# |
1 | ||
| 72880-28D12A1 |
GSR50..DLX;ACR50..DLX..(GCC,GEN) SHELL,TRIM0# |
1 | ||
| Common parts | ||||
| 71793-58010 | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90119-10990 | ||||
| 90148-80062 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90179-08233 | ||||
| 91674-A1025 | ||||
| 93530-54010 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||

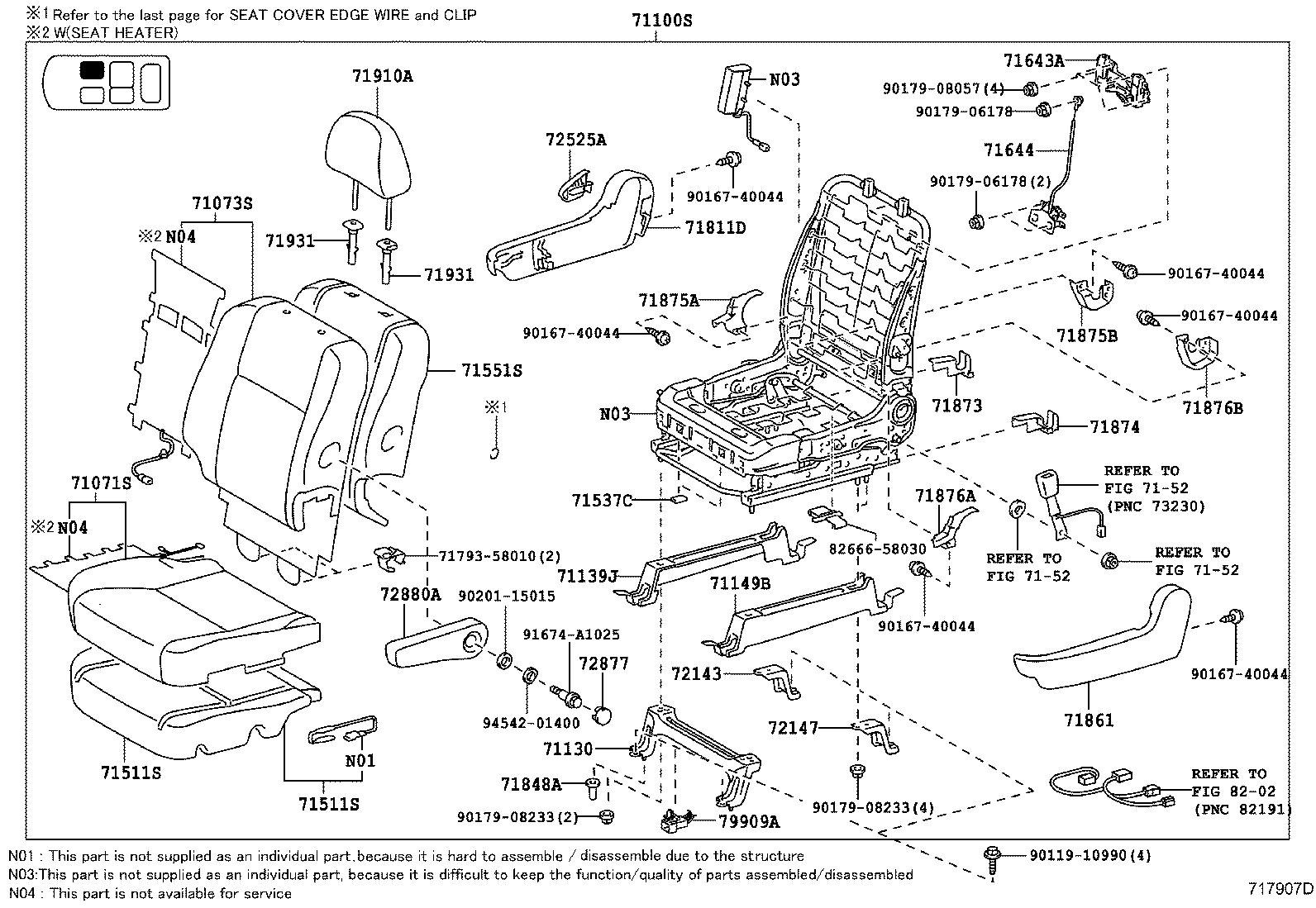

(1204- )LHD
PASSENGER,W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-28B70E1 |
ACR50..LHD..DLX GREGE,TRIM4# |
1 | ||
| 71071-28D61A0 |
ACR50..DLX..GCC SHELL,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-28C30E1 |
ACR50,GSR50..DLX GREGE,TRIM4# |
1 | ||
| 71073-28C40E1 |
ACR50,GSR50..DLX PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4# |
1 | ||
| 71073-28E71A0 |
ACR50..DLX..GCC SHELL,TRIM0# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-28F90E1 |
ACR50..LHD..DLX PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4# |
1 | ||
| 71130 - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-28050 |
ACR50,GSR50 |
1 | ||
| 71130-28050 |
ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
1 | ||
| 71139J - COVER, FRONT SEAT LEG, RH(FOR RH SEAT) | ||||
| 71139-28110E0 |
ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL GREGE,TRIM4# |
1 | ||
| 71139-28110A0 |
GSR50..DLX;ACR50,GSR50..LHD..GL;ACR50..DLX..(GCC,GEN) SHELL,TRIM0# |
1 | ||
| 71149B - COVER, FRONT SEAT LEG, LH (FOR RH SEAT) | ||||
| 71149-28090E0 |
ACR50,GSR50..LHD GREGE,TRIM4# |
1 | ||
| 71149-28090A0 |
ACR50,GSR50..LHD SHELL,TRIM0# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28330 |
ACR50..LHD..DLX |
1 | ||
| 71511-28330 |
ACR50..DLX..GCC |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28330 |
ACR50..LHD..DLX |
1 | ||
| 71511-28330 |
ACR50..DLX..GCC |
1 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-26010 |
ACR50,GSR50 |
2 | ||
| 71537-26010 |
GSR50..DLX;ACR50..CVT..DLX;ACR50,GSR50..LHD |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-28610 |
ACR50,GSR50..DLX |
1 | ||
| 71551-28680 |
ACR50..DLX..GCC |
1 | ||
| 71643A - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
2 | ||
| 71644 - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-28350E0 |
ACR50,GSR50..LHD GREGE,TRIM4# |
1 | ||
| 71811-28350A0 |
ACR50,GSR50..LHD SHELL,TRIM0# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
ACR50,GSR50 |
2 | ||
| 71848-33010 |
ACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN) |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-28030E0 |
ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL GREGE,TRIM4# |
1 | ||
| 71861-28030A0 |
GSR50..DLX;ACR50,GSR50..LHD..GL;ACR50..DLX..(GCC,GEN) SHELL,TRIM0# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-28010 |
GSR50..DLX;ACR50..CVT..DLX;ACR50,GSR50..LHD |
1 | ||
| 71873-28010 |
ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL |
1 | ||
| 71873-28011 |
ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-28011 |
ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL |
1 | ||
| 71874-28010 |
ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL |
1 | ||
| 71874-28010 |
GSR50..DLX;ACR50..CVT..DLX;ACR50,GSR50..LHD |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58040E1 |
ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL GREGE,TRIM4# |
1 | ||
| 71875-58040A2 |
GSR50..DLX;ACR50,GSR50..LHD..GL;ACR50..DLX..(GCC,GEN) SHELL,TRIM0# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58060 |
GSR50..DLX;ACR50..CVT..DLX;ACR50,GSR50..LHD |
1 | ||
| 71875-58060 |
ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58040E1 |
ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL GREGE,TRIM4# |
1 | ||
| 71876-58040A2 |
GSR50..DLX;ACR50,GSR50..LHD..GL;ACR50..DLX..(GCC,GEN) SHELL,TRIM0# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58060 |
GSR50..DLX;ACR50..CVT..DLX;ACR50,GSR50..LHD |
1 | ||
| 71876-58060 |
ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-28A70E1 |
ACR50,GSR50..DLX GREGE,TRIM4# |
2 | ||
| 71910-28C30A0 |
GSR50..DLX;ACR50..DLX..(GCC,GEN) SHELL,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020E1 |
ACR50,GSR50 W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-42020E1 |
ACR50,GSR50 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020A5 |
GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..(DLX,GL)..(GCC,GEN) W(LOCK)&W/O(BUTTON),SHELL,TRIM0# |
2 | ||
| 71930-52030A2 |
GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..(DLX,GL)..(GCC,GEN) W(LOCK)&W(BUTTON),SHELL,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-42020E1 |
ACR50,GSR50 W(LOCK)&W/O(BUTTON),GREGE,TRIM4# |
2 | ||
| 71930-42020E1 |
ACR50,GSR50 W(LOCK)&W(BUTTON),GREGE,TRIM4# |
2 | ||
| 71931-42020A5 |
GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..(DLX,GL)..(GCC,GEN) W(LOCK)&W/O(BUTTON),SHELL,TRIM0# |
2 | ||
| 71930-52030A2 |
GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..(DLX,GL)..(GCC,GEN) W(LOCK)&W(BUTTON),SHELL,TRIM0# |
2 | ||
| 72143 - BRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT) | ||||
| 72143-28100 |
GSR50..DLX;ACR50..CVT..DLX;ACR50,GSR50..LHD |
1 | ||
| 72143-28100 |
ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72143-28110 |
ACR50,GSR50..LHD |
1 | ||
| 72143-28110 |
ACR50,GSR50..LHD |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030E3 |
ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL GREGE,TRIM4# |
1 | ||
| 72525-58030A2 |
GSR50..DLX;ACR50,GSR50..LHD..GL;ACR50..DLX..(GCC,GEN) SHELL,TRIM0# |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 72848-28030E1 |
GSR50;ACR50..GL;ACR50..LHD..DLX GREGE,TRIM4# |
1 | ||
| 72848-28030A2 |
GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..(DLX,GL)..(GCC,GEN) SHELL,TRIM0# |
1 | ||
| 72880A - ARMREST ASSY, FRONT SEAT, INNER RH | ||||
| 72880-28A30E1 |
GSR50;ACR50..GL;ACR50..LHD..DLX GREGE,TRIM4# |
1 | ||
| 72890-28D01A1 |
GSR50..DLX;ACR50..DLX..(GCC,GEN) SHELL,TRIM0# |
1 | ||
| 79909A - WIRE SUB-ASSY, SEAT CUSHION | ||||
| 79909-28010 |
ACR50..LHD..4FC |
1 | ||
| Common parts | ||||
| 71793-58010 | ||||
| 82666-58030 | ||||
| 90119-10990 | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90179-08233 | ||||
| 90201-15015 | ||||
| 91674-A1025 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
