ACR50L-GRPDKV (2008)

Toyota Previa/Tarago

Production Dec 2008 - Apr 2012
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )

Click highlighted areas on diagram

SEAT COVER EDGE WIRE & CLIP

diagram 7114930050 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
90468-16019
90468-18008

(0601- )LHD

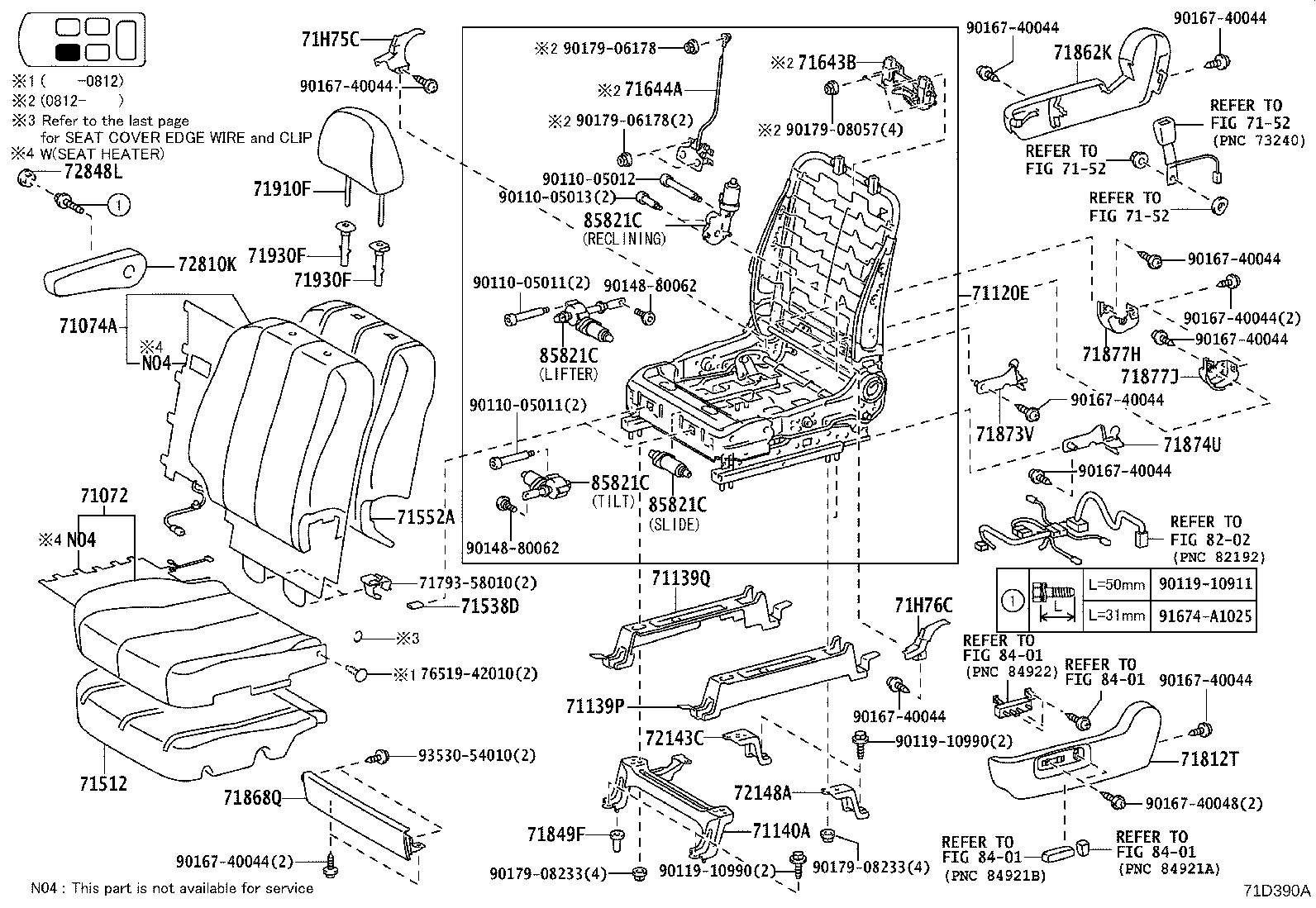

Click highlighted areas on diagram

DRIVER, MANUAL

diagram 71072 71074A 71120E 71139P 71139Q 71140A 71512 7152 7152 7152 71538D 71552A 71643B 71644A 7179358010 71812T 71849F 71862K 71873V 71874U 71877H 71877J 71910E 71930F 71930F 71H75C 71H76C 72143C 72148A 72457F 72459 72477A 72493A 72526H 72810K 72848L 7651942010 8202 9011910911 9011910990 9011910990 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016850078 9017906178 9017906178 9017908057 9017908233 9017908233 91674A1025
Part # Description Qty Price
71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH
71072-28B50E1

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71072-28D50E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71072-28D51E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH
71074-28C40E1

ACR50,GSR50..DLX

PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71074-28C30E1

ACR50,GSR50..DLX

GREGE,TRIM4#

 1
71074-28E90E0

GSR50..DLX;ACR50..LHD..DLX

GREGE,TRIM4#

 1
71074-28F00E0

ACR50..LHD..DLX

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71120E - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH
71120-28120

ACR50..LHD..DLX

 1
71120-28280

ACR50..LHD..DLX

 1
71139P - COVER, FRONT SEAT LEG, LH OUTER
71149-28120E0

ACR50..LHD..DLX;ACR50,GSR50..RHD

GREGE,TRIM4#

 1
71139Q - COVER, FRONT SEAT LEG, LH INNER
71139-28140E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71140A - LEG ASSY, FRONT SEAT, LH
71140-28050

ACR50,GSR50

 1
71512 - PAD, FRONT SEAT CUSHION, LH
71512-28250

ACR50..LHD..DLX

 1
71512-28250

ACR50..LHD..DLX

 1
71538D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71537-26010

ACR50,GSR50

 2
71552A - PAD, FRONT SEAT BACK, LH
71552-28330

ACR50,GSR50..DLX

 1
71812T - SHIELD, FRONT SEAT CUSHION, LH
71812-28350E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71812-28350E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71849F - CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)
71848-33010

ACR50,GSR50

 1
71862K - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-28020E0

ACR50..LHD..DLX;ACR50,GSR50..RHD

GREGE,TRIM4#

 1
71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-28010

ACR50,GSR50..DLX

 2
71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-28010

ACR50,GSR50..DLX

 2
71877H - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)
71875-58060

ACR50..LHD..DLX;ACR50,GSR50..RHD

 1
71877J - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT)
71876-58060

ACR50..LHD..DLX;ACR50,GSR50..RHD

 1
71910E - HEADREST ASSY, FRONT SEAT, RH
71910-28A70E1

ACR50,GSR50..DLX

GREGE,TRIM4#

 1
71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH
71930-42020E1

ACR50,GSR50

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 1
71931-42020E1

ACR50,GSR50

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 1
71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH
71930-42020E1

ACR50,GSR50

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 1
71931-42020E1

ACR50,GSR50

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 1
71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)
71875-58040E1

ACR50..LHD..DLX;ACR50,GSR50..RHD

GREGE,TRIM4#

 1
71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT)
71876-58040E1

ACR50,GSR50..DLX

GREGE,TRIM4#

 2
72143C - BRACKET, FRONT SEAT TRACK, LOWER REAR(FOR LH SEAT)
72143-28100

ACR50..LHD..DLX

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
72143-28100

ACR50..LHD..DLX

 1
72143-28100

ACR50..LHD..DLX;ACR50,GSR50..RHD

 1
72148A - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72143-28100

ACR50..LHD..DLX

 1
72143-28100

ACR50,GSR50..DLX

 1
72457F - KNOB, VERTICAL SEAT ADJUSTER, LH
72457-58010E2

ACR50..LHD..DLX

GREGE,TRIM4#

 1
72459 - CAP, VERTICAL SEAT ADJUSTER KNOB
72459-60020E1

ACR50..LHD..DLX

GREGE,TRIM4#

 1
72477A - SPACER, VERTICAL ADJUSTER
72477-33030C0

ACR50..LHD..DLX

BLACK

 1
72477-33030C0

ACR50..LHD..DLX

BLACK

 1
72493A - HANDLE, VERTICAL ADJUSTING, NO.2
72493-60020E1

ACR50..LHD..DLX

GREGE,TRIM4#

 1
72526H - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-58040E3

ACR50..LHD..DLX;ACR50,GSR50..RHD

GREGE,TRIM4#

 1
72810K - ARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT)
72890-28A30E1

GSR50;ACR50..GL;ACR50..LHD..DLX

GREGE,TRIM4#

 1
72880-28D10E0

GSR50..DLX;ACR50..LHD..DLX

GREGE,TRIM4#

 1
72848L - CAP, SEAT ARMREST, NO.1(FOR LH SEAT)
72848-28030E1

GSR50..RHD;ACR50..RHD..GL;ACR50..LHD..DLX

GREGE,TRIM4#

 1
Common parts
71793-58010
76519-42010
90119-10911
90119-10990
90167-40044
90168-50078
90179-06178
90179-08057
90179-08233
91674-A1025
Linked diagrams
7152
8202

(0601-1204)LHD

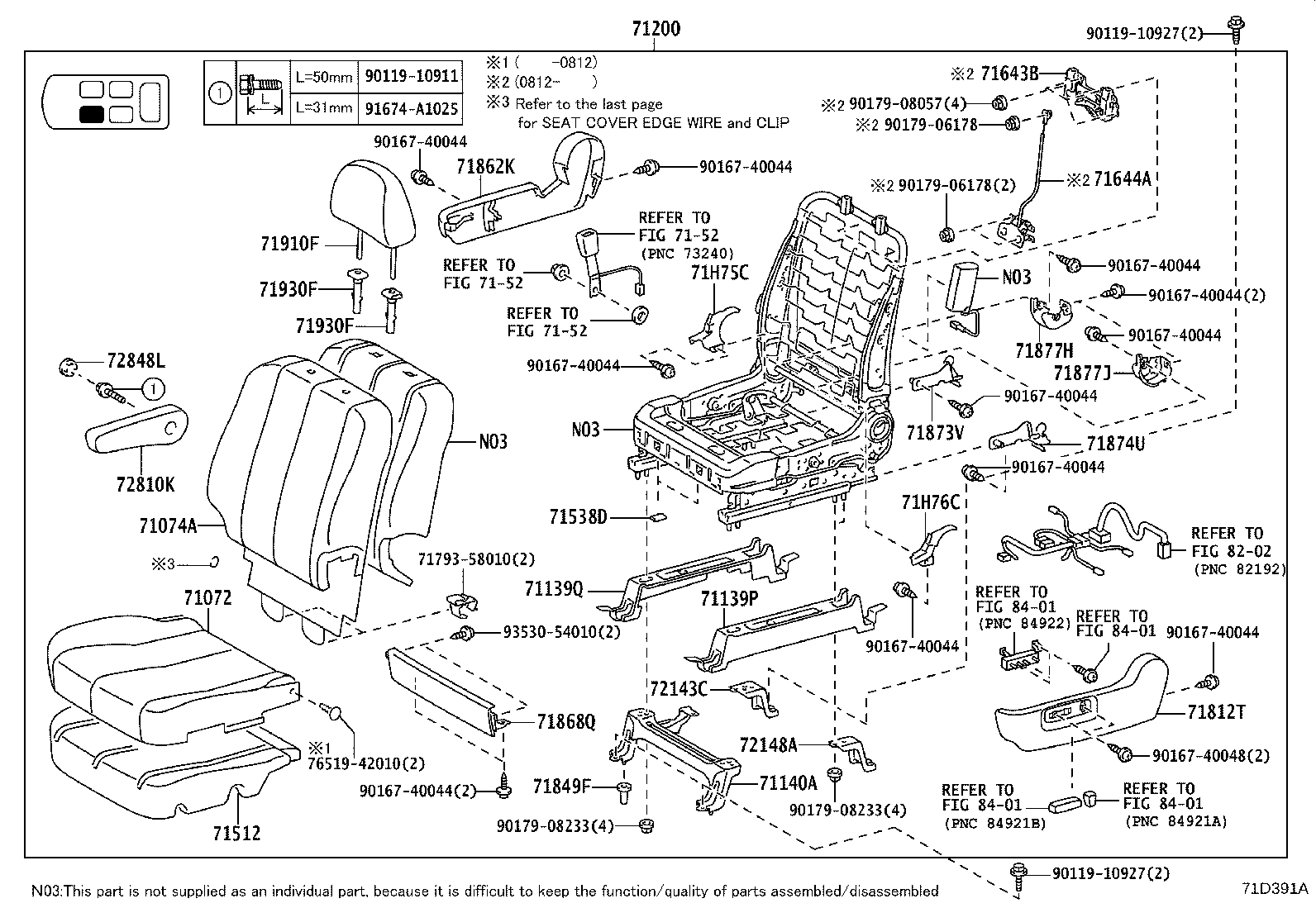

Click highlighted areas on diagram

DRIVER,MANUAL & W(SRS SIDE AIR BAG)

diagram 71072 71074A 71139P 71139Q 71140A 71200 71512 7152 7152 7152 71538D 71643B 71644A 7179358010 71812T 71849F 71862K 71873V 71874U 71877H 71877J 71910F 71930F 71930F 71H75C 71H76C 72143C 72148A 72457F 72459 72477A 72493A 72526H 72810K 72848L 7651942010 8202 9011910911 9011910927 9011910927 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016850078 9017906178 9017906178 9017908057 9017908233 9017908233 91674A1025
Part # Description Qty Price
71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH
71072-28B50E1

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71072-28D50E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71072-28D51E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH
71074-28C40E1

ACR50,GSR50..DLX

PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71074-28C30E1

ACR50,GSR50..DLX

GREGE,TRIM4#

 1
71074-28E90E0

GSR50..DLX;ACR50..LHD..DLX

GREGE,TRIM4#

 1
71074-28F00E0

ACR50..LHD..DLX

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71139P - COVER, FRONT SEAT LEG, LH OUTER
71149-28120E0

ACR50..LHD..DLX;ACR50,GSR50..RHD

GREGE,TRIM4#

 1
71139Q - COVER, FRONT SEAT LEG, LH INNER
71139-28140E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71140A - LEG ASSY, FRONT SEAT, LH
71140-28050

ACR50,GSR50

 1
71200 - SEAT ASSY, FRONT LH
71200-28N60E0

ACR50..LHD..DLX

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71200-28G40E1

ACR50..LHD..DLX

PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71200-28N61E0

ACR50..LHD..DLX

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71512 - PAD, FRONT SEAT CUSHION, LH
71512-28250

ACR50..LHD..DLX

 1
71512-28250

ACR50..LHD..DLX

 1
71538D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71537-26010

ACR50,GSR50

 2
71812T - SHIELD, FRONT SEAT CUSHION, LH
71812-28350E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71812-28350E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71849F - CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)
71848-33010

ACR50,GSR50

 1
71862K - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-28020E0

ACR50..LHD..DLX;ACR50,GSR50..RHD

GREGE,TRIM4#

 1
71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-28010

ACR50,GSR50..DLX

 2
71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-28010

ACR50,GSR50..DLX

 2
71877H - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)
71875-58060

ACR50..LHD..DLX;ACR50,GSR50..RHD

 1
71877J - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT)
71876-58060

ACR50..LHD..DLX;ACR50,GSR50..RHD

 1
71910F - HEADREST ASSY, FRONT SEAT, LH
71910-28A70E1

ACR50,GSR50..DLX

GREGE,TRIM4#

 1
71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH
71930-42020E1

ACR50,GSR50

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 1
71931-42020E1

ACR50,GSR50

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 1
71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH
71930-42020E1

ACR50,GSR50

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 1
71931-42020E1

ACR50,GSR50

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 1
71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)
71875-58040E1

ACR50..LHD..DLX;ACR50,GSR50..RHD

GREGE,TRIM4#

 1
71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT)
71876-58040E1

ACR50,GSR50..DLX

GREGE,TRIM4#

 2
72143C - BRACKET, FRONT SEAT TRACK, LOWER REAR(FOR LH SEAT)
72143-28100

ACR50..LHD..DLX

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
72143-28100

ACR50..LHD..DLX

 1
72143-28100

ACR50..LHD..DLX;ACR50,GSR50..RHD

 1
72148A - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72143-28100

ACR50..LHD..DLX

 1
72143-28100

ACR50,GSR50..DLX

 1
72457F - KNOB, VERTICAL SEAT ADJUSTER, LH
72457-58010E2

ACR50..LHD..DLX

GREGE,TRIM4#

 1
72459 - CAP, VERTICAL SEAT ADJUSTER KNOB
72459-60020E1

ACR50..LHD..DLX

GREGE,TRIM4#

 1
72477A - SPACER, VERTICAL ADJUSTER
72477-33030C0

ACR50..LHD..DLX

BLACK

 1
72477-33030C0

ACR50..LHD..DLX

BLACK

 1
72493A - HANDLE, VERTICAL ADJUSTING, NO.2
72493-60020E1

ACR50..LHD..DLX

GREGE,TRIM4#

 1
72526H - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-58040E3

ACR50..LHD..DLX;ACR50,GSR50..RHD

GREGE,TRIM4#

 1
72810K - ARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT)
72890-28A30E1

GSR50;ACR50..GL;ACR50..LHD..DLX

GREGE,TRIM4#

 1
72880-28D10E0

GSR50..DLX;ACR50..LHD..DLX

GREGE,TRIM4#

 1
72848L - CAP, SEAT ARMREST, NO.1(FOR LH SEAT)
72848-28030E1

GSR50..RHD;ACR50..RHD..GL;ACR50..LHD..DLX

GREGE,TRIM4#

 1
Common parts
71793-58010
76519-42010
90119-10911
90119-10927
90167-40044
90168-50078
90179-06178
90179-08057
90179-08233
91674-A1025
Linked diagrams
7152
8202

(0601- )LHD

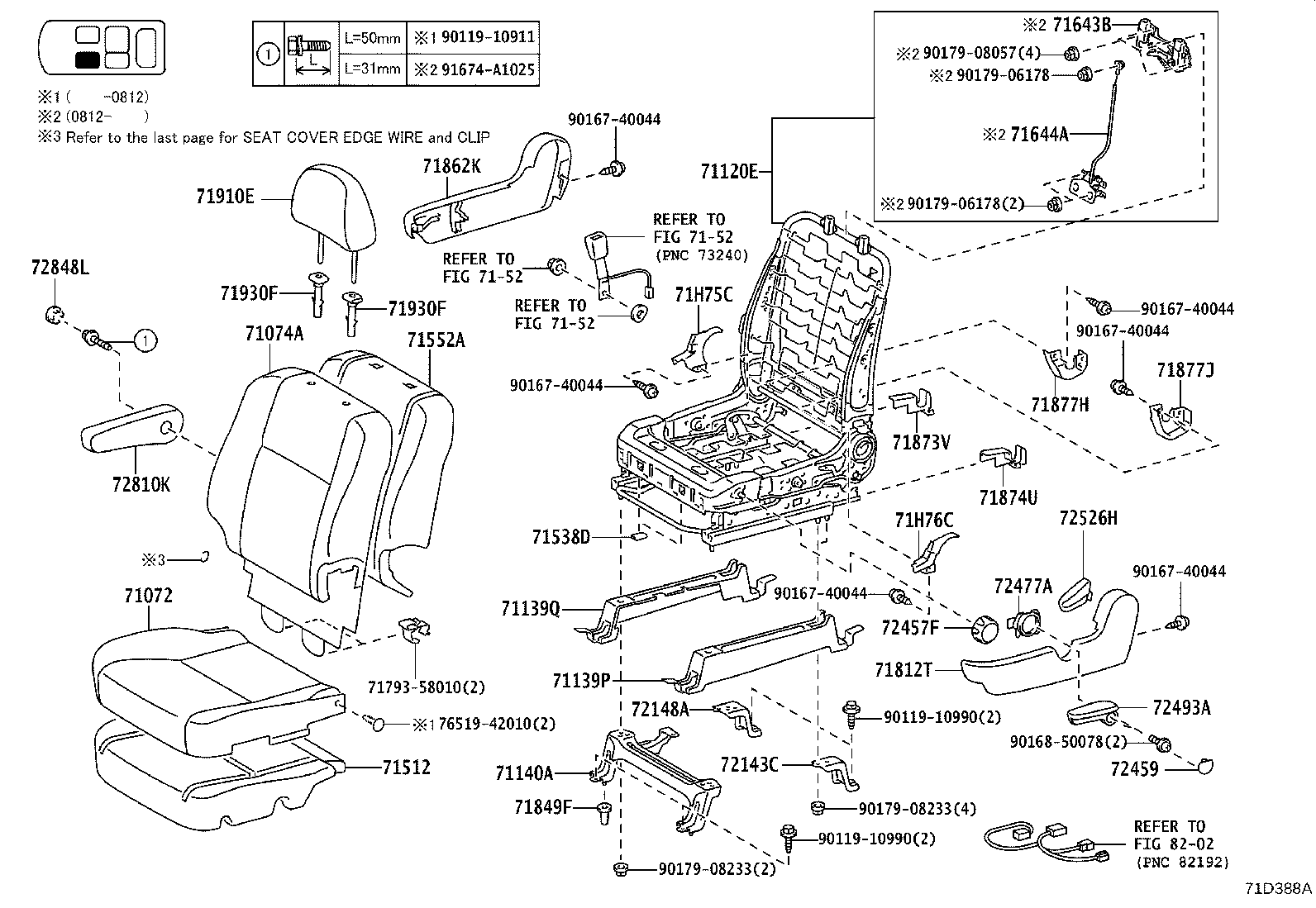

Click highlighted areas on diagram

DRIVER,POWER

diagram 71072 71074A 71120E 71139P 71139Q 71140A 71512 7152 7152 7152 71538D 71552A 71643B 71644A 7179358010 71812T 71849F 71862K 71868Q 71873V 71874U 71877H 71877J 71910F 71930F 71930F 71H75C 71H76C 72143C 72148A 72810K 72848L 7651942010 8202 8401 8401 8401 8401 85821C 85821C 85821C 85821C 9011005011 9011005011 9011005012 9011005013 9011910911 9011910990 9011910990 9014880062 9014880062 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740048 9017906178 9017906178 9017908057 9017908233 9017908233 91674A1025 9353054010
Part # Description Qty Price
71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH
71072-28B50E1

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71072-28D50E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71072-28D51E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH
71074-28C40E1

ACR50,GSR50..DLX

PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71074-28C30E1

ACR50,GSR50..DLX

GREGE,TRIM4#

 1
71074-28E90E0

GSR50..DLX;ACR50..LHD..DLX

GREGE,TRIM4#

 1
71074-28F00E0

ACR50..LHD..DLX

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71120E - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH
71120-28120

ACR50..LHD..DLX

 1
71120-28280

ACR50..LHD..DLX

 1
71139P - COVER, FRONT SEAT LEG, LH OUTER
71149-28120E0

ACR50..LHD..DLX;ACR50,GSR50..RHD

GREGE,TRIM4#

 1
71139Q - COVER, FRONT SEAT LEG, LH INNER
71139-28140E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71140A - LEG ASSY, FRONT SEAT, LH
71140-28050

ACR50,GSR50

 1
71512 - PAD, FRONT SEAT CUSHION, LH
71512-28250

ACR50..LHD..DLX

 1
71512-28250

ACR50..LHD..DLX

 1
71538D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71537-26010

ACR50,GSR50

 2
71552A - PAD, FRONT SEAT BACK, LH
71552-28330

ACR50,GSR50..DLX

 1
71812T - SHIELD, FRONT SEAT CUSHION, LH
71812-28350E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71812-28350E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71849F - CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)
71848-33010

ACR50,GSR50

 1
71862K - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-28020E0

ACR50..LHD..DLX;ACR50,GSR50..RHD

GREGE,TRIM4#

 1
71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-28010

ACR50,GSR50..DLX

 2
71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-28010

ACR50,GSR50..DLX

 2
71877H - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)
71875-58060

ACR50..LHD..DLX;ACR50,GSR50..RHD

 1
71877J - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT)
71876-58060

ACR50..LHD..DLX;ACR50,GSR50..RHD

 1
71910F - HEADREST ASSY, FRONT SEAT, LH
71910-28A70E1

ACR50,GSR50..DLX

GREGE,TRIM4#

 1
71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH
71930-42020E1

ACR50,GSR50

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 1
71931-42020E1

ACR50,GSR50

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 1
71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH
71930-42020E1

ACR50,GSR50

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 1
71931-42020E1

ACR50,GSR50

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 1
71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)
71875-58040E1

ACR50..LHD..DLX;ACR50,GSR50..RHD

GREGE,TRIM4#

 1
71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT)
71876-58040E1

ACR50,GSR50..DLX

GREGE,TRIM4#

 2
72143C - BRACKET, FRONT SEAT TRACK, LOWER REAR(FOR LH SEAT)
72143-28100

ACR50..LHD..DLX

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
72143-28100

ACR50..LHD..DLX

 1
72143-28100

ACR50..LHD..DLX;ACR50,GSR50..RHD

 1
72148A - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72143-28100

ACR50..LHD..DLX

 1
72143-28100

ACR50,GSR50..DLX

 1
72810K - ARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT)
72890-28A30E1

GSR50;ACR50..GL;ACR50..LHD..DLX

GREGE,TRIM4#

 1
72880-28D10E0

GSR50..DLX;ACR50..LHD..DLX

GREGE,TRIM4#

 1
72848L - CAP, SEAT ARMREST, NO.1(FOR LH SEAT)
72848-28030E1

GSR50..RHD;ACR50..RHD..GL;ACR50..LHD..DLX

GREGE,TRIM4#

 1
Common parts
71793-58010
76519-42010
90110-05011
90110-05012
90110-05013
90119-10911
90119-10990
90148-80062
90167-40044
90167-40048
90179-06178
90179-08057
90179-08233
91674-A1025
93530-54010
Linked diagrams
7152
8202
8401

(0601-1204)LHD

Click highlighted areas on diagram

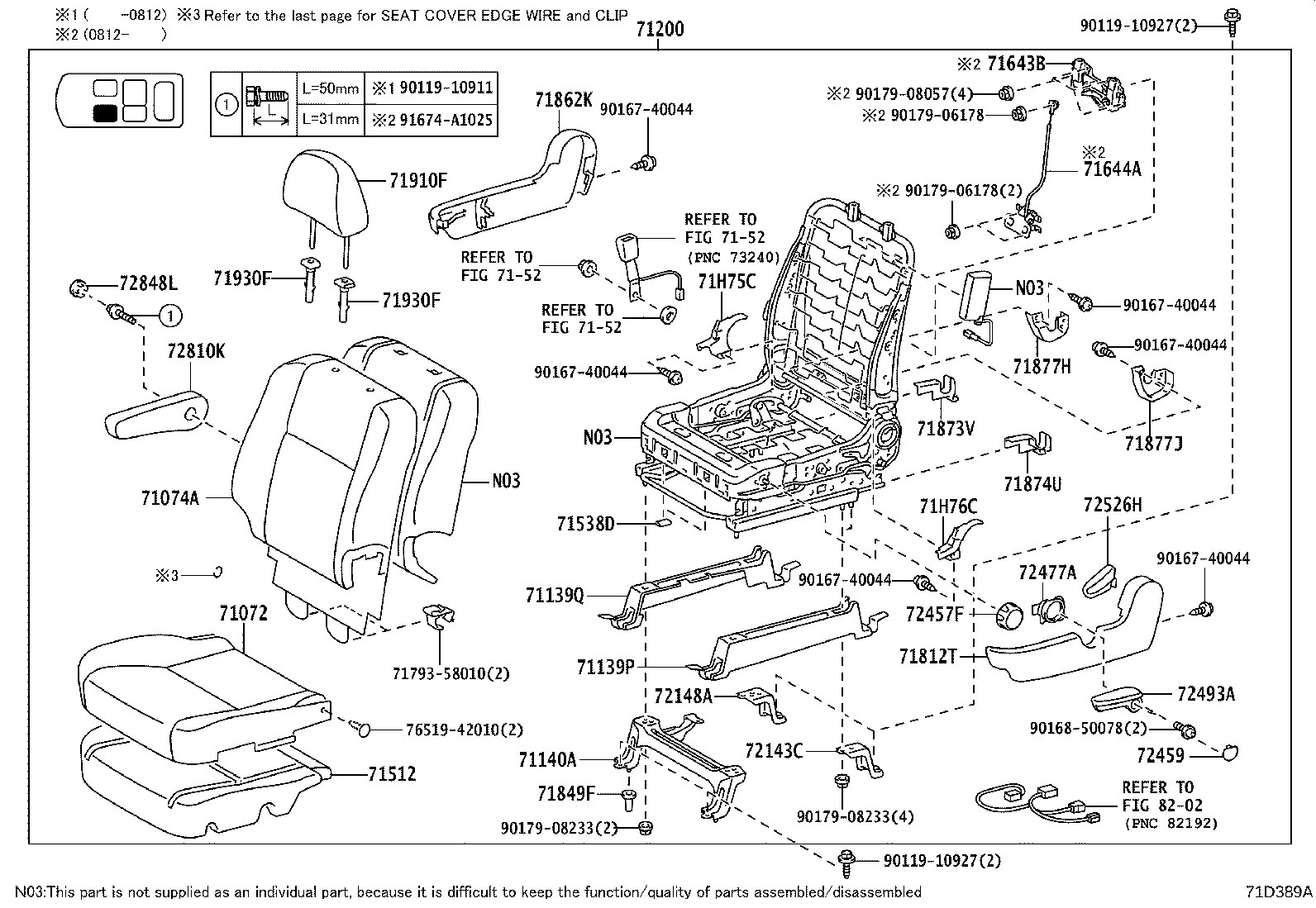

DRIVER,POWER & W(SRS SIDE AIR BAG)

diagram 71072 71074A 71139P 71139Q 71140A 71200 71512 7152 7152 7152 71538D 71643B 71644A 7179358010 71812T 71849F 71862K 71868Q 71873V 71874U 71877H 71877J 71910F 71930F 71930F 71H75C 71H76C 72143C 72148A 72810K 72848L 7651942010 8202 8401 8401 8401 8401 9011910911 9011910927 9011910927 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740048 9017906178 9017906178 9017908057 9017908233 9017908233 91674A1025 9353054010
Part # Description Qty Price
71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH
71072-28B50E1

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71072-28D50E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71072-28D51E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH
71074-28C40E1

ACR50,GSR50..DLX

PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71074-28C30E1

ACR50,GSR50..DLX

GREGE,TRIM4#

 1
71074-28E90E0

GSR50..DLX;ACR50..LHD..DLX

GREGE,TRIM4#

 1
71074-28F00E0

ACR50..LHD..DLX

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71139P - COVER, FRONT SEAT LEG, LH OUTER
71149-28120E0

ACR50..LHD..DLX;ACR50,GSR50..RHD

GREGE,TRIM4#

 1
71139Q - COVER, FRONT SEAT LEG, LH INNER
71139-28140E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71140A - LEG ASSY, FRONT SEAT, LH
71140-28050

ACR50,GSR50

 1
71200 - SEAT ASSY, FRONT LH
71200-28N60E0

ACR50..LHD..DLX

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71200-28G40E1

ACR50..LHD..DLX

PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71200-28N61E0

ACR50..LHD..DLX

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71512 - PAD, FRONT SEAT CUSHION, LH
71512-28250

ACR50..LHD..DLX

 1
71512-28250

ACR50..LHD..DLX

 1
71538D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71537-26010

ACR50,GSR50

 2
71812T - SHIELD, FRONT SEAT CUSHION, LH
71812-28350E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71812-28350E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71849F - CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)
71848-33010

ACR50,GSR50

 1
71862K - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-28020E0

ACR50..LHD..DLX;ACR50,GSR50..RHD

GREGE,TRIM4#

 1
71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-28010

ACR50,GSR50..DLX

 2
71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-28010

ACR50,GSR50..DLX

 2
71877H - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)
71875-58060

ACR50..LHD..DLX;ACR50,GSR50..RHD

 1
71877J - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT)
71876-58060

ACR50..LHD..DLX;ACR50,GSR50..RHD

 1
71910F - HEADREST ASSY, FRONT SEAT, LH
71910-28A70E1

ACR50,GSR50..DLX

GREGE,TRIM4#

 1
71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH
71930-42020E1

ACR50,GSR50

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 1
71931-42020E1

ACR50,GSR50

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 1
71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH
71930-42020E1

ACR50,GSR50

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 1
71931-42020E1

ACR50,GSR50

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 1
71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)
71875-58040E1

ACR50..LHD..DLX;ACR50,GSR50..RHD

GREGE,TRIM4#

 1
71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT)
71876-58040E1

ACR50,GSR50..DLX

GREGE,TRIM4#

 2
72143C - BRACKET, FRONT SEAT TRACK, LOWER REAR(FOR LH SEAT)
72143-28100

ACR50..LHD..DLX

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
72143-28100

ACR50..LHD..DLX

 1
72143-28100

ACR50..LHD..DLX;ACR50,GSR50..RHD

 1
72148A - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72143-28100

ACR50..LHD..DLX

 1
72143-28100

ACR50,GSR50..DLX

 1
72810K - ARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT)
72890-28A30E1

GSR50;ACR50..GL;ACR50..LHD..DLX

GREGE,TRIM4#

 1
72880-28D10E0

GSR50..DLX;ACR50..LHD..DLX

GREGE,TRIM4#

 1
72848L - CAP, SEAT ARMREST, NO.1(FOR LH SEAT)
72848-28030E1

GSR50..RHD;ACR50..RHD..GL;ACR50..LHD..DLX

GREGE,TRIM4#

 1
Common parts
71793-58010
76519-42010
90119-10911
90119-10927
90167-40044
90167-40048
90179-06178
90179-08057
90179-08233
91674-A1025
93530-54010
Linked diagrams
7152
8202
8401

(0601- )LHD

Click highlighted areas on diagram

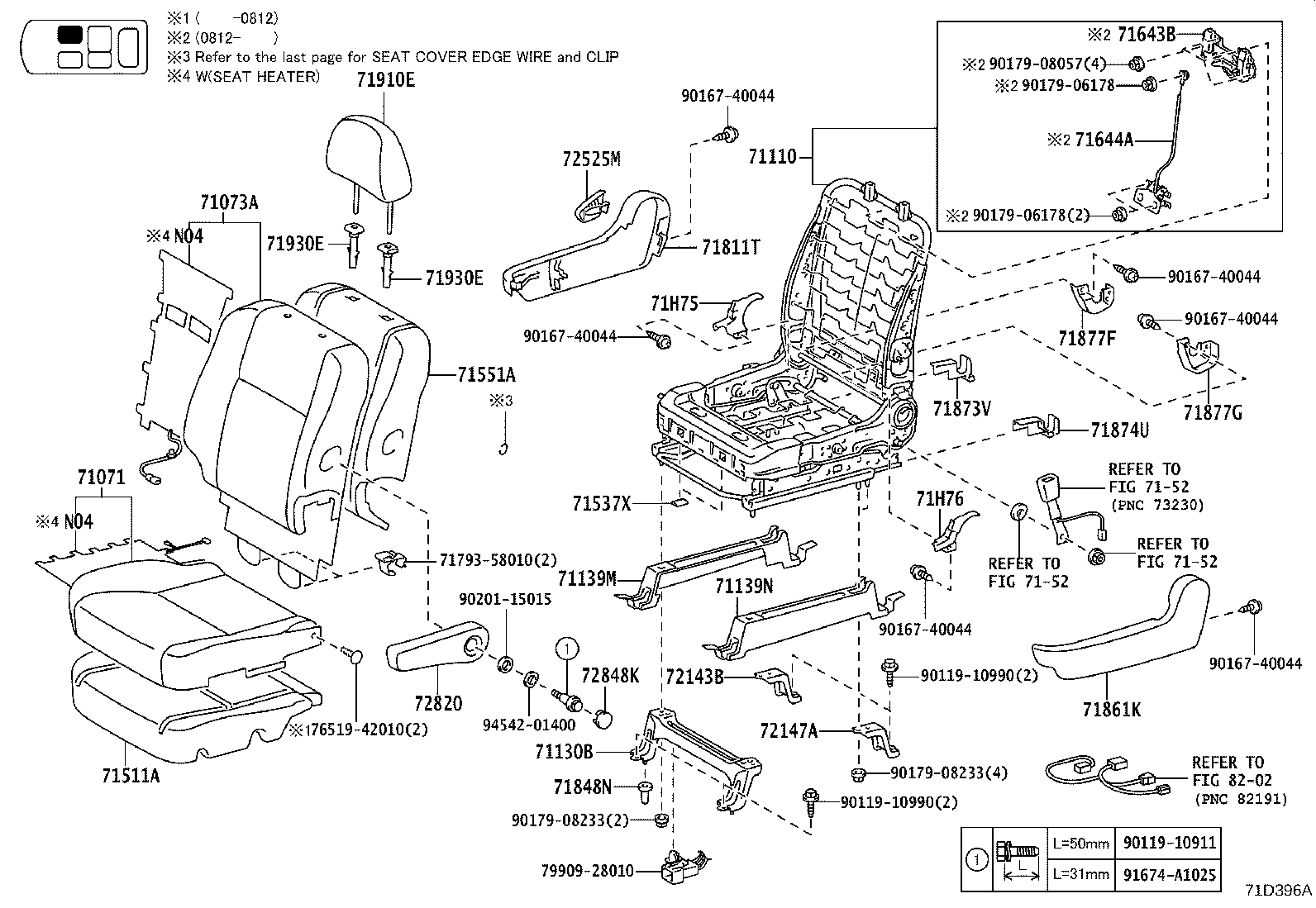

PASSENGER

diagram 71071 71073A 71110 71130B 71139M 71139N 71511A 7152 7152 7152 71537X 71551A 71643B 71644A 7179358010 71811T 71848N 71861K 71873V 71874U 71877F 71877G 71910E 71930E 71930E 71H75 71H76 72143B 72147A 72525M 72820 72848K 7651942010 7990928010 8202 9011910911 9011910990 9011910990 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9017906178 9017906178 9017908057 9017908233 9017908233 9020115015 91674A1025 9454201400
Part # Description Qty Price
71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH
71071-28B70E1

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71071-28D60E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71071-28D61E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH
71073-28C40E1

ACR50,GSR50..DLX

PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71073-28C30E1

ACR50,GSR50..DLX

GREGE,TRIM4#

 1
71073-28E70E0

GSR50..DLX;ACR50..LHD..DLX

GREGE,TRIM4#

 1
71073-28E80E0

ACR50..LHD..DLX

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71110 - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-28390

ACR50,GSR50..GCC;ACR50..LHD..DLX..GEN

 1
71110-28170

ACR50,GSR50..LHD

 1
71130B - LEG ASSY, FRONT SEAT, RH
71130-28050

ACR50,GSR50

 1
71139M - COVER, FRONT SEAT LEG, RH OUTER
71139-28110E0

ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL

GREGE,TRIM4#

 1
71139N - COVER, FRONT SEAT LEG, RH INNER
71149-28090E0

ACR50,GSR50..LHD

GREGE,TRIM4#

 1
71149-28090E0

ACR50,GSR50..LHD

GREGE,TRIM4#

 1
71511A - PAD, FRONT SEAT CUSHION, RH
71511-28330

ACR50..LHD..DLX

 1
71511-28330

ACR50..LHD..DLX

 1
71537X - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-26010

ACR50,GSR50

 2
71551A - PAD, FRONT SEAT BACK, RH
71551-28610

ACR50,GSR50..DLX

 1
71811T - SHIELD, FRONT SEAT CUSHION, RH
71811-28350E0

ACR50,GSR50..LHD

GREGE,TRIM4#

 1
71811-28350E0

ACR50,GSR50..LHD

GREGE,TRIM4#

 1
71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1
71848-33010

ACR50,GSR50

 1
71861K - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-28030E0

ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL

GREGE,TRIM4#

 1
71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-28010

ACR50,GSR50..DLX

 2
71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-28010

ACR50,GSR50..DLX

 2
71877F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT)
71875-58060

ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL

 1
71877G - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)
71876-58060

ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL

 1
71910E - HEADREST ASSY, FRONT SEAT, RH
71910-28A70E1

ACR50,GSR50..DLX

GREGE,TRIM4#

 1
71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH
71931-42020E1

ACR50,GSR50

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 1
71930-42020E1

ACR50,GSR50

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 1
71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH
71931-42020E1

ACR50,GSR50

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 1
71930-42020E1

ACR50,GSR50

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 1
71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT)
71875-58040E1

ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL

GREGE,TRIM4#

 1
72143B - BRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT)
72143-28100

ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL

 1
72143-28100

ACR50..LHD..DLX

 1
72143-28100

ACR50..LHD..DLX

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
72147A - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH
72143-28110

ACR50,GSR50..LHD

 1
72143-28110

ACR50..LHD..DLX

 1
72525M - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-58030E3

ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL

GREGE,TRIM4#

 1
72820 - ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT)
72880-28A30E1

GSR50;ACR50..GL;ACR50..LHD..DLX

GREGE,TRIM4#

 1
72890-28D00E0

GSR50..DLX;ACR50..LHD..DLX

GREGE,TRIM4#

 1
72848K - CAP, SEAT ARMREST, NO.1(FOR RH SEAT)
72848-28030E1

GSR50;ACR50..GL;ACR50..LHD..DLX

GREGE,TRIM4#

 1
Common parts
71793-58010
76519-42010
79909-28010
90119-10911
90119-10990
90167-40044
90179-06178
90179-08057
90179-08233
90201-15015
91674-A1025
94542-01400
Linked diagrams
7152
8202

(0601-1204)LHD

Click highlighted areas on diagram

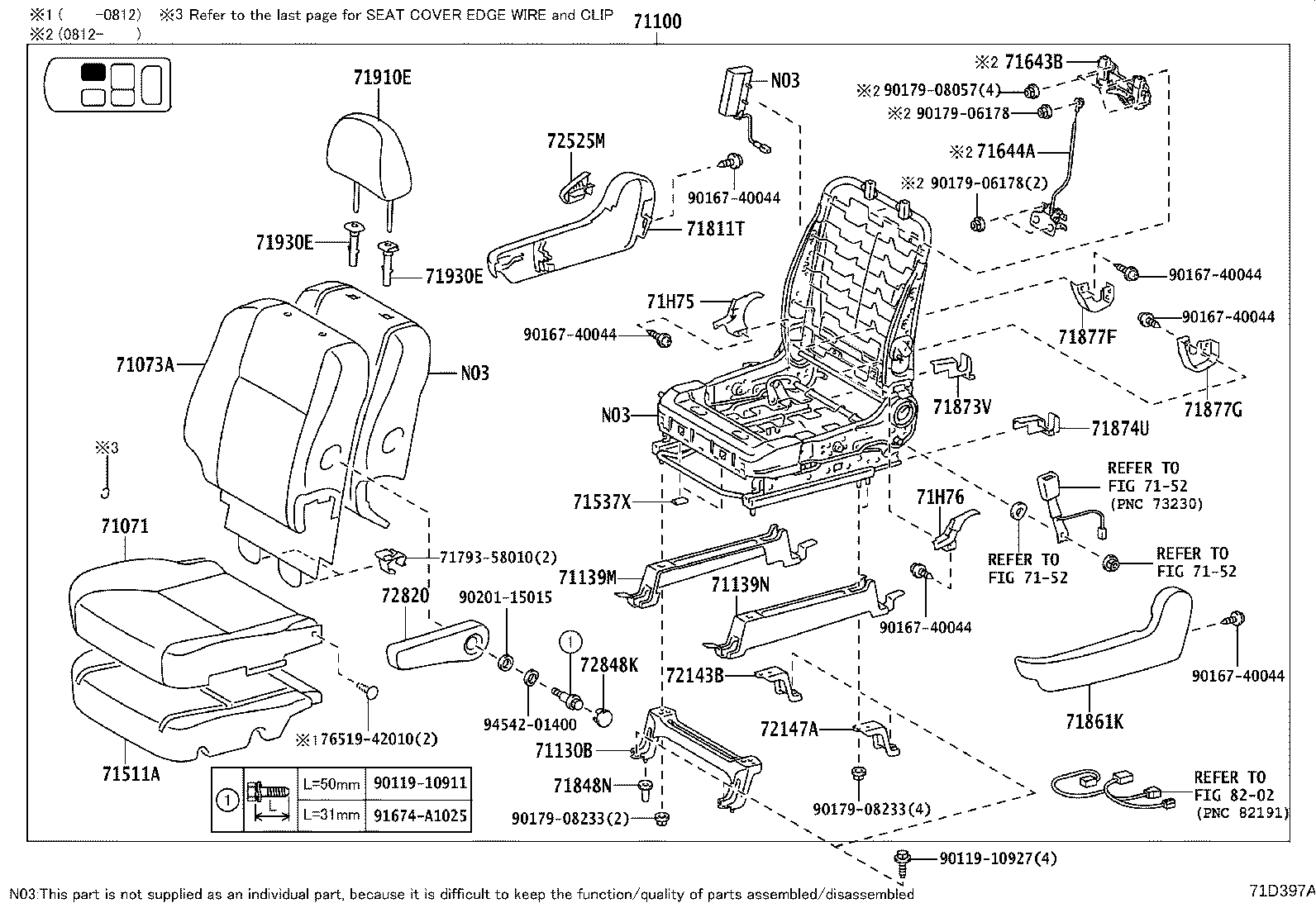

PASSENGER,W(SRS SIDE AIR BAG)

diagram 71071 71073A 71100 71130B 71139M 71139N 71511A 7152 7152 7152 71537X 71643B 71644A 7179358010 71811T 71848N 71861K 71873V 71874U 71877F 71877G 71910E 71930E 71930E 71H75 71H76 72143B 72147A 72525M 72820 72848K 7651942010 8202 9011910911 9011910927 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9017906178 9017906178 9017908057 9017908233 9017908233 9020115015 91674A1025 9454201400
Part # Description Qty Price
71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH
71071-28B70E1

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71071-28D60E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71071-28D61E0

ACR50..LHD..DLX

GREGE,TRIM4#

 1
71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH
71073-28C40E1

ACR50,GSR50..DLX

PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71073-28C30E1

ACR50,GSR50..DLX

GREGE,TRIM4#

 1
71073-28E70E0

GSR50..DLX;ACR50..LHD..DLX

GREGE,TRIM4#

 1
71073-28E80E0

ACR50..LHD..DLX

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71100 - SEAT ASSY, FRONT RH
71100-28F90E1

ACR50..LHD..DLX

PRE-COLLISION SYSTEM-BRAKE SENSING PRE-COLLISION SEAT BELT&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71100-28P40E0

ACR50..LHD..DLX

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71100-28P41E0

ACR50..LHD..DLX

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GREGE,TRIM4#

 1
71130B - LEG ASSY, FRONT SEAT, RH
71130-28050

ACR50,GSR50

 1
71139M - COVER, FRONT SEAT LEG, RH OUTER
71139-28110E0

ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL

GREGE,TRIM4#

 1
71139N - COVER, FRONT SEAT LEG, RH INNER
71149-28090E0

ACR50,GSR50..LHD

GREGE,TRIM4#

 1
71149-28090E0

ACR50,GSR50..LHD

GREGE,TRIM4#

 1
71511A - PAD, FRONT SEAT CUSHION, RH
71511-28330

ACR50..LHD..DLX

 1
71511-28330

ACR50..LHD..DLX

 1
71537X - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-26010

ACR50,GSR50

 2
71811T - SHIELD, FRONT SEAT CUSHION, RH
71811-28350E0

ACR50,GSR50..LHD

GREGE,TRIM4#

 1
71811-28350E0

ACR50,GSR50..LHD

GREGE,TRIM4#

 1
71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1
71848-33010

ACR50,GSR50

 1
71861K - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-28030E0

ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL

GREGE,TRIM4#

 1
71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-28010

ACR50,GSR50..DLX

 2
71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-28010

ACR50,GSR50..DLX

 2
71877F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT)
71875-58060

ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL

 1
71877G - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)
71876-58060

ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL

 1
71910E - HEADREST ASSY, FRONT SEAT, RH
71910-28A70E1

ACR50,GSR50..DLX

GREGE,TRIM4#

 1
71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH
71931-42020E1

ACR50,GSR50

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 1
71930-42020E1

ACR50,GSR50

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 1
71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH
71931-42020E1

ACR50,GSR50

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#

 1
71930-42020E1

ACR50,GSR50

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 1
71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT)
71875-58040E1

ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL

GREGE,TRIM4#

 1
72143B - BRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT)
72143-28100

ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL

 1
72143-28100

ACR50..LHD..DLX

 1
72143-28100

ACR50..LHD..DLX

SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

 1
72147A - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH
72143-28110

ACR50,GSR50..LHD

 1
72143-28110

ACR50..LHD..DLX

 1
72525M - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-58030E3

ACR50,GSR50..DLX;ACR50,GSR50..LHD..GL

GREGE,TRIM4#

 1
72820 - ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT)
72880-28A30E1

GSR50;ACR50..GL;ACR50..LHD..DLX

GREGE,TRIM4#

 1
72890-28D00E0

GSR50..DLX;ACR50..LHD..DLX

GREGE,TRIM4#

 1
72848K - CAP, SEAT ARMREST, NO.1(FOR RH SEAT)
72848-28030E1

GSR50;ACR50..GL;ACR50..LHD..DLX

GREGE,TRIM4#

 1
Common parts
71793-58010
76519-42010
90119-10911
90119-10927
90167-40044
90179-06178
90179-08057
90179-08233
90201-15015
91674-A1025
94542-01400
Linked diagrams
7152
8202
