ACR50L-GRPDKV (2008)
Toyota Previa/Tarago
(0601- )4FC
U241E

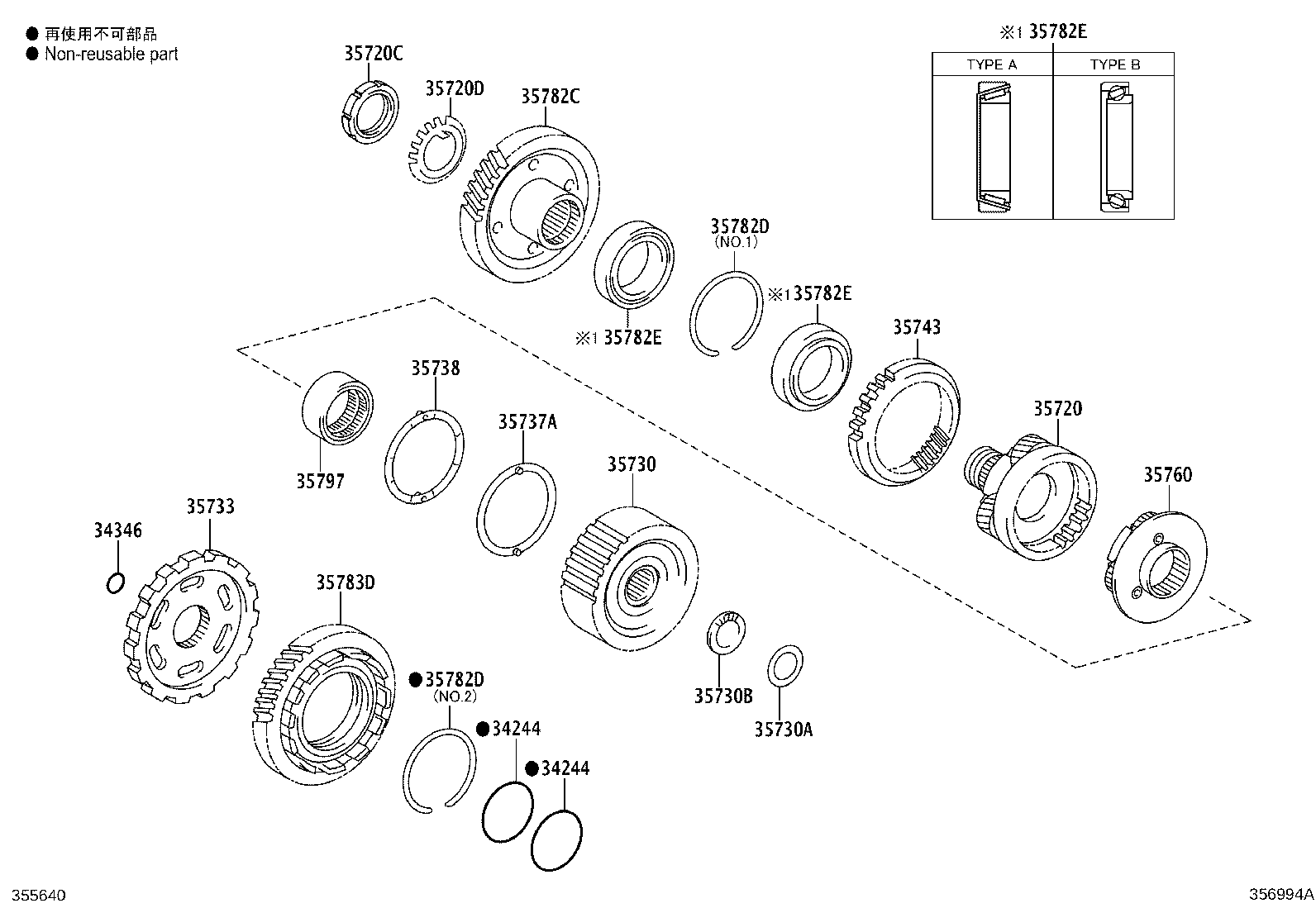

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34244 - RING, UNDERDRIVE CLUTCH DRUM OIL SEAL | ||||
| 34244-21010 |
ACR50 |
2 | ||
| 34244-21010 |
ACR50..4FC..(GCC,GEN) |
2 | ||
| 34244 - RING, UNDERDRIVE CLUTCH DRUM OIL SEAL | ||||
| 34244-21010 |
ACR50 |
2 | ||
| 34244-21010 |
ACR50..4FC..(GCC,GEN) |
2 | ||
| 34346 - RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL | ||||
| 34346-21011 |
ACR50 |
1 | ||
| 34346-21011 |
ACR50..4FC..(GCC,GEN) |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-44010 |
ACR50..4FC..(GCC,GEN) |
1 | ||
| 35720-44010 |
ACR50 |
1 | ||
| 35720C - NUT (FOR FRONT PLANETARY GEAR) | ||||
| 90179-46001 |
ACR50 |
1 | ||
| 90179-46001 |
ACR50..4FC..(GCC,GEN) |
1 | ||
| 35720D - WASHER (FOR FRONT PLANETARY GEAR) | ||||
| 90209-46001 |
ACR50 |
1 | ||
| 90209-46001 |
ACR50..4FC..(GCC,GEN) |
1 | ||
| 35730 - GEAR ASSY, REAR PLANETARY SUN | ||||
| 35730-21010 |
ACR50..4FC..(GCC,GEN) |
1 | ||
| 35730-21010 |
ACR50 |
1 | ||
| 35730A - RACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR) | ||||
| 35789-21010 |
ACR50 |
1 | ||
| 35789-21010 |
ACR50..4FC..(GCC,GEN) |
1 | ||
| 35730B - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN G | ||||
| 90374-33003 |
ACR50 |
1 | ||
| 90374-33003 |
ACR50..4FC..(GCC,GEN) |
1 | ||
| 35733 - GEAR, PARKING LOCK | ||||
| 35733-32030 |
ACR50 |
1 | ||
| 35733-32030 |
ACR50..4FC..(GCC,GEN) |
1 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-21010 |
ACR50 |
1 | ||
| 35737-21010 |
ACR50..4FC..(GCC,GEN) |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35737-21010 |
ACR50..4FC..(GCC,GEN) |
1 | ||
| 35737-21010 |
ACR50 |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-21010 |
ACR50 |
1 | ||
| 35743-21010 |
ACR50..4FC..(GCC,GEN) |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-33030 |
ACR50 |
1 | ||
| 35760-33030 |
ACR50..4FC..(GCC,GEN) |
1 | ||
| 35782C - GEAR, COUNTER DRIVE | ||||
| 35782-32031 |
ACR50..4FC..(GCC,GEN) |
1 | ||
| 35782-32031 |
ACR50 |
1 | ||
| 35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR) | ||||
| 90520-84001 |
ACR50..4FC..(GCC,GEN) NO.1 |
1 | ||
| 90520-89004 |
ACR50 NO.2 |
1 | ||
| 90520-84001 |
ACR50 NO.1 |
1 | ||
| 90520-89004 |
ACR50..4FC..(GCC,GEN) NO.2 |
1 | ||
| 35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR) | ||||
| 90520-84001 |
ACR50..4FC..(GCC,GEN) NO.1 |
1 | ||
| 90520-89004 |
ACR50 NO.2 |
1 | ||
| 90520-84001 |
ACR50 NO.1 |
1 | ||
| 90520-89004 |
ACR50..4FC..(GCC,GEN) NO.2 |
1 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90369-59001 |
ACR50 |
2 | ||
| 90369-59001 |
ACR50..4FC..(GCC,GEN) TYPE B:REFER ILLUST. |
2 | ||
| 90366-60009 |
ACR50..4FC..(GCC,GEN) TYPE A:REFER ILLUST. |
2 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90369-59001 |
ACR50 |
2 | ||
| 90369-59001 |
ACR50..4FC..(GCC,GEN) TYPE B:REFER ILLUST. |
2 | ||
| 90366-60009 |
ACR50..4FC..(GCC,GEN) TYPE A:REFER ILLUST. |
2 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90369-59001 |
ACR50 |
2 | ||
| 90369-59001 |
ACR50..4FC..(GCC,GEN) TYPE B:REFER ILLUST. |
2 | ||
| 90366-60009 |
ACR50..4FC..(GCC,GEN) TYPE A:REFER ILLUST. |
2 | ||
| 35783D - GEAR, COUNTER DRIVEN | ||||
| 35783-33040 |
ACR50 |
1 | ||
| 35783-33040 |
ACR50..4FC..(GCC,GEN) |
1 | ||
| 35797 - RACE, 1 WAY CLUTCH INNER | ||||
| 35797-21010 |
ACR50 |
1 | ||
| 35797-21010 |
ACR50..4FC..(GCC,GEN) |
1 | ||
