ACR50L-GFPGKV (2012)

Toyota Previa/Tarago

Production Apr 2012 - May 2016
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1204-1605)RHD..CVT ; (1204-1605)RHD..4FC..GEN ;(1205-1605)GSR50..RHD ; (1605-

Click highlighted areas on diagram

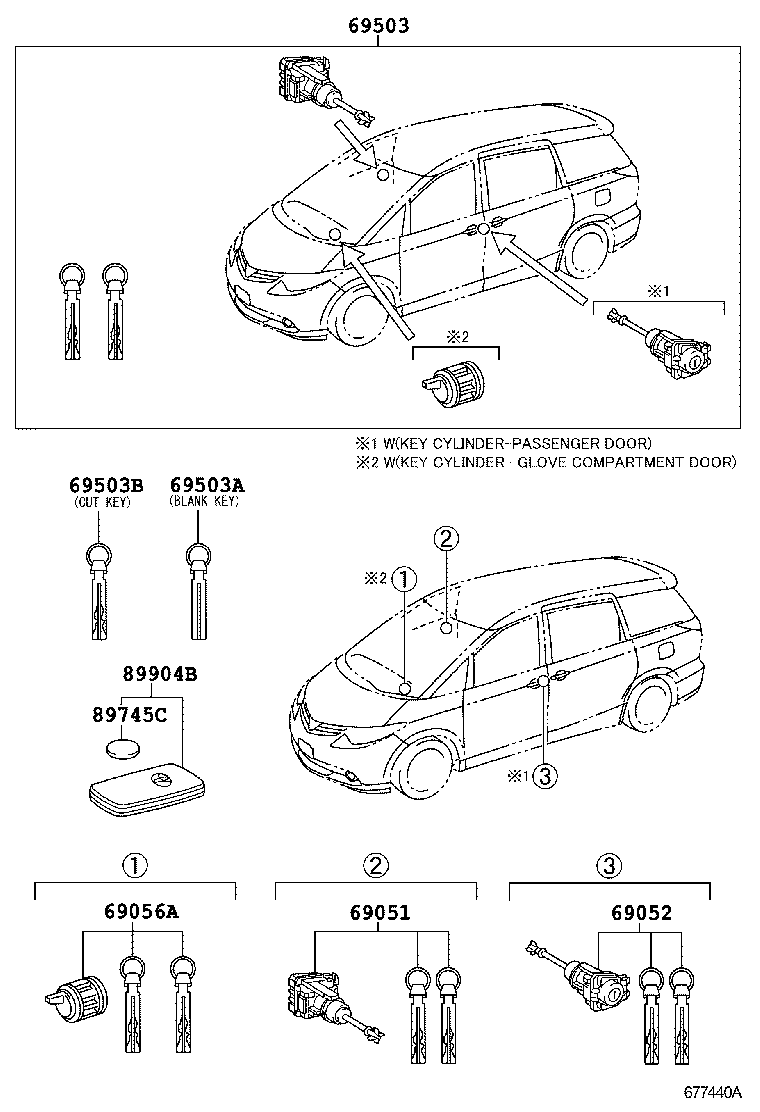

diagram 69051 69052 69056A 69503 69503A 69503B 89745C 89904B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-28330

ACR50,GSR50

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-28320

ACR50,GSR50

 1
69052-28310

ACR50,GSR50..GL..GCC

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS

 1
69052-28310

GSR50..GCC;ACR50..LHD..4FC

 1
69052-28330

GSR50..GCC;ACR50..LHD..4FC

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-33200

ACR50,GSR50..GL..GCC

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS

 1
69056-33190

ACR50,GSR50

 1
69056-33200

ACR50..GL;GSR50..ARL,GCC;ACR50..DLX..GCC;ACR50..CVT..ARL;GSR50..LHD..GEN

 1
69503 - CYLINDER SET, LOCK
69005-28B50

GSR50..GL;ACR50..LHD..GL;ACR50..RHD..GEN;ACR50..DLX..GCC

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)

 1
69005-28A40

ACR50,GSR50..GL..GCC

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS

 1
69005-28A50

ACR50,GSR50

 1
69005-28A40

GSR50..GCC;ACR50..LHD..4FC

 1
69005-28C20

GSR50..GCC;ACR50..LHD..4FC

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)

 1
69503A - KEY, BLANK
69515-52120

ACR50,GSR50..GL..GCC

MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS

 1
69515-52120

GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)

MASTER KEY,W(*68)

 1
69503B - KEY, CUT
69515-52110

ACR50,GSR50..GL..GCC

MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS

 2
69515-52110

GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..CVT..(DLX,GL);ACR50..4FC..(GCC,GEN)

MASTER KEY,W(*68)

 2
89745C - BATTERY, TRANSMITTER
89745-52030

ACR50,GSR50..GL..GCC

CR1632,WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)& W(*PBD)&HEAD LAMP-DISCHARGE + AFS

 1
89745-52030

GSR50..GCC;ACR50..RHD..GL;ACR50..LHD..4FC

CR1632

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-28120

ACR50..GL..GCC

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)&HEAD LAMP-DISCHARGE + AFS

 1
89904-28124

ACR50..RHD..GL;ACR50..LHD..4FC..GL

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH) & W(*PBD)

 1
89904-28250

ACR50..GCC

 1
