ACR50L-GFPGK (2006)
Toyota Previa/Tarago

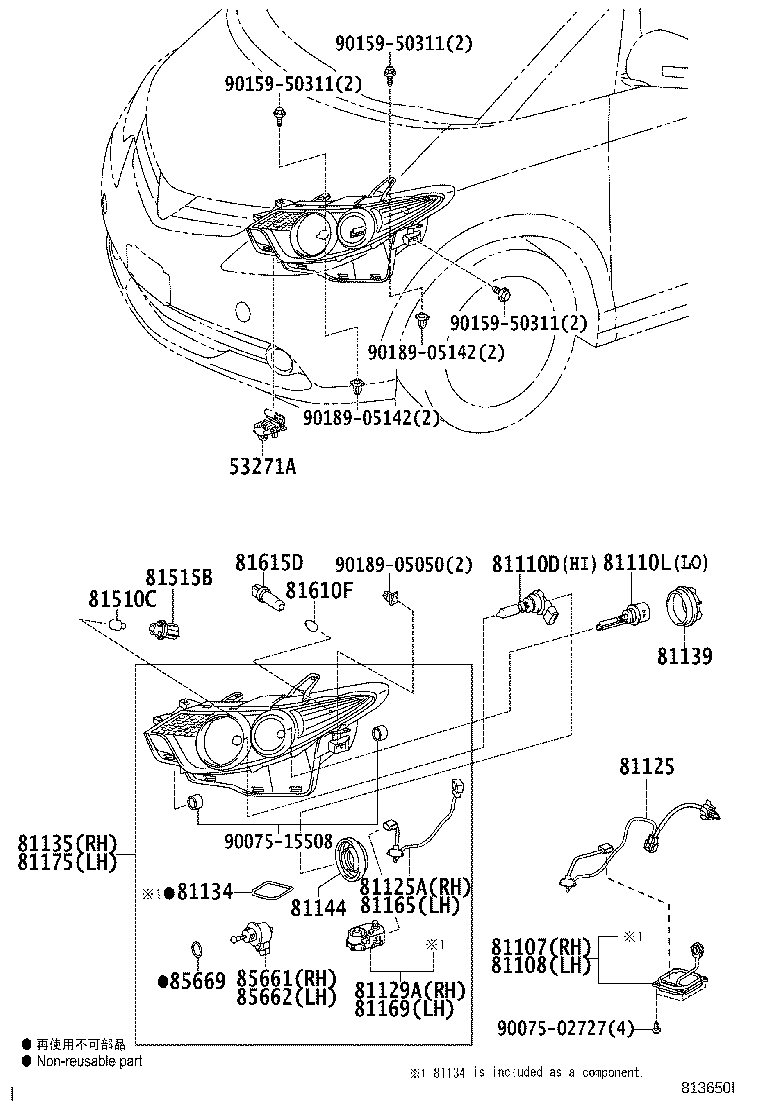

ILLUST NO. 1 OF 2(0601-0812)
HALOGEN HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-44010 |
ACR50,GSR50 |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
ACR50,GSR50..GCC,GEN 12V65W(SAE),60W(ECE) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13075 |
ACR50,GSR50 12V 55W,HALOGEN |
2 | ||
| 90981-13046 |
ACR50,GSR50..GL..(GCC,GEN) 12V65W(SAE),60W(ECE),HEAD LAMP-DISCHARGE + AFS |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-28A00 |
ACR50..LHD |
2 | ||
| 81125-28A10 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
2 | ||
| 81125-28A10 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
2 | ||
| 81125-28A00 |
ACR50..LHD |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-28A50 |
ACR50..LHD |
1 | ||
| 81145-28A60 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81145-28A61 |
ACR50,GSR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81130-28A51 |
ACR50,GSR50..LHD |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81189-28A10 |
ACR50..LHD |
2 | ||
| 81189-28A10 |
ACR50..LHD |
2 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65006 |
ACR50,GSR50 |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-28A50 |
ACR50..LHD |
1 | ||
| 81185-28A61 |
ACR50,GSR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81170-28A51 |
ACR50,GSR50..LHD |
1 | ||
| 81185-28A60 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
ACR50..LHD 12V 21W,AMBER |
2 | ||
| 90981-15021 |
ACR50..LHD 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ACR50,GSR50 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ACR50..LHD 12V 5W |
2 | ||
| 99132-12050 |
ACR50..LHD 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
ACR50,GSR50 |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-28010 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 85661-12010 |
ACR50..LHD |
1 | ||
| 85661-12010 |
ACR50..LHD |
1 | ||
| 85661-28010 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85691-28010 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 85691-28010 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 85661-12010 |
ACR50..LHD |
1 | ||
| 85661-12010 |
ACR50..LHD |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
ACR50,GSR50 |
2 | ||
| Common parts | ||||
| 90075-15508 | ||||
| 90159-50311 | ||||
| 90189-05050 | ||||
| 90189-05142 | ||||
ILLUST NO. 1 OF 2(0601-0812)GL
DISCHAGE HEADLAMP & W(AFS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-44010 |
ACR50,GSR50 |
2 | ||
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-21150 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81107-21150 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-21150 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81107-21150 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13075 |
ACR50,GSR50 12V 55W,HALOGEN |
2 | ||
| 90981-13046 |
ACR50,GSR50..GL..(GCC,GEN) 12V65W(SAE),60W(ECE),HEAD LAMP-DISCHARGE + AFS |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20013 |
ACR50..GL 45V 35W,HEAD LAMP-DISCHARGE + AFS |
2 | ||
| 90981-20021 |
ACR50,GSR50..GL 45V 35W,HEAD LAMP-DISCHARGE + AFS |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-28A00 |
ACR50..LHD |
2 | ||
| 81125-28A10 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
2 | ||
| 81125-28A10 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
2 | ||
| 81125-28A00 |
ACR50..LHD |
2 | ||
| 81125A - CORD, HEADLAMP, RH | ||||
| 81165-28A10 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81165-28A10 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81129A - REFLECTOR, HEADLAMP, RH | ||||
| 81129-33680 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81129-33680 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
ACR50,GSR50..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-28A50 |
ACR50..LHD |
1 | ||
| 81145-28A60 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81145-28A61 |
ACR50,GSR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81130-28A51 |
ACR50,GSR50..LHD |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81189-28A10 |
ACR50..LHD |
2 | ||
| 81189-28A10 |
ACR50..LHD |
2 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65006 |
ACR50,GSR50 |
2 | ||
| 81165 - CORD, HEADLAMP, LH | ||||
| 81165-28A10 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81165-28A10 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81169 - REFLECTOR, HEADLAMP, LH | ||||
| 81169-33680 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81169-33680 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-28A50 |
ACR50..LHD |
1 | ||
| 81185-28A61 |
ACR50,GSR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81170-28A51 |
ACR50,GSR50..LHD |
1 | ||
| 81185-28A60 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
ACR50..LHD 12V 21W,AMBER |
2 | ||
| 90981-15021 |
ACR50..LHD 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ACR50,GSR50 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ACR50..LHD 12V 5W |
2 | ||
| 99132-12050 |
ACR50..LHD 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
ACR50,GSR50 |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-28010 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 85661-12010 |
ACR50..LHD |
1 | ||
| 85661-12010 |
ACR50..LHD |
1 | ||
| 85661-28010 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85691-28010 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 85691-28010 |
ACR50..LHD..GL HEAD LAMP-DISCHARGE + AFS |
1 | ||
| 85661-12010 |
ACR50..LHD |
1 | ||
| 85661-12010 |
ACR50..LHD |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
ACR50,GSR50 |
2 | ||
| Common parts | ||||
| 90075-02727 | ||||
| 90075-15508 | ||||
| 90159-50311 | ||||
| 90189-05050 | ||||
| 90189-05142 | ||||
ILLUST NO. 2 OF 2(0601-0812)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-28060 |
ACR50,GSR50 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-28070 |
ACR50,GSR50 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-28060 |
ACR50,GSR50 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-28070 |
ACR50,GSR50 |
1 | ||
