ACR30R-MRSDKW (2000)
Toyota Previa/Tarago
Production
Feb 2000
-
Jan 2006
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0002- )

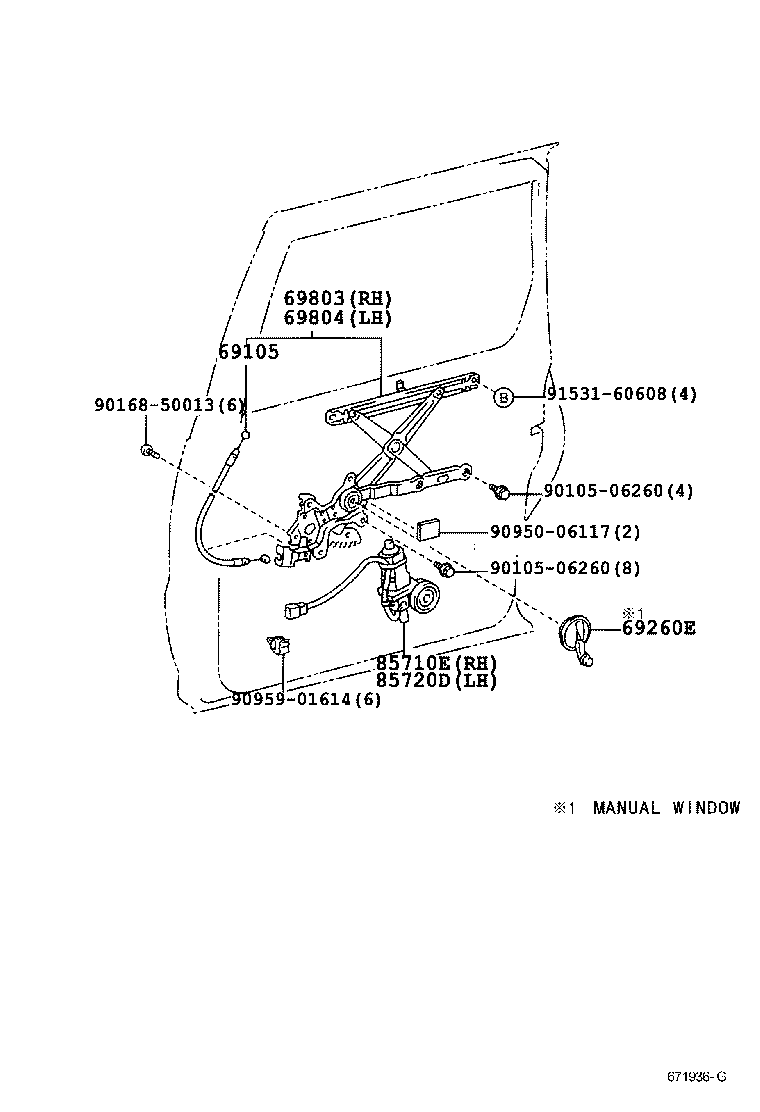

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69105 - CABLE SUB-ASSY, SLIDE DOOR HALF STOP CONTROL | ||||
| 69105-28020 |
ACR30,CLR30..(07S,08S)..DX |
2 | ||
| 69105-28010 |
ACR30,CLR30 W(POWER WINDOW) |
2 | ||
| 69105-28010 |
ACR30,CLR30 W(POWER WINDOW) |
2 | ||
| 69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR | ||||
| 69260-28030B2 |
ACR30,CLR30..(07S,08S)..DX BLUISH GRAY,TRIM11 |
2 | ||
| 69260-28030B1 |
ACR30,CLR30..(07S,08S)..DX MD.CHARCOAL,TRIM12 |
2 | ||
| 69260-28030B0 |
ACR30..(07S,08S)..DX LT. BLUISH GRAY,TRIM11 |
2 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69830-28020 |
ACR30,CLR30..(07S,08S)..DX |
1 | ||
| 69803-28010 |
ACR30,CLR30 W(POWER WINDOW) |
1 | ||
| 69803-28010 |
ACR30,CLR30 W(POWER WINDOW) |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-28080 |
ACR30,CLR30..(07S,08S)..DX |
1 | ||
| 69804-28060 |
ACR30,CLR30 W(POWER WINDOW) |
1 | ||
| 69804-28060 |
ACR30,CLR30 W(POWER WINDOW) |
1 | ||
| 85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85710-28050 |
ACR30,CLR30 |
1 | ||
| 85710-28050 |
ACR30,CLR30 |
1 | ||
| 85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85720-28070 |
ACR30,CLR30 |
1 | ||
| 85720-28070 |
ACR30,CLR30 |
1 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90168-50013 | ||||
| 90950-06117 | ||||
| 90959-01614 | ||||
| 91531-60608 | ||||
