Toyota Previa/tarago ACR30 ELECTRONIC FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012	ACR30	02/2000 - 04/2003	1
90987-02012	ACR30	04/2003 - 06/2003	1
90987-02027	ACR30	06/2003 - 01/2006	1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02009	ACR30	02/2000 - 04/2003	1
90987-02009	ACR30	04/2003 - 01/2006	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030	ACR30	04/2003 - 01/2006	1
89422-35010	ACR30	02/2000 - 04/2003	1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-33030	ACR30	02/2000 - 04/2003	1
89661 - COMPUTER, ENGINE CONTROL
89666-28060	ACR30..ARL	02/2000 - 06/2000	1
89666-28061	ACR30..ARL PART NUMBER LABEL=89666-28061	06/2000 - 05/2001	1
89666-28062	ACR30..ARL	05/2001 - 04/2003	1
89661-28A80	ACR30..ARL,GCC PART NUMBER LABEL=89661-28A80	04/2003 - 01/2006	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-28060	ACR30..RHD	02/2000 - 04/2003	1
89667-28060	ACR30..RHD	04/2003 - 01/2006	1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-28070	ACR30..RHD	02/2000 - 04/2003	1
89667-28070	ACR30..RHD	04/2003 - 01/2006	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-28060	ACR30..RHD	04/2003 - 01/2006	1
89668-28060	ACR30..RHD	02/2000 - 04/2003	1
Common parts
90149-50069
90430-12005
91631-J0612
91651-40612
93319-15010
94150-80600

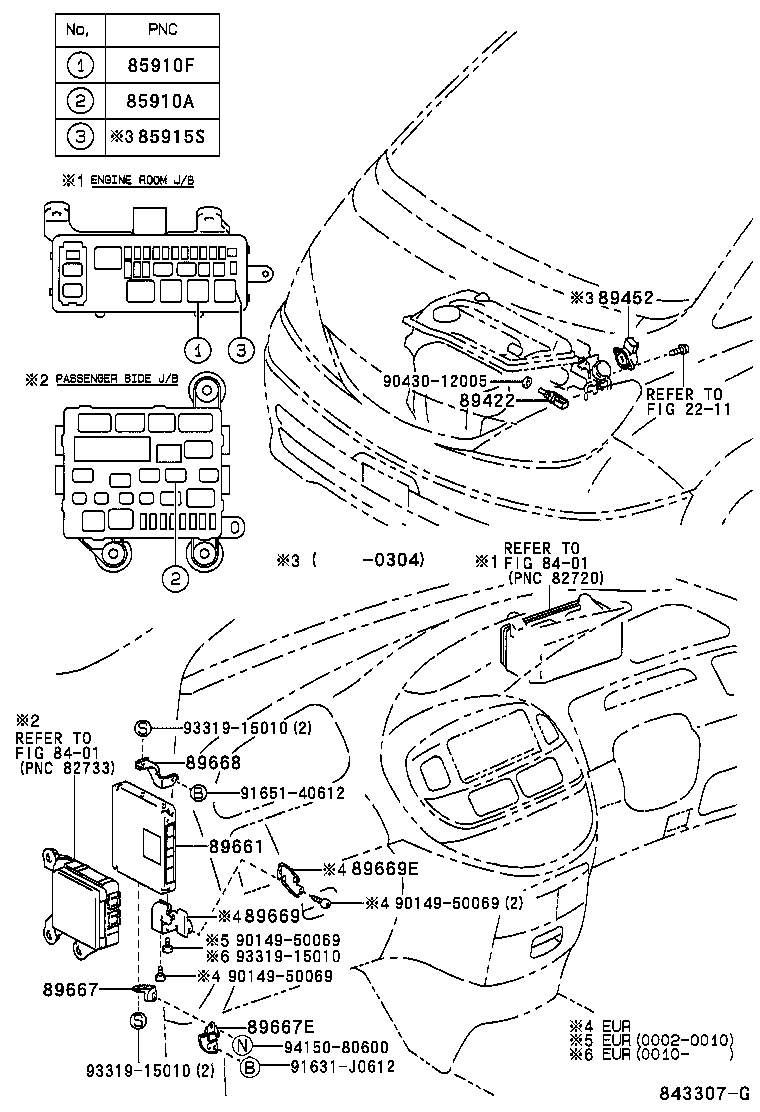

Linked diagrams
2211
8401

ACR30R-MRSDKQ (2000)
