ACR30R-MFSDKW (2000)
Toyota Previa/Tarago

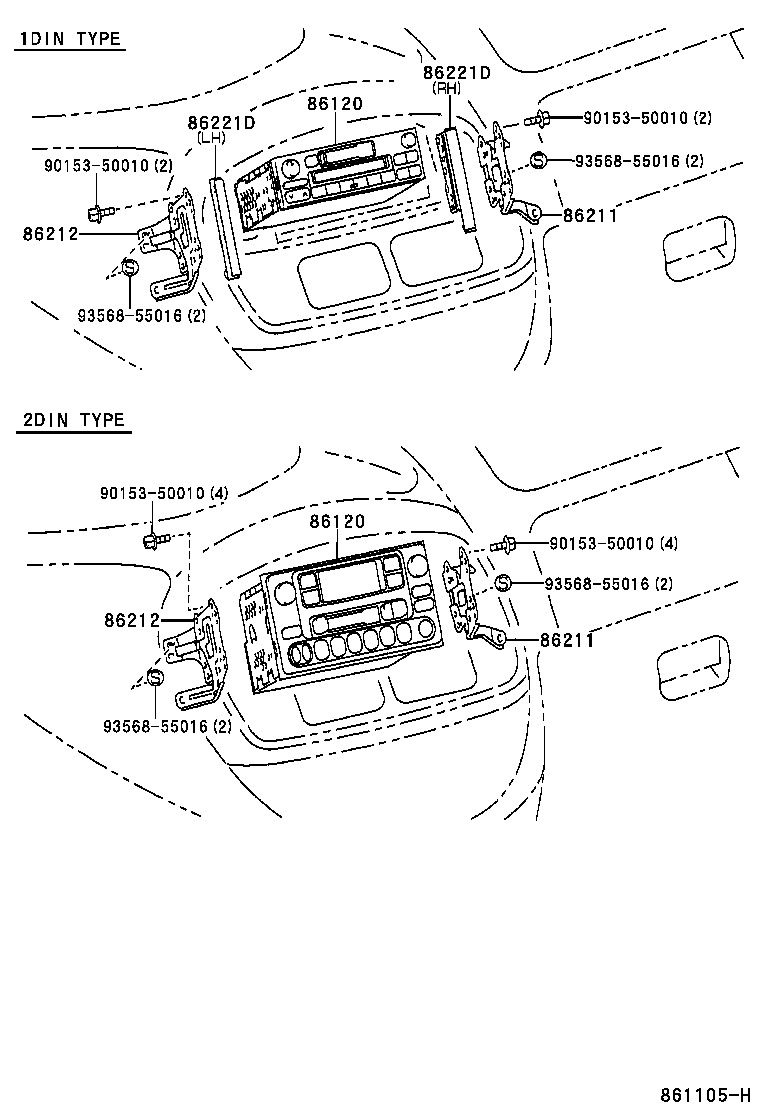

ILLUST NO. 1 OF 3(0002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-28381 |
ACR30..EUR MATSUSHITA, ID=58803,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-28351 |
ACR30,CLR30..EUR FUJITSU TEN,ID=18303,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-28380 |
ACR30..EUR MATSUSHITA, ID=58800,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-28350 |
ACR30..EUR FUJITSU TEN,ID=18301,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-33460 |
ACR30..GEN;ACR30..RHD..ATM MATSUSHITA,ID=57412,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 86120-28382 |
ACR30,CLR30..EUR MATSUSHITA, ID=58805,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-28351 |
ACR30..08S..ATM..EUR;ACR30,CLR30..(06S,07S)..EUR FUJITSU TEN,ID=18303,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-2B610 |
ACR30..GEN;ACR30..RHD..(07S,08S)..ATM FUJITSU TEN,ID=17411,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 86120-28470 |
ACR30..08S..ATM..EUR;ACR30,CLR30..(06S,07S)..EUR MATSUSHITA, ID=58809,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-28381 |
ACR30..EUR MATSUSHITA, ID=58803,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-28351 |
ACR30,CLR30..EUR FUJITSU TEN,ID=18303,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-28380 |
ACR30..EUR MATSUSHITA, ID=58800,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-28350 |
ACR30..EUR FUJITSU TEN,ID=18301,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-33460 |
ACR30..GEN;ACR30..RHD..ATM MATSUSHITA,ID=57412,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 86120-28382 |
ACR30,CLR30..EUR MATSUSHITA, ID=58805,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-28351 |
ACR30..08S..ATM..EUR;ACR30,CLR30..(06S,07S)..EUR FUJITSU TEN,ID=18303,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-2B610 |
ACR30..GEN;ACR30..RHD..(07S,08S)..ATM FUJITSU TEN,ID=17411,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 86120-28470 |
ACR30..08S..ATM..EUR;ACR30,CLR30..(06S,07S)..EUR MATSUSHITA, ID=58809,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-28110 |
ACR30,CLR30..RHD |
1 | ||
| 86211-28110 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-28110 |
ACR30,CLR30..RHD |
1 | ||
| 86211-28110 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-28110 |
ACR30,CLR30..RHD |
1 | ||
| 86212-28110 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-28110 |
ACR30,CLR30..RHD |
1 | ||
| 86212-28110 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S |
1 | ||
| 86221D - PANEL, RADIO RECEIVER | ||||
| 86221-52060 |
ACR30,CLR30 RH |
1 | ||
| 86221-52060 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S RH |
1 | ||
| 86221-52050 |
ACR30,CLR30 LH |
1 | ||
| 86221-52050 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S LH |
1 | ||
| 86221D - PANEL, RADIO RECEIVER | ||||
| 86221-52060 |
ACR30,CLR30 RH |
1 | ||
| 86221-52060 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S RH |
1 | ||
| 86221-52050 |
ACR30,CLR30 LH |
1 | ||
| 86221-52050 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S LH |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 93568-55016 | ||||

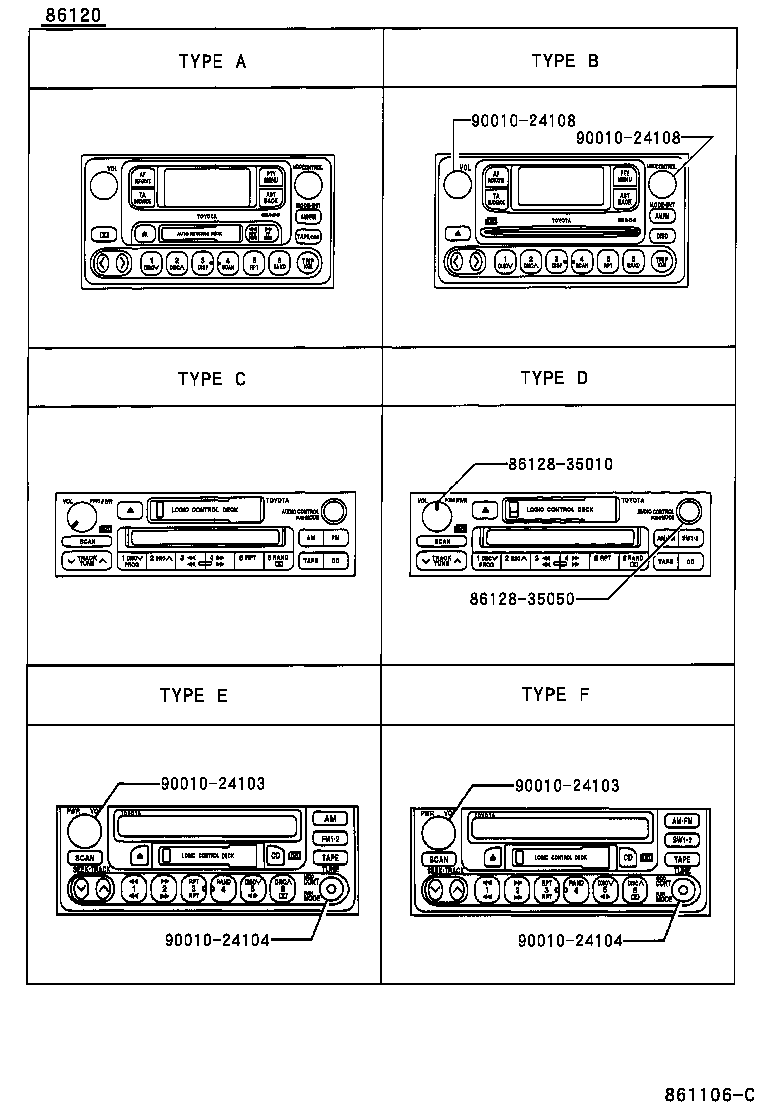

ILLUST NO. 2 OF 3(0002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-28381 |
ACR30..EUR MATSUSHITA, ID=58803,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-28351 |
ACR30,CLR30..EUR FUJITSU TEN,ID=18303,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-28380 |
ACR30..EUR MATSUSHITA, ID=58800,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-28350 |
ACR30..EUR FUJITSU TEN,ID=18301,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-33460 |
ACR30..GEN;ACR30..RHD..ATM MATSUSHITA,ID=57412,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 86120-28382 |
ACR30,CLR30..EUR MATSUSHITA, ID=58805,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-28351 |
ACR30..08S..ATM..EUR;ACR30,CLR30..(06S,07S)..EUR FUJITSU TEN,ID=18303,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-2B610 |
ACR30..GEN;ACR30..RHD..(07S,08S)..ATM FUJITSU TEN,ID=17411,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 86120-28470 |
ACR30..08S..ATM..EUR;ACR30,CLR30..(06S,07S)..EUR MATSUSHITA, ID=58809,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| Common parts | ||||
| 86128-35010 | ||||
| 86128-35050 | ||||
| 90010-24103 | ||||
| 90010-24104 | ||||
| 90010-24108 | ||||

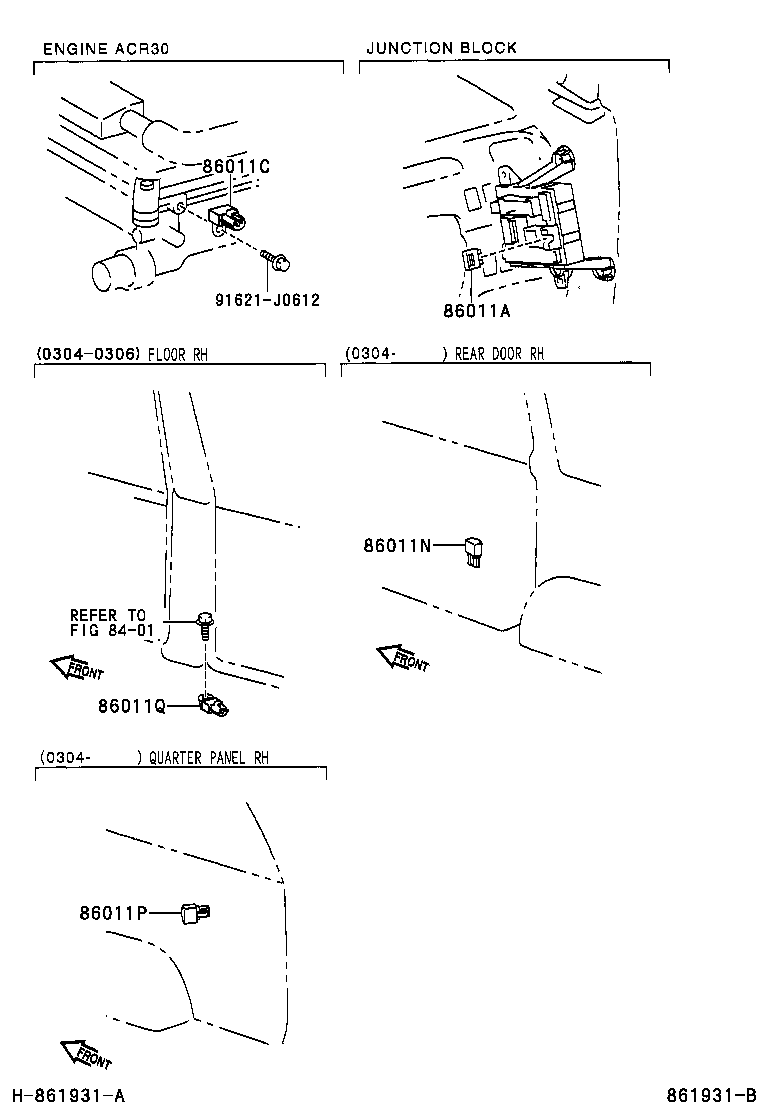

ILLUST NO. 3 OF 3(0002- )
CONDENSER & NOISE FILTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04066 |
ACR30,CLR30 JUNCTION BLOCK |
1 | ||
| 90980-04066 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S JUNCTION BLOCK |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05314 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 90980-05314 |
ACR30 |
1 | ||
| 86011N - FILTER, NOISE | ||||
| 90980-04111 |
ACR30..(07S,08S)..ATM..(EUR,GCC,GEN) |
1 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04130 |
ACR30..(07S,08S)..ATM..(EUR,GCC,GEN) |
1 | ||
| Common parts | ||||
| 91621-J0612 | ||||
| Linked diagrams | ||||
| 8401 | ||||
