ACR30R-MFSDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Jan 2006
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )

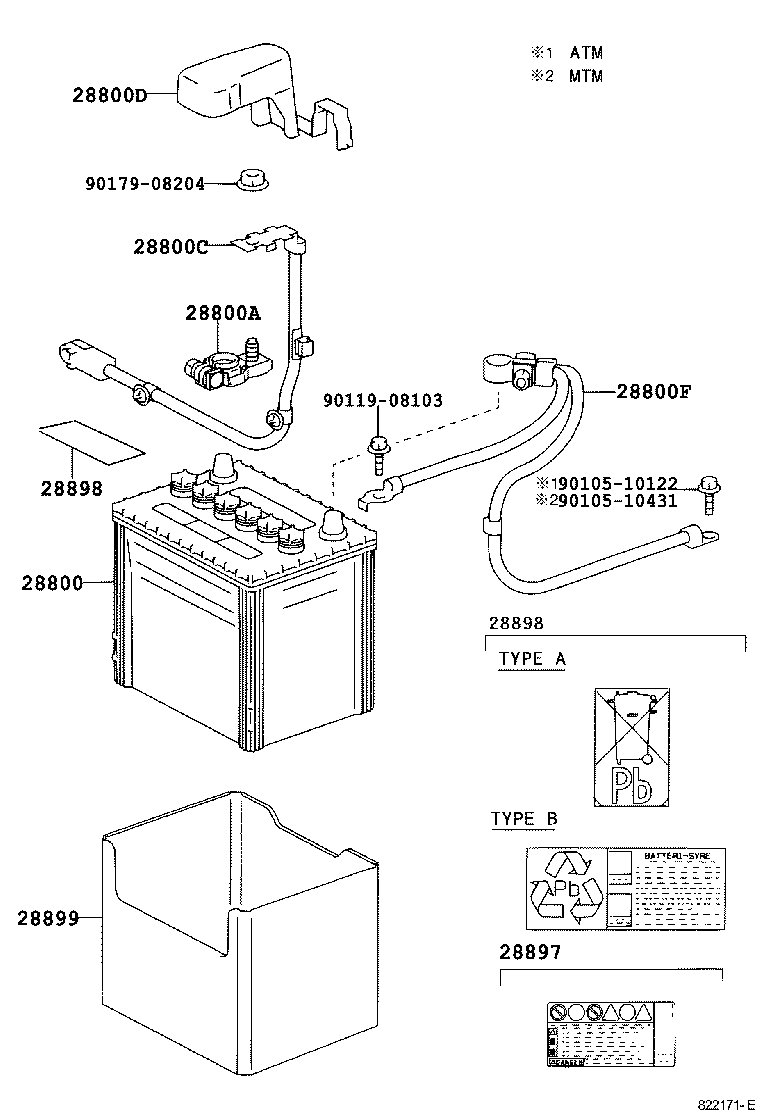

Click highlighted areas on diagram

diagram 28800 28800A 28800C 28800D 28800F 28897 28898 28899 9010510122 9010510431 9011908103 9017908204
Part # Description Qty Price
28800 - BATTERY
28800-64010

2AZFE..ACR30..ARL,EUR,GEN

55D23L,GS

 1
28800-42042

2AZFE..ACR30

55D23L,YUASA

 1
28800-74261

2AZFE..ACR30..ARL,EUR

46B24L(S)

 1
28800-42042

2AZFE..ACR30..06S,07S;2AZFE..ACR30..08S..MTM;2AZFE..ACR30..DX..(ARL,GCC)

55D23L,YUASA

 1
28800-42061

2AZFE..ACR30

55D23L,FURUKAWA

 1
28800-42041

2AZFE..ACR30..06S,07S;2AZFE..ACR30..08S..MTM;2AZFE..ACR30..DX..(ARL,GCC)

55D23L,MATSUSHITA

 1
28800-74261

2AZFE..ACR30..ARL,EUR

46B24L(S)

 1
28800-42061

2AZFE..ACR30..06S,07S;2AZFE..ACR30..08S..MTM;2AZFE..ACR30..DX..(ARL,GCC)

55D23L,FURUKAWA

 1
28800-74260

2AZFE..ACR30..ARL,EUR

46B24L(S)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05053

2AZFE,1CDFTV..ACR30,CLR30

 1
90982-05035

2AZFE,1CDFTV..ACR30,CLR30

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-28390

2AZFE..ACR30

W(BATTERY=55D23L)

 1
82122-28450

2AZFE..ACR30..ARL,EUR

W(BATTERY=46B24L)

 1
82122-28390

2AZFE..ACR30

W(BATTERY=55D23L)

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-20350

2AZFE,1CDFTV..ACR30,CLR30

 1
82821-20350

2AZFE,1CDFTV..ACR30,CLR30

 1
28800F - CABLE, BATTERY TO BATTERY
82123-28390

2AZFE..ACR30..ATM

 1
82123-28230

2AZFE..ACR30..ATM

 1
28898 - PLATE, BATTERY
28898-16020

2AZFE,1CDFTV..ACR30,CLR30..EUR

TYPE A:REFER TO ILLUSTRATION

 1
28898-46020

2AZFE,1CDFTV..ACR30,CLR30..EUR

TYPE A:REFER TO ILLUSTRATION

 1
Common parts
90105-10122
90105-10431
90119-08103
90179-08204
