ACR30R-MFSDKW (2000)
Toyota Previa/Tarago

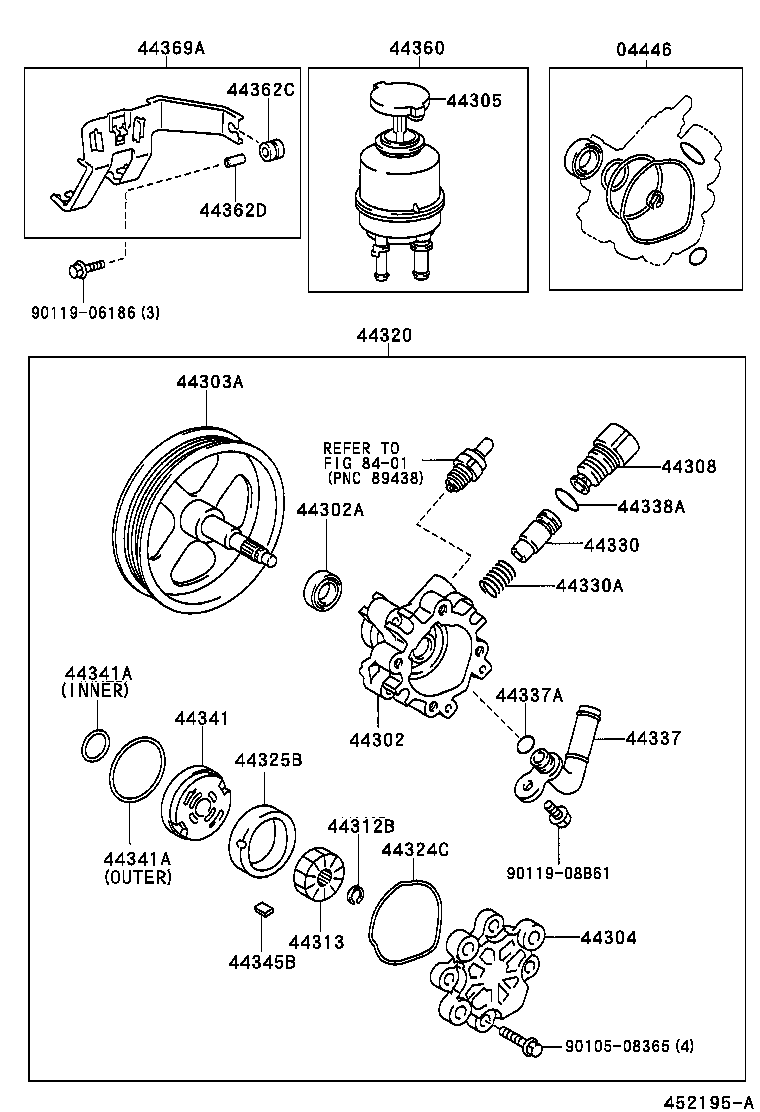

(0002-0304)ACR30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-32050 |
ACR30 |
1 | ||
| 04446-32050 |
ACR30 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-32100 |
ACR30 |
1 | ||
| 44302A - SEAL, OIL, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90311-15012 |
ACR30 |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-28010 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 44303-28010 |
ACR30 |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-32041 |
ACR30 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-28030 |
ACR30 |
1 | ||
| 44305-28030 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-28040 |
ACR30 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
ACR30,CLR30 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-32080 |
ACR30 MARK 2 |
1 | ||
| 44313-32060 |
ACR30 NO MARK |
1 | ||
| 44313-32090 |
ACR30 MARK 3 |
1 | ||
| 44313-32070 |
ACR30 MARK 1 |
1 | ||
| 44313-32100 |
ACR30 MARK 4 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-28240 |
ACR30 |
1 | ||
| 44310-28240 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90903-01007 |
ACR30 |
1 | ||
| 44325B - RING, VANE PUMP CAM | ||||
| 44325-28030 |
ACR30 MARK 2 |
1 | ||
| 44325-28020 |
ACR30 MARK 1 |
1 | ||
| 44325-28010 |
ACR30 MARK 0 |
1 | ||
| 44325-28040 |
ACR30 MARK 3 |
1 | ||
| 44325-28050 |
ACR30 MARK 4 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-28190 |
ACR30 MARK A |
1 | ||
| 44330-28200 |
ACR30 MARK B |
1 | ||
| 44330-28210 |
ACR30 MARK C |
1 | ||
| 44330-28240 |
ACR30 MARK F |
1 | ||
| 44330-35350 |
ACR30 MARK E |
1 | ||
| 44330-28220 |
ACR30 MARK D |
1 | ||
| 44330-35310 |
ACR30 MARK A |
1 | ||
| 44330-28230 |
ACR30 MARK E |
1 | ||
| 44330-35330 |
ACR30 MARK C |
1 | ||
| 44330-35360 |
ACR30 MARK F |
1 | ||
| 44330-35340 |
ACR30 MARK D |
1 | ||
| 44330-35320 |
ACR30 MARK B |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-13069 |
ACR30 |
1 | ||
| 90501-12103 |
ACR30 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-32110 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 44337-32110 |
ACR30 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11020 |
ACR30 |
1 | ||
| 90301-11020 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-18009 |
ACR30 OD=22,ID=18.6 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32031 |
ACR30 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-16012 |
ACR30 INNER |
1 | ||
| 90301-45003 |
ACR30 OUTER |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-16012 |
ACR30 INNER |
1 | ||
| 90301-45003 |
ACR30 OUTER |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-32120 |
ACR30 ROTOR MARK 2 |
10 | ||
| 44345-32140 |
ACR30 ROTOR MARK 4 |
10 | ||
| 44345-32130 |
ACR30 ROTOR MARK 3 |
10 | ||
| 44345-32110 |
ACR30 ROTOR MARK 1 |
10 | ||
| 44345-32100 |
ACR30 ROTOR NO MARK |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-28150 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 44360-28150 |
ACR30 |
1 | ||
| 44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90540-09004 |
ACR30 |
3 | ||
| 90540-09004 |
ACR30..06S,07S;ACR30..08S..ATM |
3 | ||
| 44362D - SPACER(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90560-06014 |
ACR30 |
3 | ||
| 90560-06014 |
ACR30..06S,07S;ACR30..08S..ATM |
3 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-28030 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 44390-28030 |
ACR30 |
1 | ||
| Common parts | ||||
| 90105-08365 | ||||
| 90119-06186 | ||||
| 90119-08B61 | ||||
| Linked diagrams | ||||
| 8401 | ||||

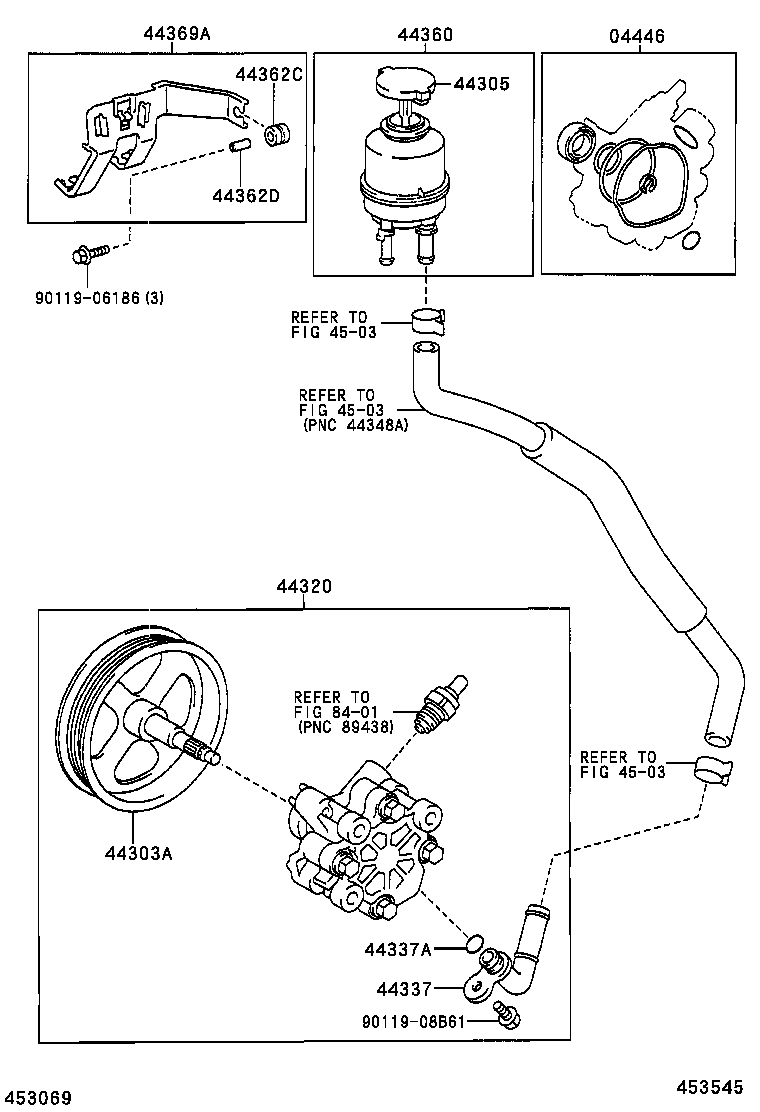

(0304- )ACR30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-32050 |
ACR30 |
1 | ||
| 04446-32050 |
ACR30 |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-28010 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 44303-28010 |
ACR30 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-28030 |
ACR30 |
1 | ||
| 44305-28030 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-28240 |
ACR30 |
1 | ||
| 44310-28240 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-32110 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 44337-32110 |
ACR30 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11020 |
ACR30 |
1 | ||
| 90301-11020 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-28150 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 44360-28150 |
ACR30 |
1 | ||
| 44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90540-09004 |
ACR30 |
3 | ||
| 90540-09004 |
ACR30..06S,07S;ACR30..08S..ATM |
3 | ||
| 44362D - SPACER(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90560-06014 |
ACR30 |
3 | ||
| 90560-06014 |
ACR30..06S,07S;ACR30..08S..ATM |
3 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-28030 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 44390-28030 |
ACR30 |
1 | ||
| Common parts | ||||
| 90119-06186 | ||||
| 90119-08B61 | ||||
| Linked diagrams | ||||
| 4503 | ||||
| 8401 | ||||
