Toyota Previa/tarago ACR30 ALTERNATOR

ACR30R-MFSDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Jan 2006

Engine 2AZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0002-0304)2AZFE

Click highlighted areas on diagram

12V 100A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-28070	2AZFE..ACR30 12V 100A	02/2000 - 04/2003	1
27060-28260	2AZFE..ACR30..06S,07S;2AZFE..ACR30..08S..ATM 12V 100A	04/2003 - 12/2999	1
27020E - BOLT(FOR ALTERNATOR)
91511-J0840	2AZFE..ACR30 NO.2	04/2003 - 10/2005	1
91512-81085	2AZFE..ACR30 NO.1	04/2003 - 12/2999	1
91551-80840	2AZFE..ACR30 NO.2	11/2005 - 12/2999	1
91512-81085	2AZFE..ACR30 NO.1	02/2000 - 04/2003	1
91511-60840	2AZFE..ACR30 NO.2	02/2000 - 04/2003	1
27020E - BOLT(FOR ALTERNATOR)
91511-J0840	2AZFE..ACR30 NO.2	04/2003 - 10/2005	1
91512-81085	2AZFE..ACR30 NO.1	04/2003 - 12/2999	1
91551-80840	2AZFE..ACR30 NO.2	11/2005 - 12/2999	1
91512-81085	2AZFE..ACR30 NO.1	02/2000 - 04/2003	1
91511-60840	2AZFE..ACR30 NO.2	02/2000 - 04/2003	1
27039 - COVER, ALTERNATOR REAR END
27039-27010	2AZFE..ACR30	02/2000 - 01/2001	1
27039-28060	2AZFE..ACR30	01/2001 - 04/2003	1
27039-27060	2AZFE..ACR30	04/2003 - 01/2006	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	2AZFE..ACR30	02/2000 - 04/2003	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-28060	2AZFE..ACR30	02/2000 - 04/2003	1
27310-28120	2AZFE..ACR30	04/2003 - 01/2006	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10219	2AZFE..ACR30	02/2000 - 04/2003	1
90099-10142	2AZFE,1CDFTV..ACR30,CLR30	04/2003 - 01/2006	1
27312 - PLATE, RETAINER
27312-42010	2AZFE..ACR30	02/2000 - 04/2003	1
27312-72100	2AZFE,1CDFTV..ACR30,CLR30	04/2003 - 01/2006	1
27330 - ROTOR ASSY, ALTERNATOR
27330-20070	2AZFE..ACR30	02/2000 - 04/2003	1
27330-30070	2AZFE..ACR30	04/2003 - 01/2006	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	2AZFE,1CDFTV..ACR30,CLR30	04/2003 - 01/2006	1
90099-10140	2AZFE,1CDFTV..ACR30,CLR30	02/2000 - 04/2003	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-70450	2AZFE..ACR30	02/2000 - 04/2003	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-28060	2AZFE..ACR30	02/2000 - 04/2003	1
27365 - PLATE, TERMINAL
27365-55080	2AZFE..ACR30	02/2000 - 04/2003	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	2AZFE..ACR30	02/2000 - 04/2003	1
27370-58460	2AZFE..ACR30	04/2003 - 01/2006	1
27387 - INSULATOR, TERMINAL
27387-42021	2AZFE..ACR30	02/2000 - 04/2003	1
27387-20130	2AZFE,1CDFTV..ACR30,CLR30	04/2003 - 12/2999	1
27388 - COVER, ALTERNATOR BRUSH
27388-42010	2AZFE..ACR30	02/2000 - 04/2003	1
27389 - INSULATOR, TERMINAL
27389-42010	2AZFE..ACR30	02/2000 - 04/2003	4
27411 - PULLEY, ALTERNATOR
27411-28060	2AZFE..ACR30	02/2000 - 04/2003	1
27411-28060	2AZFE..ACR30..06S,07S;2AZFE..ACR30..08S..ATM	04/2003 - 12/2999	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	2AZFE,1CDFTV..ACR30,CLR30	04/2003 - 01/2006	1
27443-63020	2AZFE,1CDFTV..ACR30,CLR30	02/2000 - 04/2003	1
27446 - CLIP, ALTERNATOR CORD
27446-28120	2AZFE..ACR30..06S,07S;2AZFE..ACR30..08S..ATM	04/2003 - 12/2999	1
27446-28060	2AZFE..ACR30	02/2000 - 04/2003	1
27700A - REGULATOR ASSY, GENERATOR
27700-27070	2AZFE..ACR30	02/2000 - 04/2003	1
Common parts
27384-50030
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
93319-14025
94150-80600

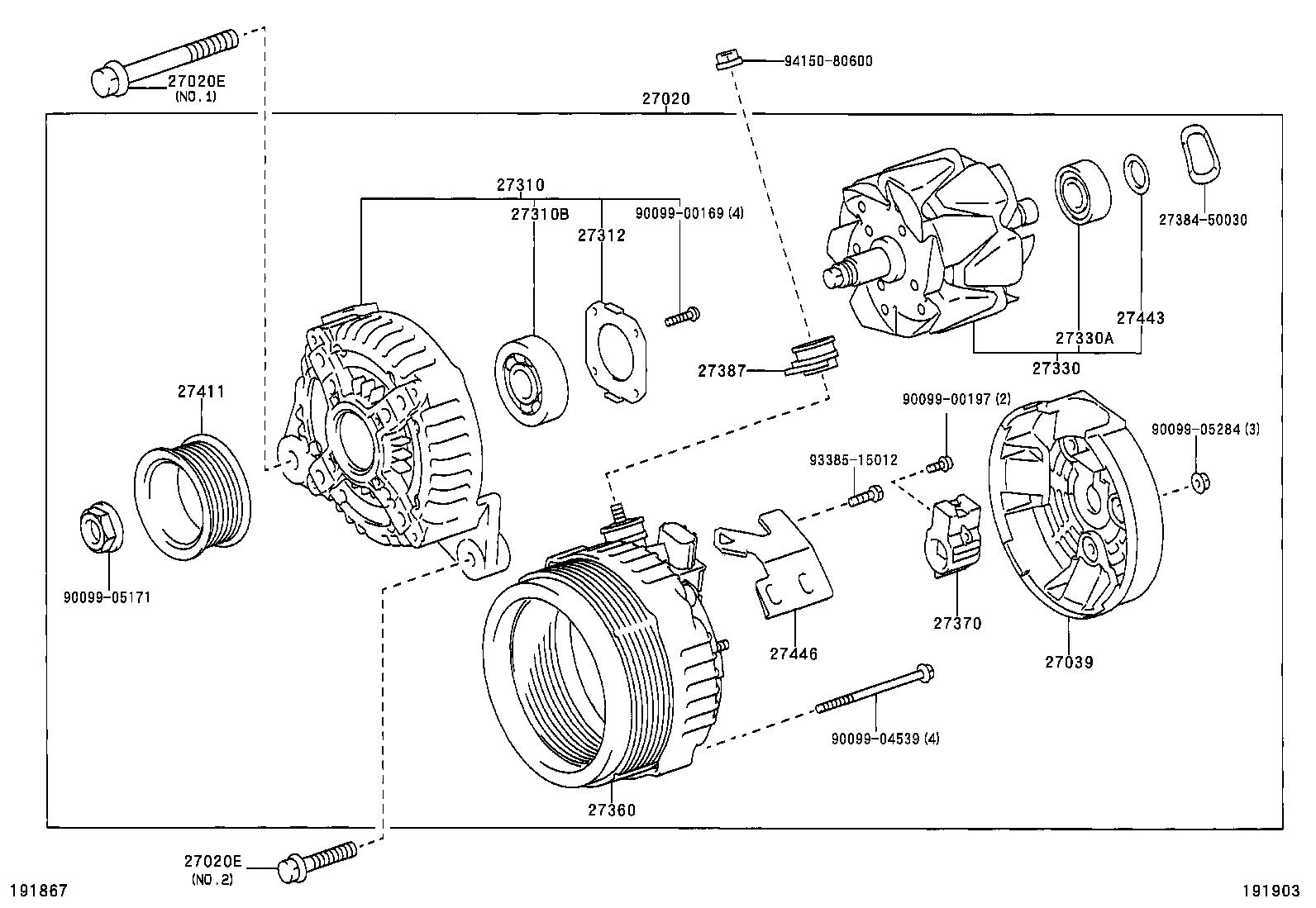

(0304- )2AZFE

Click highlighted areas on diagram

12V 100A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-28070	2AZFE..ACR30 12V 100A	02/2000 - 04/2003	1
27060-28260	2AZFE..ACR30..06S,07S;2AZFE..ACR30..08S..ATM 12V 100A	04/2003 - 12/2999	1
27020E - BOLT(FOR ALTERNATOR)
91511-J0840	2AZFE..ACR30 NO.2	04/2003 - 10/2005	1
91512-81085	2AZFE..ACR30 NO.1	04/2003 - 12/2999	1
91551-80840	2AZFE..ACR30 NO.2	11/2005 - 12/2999	1
91512-81085	2AZFE..ACR30 NO.1	02/2000 - 04/2003	1
91511-60840	2AZFE..ACR30 NO.2	02/2000 - 04/2003	1
27020E - BOLT(FOR ALTERNATOR)
91511-J0840	2AZFE..ACR30 NO.2	04/2003 - 10/2005	1
91512-81085	2AZFE..ACR30 NO.1	04/2003 - 12/2999	1
91551-80840	2AZFE..ACR30 NO.2	11/2005 - 12/2999	1
91512-81085	2AZFE..ACR30 NO.1	02/2000 - 04/2003	1
91511-60840	2AZFE..ACR30 NO.2	02/2000 - 04/2003	1
27039 - COVER, ALTERNATOR REAR END
27039-27010	2AZFE..ACR30	02/2000 - 01/2001	1
27039-28060	2AZFE..ACR30	01/2001 - 04/2003	1
27039-27060	2AZFE..ACR30	04/2003 - 01/2006	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-28060	2AZFE..ACR30	02/2000 - 04/2003	1
27310-28120	2AZFE..ACR30	04/2003 - 01/2006	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10219	2AZFE..ACR30	02/2000 - 04/2003	1
90099-10142	2AZFE,1CDFTV..ACR30,CLR30	04/2003 - 01/2006	1
27312 - PLATE, RETAINER
27312-42010	2AZFE..ACR30	02/2000 - 04/2003	1
27312-72100	2AZFE,1CDFTV..ACR30,CLR30	04/2003 - 01/2006	1
27330 - ROTOR ASSY, ALTERNATOR
27330-20070	2AZFE..ACR30	02/2000 - 04/2003	1
27330-30070	2AZFE..ACR30	04/2003 - 01/2006	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	2AZFE,1CDFTV..ACR30,CLR30	04/2003 - 01/2006	1
90099-10140	2AZFE,1CDFTV..ACR30,CLR30	02/2000 - 04/2003	1
27360 - COIL ASSY, ALTERNATOR
27360-28200	2AZFE..ACR30	04/2003 - 01/2006	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	2AZFE..ACR30	02/2000 - 04/2003	1
27370-58460	2AZFE..ACR30	04/2003 - 01/2006	1
27387 - INSULATOR, TERMINAL
27387-42021	2AZFE..ACR30	02/2000 - 04/2003	1
27387-20130	2AZFE,1CDFTV..ACR30,CLR30	04/2003 - 12/2999	1
27411 - PULLEY, ALTERNATOR
27411-28060	2AZFE..ACR30	02/2000 - 04/2003	1
27411-28060	2AZFE..ACR30..06S,07S;2AZFE..ACR30..08S..ATM	04/2003 - 12/2999	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	2AZFE,1CDFTV..ACR30,CLR30	04/2003 - 01/2006	1
27443-63020	2AZFE,1CDFTV..ACR30,CLR30	02/2000 - 04/2003	1
27446 - CLIP, ALTERNATOR CORD
27446-28120	2AZFE..ACR30..06S,07S;2AZFE..ACR30..08S..ATM	04/2003 - 12/2999	1
27446-28060	2AZFE..ACR30	02/2000 - 04/2003	1
Common parts
27384-50030
90099-00169
90099-00197
90099-04539
90099-05171
90099-05284
93385-15012
94150-80600

ACR30R-MFSDKW (2000)

(0002-0304)2AZFE

(0304- )2AZFE
