ACR30R-MFMDKW (2000)
Toyota Previa/Tarago
ILLUST NO. 2 OF 6(0002- )

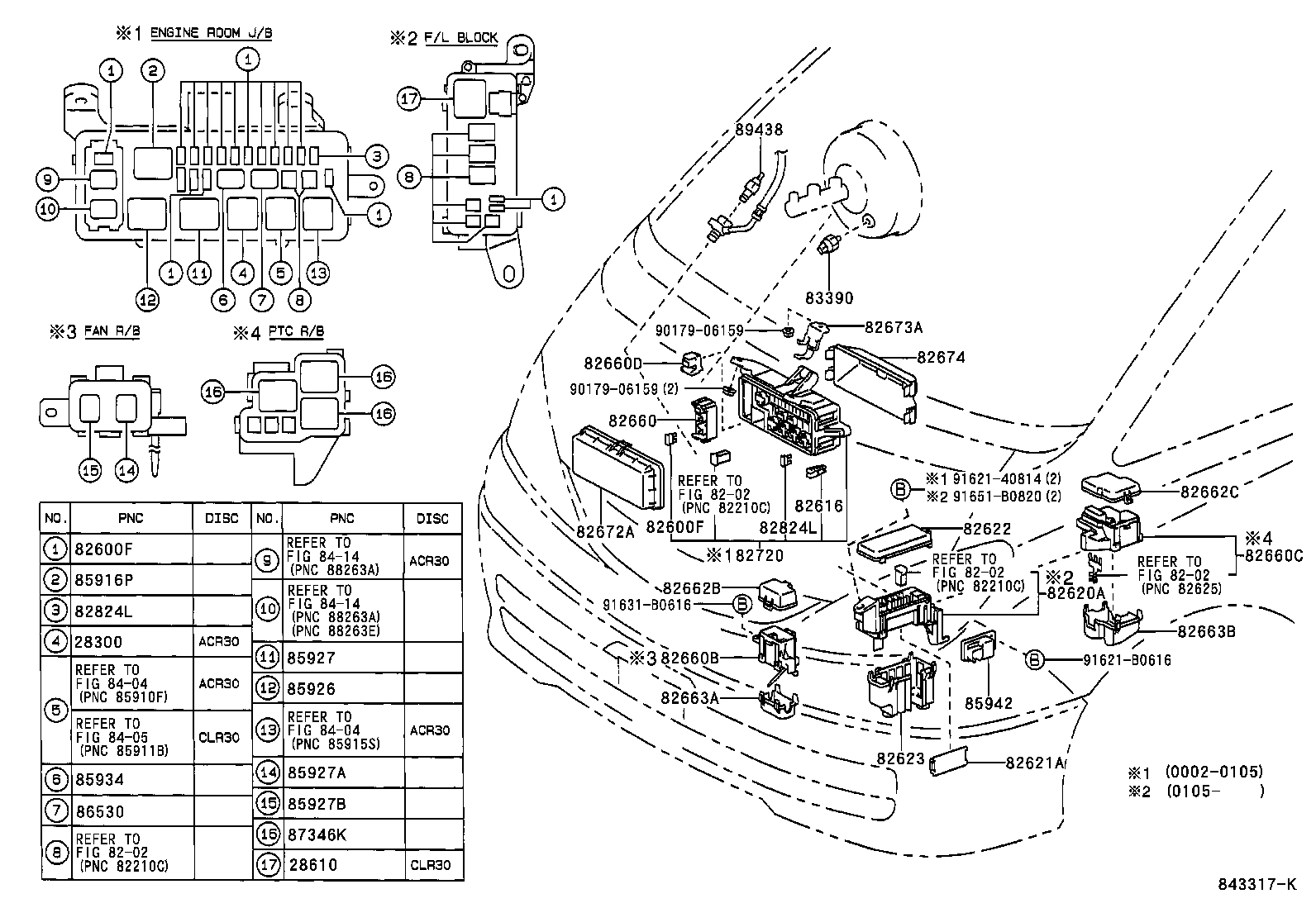

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
ACR30,CLR30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
ACR30,CLR30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ACR30,CLR30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09007 |
ACR30,CLR30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
ACR30,CLR30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09012 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 25A,MINI FUSE |
1 | ||
| 90982-09011 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 10A,MINI FUSE,RED |
3 | ||
| 90982-09010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 15A,MINI FUSE,BLUE |
7 | ||
| 90982-09007 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
ACR30,CLR30 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
ACR30,CLR30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
ACR30,CLR30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ACR30,CLR30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09007 |
ACR30,CLR30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
ACR30,CLR30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09012 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 25A,MINI FUSE |
1 | ||
| 90982-09011 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 10A,MINI FUSE,RED |
3 | ||
| 90982-09010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 15A,MINI FUSE,BLUE |
7 | ||
| 90982-09007 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
ACR30,CLR30 10A,MINI FUSE,RED |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
ACR30,CLR30 |
1 | ||
| 82616-20010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-28230 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 82620-28230 |
ACR30,CLR30 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-28080 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 82621-28080 |
ACR30,CLR30 |
2 | ||
| 82622 - COVER, FUSIBLE LINK, UPPER | ||||
| 82622-28020 |
ACR30 |
1 | ||
| 82622-28020 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 82623 - COVER, FUSIBLE LINK, LOWER | ||||
| 82623-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 82623-28010 |
ACR30,CLR30 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-28190 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 82660-28190 |
ACR30 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-28200 |
ACR30,CLR30 |
1 | ||
| 82660-28200 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-28210 |
ACR30,CLR30..(06S,07S)..(EUR,GEN) |
1 | ||
| 82660-28210 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 82662-28010 |
ACR30,CLR30 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-28020 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 82662-28020 |
ACR30,CLR30..(06S,07S)..(EUR,GEN) |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 82663-28010 |
ACR30,CLR30 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-28020 |
ACR30,CLR30..EUR,GEN |
1 | ||
| 82663-28020 |
ACR30,CLR30..(06S,07S)..(EUR,GEN) |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-28030 |
ACR30 |
1 | ||
| 82672-28090 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-28010 |
ACR30,CLR30 |
1 | ||
| 82673-28040 |
ACR30..08S..ATM..(EUR,GCC);ACR30,CLR30..(06S,07S)..(EUR,GCC,GEN) |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-28010 |
ACR30,CLR30 |
1 | ||
| 82674-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-28080 |
ACR30..06S,07S;ACR30..08S..ATM |
1 | ||
| 82720-28020 |
ACR30 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ACR30,CLR30 |
1 | ||
| 82824-20140 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ACR30,CLR30 |
1 | ||
| 82824-20140 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 90987-02016 |
ACR30,CLR30 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02016 |
ACR30,CLR30 PART NUMBER LABEL=90987-02016 |
1 | ||
| 90987-02025 |
ACR30,CLR30 |
1 | ||
| 90987-02012 |
ACR30,CLR30..ARL,EUR,GEN PART NUMBER LABEL=90987-02012 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ACR30,CLR30 PART NUMBER LABEL=90987-04004 |
1 | ||
| 90987-04006 |
ACR30 PART NUMBER LABEL=90987-04006 |
1 | ||
| 90987-04004 |
ACR30,CLR30 PART NUMBER LABEL=90987-04004 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ACR30,CLR30 |
1 | ||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02022 |
ACR30,CLR30 |
1 | ||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 90987-02012 |
ACR30,CLR30..ARL,EUR,GEN DEALER OPTION |
1 | ||
| 90987-02028 |
ACR30,CLR30 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02028 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 90987-02022 |
ACR30,CLR30 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02016 |
ACR30,CLR30..EUR,GEN |
3 | ||
| 90987-02025 |
CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..(EUR,GEN) |
3 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
ACR30 |
1 | ||
| 89438-33010 |
ACR30 |
1 | ||
| Common parts | ||||
| 90179-06159 | ||||
| 91621-40814 | ||||
| 91621-B0616 | ||||
| 91631-B0616 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||
| 8414 | ||||
ILLUST NO. 3 OF 6(0002-0304)RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02012 |
2AZFE,1CDFTV..ACR30,CLR30 |
2 | ||
| 90987-02027 |
2AZFE..ACR30..08S..ATM;2AZFE,1CDFTV..ACR30,CLR30..06S,07S |
2 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 81980-50030 |
ACR30,CLR30 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
ACR30,CLR30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
ACR30,CLR30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ACR30,CLR30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09007 |
ACR30,CLR30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
ACR30,CLR30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09012 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 25A,MINI FUSE |
1 | ||
| 90982-09011 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 10A,MINI FUSE,RED |
3 | ||
| 90982-09010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 15A,MINI FUSE,BLUE |
7 | ||
| 90982-09007 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
ACR30,CLR30 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
ACR30,CLR30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
ACR30,CLR30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ACR30,CLR30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09007 |
ACR30,CLR30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
ACR30,CLR30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09012 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 25A,MINI FUSE |
1 | ||
| 90982-09011 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 10A,MINI FUSE,RED |
3 | ||
| 90982-09010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 15A,MINI FUSE,BLUE |
7 | ||
| 90982-09007 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
ACR30,CLR30 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
ACR30,CLR30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
ACR30,CLR30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ACR30,CLR30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09007 |
ACR30,CLR30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
ACR30,CLR30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09012 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 25A,MINI FUSE |
1 | ||
| 90982-09011 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 10A,MINI FUSE,RED |
3 | ||
| 90982-09010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 15A,MINI FUSE,BLUE |
7 | ||
| 90982-09007 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
ACR30,CLR30 10A,MINI FUSE,RED |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-28230 |
ACR30,CLR30 |
1 | ||
| 82660-28230 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-28010 |
ACR30,CLR30 |
1 | ||
| 82731-28040 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32070 |
ACR30..GL..GCC;ACR30..(07S,08S)..DX..(ARL,EUR,GCC) W(CRUISE CONTROL),MATSUSHITA |
1 | ||
| 84340-35020 |
ACR30..GL..GCC;ACR30..(07S,08S)..DX TOKAIRIKA |
1 | ||
| 84340-32050 |
ACR30..GL..GCC;ACR30..(07S,08S)..DX MATSUSHITA |
1 | ||
| 84340-69025 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 84340-35030 |
ACR30..GL..GCC;ACR30..(07S,08S)..DX..(ARL,EUR,GCC) W(CRUISE CONTROL),TOKAIRIKA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 84550-16060 |
ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 84550-16060 |
ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02027 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02009 |
ACR30,CLR30 |
1 | ||
| 90987-02009 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 90987-02027 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 85913A - RELAY, HEATER CONTROL | ||||
| 90987-02016 |
ACR30,CLR30 |
1 | ||
| 90987-02025 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02027 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
ACR30 |
1 | ||
| 90987-02027 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 90987-02012 |
ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 82733-28070 |
ACR30,CLR30..RHD..EUR |
1 | ||
| Common parts | ||||
| 91511-J0625 | ||||
| 93315-14014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||
| 8601 | ||||
ILLUST NO. 4 OF 6(0002-0304)RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-28030B3 |
ACR30,CLR30..EUR,GCC,GEN DK.CHARCOAL,TRIM12 |
1 | ||
| 84152-28030B2 |
ACR30,CLR30..EUR,GCC,GEN BLUISH GRAY,TRIM11 |
1 | ||
| 84152-44020 |
ACR30..08S..ATM..(EUR,GCC);ACR30,CLR30..(06S,07S)..(EUR,GCC,GEN) |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08100 |
ACR30,CLR30..EUR,GCC,GEN 14V 40MA, GREEN |
1 | ||
| 90010-08107 |
ACR30,CLR30..EUR,GCC,GEN 14V 40MA, GREEN |
1 | ||
| 90010-08100 |
ACR30,CLR30..EUR,GCC,GEN 14V 40MA, GREEN |
1 | ||
| 90010-08107 |
ACR30,CLR30..EUR,GCC,GEN 14V 40MA, GREEN |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-28010B2 |
ACR30,CLR30..EUR,GEN BLUISH GRAY,TRIM11 |
1 | ||
| 84165-28010B3 |
ACR30,CLR30..EUR,GEN DK.CHARCOAL,TRIM12 |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 90010-01039 |
ACR30,CLR30..EUR,GEN 14V0.91W,W(GREEN CAP |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-28160 |
ACR30,CLR30..RHD |
1 | ||
| 84332-28160 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
ACR30,CLR30 14V 0.91W |
1 | ||
| 84999-10860 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 14V 0.91W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
ACR30 |
1 | ||
| 84870-28020 |
ACR30..08S..ATM..EUR;ACR30,CLR30..(06S,07S)..(EUR,GEN) W(RETRACTABLE ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 84870-34010 |
ACR30..08S..ATM;ACR30,CLR30..07S..(ARL,EUR,GCC) |
1 | ||
| 84870-28020 |
ACR30..GL..GEN;ACR30,CLR30..EUR W(RETRACTABLE ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 84870-34010 |
ACR30..DX..GEN;ACR30,CLR30..(07S,08S)..(ARL,EUR,GCC) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28070 |
ACR30,CLR30 |
1 | ||
| 85500-28070 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
ACR30,CLR30 |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-28010 |
ACR30,CLR30..ARL,EUR,GEN |
1 | ||
| 87290-28010 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..(ARL,EUR,GEN) |
1 | ||
| 87290B - BULB (FOR HEATER SWITCH) | ||||
| 90010-01039 |
ACR30,CLR30..ARL,EUR,GEN 14V0.91W,W(GREEN CAP |
1 | ||
| 90010-01039 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..(ARL,EUR,GEN) 14V0.91W,W(GREEN CAP |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||

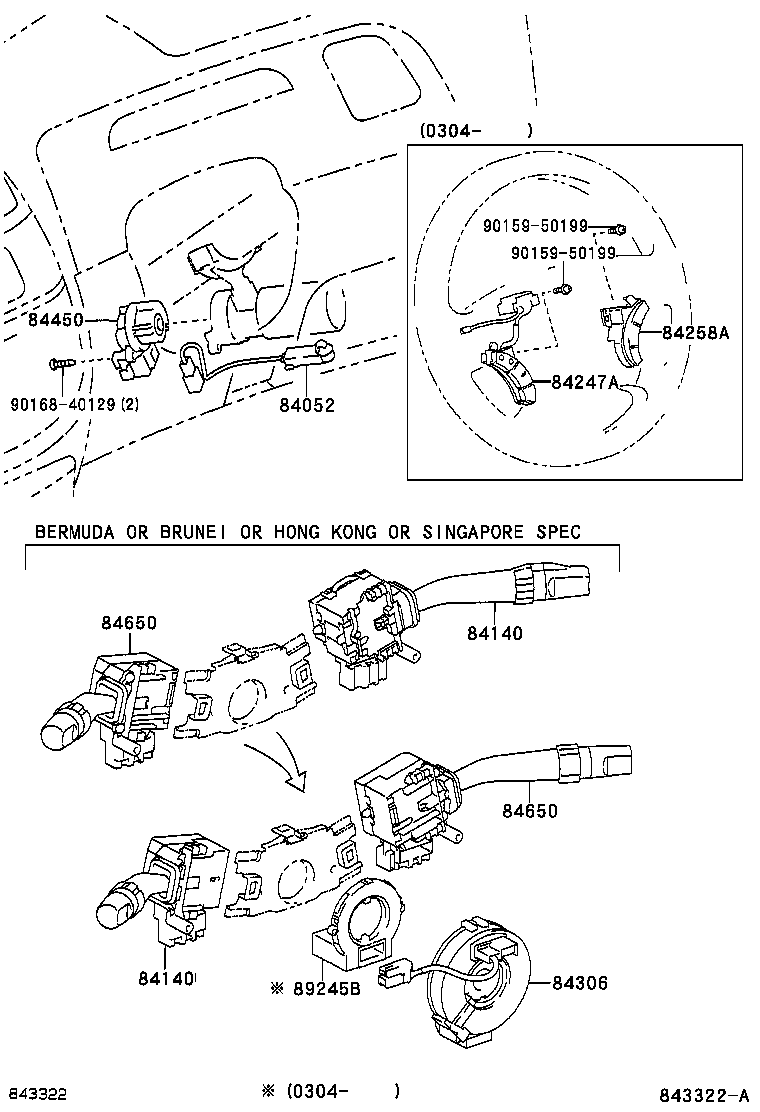

ILLUST NO. 5 OF 6(0002- )RHD..EUR
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-32030 |
ACR30,CLR30 |
1 | ||
| 84052-32030 |
ACR30,CLR30 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-28100 |
ACR30,CLR30..RHD..EUR |
1 | ||
| 84140-28110 |
ACR30,CLR30..RHD..EUR |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-28100 |
ACR30,CLR30..RHD..EUR |
1 | ||
| 84140-28110 |
ACR30,CLR30..RHD..EUR |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-58020B0 |
ACR30,CLR30..EUR W(CRUISE CONTROL),DK.GRAY,TRIM1# |
1 | ||
| 84247-58010B0 |
ACR30,CLR30..EUR DK.GRAY,TRIM1# |
1 | ||
| 84258A - COVER, STEERING PAD, RH | ||||
| 84258-58010B0 |
ACR30,CLR30..EUR DK.GRAY,TRIM1# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-32030 |
ACR30..GL..GCC;ACR30,CLR30..(07S,08S)..DX..(ARL,EUR,GCC) W(CRUISE CONTROL) |
1 | ||
| 84306-52020 |
ACR30..GL..GCC;ACR30,CLR30..(07S,08S)..DX |
1 | ||
| 84306-58011 |
ACR30,CLR30 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
ACR30,CLR30 |
1 | ||
| 84450-52010 |
ACR30,CLR30 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2G470 |
ACR30,CLR30..RHD..EUR |
1 | ||
| 84652-2G470 |
ACR30,CLR30..RHD..EUR |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2G470 |
ACR30,CLR30..RHD..EUR |
1 | ||
| 84652-2G470 |
ACR30,CLR30..RHD..EUR |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-12010 |
ACR30,CLR30..RHD..EUR |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
ILLUST NO. 6 OF 6(0002-0304)
DOOR,ROOF & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-28480 |
ACR30,CLR30 |
1 | ||
| 83320-28480 |
ACR30,CLR30 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
ACR30,CLR30 |
2 | ||
| 84231-52010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
ACR30,CLR30 |
2 | ||
| 84231-52010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 84231-53010 |
ACR30,CLR30 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 84231-53010 |
ACR30,CLR30 |
2 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-28180 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84261-28160 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) |
1 | ||
| 84261-28180 |
ACR30..08S..ATM..(EUR,GCC);ACR30,CLR30..(06S,07S)..(EUR,GCC,GEN) W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84261C - JUNCTION, SLIDE DOOR CONTROL,MALE NO.1 | ||||
| 84261-28190 |
ACR30..08S..ATM..(EUR,GCC);ACR30,CLR30..(06S,07S)..(EUR,GCC,GEN) W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84261-28190 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84261-28170 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-28210 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84262-28190 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) |
1 | ||
| 84262-28210 |
ACR30..08S..ATM..(EUR,GCC);ACR30,CLR30..(06S,07S)..(EUR,GCC,GEN) W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84262C - JUNCTION, SLIDE DOOR CONTROL, FEMALE, NO.1 | ||||
| 84262-28200 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) |
1 | ||
| 84262-28220 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84262-28220 |
ACR30..08S..ATM..(EUR,GCC);ACR30,CLR30..(06S,07S)..(EUR,GCC,GEN) W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-60050 |
ACR30,CLR30 |
1 | ||
| 84810-60050 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-60050 |
ACR30,CLR30 |
1 | ||
| 84810-60050 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B3 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 84810-52010B6 |
ACR30,CLR30 MD.GRAY,TRIM1# |
2 | ||
| 84810-52010B0 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SHADOW GRAY,TRIM11 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B3 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 84810-52010B6 |
ACR30,CLR30 MD.GRAY,TRIM1# |
2 | ||
| 84810-52010B0 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SHADOW GRAY,TRIM11 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-28010 |
ACR30,CLR30..RHD 4DOOR |
1 | ||
| 84040-28011 |
ACR30,CLR30..RHD 4DOOR |
1 | ||
| 84040-28020 |
ACR30,CLR30..RHD..(07S,08S)..DX 2DOOR |
1 | ||
| 84040-28021 |
ACR30,CLR30..RHD..(07S,08S)..DX 2DOOR |
1 | ||
| 84040-28011 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S 4DOOR |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-28010 |
ACR30,CLR30..RHD 4DOOR |
1 | ||
| 84040-28011 |
ACR30,CLR30..RHD 4DOOR |
1 | ||
| 84040-28020 |
ACR30,CLR30..RHD..(07S,08S)..DX 2DOOR |
1 | ||
| 84040-28021 |
ACR30,CLR30..RHD..(07S,08S)..DX 2DOOR |
1 | ||
| 84040-28011 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S 4DOOR |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-28020 |
ACR30,CLR30 |
1 | ||
| 85530-28020 |
ACR30,CLR30 |
1 | ||
| 85535 - PANEL, CIGARETTE LIGHTER HEAT DIFFUSE | ||||
| 85535-28030B2 |
ACR30,CLR30 MD.GRAY,TRIM1# |
1 | ||
| 85535-28030B1 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| 85535-28030B0 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
1 | ||
| 85920 - RELAY & SWITCH ASSY, SLIDING ROOF | ||||
| 85920-28010B1 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| 85920-28010B0 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
1 | ||
| 85920-28010B2 |
ACR30,CLR30 LT.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90094-90416 | ||||
| 90109-06296 | ||||
| 90167-60013 | ||||
| 90189-05131 | ||||
| 93530-55020 | ||||

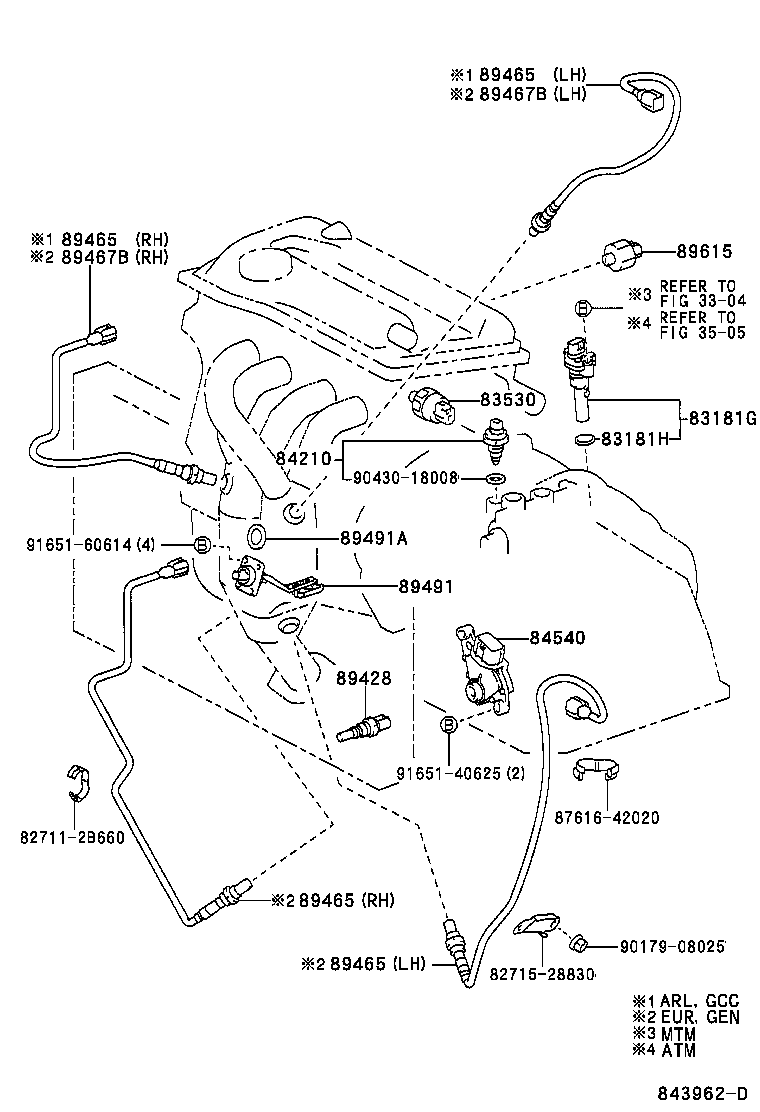

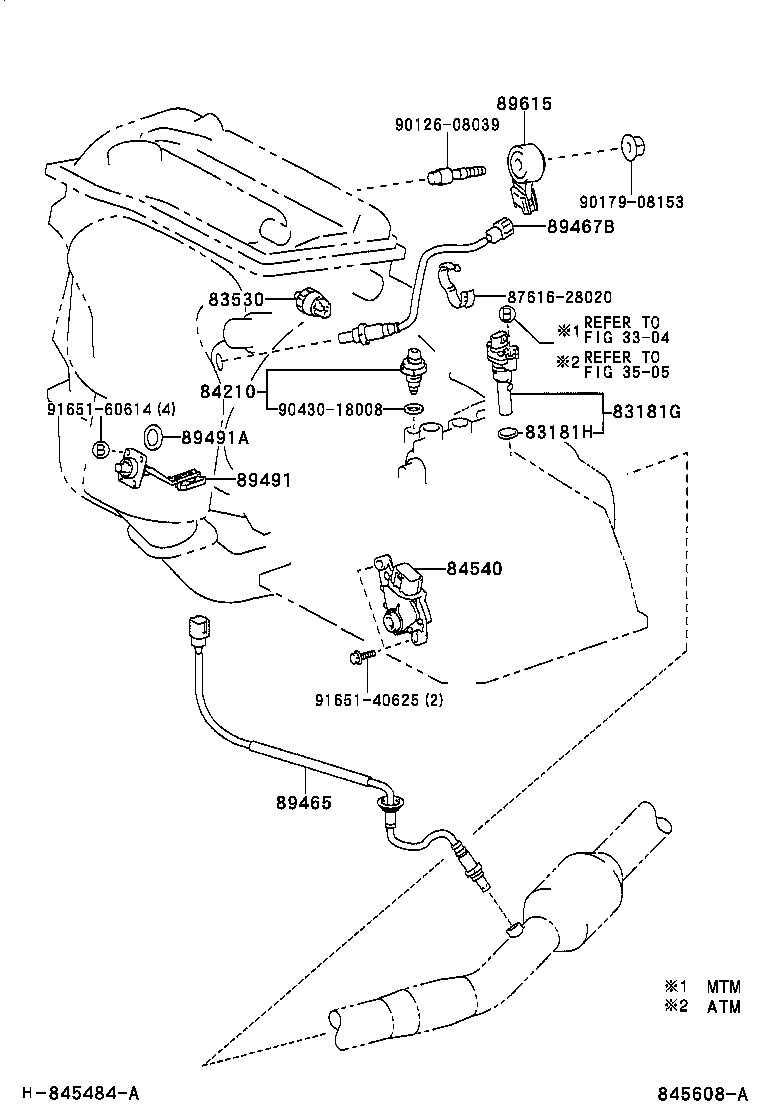

ILLUST NO. 1 OF 6(0002-0304)ACR30
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-12030 |
ACR30,CLR30..MTM |
1 | ||
| 83181-12030 |
ACR30,CLR30..MTM |
1 | ||
| 83181H - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24018 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 96711-24018 |
ACR30,CLR30 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ACR30 DENSO |
1 | ||
| 83530-28020 |
ACR30 DENSO |
1 | ||
| 83530-60020 |
ACR30 YAZAKI |
1 | ||
| 83530-60020 |
ACR30 YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
ACR30,CLR30..MTM |
1 | ||
| 84210-12040 |
ACR30,CLR30..MTM |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20110 |
ACR30,CLR30 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-28290 |
ACR30..EUR,GEN RH |
1 | ||
| 89465-28280 |
ACR30..EUR,GEN LH |
1 | ||
| 89465-28340 |
ACR30 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-28290 |
ACR30..EUR,GEN RH |
1 | ||
| 89465-28280 |
ACR30..EUR,GEN LH |
1 | ||
| 89465-28340 |
ACR30 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-28290 |
ACR30..EUR,GEN RH |
1 | ||
| 89465-28280 |
ACR30..EUR,GEN LH |
1 | ||
| 89465-28340 |
ACR30 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-28290 |
ACR30..EUR,GEN RH |
1 | ||
| 89465-28280 |
ACR30..EUR,GEN LH |
1 | ||
| 89465-28340 |
ACR30 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-28120 |
ACR30 |
1 | ||
| 89467-28030 |
ACR30..EUR,GEN LH |
1 | ||
| 89467-28040 |
ACR30..EUR,GEN RH |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-28120 |
ACR30 |
1 | ||
| 89467-28030 |
ACR30..EUR,GEN LH |
1 | ||
| 89467-28040 |
ACR30..EUR,GEN RH |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-28070 |
ACR30 |
1 | ||
| 89491-28071 |
ACR30 |
1 | ||
| 89491-28071 |
ACR30 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
ACR30,CLR30 |
1 | ||
| 89493-60010 |
ACR30,CLR30 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30080 |
ACR30 MATSUSHITA |
1 | ||
| 89615-44010 |
ACR30 |
1 | ||
| 89615-20090 |
ACR30 |
1 | ||
| 89615-32030 |
ACR30 DENSO |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 82715-28830 | ||||
| 87616-42020 | ||||
| 90179-08025 | ||||
| 90430-18008 | ||||
| 91651-40625 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 3304 | ||||
| 3505 | ||||
ILLUST NO. 1 OF 6(0304- )ACR30
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-12030 |
ACR30,CLR30..MTM |
1 | ||
| 83181-12030 |
ACR30,CLR30..MTM |
1 | ||
| 83181H - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24018 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 96711-24018 |
ACR30,CLR30 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ACR30 DENSO |
1 | ||
| 83530-28020 |
ACR30 DENSO |
1 | ||
| 83530-60020 |
ACR30 YAZAKI |
1 | ||
| 83530-60020 |
ACR30 YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
ACR30,CLR30..MTM |
1 | ||
| 84210-12040 |
ACR30,CLR30..MTM |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-28290 |
ACR30..EUR,GEN RH |
1 | ||
| 89465-28280 |
ACR30..EUR,GEN LH |
1 | ||
| 89465-28340 |
ACR30 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-28120 |
ACR30 |
1 | ||
| 89467-28030 |
ACR30..EUR,GEN LH |
1 | ||
| 89467-28040 |
ACR30..EUR,GEN RH |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-28070 |
ACR30 |
1 | ||
| 89491-28071 |
ACR30 |
1 | ||
| 89491-28071 |
ACR30 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
ACR30,CLR30 |
1 | ||
| 89493-60010 |
ACR30,CLR30 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30080 |
ACR30 MATSUSHITA |
1 | ||
| 89615-44010 |
ACR30 |
1 | ||
| 89615-20090 |
ACR30 |
1 | ||
| 89615-32030 |
ACR30 DENSO |
1 | ||
| Common parts | ||||
| 87616-28020 | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 90430-18008 | ||||
| 91651-40625 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 3304 | ||||
| 3505 | ||||
ILLUST NO. 4 OF 6(0304- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-28030B3 |
ACR30,CLR30..EUR,GCC,GEN DK.CHARCOAL,TRIM12 |
1 | ||
| 84152-28030B2 |
ACR30,CLR30..EUR,GCC,GEN BLUISH GRAY,TRIM11 |
1 | ||
| 84152-44020 |
ACR30..08S..ATM..(EUR,GCC);ACR30,CLR30..(06S,07S)..(EUR,GCC,GEN) |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08100 |
ACR30,CLR30..EUR,GCC,GEN 14V 40MA, GREEN |
1 | ||
| 90010-08107 |
ACR30,CLR30..EUR,GCC,GEN 14V 40MA, GREEN |
1 | ||
| 90010-08100 |
ACR30,CLR30..EUR,GCC,GEN 14V 40MA, GREEN |
1 | ||
| 90010-08107 |
ACR30,CLR30..EUR,GCC,GEN 14V 40MA, GREEN |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-28160 |
ACR30,CLR30..RHD |
1 | ||
| 84332-28160 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
ACR30,CLR30 14V 0.91W |
1 | ||
| 84999-10860 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 14V 0.91W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
ACR30 |
1 | ||
| 84870-28020 |
ACR30..08S..ATM..EUR;ACR30,CLR30..(06S,07S)..(EUR,GEN) W(RETRACTABLE ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 84870-34010 |
ACR30..08S..ATM;ACR30,CLR30..07S..(ARL,EUR,GCC) |
1 | ||
| 84870-28020 |
ACR30..GL..GEN;ACR30,CLR30..EUR W(RETRACTABLE ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 84870-34010 |
ACR30..DX..GEN;ACR30,CLR30..(07S,08S)..(ARL,EUR,GCC) |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-28010 |
ACR30..08S..ATM..EUR;ACR30,CLR30..(06S,07S)..EUR |
1 | ||
| 84988G - BULB, TRACTION CONTROL SWITCH | ||||
| 90010-01039 |
ACR30..08S..ATM..EUR;ACR30,CLR30..(06S,07S)..EUR 14V0.91W,W(GREEN CAP |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28070 |
ACR30,CLR30 |
1 | ||
| 85500-28070 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-28010 |
ACR30,CLR30..ARL,EUR,GEN |
1 | ||
| 87290-28010 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..(ARL,EUR,GEN) |
1 | ||
| 87290B - BULB (FOR HEATER SWITCH) | ||||
| 90010-01039 |
ACR30,CLR30..ARL,EUR,GEN 14V0.91W,W(GREEN CAP |
1 | ||
| 90010-01039 |
CLR30;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..(06S,07S)..(ARL,EUR,GEN) 14V0.91W,W(GREEN CAP |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 6 OF 6(0304- )
DOR,ROOF & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-28480 |
ACR30,CLR30 |
1 | ||
| 83320-28480 |
ACR30,CLR30 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
ACR30,CLR30 |
2 | ||
| 84231-52010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
ACR30,CLR30 |
2 | ||
| 84231-52010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 84231-53010 |
ACR30,CLR30 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 84231-53010 |
ACR30,CLR30 |
2 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-28180 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84261-28160 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) |
1 | ||
| 84261-28180 |
ACR30..08S..ATM..(EUR,GCC);ACR30,CLR30..(06S,07S)..(EUR,GCC,GEN) W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84261C - JUNCTION, SLIDE DOOR CONTROL,MALE NO.1 | ||||
| 84261-28190 |
ACR30..08S..ATM..(EUR,GCC);ACR30,CLR30..(06S,07S)..(EUR,GCC,GEN) W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84261-28190 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84261-28170 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-28210 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84262-28190 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) |
1 | ||
| 84262-28210 |
ACR30..08S..ATM..(EUR,GCC);ACR30,CLR30..(06S,07S)..(EUR,GCC,GEN) W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84262C - JUNCTION, SLIDE DOOR CONTROL, FEMALE, NO.1 | ||||
| 84262-28200 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) |
1 | ||
| 84262-28220 |
ACR30,CLR30..RHD..(07S,08S)..EUR W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84262-28220 |
ACR30..08S..ATM..(EUR,GCC);ACR30,CLR30..(06S,07S)..(EUR,GCC,GEN) W(EASY CLOSER) & W(POWER WINDOW = FRONT & REAR) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-60050 |
ACR30,CLR30 |
1 | ||
| 84810-60050 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-60050 |
ACR30,CLR30 |
1 | ||
| 84810-60050 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B3 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 84810-52010B6 |
ACR30,CLR30 MD.GRAY,TRIM1# |
2 | ||
| 84810-52010B0 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SHADOW GRAY,TRIM11 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B3 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 84810-52010B6 |
ACR30,CLR30 MD.GRAY,TRIM1# |
2 | ||
| 84810-52010B0 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SHADOW GRAY,TRIM11 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-28010 |
ACR30,CLR30..RHD 4DOOR |
1 | ||
| 84040-28011 |
ACR30,CLR30..RHD 4DOOR |
1 | ||
| 84040-28020 |
ACR30,CLR30..RHD..(07S,08S)..DX 2DOOR |
1 | ||
| 84040-28021 |
ACR30,CLR30..RHD..(07S,08S)..DX 2DOOR |
1 | ||
| 84040-28011 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S 4DOOR |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-28010 |
ACR30,CLR30..RHD 4DOOR |
1 | ||
| 84040-28011 |
ACR30,CLR30..RHD 4DOOR |
1 | ||
| 84040-28020 |
ACR30,CLR30..RHD..(07S,08S)..DX 2DOOR |
1 | ||
| 84040-28021 |
ACR30,CLR30..RHD..(07S,08S)..DX 2DOOR |
1 | ||
| 84040-28011 |
ACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S 4DOOR |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-28020 |
ACR30,CLR30 |
1 | ||
| 85530-28020 |
ACR30,CLR30 |
1 | ||
| 85535 - PANEL, CIGARETTE LIGHTER HEAT DIFFUSE | ||||
| 85535-28030B2 |
ACR30,CLR30 MD.GRAY,TRIM1# |
1 | ||
| 85535-28030B1 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| 85535-28030B0 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
1 | ||
| 85920 - RELAY & SWITCH ASSY, SLIDING ROOF | ||||
| 85920-28010B1 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
1 | ||
| 85920-28010B0 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
1 | ||
| 85920-28010B2 |
ACR30,CLR30 LT.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90094-90416 | ||||
| 90109-06296 | ||||
| 90119-06915 | ||||
| 90159-60025 | ||||
| 90159-60303 | ||||
| 90167-60014 | ||||
| 90189-05019 | ||||
| 90189-05131 | ||||
| 90189-06197 | ||||
| 91651-60614 | ||||
| 93530-55020 | ||||
ILLUST NO. 3 OF 6(0304- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02012 |
2AZFE,1CDFTV..ACR30,CLR30 |
2 | ||
| 90987-02027 |
2AZFE..ACR30..08S..ATM;2AZFE,1CDFTV..ACR30,CLR30..06S,07S |
2 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 81980-50030 |
ACR30,CLR30 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
ACR30,CLR30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
ACR30,CLR30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ACR30,CLR30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09007 |
ACR30,CLR30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
ACR30,CLR30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09012 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 25A,MINI FUSE |
1 | ||
| 90982-09011 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 10A,MINI FUSE,RED |
3 | ||
| 90982-09010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 15A,MINI FUSE,BLUE |
7 | ||
| 90982-09007 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
ACR30,CLR30 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
ACR30,CLR30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
ACR30,CLR30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ACR30,CLR30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09007 |
ACR30,CLR30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
ACR30,CLR30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09012 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 25A,MINI FUSE |
1 | ||
| 90982-09011 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 10A,MINI FUSE,RED |
3 | ||
| 90982-09010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 15A,MINI FUSE,BLUE |
7 | ||
| 90982-09007 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
ACR30,CLR30 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
ACR30,CLR30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
ACR30,CLR30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ACR30,CLR30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09007 |
ACR30,CLR30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
ACR30,CLR30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09012 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 25A,MINI FUSE |
1 | ||
| 90982-09011 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 10A,MINI FUSE,RED |
3 | ||
| 90982-09010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 15A,MINI FUSE,BLUE |
7 | ||
| 90982-09007 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
ACR30,CLR30 10A,MINI FUSE,RED |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-28230 |
ACR30,CLR30 |
1 | ||
| 82660-28230 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-28010 |
ACR30,CLR30 |
1 | ||
| 82731-28040 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 82733 - BLOCK, PASSENGER SIDE JUNCTION | ||||
| 82733-28150 |
ACR30..08S..ATM..EUR;ACR30,CLR30..RHD..07S..EUR |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32070 |
ACR30..GL..GCC;ACR30..(07S,08S)..DX..(ARL,EUR,GCC) W(CRUISE CONTROL),MATSUSHITA |
1 | ||
| 84340-35020 |
ACR30..GL..GCC;ACR30..(07S,08S)..DX TOKAIRIKA |
1 | ||
| 84340-32050 |
ACR30..GL..GCC;ACR30..(07S,08S)..DX MATSUSHITA |
1 | ||
| 84340-69025 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 84340-35030 |
ACR30..GL..GCC;ACR30..(07S,08S)..DX..(ARL,EUR,GCC) W(CRUISE CONTROL),TOKAIRIKA |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 84550-16060 |
ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 84550-16060 |
ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02027 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02009 |
ACR30,CLR30 |
1 | ||
| 90987-02009 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 90987-02027 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 85913A - RELAY, HEATER CONTROL | ||||
| 90987-02016 |
ACR30,CLR30 |
1 | ||
| 90987-02025 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02027 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
ACR30 |
1 | ||
| 90987-02027 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 90987-02012 |
ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ACR30..08S..ATM..EUR;ACR30,CLR30..(06S,07S)..(EUR,GEN) |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| Common parts | ||||
| 91511-J0625 | ||||
| 93315-14014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
