ACR30R-MDSDKW (2000)
Toyota Previa/Tarago

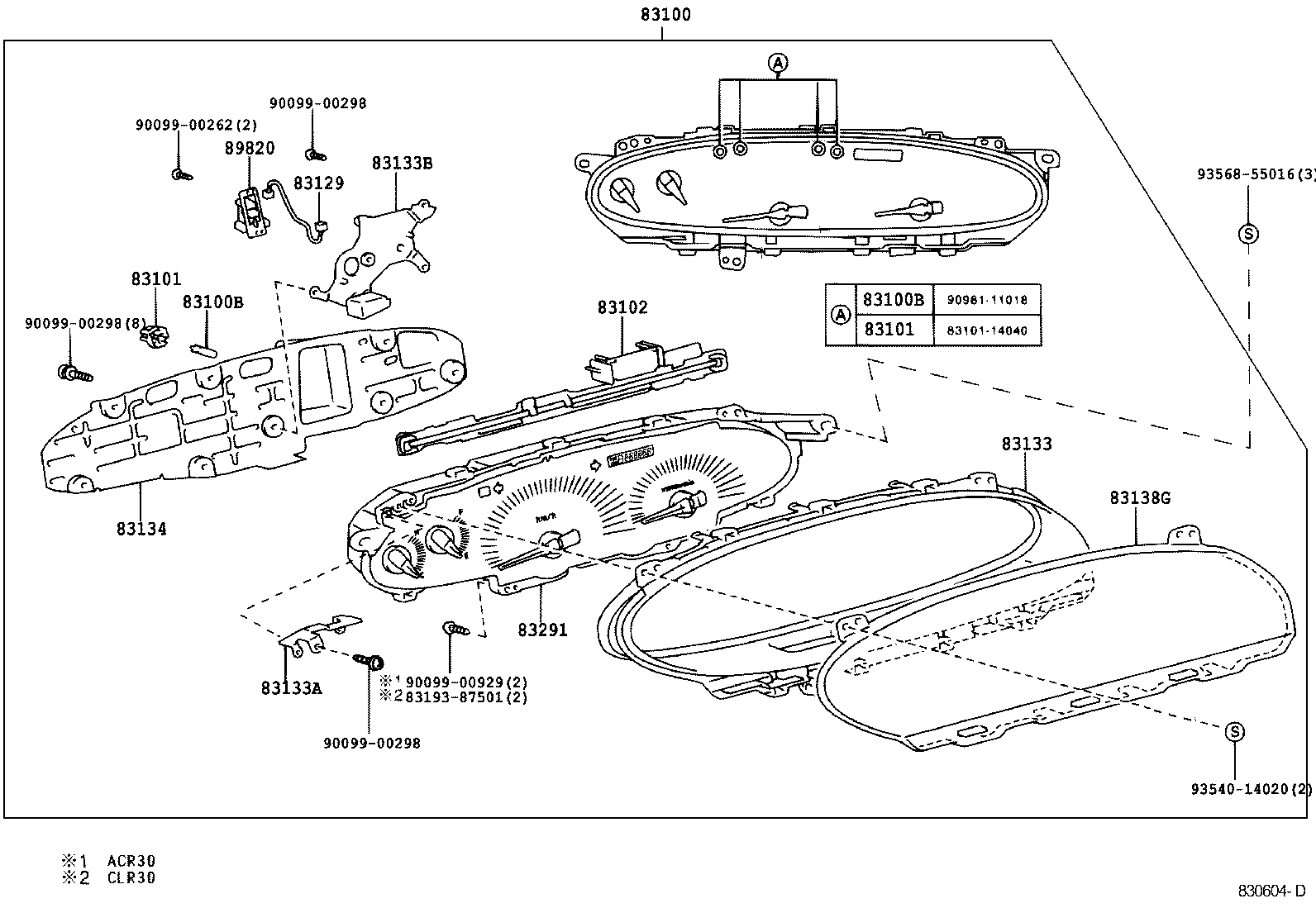

ILLUST NO. 1 OF 3(0002- )RHD
OPTITRON METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
ACR30,CLR30..EUR,GCC,GEN 12V 1.2W W/O SOCKET |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
ACR30,CLR30..EUR,GCC,GEN 12V 1.2W W/O SOCKET |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ACR30,CLR30 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ACR30,CLR30 |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83861-28800 |
ACR30,CLR30..RHD..EUR |
1 | ||
| 83129 - WIRE, METER | ||||
| 83875-28770 |
ACR30,CLR30..RHD |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-28800 |
ACR30,CLR30..RHD..EUR |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83812-28800 |
ACR30,CLR30..RHD..EUR |
1 | ||
| 83133B - PLATE, COMBINATION METER, NO.3 | ||||
| 83813-28770 |
ACR30,CLR30..RHD |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-28800 |
ACR30,CLR30..RHD..EUR |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-28800 |
ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83801-28830 |
ACR30..RHD..EUR |
1 | ||
| 89820 - SENSOR ASSY, INCLINATION | ||||
| 89820-35010 |
ACR30,CLR30 |
1 | ||
| Common parts | ||||
| 83193-87501 | ||||
| 90099-00262 | ||||
| 90099-00298 | ||||
| 90099-00929 | ||||
| 93540-14020 | ||||
| 93568-55016 | ||||

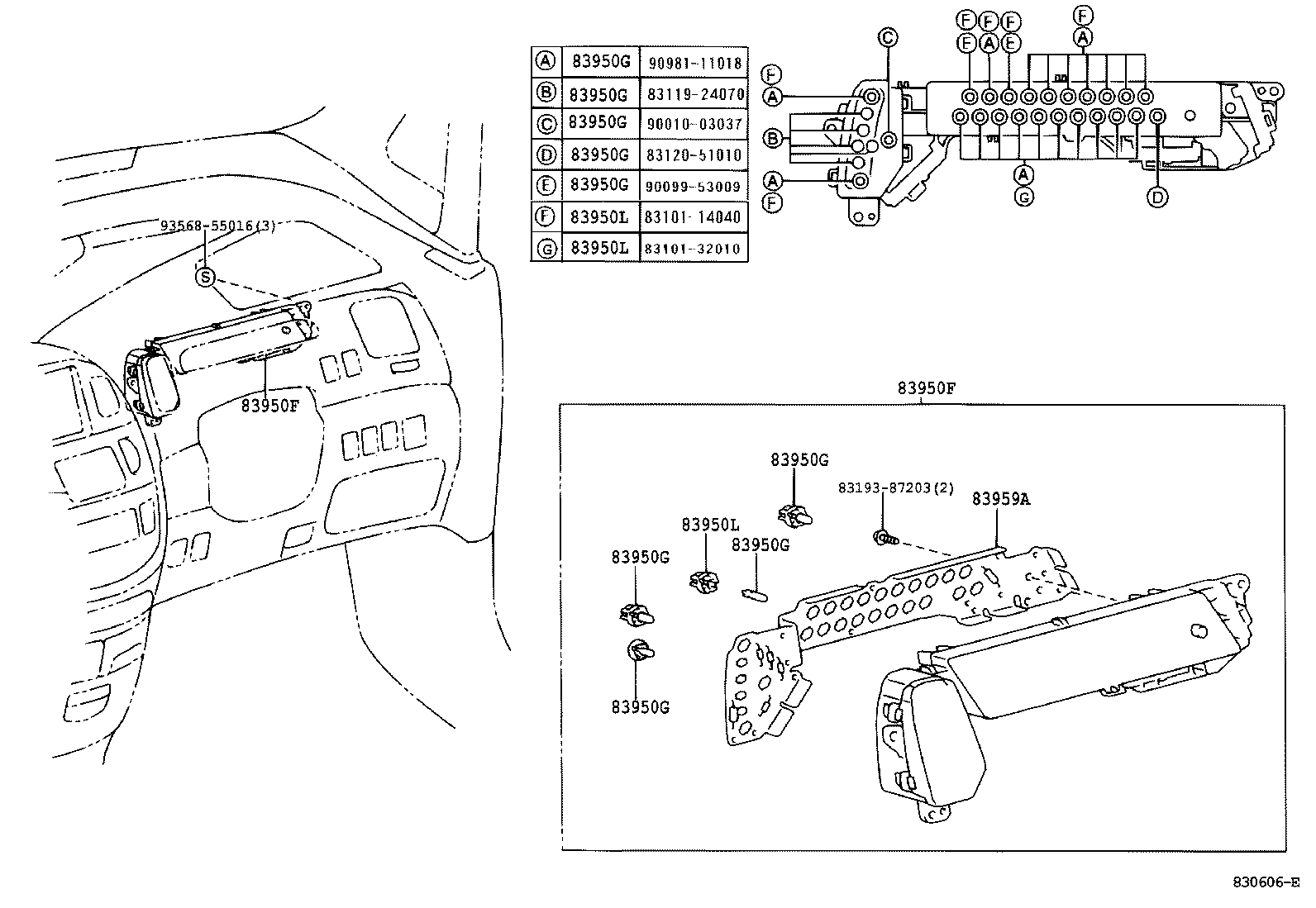

ILLUST NO. 2 OF 3(0002- )RHD
INDICATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950F - LAMP ASSY, TELLTALE | ||||
| 83950-28070 |
ACR30..RHD..ATM..EUR |
1 | ||
| 83950F - LAMP ASSY, TELLTALE | ||||
| 83950-28070 |
ACR30..RHD..ATM..EUR |
1 | ||
| 83950G - BULB, TELLTALE LAMP | ||||
| 90981-11018 |
ACR30,CLR30 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-51010 |
ACR30,CLR30 TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90010-03037 |
ACR30..ATM 14V 1.4W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
ACR30,CLR30 14V0.84W W/O(SOCKET),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83119-24070 |
ACR30..ATM 12V 1.4W W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83950G - BULB, TELLTALE LAMP | ||||
| 90981-11018 |
ACR30,CLR30 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-51010 |
ACR30,CLR30 TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90010-03037 |
ACR30..ATM 14V 1.4W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
ACR30,CLR30 14V0.84W W/O(SOCKET),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83119-24070 |
ACR30..ATM 12V 1.4W W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83950G - BULB, TELLTALE LAMP | ||||
| 90981-11018 |
ACR30,CLR30 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-51010 |
ACR30,CLR30 TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90010-03037 |
ACR30..ATM 14V 1.4W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
ACR30,CLR30 14V0.84W W/O(SOCKET),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83119-24070 |
ACR30..ATM 12V 1.4W W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83950G - BULB, TELLTALE LAMP | ||||
| 90981-11018 |
ACR30,CLR30 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-51010 |
ACR30,CLR30 TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90010-03037 |
ACR30..ATM 14V 1.4W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
ACR30,CLR30 14V0.84W W/O(SOCKET),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83119-24070 |
ACR30..ATM 12V 1.4W W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83950G - BULB, TELLTALE LAMP | ||||
| 90981-11018 |
ACR30,CLR30 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-51010 |
ACR30,CLR30 TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90010-03037 |
ACR30..ATM 14V 1.4W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
ACR30,CLR30 14V0.84W W/O(SOCKET),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83119-24070 |
ACR30..ATM 12V 1.4W W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83950G - BULB, TELLTALE LAMP | ||||
| 90981-11018 |
ACR30,CLR30 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-51010 |
ACR30,CLR30 TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90010-03037 |
ACR30..ATM 14V 1.4W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
ACR30,CLR30 14V0.84W W/O(SOCKET),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83119-24070 |
ACR30..ATM 12V 1.4W W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83950G - BULB, TELLTALE LAMP | ||||
| 90981-11018 |
ACR30,CLR30 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-51010 |
ACR30,CLR30 TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90010-03037 |
ACR30..ATM 14V 1.4W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
ACR30,CLR30 14V0.84W W/O(SOCKET),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83119-24070 |
ACR30..ATM 12V 1.4W W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83950G - BULB, TELLTALE LAMP | ||||
| 90981-11018 |
ACR30,CLR30 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-51010 |
ACR30,CLR30 TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90010-03037 |
ACR30..ATM 14V 1.4W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
ACR30,CLR30 14V0.84W W/O(SOCKET),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83119-24070 |
ACR30..ATM 12V 1.4W W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83950G - BULB, TELLTALE LAMP | ||||
| 90981-11018 |
ACR30,CLR30 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83120-51010 |
ACR30,CLR30 TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90010-03037 |
ACR30..ATM 14V 1.4W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90099-53009 |
ACR30,CLR30 14V0.84W W/O(SOCKET),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83119-24070 |
ACR30..ATM 12V 1.4W W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83950L - SOCKET, TELLTALE LAMP | ||||
| 83101-32010 |
ACR30,CLR30 TYPE G:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
ACR30,CLR30 TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 83950L - SOCKET, TELLTALE LAMP | ||||
| 83101-32010 |
ACR30,CLR30 TYPE G:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
ACR30,CLR30 TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 83950L - SOCKET, TELLTALE LAMP | ||||
| 83101-32010 |
ACR30,CLR30 TYPE G:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
ACR30,CLR30 TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 83959A - PLATE, TELLTALE LAMP CIRCUIT | ||||
| 83959-28070 |
ACR30..RHD..ATM..EUR |
1 | ||
| Common parts | ||||
| 83193-87203 | ||||
| 93568-55016 | ||||
ILLUST NO. 3 OF 3(0002-0304)ARL,EUR,GEN ; (0304- )DX..ARL
CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-28130 |
ACR30,CLR30..ARL,EUR,GEN |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
