ACR30R-MDSDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Apr 2003
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )

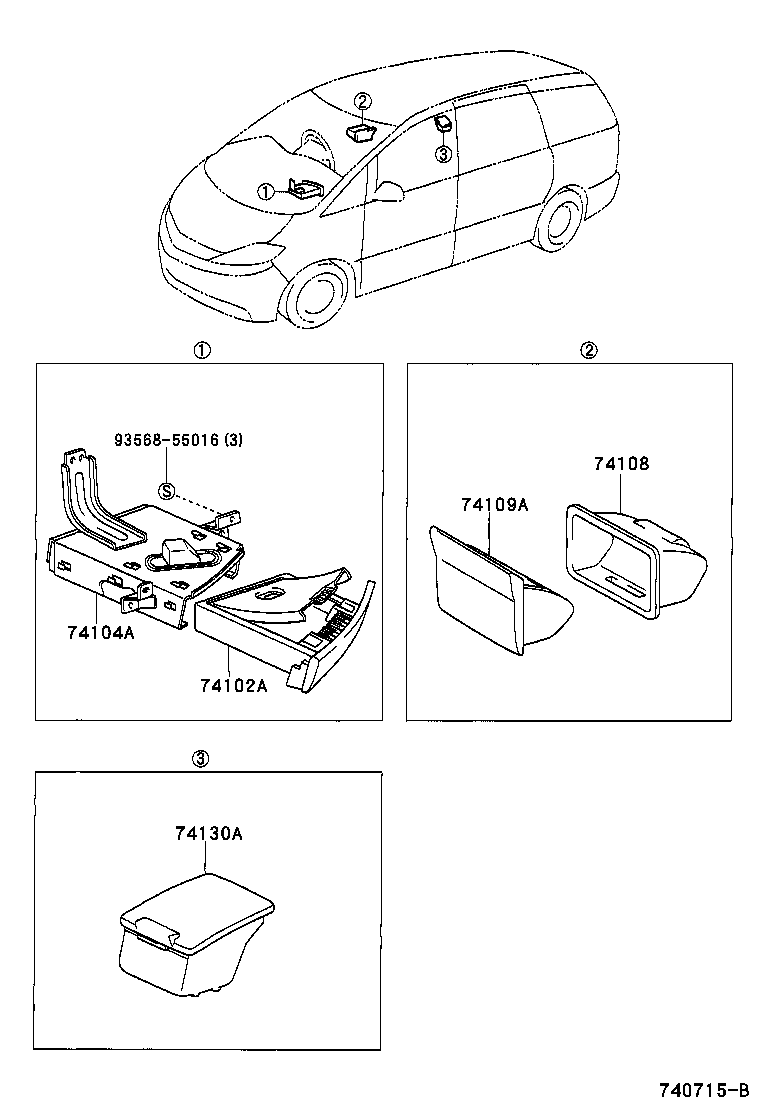

Click highlighted areas on diagram

diagram 74102A 74104A 74108 74109A 74130A 9356855016
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-28060B1

ACR30,CLR30..RHD

MD.CHARCOAL,TRIM12

 1
74102-28060B0

ACR30,CLR30..RHD

LT. BLUISH GRAY,TRIM11

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-28100

ACR30,CLR30..RHD

 1
74108 - RETAINER SUB-ASSY, REAR ASH RECEPTACLE
74108-28010

ACR30,CLR30

 1
74109A - BOX SUB-ASSY, ASH RECEPTACLE
74109-28010B1

ACR30,CLR30

MD.CHARCOAL,TRIM12

 1
74109-28010B0

ACR30,CLR30

LT. BLUISH GRAY,TRIM11

 1
74130A - RECEPTACLE ASSY, REAR ASH, RH
74130-28020B1

ACR30,CLR30..ARL,EUR,GEN

TRIM = TYPE A-*104,MD.CHARCOAL,TRIM12

 1
74130-28020B2

ACR30..(06S,07S)..EUR

TRIM = TYPE G-*104,BLUISH GRAY,TRIM11

 1
74130-28020B0

ACR30..DX

TRIM = TYPE A-*104,LT. BLUISH GRAY,TRIM11

 1
Common parts
93568-55016
