ACR30R-MDMDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Apr 2003
Engine 2AZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )ACR30..RHD

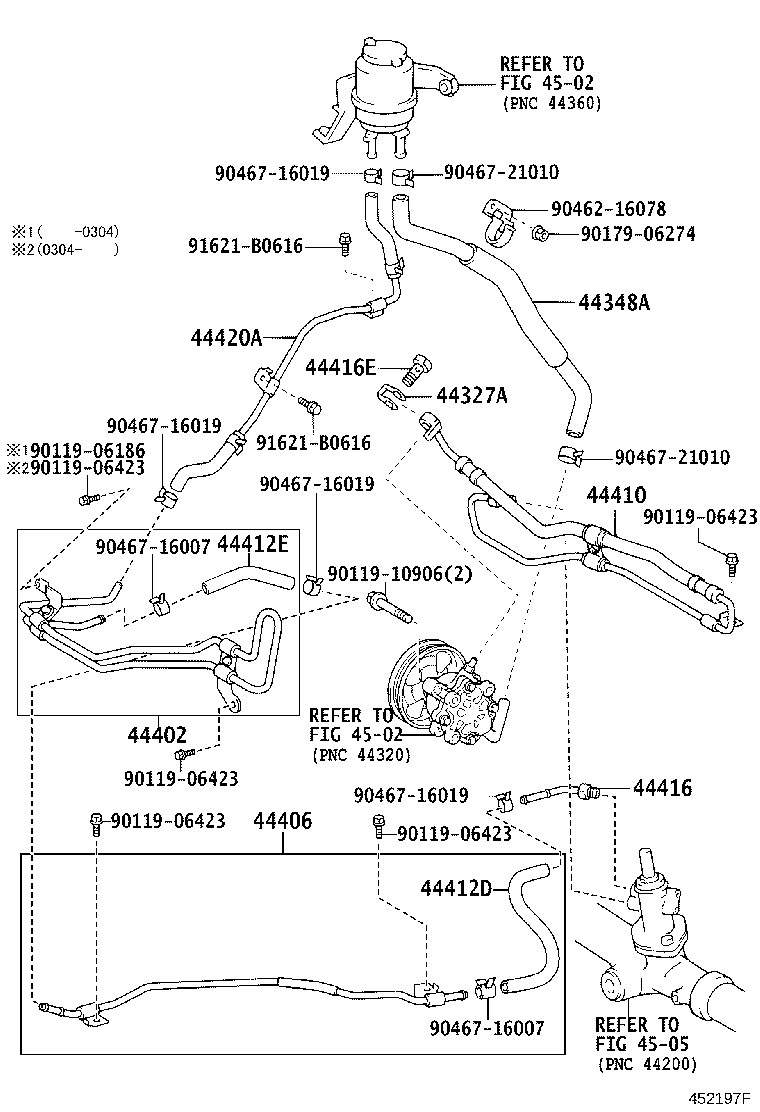

Click highlighted areas on diagram

diagram 44327A 44348A 44402 44406 44410 44412D 44412E 44416 44416E 44420A 4502 4502 4505 9011906186 9011906423 9011906423 9011906423 9011906423 9011906423 9011910906 9017906274 9046216078 9046716007 9046716007 9046716019 9046716019 9046716019 9046716019 9046721010 9046721010 91621B0616 91621B0616
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

ACR30,CLR30

 1
44327-12010

ACR30,CLR30

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-28240

ACR30

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-28010

ACR30,CLR30

 1
44406 - TUBE SUB-ASSY, RETURN
44406-28300

ACR30,CLR30..RHD

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-28460

ACR30..RHD

 1
44412D - HOSE, RETURN, NO.1
44412-58020

ACR30,CLR30..RHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-28370

ACR30,CLR30..RHD

 1
44416E - BOLT, UNION(FOR RETURN TUBE)
96341-41603

ACR30,CLR30

 1
44420A - TUBE ASSY, RETURN
44420-28110

ACR30

 1
Common parts
90119-06186
90119-06423
90119-10906
90179-06274
90462-16078
90467-16007
90467-16019
90467-21010
91621-B0616
Linked diagrams
4502
4505
