ACR30L-MRSDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Apr 2003
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002-0102)

Click highlighted areas on diagram

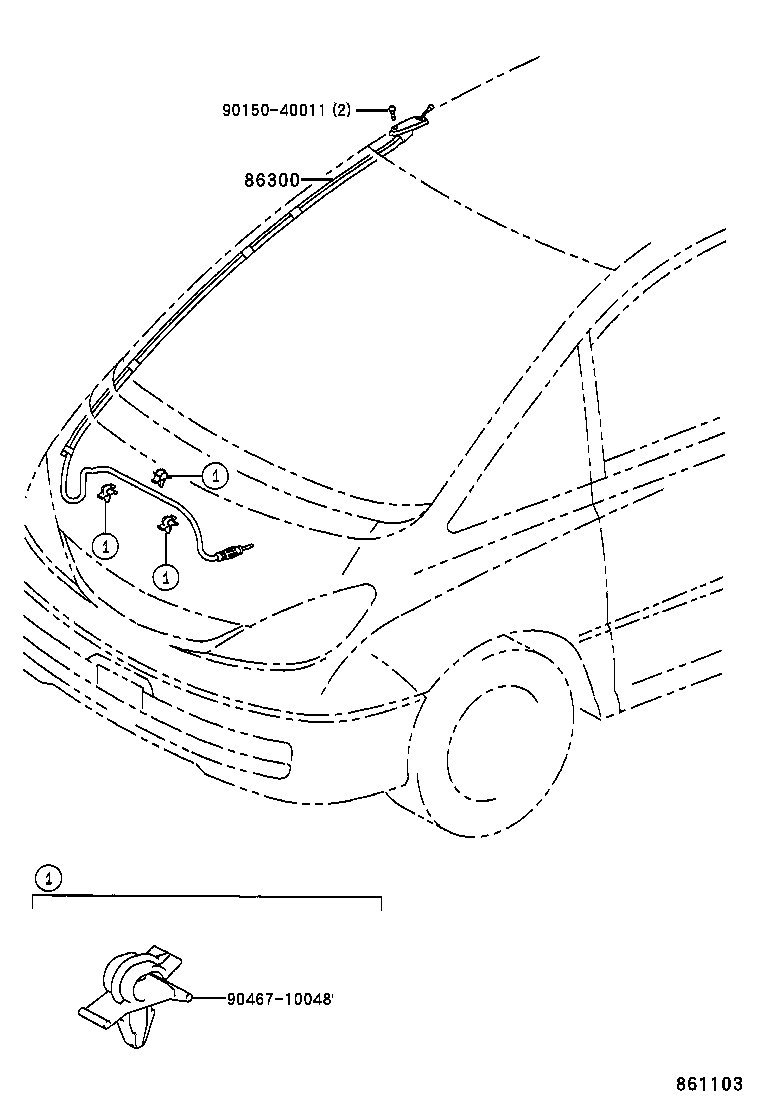

diagram 86300 9015040011 9046710048
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-28230

ACR30..LHD

 1
Common parts
90150-40011
90467-10048

(0102- )

Click highlighted areas on diagram

diagram 8537128040 86300B 9011906915 9011906915 9095006067 9155380612
Part # Description Qty Price
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-28310

ACR30,CLR30..LHD

 1
86300-28270

ACR30,CLR30..LHD

W(REAR COOLER)

 1
86300-28310

ACR30..LHD..(EUR,GEN)

 1
86300-28270

ACR30..LHD

W(REAR COOLER)

 1
86300-28410

ACR30..LHD

W(REAR COOLER)

 1
Common parts
85371-28040
90119-06915
90950-06067
91553-80612
