ACR30L-MRSDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Apr 2003
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002-0304)ACR30..LHD

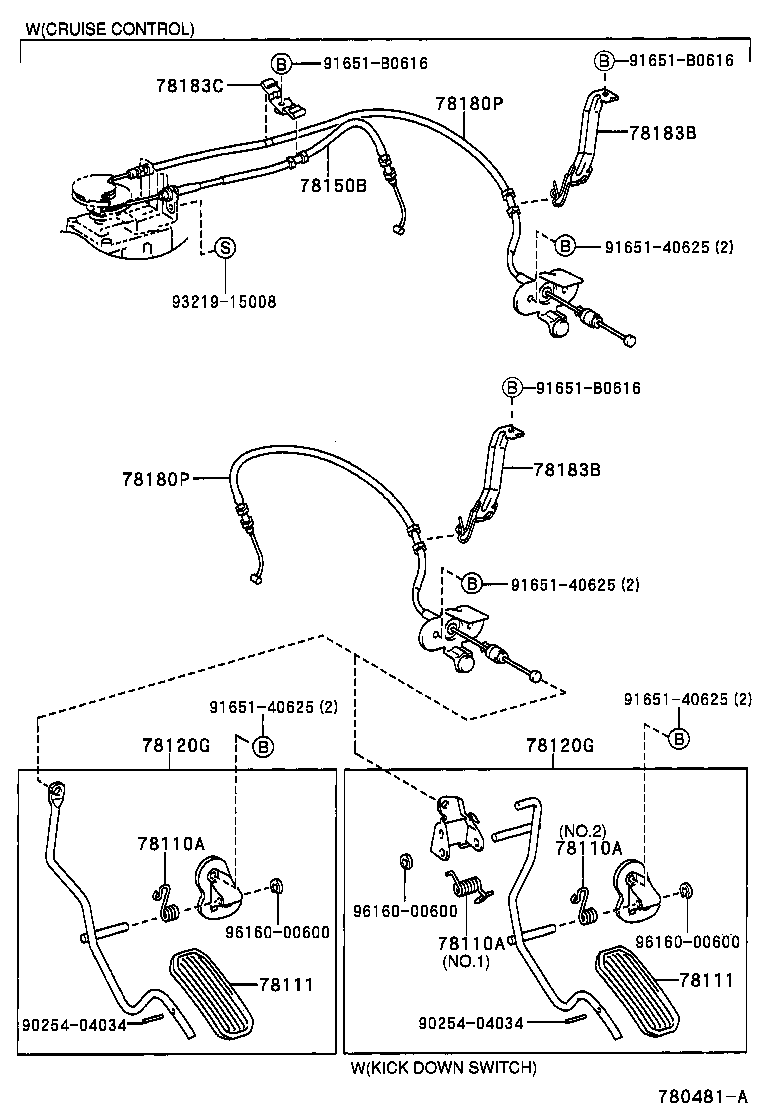

Click highlighted areas on diagram

diagram 78110A 78110A 78110A 78111 78111 78120G 78120G 78150B 78180P 78180P 78183B 78183B 78183C 9025404034 9025404034 9165140625 9165140625 9165140625 9165140625 91651B0616 91651B0616 91651B0616 9321915008 9616000600 9616000600 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-29021

ACR30..LHD..ATM..EUR

NO.1:REFER TO ILLUSTRATION

 1
90959-03098

ACR30..LHD..ATM..EUR

NO.2:REFER TO ILLUSTRATION

 1
90959-03286

ACR30..LHD..ATM..EUR

W(CRUISE CONTROL);NO.2:REFER TO ILLUSTRATION

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-29021

ACR30..LHD..ATM..EUR

NO.1:REFER TO ILLUSTRATION

 1
90959-03098

ACR30..LHD..ATM..EUR

NO.2:REFER TO ILLUSTRATION

 1
90959-03286

ACR30..LHD..ATM..EUR

W(CRUISE CONTROL);NO.2:REFER TO ILLUSTRATION

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-29021

ACR30..LHD..ATM..EUR

NO.1:REFER TO ILLUSTRATION

 1
90959-03098

ACR30..LHD..ATM..EUR

NO.2:REFER TO ILLUSTRATION

 1
90959-03286

ACR30..LHD..ATM..EUR

W(CRUISE CONTROL);NO.2:REFER TO ILLUSTRATION

 1
78111 - PEDAL, ACCELERATOR
78111-33010

ACR30..LHD

 1
78111 - PEDAL, ACCELERATOR
78111-33010

ACR30..LHD

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-28180

ACR30..LHD..ATM..EUR

W(CRUISE CONTROL & KICK DOWN SWITCH)

 1
78120-28170

ACR30..LHD..(07S,08S)..ATM..EUR

W(KICK DOWN SWITCH)

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-28180

ACR30..LHD..ATM..EUR

W(CRUISE CONTROL & KICK DOWN SWITCH)

 1
78120-28170

ACR30..LHD..(07S,08S)..ATM..EUR

W(KICK DOWN SWITCH)

 1
78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE
78150-28090

ACR30..GL..GEN;ACR30..ARL,EUR,GCC

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-28340

ACR30..LHD..DX;ACR30..GL..GCC

 1
78180-28350

ACR30..GL..GEN;ACR30..LHD..(EUR,GCC)

W(CRUISE CONTROL)

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-28340

ACR30..LHD..DX;ACR30..GL..GCC

 1
78180-28350

ACR30..GL..GEN;ACR30..LHD..(EUR,GCC)

W(CRUISE CONTROL)

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-28320

ACR30..LHD..ATM

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-28320

ACR30..LHD..ATM

 1
Common parts
90254-04034
91651-40625
91651-B0616
93219-15008
96160-00600

(0102-0304)CLR30..LHD ; (0304- )LHD

Click highlighted areas on diagram

diagram 78120G 9095001173 9165140625 9165140625 9165140625 9165140625 9165140625
Part # Description Qty Price
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-28180

ACR30..LHD..ATM..EUR

W(CRUISE CONTROL & KICK DOWN SWITCH)

 1
78120-28170

ACR30..LHD..(07S,08S)..ATM..EUR

W(KICK DOWN SWITCH)

 1
Common parts
90950-01173
91651-40625
