ACR30L-MRSDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Apr 2003
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

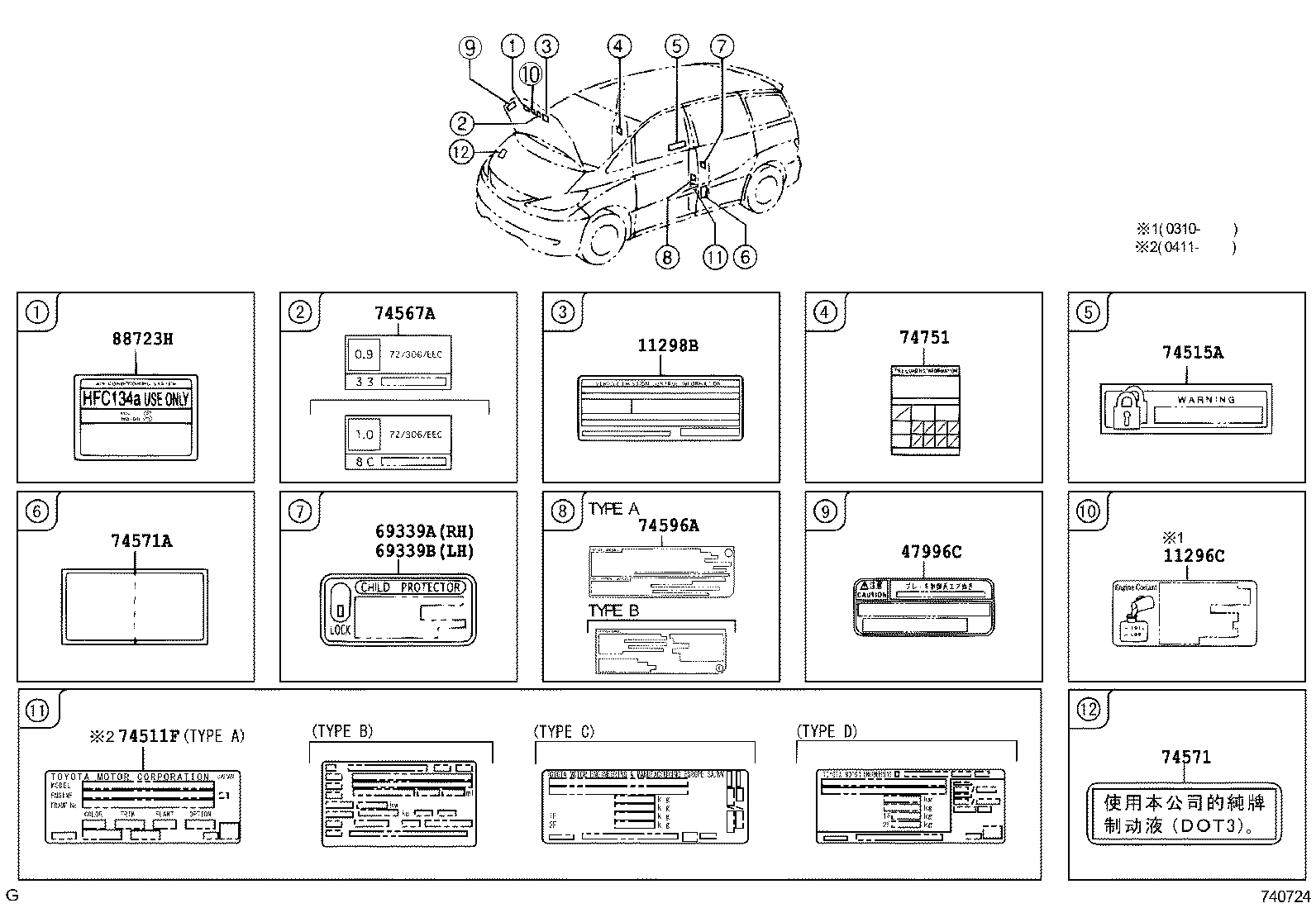

ILLUST NO. 1 OF 2(0002- )

Click highlighted areas on diagram

diagram 11296C 11298B 47996C 69339A 69339B 74511F 74515A 74567A 74571 74571A 74596A 74751 88723H
Part # Description Qty Price
69339A - PLATE, CHILD PROTECTOR LOCK CAUTION
69339-20030

ACR30,CLR30

 1
69339B - PLATE, CHILD PROTECTOR LOCK CAUTION
69339-20030

ACR30,CLR30

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-28640

ACR30,CLR30..EUR

W(215/60R16 TIRE)

 1
42661-28630

ACR30,CLR30..EUR

W(205/65R15 TIRE)

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-28240

ACR30,CLR30

 1

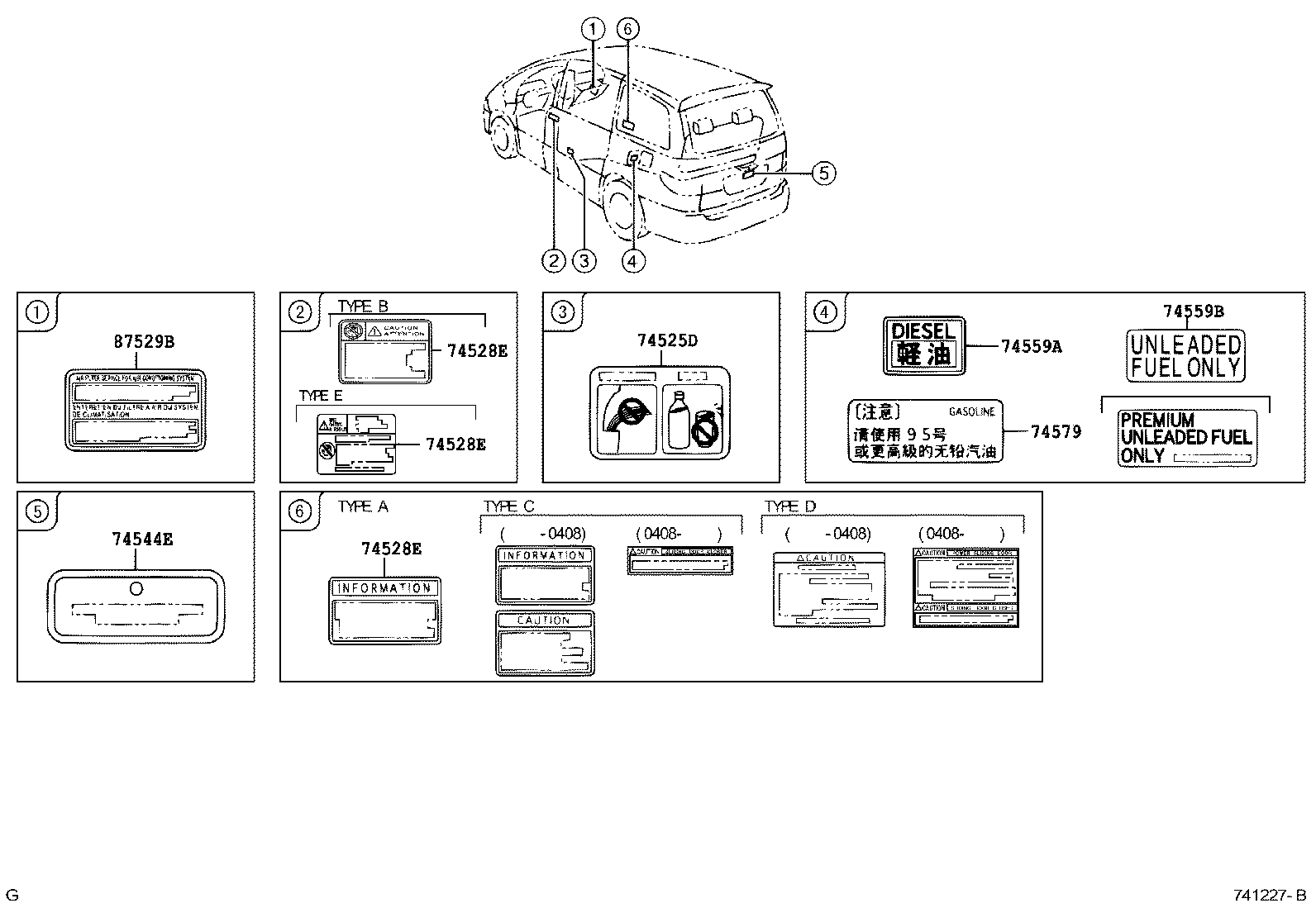

ILLUST NO. 2 OF 2(0002- )

Click highlighted areas on diagram

diagram 74525D 74528E 74528E 74528E 74544E 74559A 74559B 74579 87529B
Part # Description Qty Price
74525D - LABEL, SLIDE DOOR POCKET INFORMATION
74525-28030

ACR30,CLR30

RH

 1
74525-28040

ACR30,CLR30

LH

 1
74528E - LABEL, POWER SLIDE DOOR NOTICE
74541-28040

ACR30,CLR30

TYPE A:REFER TO ILLUSTRATION

 2
74541-28070

ACR30,CLR30

TYPE B:REFER TO ILLUSTRATION

 2
74528E - LABEL, POWER SLIDE DOOR NOTICE
74541-28040

ACR30,CLR30

TYPE A:REFER TO ILLUSTRATION

 2
74541-28070

ACR30,CLR30

TYPE B:REFER TO ILLUSTRATION

 2
74528E - LABEL, POWER SLIDE DOOR NOTICE
74541-28040

ACR30,CLR30

TYPE A:REFER TO ILLUSTRATION

 2
74541-28070

ACR30,CLR30

TYPE B:REFER TO ILLUSTRATION

 2
74559B - LABEL, FUEL INFORMATION
74559-14050

ACR30..ARL,EUR,GCC

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50010

ACR30,CLR30

 1
