ACR30L-MRSDKW (2000)
Toyota Previa/Tarago
ILLUST NO. 1 OF 4(0002-0304)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71110-28021 |
ACR30,CLR30..LHD |
1 | ||
| 71110-28020 |
ACR30,CLR30..LHD |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71120-28021 |
ACR30,CLR30..LHD |
1 | ||
| 71120-28020 |
ACR30,CLR30..LHD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2J540B0 |
ACR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),LT. GRAY,TRIM11 |
1 | ||
| 71071-2J560B0 |
ACR30..LHD..DX SEAT = TYPE A-*104,LT. GRAY,TRIM11 |
1 | ||
| 71071-2J560B4 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71071-2J540B4 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM11 |
1 | ||
| 71071-2J540B1 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71071-2J560B1 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-2J550B0 |
ACR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),LT. GRAY,TRIM11 |
1 | ||
| 71071-2J550B1 |
ACR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-2J580B0 |
ACR30..LHD..DX SEAT = TYPE A-*104,LT. GRAY,TRIM11 |
1 | ||
| 71071-2J580B1 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71071-2J550B4 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM11 |
1 | ||
| 71071-2J550B1 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71071-2J580B4 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2J570B0 |
ACR30..(07S,08S)..EUR SEAT = TYPE A-*104 & DTACHBL SEAT,LT. GRAY,TRIM11 |
1 | ||
| 71073-2J680B1 |
ACR30,CLR30..LHD..(07S,08S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J580B0 |
ACR30..DX SEAT = TYPE A-*104 & W(ARMREST),LT. GRAY,TRIM11 |
1 | ||
| 71073-2J570B1 |
CLR30..07S;ACR30..(07S,08S)..EUR SEAT = TYPE A-*104 & DTACHBL SEAT,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J620B1 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J680B0 |
ACR30..LHD..(07S,08S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),LT. GRAY,TRIM11 |
1 | ||
| 71073-2J620B0 |
ACR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST),LT. GRAY,TRIM11 |
1 | ||
| 71073-2J680B4 |
ACR30,CLR30..LHD..(07S,08S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J620B4 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J570B0 |
ACR30..08S..EUR SEAT = TYPE A-*104 & DTACHBL SEAT,LT. GRAY,TRIM11 |
1 | ||
| 71073-2J580B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J580B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J570B4 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2J690B0 |
ACR30..LHD..(07S,08S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),LT. GRAY,TRIM11 |
1 | ||
| 71073-2J590B0 |
ACR30..08S;ACR30..LHD..07S..EUR SEAT = TYPE A-*104 & W(ARMREST),LT. GRAY,TRIM11 |
1 | ||
| 71073-2J570B0 |
ACR30..08S..EUR;ACR30..LHD..07S..EUR SEAT = TYPE A-*104,LT. GRAY,TRIM11 |
1 | ||
| 71073-2J630B0 |
ACR30..LHD..(07S,08S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST),LT. GRAY,TRIM11 |
1 | ||
| 71073-2J630B1 |
ACR30,CLR30..LHD..(07S,08S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J570B1 |
ACR30,CLR30..08S..EUR;ACR30,CLR30..LHD..07S..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J690B1 |
ACR30,CLR30..LHD..(07S,08S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J590B1 |
ACR30,CLR30..LHD..07S..EUR;ACR30,CLR30..08S..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71073-2J570B4 |
ACR30,CLR30..08S..EUR;ACR30,CLR30..LHD..07S..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J630B3 |
ACR30,CLR30..LHD..(07S,08S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J590B3 |
ACR30,CLR30..LHD..07S..EUR;ACR30,CLR30..08S..(ARL,EUR,GEN) SEAT = TYPE A-*104 & W(ARMREST),BLUISH GRAY,TRIM11 |
1 | ||
| 71073-2J690B3 |
ACR30,CLR30..LHD..(07S,08S)..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM11 |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2J430B0 |
ACR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71410-2J420B0 |
ACR30..LHD..DX SEAT = TYPE A-*104,LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71410-2J430B4 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71410-2J420B1 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 71410-2J420B4 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71410-2J430B1 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),MD.CHARCOAL,TRIM12 |
1 | ||
| 71410-2J421B0 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71410-2J431B0 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71410-2J431B1 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),CHARCOAL,TRIM12 |
1 | ||
| 71410-2J421B1 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,CHARCOAL,TRIM12 |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2J410B0 |
ACR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71420-2J400B0 |
ACR30..LHD..DX SEAT = TYPE A-*104,LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71420-2J410B1 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),MD.CHARCOAL,TRIM12 |
1 | ||
| 71420-2J400B4 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71420-2J400B1 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 71420-2J401B1 |
ACR30,CLR30..LHD..DX..(EUR,GEN) SEAT = TYPE A-*104,CHARCOAL,TRIM12 |
1 | ||
| 71420-2J410B4 |
ACR30,CLR30..LHD..EUR SEAT = TYPE A-*104 & W(SEAT HEATER),LT.BLUISH GRAY,TRIM11 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28220 |
ACR30,CLR30 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-28220 |
ACR30,CLR30 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ACR30,CLR30 |
6 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-28280 |
ACR30,CLR30..(07S,08S)..EUR |
1 | ||
| 71551-28270 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-28290 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71551-28280 |
ACR30,CLR30..(07S,08S)..EUR |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71013-28350 |
ACR30,CLR30..(07S,08S)..EUR |
1 | ||
| 71013-28330 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71013-28350 |
ACR30,CLR30..(07S,08S)..EUR |
1 | ||
| 71013-28340 |
ACR30,CLR30..ARL,EUR,GEN W(ARMREST) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71940-2J130B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71940-2J130B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11 |
2 | ||
| 71940-2J130B2 |
ACR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),LT. GRAY,TRIM11 |
2 | ||
| 71940-2J131B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11 |
2 | ||
| 71940-2J131B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71940-2J130B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71940-2J130B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11 |
2 | ||
| 71940-2J130B2 |
ACR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),LT. GRAY,TRIM11 |
2 | ||
| 71940-2J131B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11 |
2 | ||
| 71940-2J131B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-30030B2 |
ACR30,CLR30 W/O(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71930-30110B1 |
ACR30,CLR30 W(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 71930-30110B2 |
ACR30,CLR30 W(LOCK),BLUE GRAY,TRIM11 |
2 | ||
| 71931-30030B1 |
ACR30,CLR30 W/O(LOCK),MD.CHARCOAL,TRIM12 |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-28030 |
ACR30,CLR30 |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-28030 |
ACR30,CLR30 |
2 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-28030 |
ACR30,CLR30 |
2 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-28030 |
ACR30,CLR30 |
2 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-28030B3 |
ACR30 SEAT = TYPE A OR TYPE B-*104,LT. BLUISH GRAY,TRIM11 |
1 | ||
| 72848-28030B2 |
CLR30;ACR30..08S..(ARL,EUR,GEN) SEAT = TYPE A OR TYPE B-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72848-28030B4 |
ACR30,CLR30..ARL,EUR,GEN SEAT = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 72849B - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-28030B4 |
ACR30,CLR30..ARL,EUR,GEN SEAT = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12 |
1 | ||
| 72848-28030B2 |
CLR30;ACR30..08S..(ARL,EUR,GEN) SEAT = TYPE A OR TYPE B-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72848-28030B3 |
ACR30 SEAT = TYPE A OR TYPE B-*104,LT. BLUISH GRAY,TRIM11 |
1 | ||
| 72880A - ARMREST ASSY, FRONT SEAT, INNER RH | ||||
| 72890-28700B0 |
ACR30..DX SEAT = TYPE A-*104,LT. GRAY,TRIM11 |
1 | ||
| 72890-28700B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72890-28700B6 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72890-28701B6 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72890-28701B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72890A - ARMREST ASSY, FRONT SEAT, INNER LH | ||||
| 72880-28840B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72880-28840B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 72880-28840B0 |
ACR30..DX SEAT = TYPE A-*104,LT. GRAY,TRIM11 |
1 | ||
| 72880-28841B1 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 72880-28841B4 |
ACR30,CLR30..DX..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| Common parts | ||||
| 90119-10911 | ||||
| 91515-81025 | ||||
| 93530-55016 | ||||
ILLUST NO. 4 OF 4(0002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71397C - STOPPER, REAR SEAT | ||||
| 71397-28030 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM |
2 | ||
| 71397-28030 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM |
2 | ||
| 71397C - STOPPER, REAR SEAT | ||||
| 71397-28030 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM |
2 | ||
| 71397-28030 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-28040B1 |
ACR30,CLR30..08S..EUR DK.CHARCOAL,TRIM12 |
2 | ||
| 72129-28080B0 |
ACR30,CLR30..08S..EUR BLUISH GRAY,TRIM11,RH |
1 | ||
| 72129-28040B0 |
ACR30,CLR30..08S..EUR BLUISH GRAY,TRIM11 |
2 | ||
| 72129-28040B0 |
ACR30..DX..ARL;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..MTM;ACR30..LHD..(07S,08S)..ATM BLUISH GRAY,TRIM11 |
4 | ||
| 72129-28090B0 |
ACR30,CLR30..08S..EUR BLUISH GRAY,TRIM11,LH |
1 | ||
| 72129-28080B1 |
ACR30,CLR30..08S..EUR DK.CHARCOAL,TRIM12,RH |
1 | ||
| 72129-28040B1 |
ACR30..DX..ARL;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..MTM;ACR30..LHD..(07S,08S)..ATM DK.CHARCOAL,TRIM12 |
4 | ||
| 72129-28090B1 |
ACR30,CLR30..08S..EUR DK.CHARCOAL,TRIM12,LH |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-28040B1 |
ACR30,CLR30..08S..EUR DK.CHARCOAL,TRIM12 |
2 | ||
| 72129-28080B0 |
ACR30,CLR30..08S..EUR BLUISH GRAY,TRIM11,RH |
1 | ||
| 72129-28040B0 |
ACR30,CLR30..08S..EUR BLUISH GRAY,TRIM11 |
2 | ||
| 72129-28040B0 |
ACR30..DX..ARL;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..MTM;ACR30..LHD..(07S,08S)..ATM BLUISH GRAY,TRIM11 |
4 | ||
| 72129-28090B0 |
ACR30,CLR30..08S..EUR BLUISH GRAY,TRIM11,LH |
1 | ||
| 72129-28080B1 |
ACR30,CLR30..08S..EUR DK.CHARCOAL,TRIM12,RH |
1 | ||
| 72129-28040B1 |
ACR30..DX..ARL;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..MTM;ACR30..LHD..(07S,08S)..ATM DK.CHARCOAL,TRIM12 |
4 | ||
| 72129-28090B1 |
ACR30,CLR30..08S..EUR DK.CHARCOAL,TRIM12,LH |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-28220 |
ACR30..08S..EUR W(ARMREST) |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-28210 |
ACR30..08S..EUR W(ARMREST) |
1 | ||
| Common parts | ||||
| 90119-10409 | ||||
| Linked diagrams | ||||
| 5854 | ||||

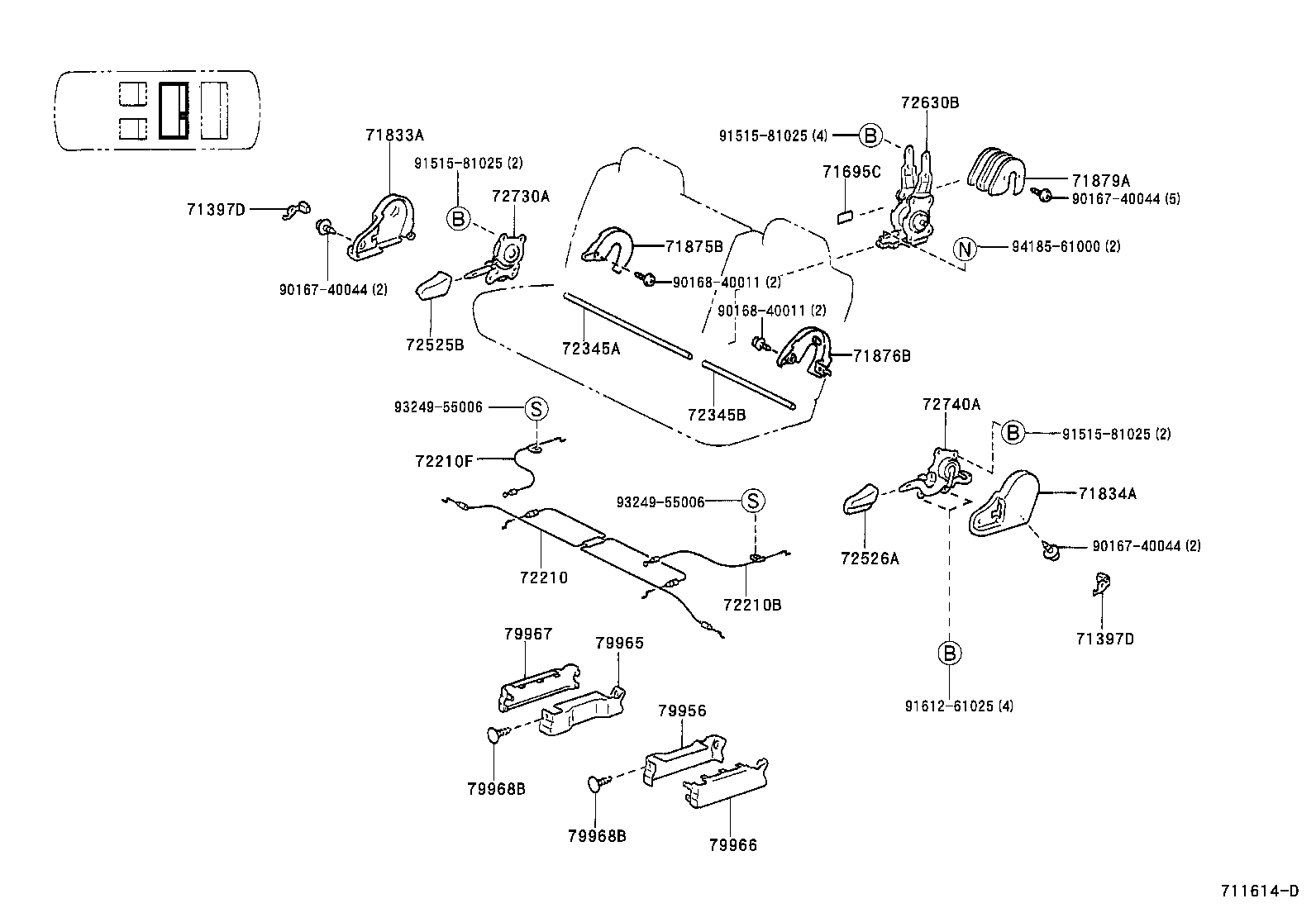

ILLUST NO. 2 OF 4(0002- )08S..ARL,EUR,GEN
ADJUSTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71397D - STOPPER, REAR SEAT | ||||
| 71397-28050 |
ACR30,CLR30..08S..(ARL,EUR,GEN) RH |
1 | ||
| 71397-28060 |
ACR30,CLR30..08S..(ARL,EUR,GEN) LH |
1 | ||
| 71397D - STOPPER, REAR SEAT | ||||
| 71397-28050 |
ACR30,CLR30..08S..(ARL,EUR,GEN) RH |
1 | ||
| 71397-28060 |
ACR30,CLR30..08S..(ARL,EUR,GEN) LH |
1 | ||
| 71695C - PROTECTOR, REAR SEAT, NO.1 | ||||
| 71695-28130 |
ACR30,CLR30..08S..(ARL,EUR,GEN) |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71811-28200B0 |
ACR30,CLR30..08S BLUISH GRAY,TRIM11 |
1 | ||
| 71811-28200B1 |
ACR30,CLR30..08S DK.CHARCOAL,TRIM12 |
1 | ||
| 71811-28201B0 |
ACR30,CLR30..08S..(ARL,EUR,GEN) BLUISH GRAY,TRIM11 |
1 | ||
| 71811-28201B1 |
ACR30,CLR30..08S..(ARL,EUR,GEN) DK.CHARCOAL,TRIM12 |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71812-28190B0 |
ACR30,CLR30..08S BLUISH GRAY,TRIM11 |
1 | ||
| 71812-28190B1 |
ACR30,CLR30..08S DK.CHARCOAL,TRIM12 |
1 | ||
| 71812-28191B1 |
ACR30,CLR30..08S..(ARL,EUR,GEN) DK.CHARCOAL,TRIM12 |
1 | ||
| 71812-28191B0 |
ACR30,CLR30..08S..(ARL,EUR,GEN) BLUISH GRAY,TRIM11 |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28110B0 |
ACR30,CLR30..08S..(ARL,EUR,GEN) BENCH SEAT TYPE,BLUISH GRAY,TRIM11 |
1 | ||
| 71875-28110B1 |
ACR30,CLR30..08S..(ARL,EUR,GEN) BENCH SEAT TYPE,DK.CHARCOAL,TRIM12 |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-28110B0 |
ACR30,CLR30..08S BLUISH GRAY,TRIM11 |
1 | ||
| 71876-28110B1 |
ACR30,CLR30..08S DK.CHARCOAL,TRIM12 |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-28040B0 |
ACR30,CLR30..08S BLUISH GRAY,TRIM11 |
1 | ||
| 71879-28040B1 |
ACR30,CLR30..08S DK.CHARCOAL,TRIM12 |
1 | ||
| 71879-28041B1 |
ACR30,CLR30..08S..(ARL,EUR,GEN) DK.CHARCOAL,TRIM12 |
1 | ||
| 71879-28041B0 |
ACR30,CLR30..08S..(ARL,EUR,GEN) BLUISH GRAY,TRIM11 |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-28110 |
ACR30,CLR30..08S..(ARL,EUR,GEN) |
1 | ||
| 72210B - CABLE ASSY, SEAT TRACK CONTROL, RH | ||||
| 72210-28130 |
ACR30,CLR30..08S..(ARL,EUR,GEN) |
1 | ||
| 72210F - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-28140 |
ACR30,CLR30..08S..(ARL,EUR,GEN) |
1 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-28080 |
ACR30,CLR30..08S..(ARL,EUR,GEN) |
1 | ||
| 72345B - PIPE, RECLINING CONNECTING | ||||
| 72345-28090 |
ACR30,CLR30..08S..(ARL,EUR,GEN) |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010B5 |
ACR30,CLR30..08S..(ARL,EUR,GEN) BLUISH GRAY,TRIM11 |
1 | ||
| 72525-16010P2 |
ACR30,CLR30..08S..(ARL,EUR,GEN) DK.CHARCOAL,TRIM12 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010P2 |
ACR30,CLR30..08S..(ARL,EUR,GEN) DK.CHARCOAL,TRIM12 |
1 | ||
| 72526-16010B5 |
ACR30,CLR30..08S..(ARL,EUR,GEN) BLUISH GRAY,TRIM11 |
1 | ||
| 72630B - ADJUSTER ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 72630-28070 |
ACR30,CLR30..08S..(ARL,EUR,GEN) |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-28610 |
ACR30,CLR30..08S..(ARL,EUR,GEN) |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-28610 |
ACR30,CLR30..08S..(ARL,EUR,GEN) |
1 | ||
| 79956 - COVER, REAR SEAT LEG BRACKET | ||||
| 79956-28120B0 |
ACR30,CLR30..08S..(ARL,EUR,GEN) BLUISH GRAY,TRIM11 |
1 | ||
| 79956-28120B1 |
ACR30,CLR30..08S..(ARL,EUR,GEN) DK.CHARCOAL,TRIM12 |
1 | ||
| 79965 - COVER, REAR SEAT LEG SIDE, NO.2 | ||||
| 79965-28080B0 |
ACR30,CLR30..08S..(ARL,EUR,GEN) BLUISH GRAY,TRIM11 |
1 | ||
| 79965-28080B1 |
ACR30,CLR30..08S..(ARL,EUR,GEN) DK.CHARCOAL,TRIM12 |
1 | ||
| 79966 - COVER, REAR SEAT LEG SIDE, NO.3 | ||||
| 79966-28060B0 |
ACR30,CLR30..08S..(ARL,EUR,GEN) BLUISH GRAY,TRIM11 |
1 | ||
| 79966-28060B1 |
ACR30,CLR30..08S..(ARL,EUR,GEN) DK.CHARCOAL,TRIM12 |
1 | ||
| 79967 - COVER, REAR SEAT LEG SIDE, NO.4 | ||||
| 79967-28040B0 |
ACR30,CLR30..08S..(ARL,EUR,GEN) BLUISH GRAY,TRIM11 |
1 | ||
| 79967-28040B1 |
ACR30,CLR30..08S..(ARL,EUR,GEN) DK.CHARCOAL,TRIM12 |
1 | ||
| 79968B - CLIP | ||||
| 90467-05020B8 |
ACR30,CLR30..08S..(ARL,EUR,GEN) DK.CHARCOAL,TRIM12 |
6 | ||
| 90467-05020B0 |
ACR30,CLR30..08S..(ARL,EUR,GEN) GRAY,TRIM11 |
6 | ||
| 79968B - CLIP | ||||
| 90467-05020B8 |
ACR30,CLR30..08S..(ARL,EUR,GEN) DK.CHARCOAL,TRIM12 |
6 | ||
| 90467-05020B0 |
ACR30,CLR30..08S..(ARL,EUR,GEN) GRAY,TRIM11 |
6 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90168-40011 | ||||
| 91515-81025 | ||||
| 91612-61025 | ||||
| 93249-55006 | ||||
| 94185-61000 | ||||

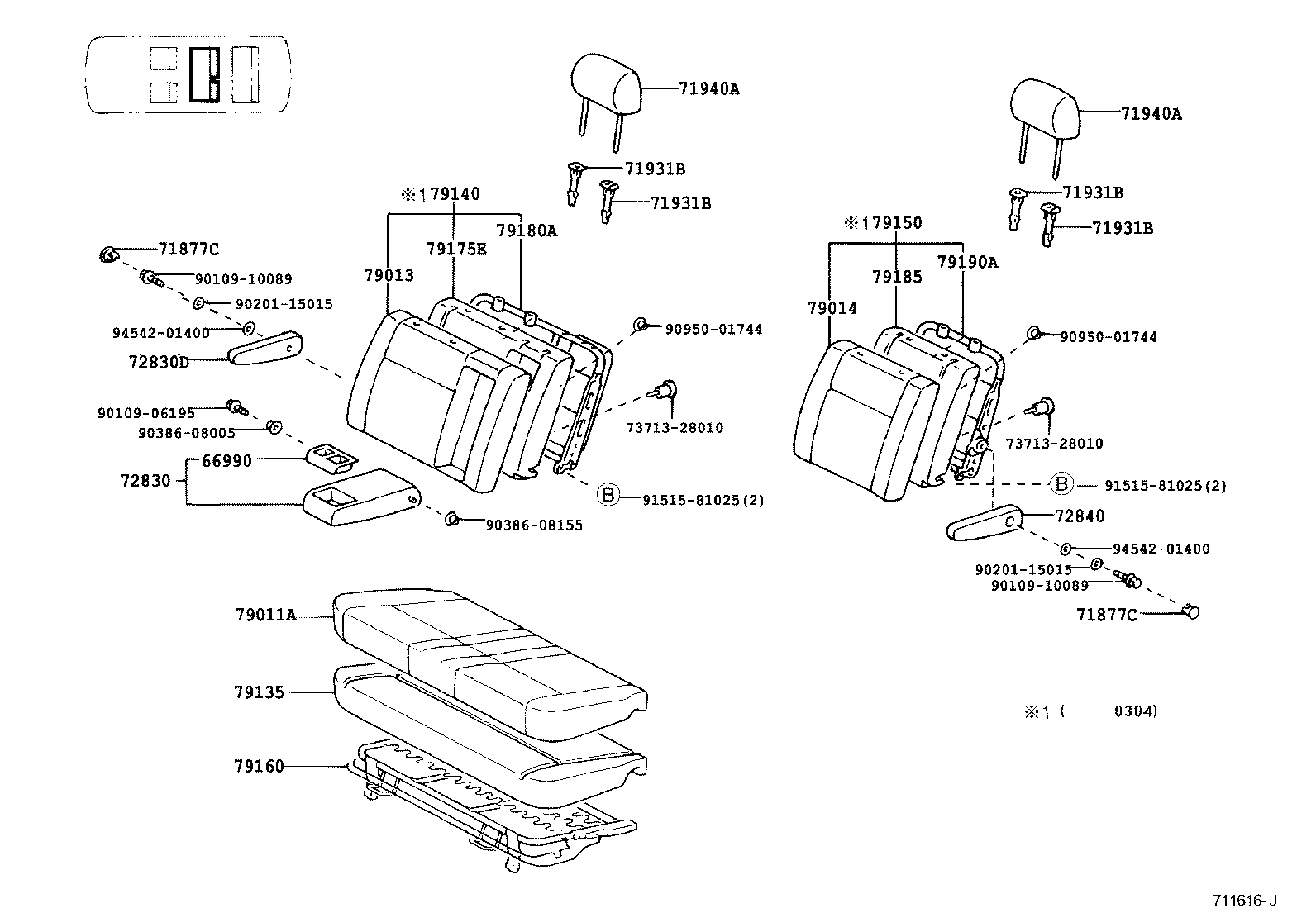

ILLUST NO. 2 OF 4(0002- )08S..ARL,EUR,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-30110B2 |
ACR30..GL..GEN;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..(ARL,EUR,GEN) W(LOCK),BLUE GRAY,TRIM11 |
1 | ||
| 71930-30110B1 |
ACR30..GL..GEN;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..(ARL,EUR,GEN) W(LOCK),MD.CHARCOAL,TRIM12 |
1 | ||
| 71931-30030B1 |
ACR30..GL..GEN;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..(ARL,EUR,GEN) W/O(LOCK),MD.CHARCOAL,TRIM12 |
1 | ||
| 71931-30030B2 |
ACR30..GL..GEN;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..(ARL,EUR,GEN) W/O(LOCK),BLUE GRAY,TRIM11 |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-30110B2 |
ACR30..GL..GEN;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..(ARL,EUR,GEN) W(LOCK),BLUE GRAY,TRIM11 |
1 | ||
| 71930-30110B1 |
ACR30..GL..GEN;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..(ARL,EUR,GEN) W(LOCK),MD.CHARCOAL,TRIM12 |
1 | ||
| 71931-30030B1 |
ACR30..GL..GEN;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..(ARL,EUR,GEN) W/O(LOCK),MD.CHARCOAL,TRIM12 |
1 | ||
| 71931-30030B2 |
ACR30..GL..GEN;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..(ARL,EUR,GEN) W/O(LOCK),BLUE GRAY,TRIM11 |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-30110B2 |
ACR30..GL..GEN;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..(ARL,EUR,GEN) W(LOCK),BLUE GRAY,TRIM11 |
1 | ||
| 71930-30110B1 |
ACR30..GL..GEN;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..(ARL,EUR,GEN) W(LOCK),MD.CHARCOAL,TRIM12 |
1 | ||
| 71931-30030B1 |
ACR30..GL..GEN;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..(ARL,EUR,GEN) W/O(LOCK),MD.CHARCOAL,TRIM12 |
1 | ||
| 71931-30030B2 |
ACR30..GL..GEN;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..(ARL,EUR,GEN) W/O(LOCK),BLUE GRAY,TRIM11 |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-30110B2 |
ACR30..GL..GEN;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..(ARL,EUR,GEN) W(LOCK),BLUE GRAY,TRIM11 |
1 | ||
| 71930-30110B1 |
ACR30..GL..GEN;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..(ARL,EUR,GEN) W(LOCK),MD.CHARCOAL,TRIM12 |
1 | ||
| 71931-30030B1 |
ACR30..GL..GEN;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..(ARL,EUR,GEN) W/O(LOCK),MD.CHARCOAL,TRIM12 |
1 | ||
| 71931-30030B2 |
ACR30..GL..GEN;ACR30..RHD..07S..ATM;ACR30,CLR30..08S..(ARL,EUR,GEN) W/O(LOCK),BLUE GRAY,TRIM11 |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-2J130B2 |
ACR30..08S..EUR SEAT = TYPE A-*104,LT. GRAY,TRIM11 |
1 | ||
| 71940-2J130B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71940-2J130B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71940-2J131B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71940-2J131B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-2J130B2 |
ACR30..08S..EUR SEAT = TYPE A-*104,LT. GRAY,TRIM11 |
1 | ||
| 71940-2J130B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 71940-2J130B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71940-2J131B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 71940-2J131B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-28750B0 |
ACR30..08S SEAT = TYPE A-*104,LT. GRAY,TRIM1# |
1 | ||
| 79011-28750B3 |
ACR30,CLR30..08S..(ARL,EUR,GEN) SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 79011-28750B1 |
ACR30,CLR30..08S..(ARL,EUR,GEN) SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-28860B0 |
ACR30..08S..EUR SEAT = TYPE A-*104,LT. GRAY,TRIM11 |
1 | ||
| 79013-28860B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 79013-28860B1 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-28640B0 |
ACR30..08S..(ARL,EUR) LT. GRAY,TRIM11 |
1 | ||
| 79014-28640B1 |
ACR30,CLR30..08S..(ARL,EUR) MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 79014-28640B3 |
ACR30,CLR30..08S..(ARL,EUR) BLUISH GRAY,TRIM11 |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-28160 |
ACR30,CLR30..08S..(ARL,EUR,GEN) |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-2J530B0 |
ACR30..08S..EUR LT.BLUISH GRAY,TRIM11 |
1 | ||
| 79140-2J530B1 |
ACR30..08S..EUR MD.CHARCOAL,TRIM12 |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-2J320B0 |
ACR30..08S..EUR LT.BLUISH GRAY,TRIM11 |
1 | ||
| 79150-2J320B1 |
ACR30..08S..EUR MDCHARCOAL,TRIM12 |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-28220 |
ACR30,CLR30..08S..(ARL,EUR,GEN) |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-28210 |
ACR30,CLR30..08S..EUR |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79280-28180 |
ACR30..08S..EUR |
1 | ||
| 79280-28190 |
ACR30,CLR30..08S..EUR |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-28070 |
ACR30,CLR30..08S..EUR |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79180-28490 |
ACR30..08S..EUR |
1 | ||
| 79180-28520 |
ACR30,CLR30..08S..EUR |
1 | ||
| Common parts | ||||
| 73713-28010 | ||||
| 90109-06195 | ||||
| 90109-10089 | ||||
| 90201-15015 | ||||
| 90386-08005 | ||||
| 90386-08155 | ||||
| 90950-01744 | ||||
| 91515-81025 | ||||
| 94542-01400 | ||||
ILLUST NO. 1 OF 4(0002- )
FRONT SEAT ADJUSTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71130 - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-28010B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 71130-28010B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 71130A - CLIP, FRONT SEAT LEG | ||||
| 90467-05020B0 |
ACR30,CLR30 GRAY,TRIM11 |
4 | ||
| 90467-05020B8 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
4 | ||
| 71130A - CLIP, FRONT SEAT LEG | ||||
| 90467-05020B0 |
ACR30,CLR30 GRAY,TRIM11 |
4 | ||
| 90467-05020B8 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
4 | ||
| 71139A - COVER, FRONT SEAT LEG, NO.1 | ||||
| 71139-28050B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 71139-28050B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 71139B - COVER, FRONT SEAT LEG, NO.2 | ||||
| 71139-28060B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 71139-28060B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 71140 - LEG ASSY, FRONT SEAT, LH | ||||
| 71140-28010B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 71140-28010B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-28190B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 71811-28191B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 71811-28190B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 71811-28191B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-28170B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 71811-28170B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 71811-28171B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 71811-28171B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-28181B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 71812-28180B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 71812-28181B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 71812-28180B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-28160B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 71812-28160B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 71812-28161B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 71812-28161B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28030B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 71875-28030B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-28030B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 71875-28030B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-28030B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 71876-28030B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-28030B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 71876-28030B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-28090B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 72137-28090B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-28090B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 72137-28090B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-28030B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 72138-28030B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-28030B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 72138-28030B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-28100 |
ACR30,CLR30 |
1 | ||
| 72211B - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-28100 |
ACR30,CLR30 |
1 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-18010P3 |
ACR30,CLR30..LHD DK.CHARCOAL,TRIM12 |
1 | ||
| 72457-18010B2 |
ACR30,CLR30..LHD BLUISH GRAY,TRIM11 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010B5 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 72525-16010P2 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010P2 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 72526-16010B5 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| Common parts | ||||
| 90119-10409 | ||||
| 90119-10799 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 90561-15007 | ||||
ILLUST NO. 3 OF 4(0002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71324J - CUSHION, REAR SEAT | ||||
| 71324-28050 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM |
2 | ||
| 71324-28050 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM |
2 | ||
| 71812J - CLIP, REAR SEAT COVER | ||||
| 90467-05021B6 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM MD.CHARCOAL,TRIM12 |
2 | ||
| 90467-05021B6 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM MD.CHARCOAL,TRIM12 |
2 | ||
| 90467-05021B1 |
ACR30..08S;ACR30..GL..GEN;ACR30..RHD..07S..ATM LT.BLUISH GRAY,TRIM11 |
2 | ||
| 71812J - CLIP, REAR SEAT COVER | ||||
| 90467-05021B6 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM MD.CHARCOAL,TRIM12 |
2 | ||
| 90467-05021B6 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM MD.CHARCOAL,TRIM12 |
2 | ||
| 90467-05021B1 |
ACR30..08S;ACR30..GL..GEN;ACR30..RHD..07S..ATM LT.BLUISH GRAY,TRIM11 |
2 | ||
| 71833D - COVER REAR SEAT RECLINING, RH | ||||
| 71811-28250B1 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM DK.CHARCOAL,TRIM12 |
1 | ||
| 71811-28250B0 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM BLUISH GRAY,TRIM11 |
1 | ||
| 71811-28250B1 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM DK.CHARCOAL,TRIM12 |
1 | ||
| 71811-28250B0 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM BLUISH GRAY,TRIM11 |
1 | ||
| 71834C - COVER, REAR SEAT RECLINING, NO.3 LH | ||||
| 71812-28250B1 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM DK.CHARCOAL,TRIM12 |
1 | ||
| 71812-28250B0 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM BLUISH GRAY,TRIM11 |
1 | ||
| 71812-28250B0 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM BLUISH GRAY,TRIM11 |
1 | ||
| 71812-28250B1 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM DK.CHARCOAL,TRIM12 |
1 | ||
| 71865 - BEZEL, REAR SEAT COVER, NO.1 | ||||
| 71865-28020B1 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM DK.CHARCOAL,TRIM12 |
1 | ||
| 71865-28020B1 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM DK.CHARCOAL,TRIM12 |
1 | ||
| 71865-28020B0 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM BLUISH GRAY,TRIM11 |
1 | ||
| 71865-28020B0 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM BLUISH GRAY,TRIM11 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-30110B2 |
ACR30,CLR30..08S W(LOCK),BLUE GRAY,TRIM11 |
1 | ||
| 71931-30030B2 |
ACR30,CLR30..08S W/O(LOCK),BLUE GRAY,TRIM11 |
1 | ||
| 71931-30030B1 |
ACR30,CLR30..08S W/O(LOCK),MD.CHARCOAL,TRIM12 |
1 | ||
| 71930-30110B1 |
ACR30,CLR30..08S W(LOCK),MD.CHARCOAL,TRIM12 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-30110B2 |
ACR30,CLR30..08S W(LOCK),BLUE GRAY,TRIM11 |
1 | ||
| 71931-30030B2 |
ACR30,CLR30..08S W/O(LOCK),BLUE GRAY,TRIM11 |
1 | ||
| 71931-30030B1 |
ACR30,CLR30..08S W/O(LOCK),MD.CHARCOAL,TRIM12 |
1 | ||
| 71930-30110B1 |
ACR30,CLR30..08S W(LOCK),MD.CHARCOAL,TRIM12 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-30110B2 |
ACR30,CLR30..08S W(LOCK),BLUE GRAY,TRIM11 |
1 | ||
| 71931-30030B2 |
ACR30,CLR30..08S W/O(LOCK),BLUE GRAY,TRIM11 |
1 | ||
| 71931-30030B1 |
ACR30,CLR30..08S W/O(LOCK),MD.CHARCOAL,TRIM12 |
1 | ||
| 71930-30110B1 |
ACR30,CLR30..08S W(LOCK),MD.CHARCOAL,TRIM12 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-30110B2 |
ACR30,CLR30..08S W(LOCK),BLUE GRAY,TRIM11 |
1 | ||
| 71931-30030B2 |
ACR30,CLR30..08S W/O(LOCK),BLUE GRAY,TRIM11 |
1 | ||
| 71931-30030B1 |
ACR30,CLR30..08S W/O(LOCK),MD.CHARCOAL,TRIM12 |
1 | ||
| 71930-30110B1 |
ACR30,CLR30..08S W(LOCK),MD.CHARCOAL,TRIM12 |
1 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71940-2J130B2 |
ACR30..08S..EUR SEAT = TYPE A-*104,LT. GRAY,TRIM11 |
2 | ||
| 71940-2J130B5 |
ACR30,CLR30..08S..EUR W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11 |
2 | ||
| 71940-2J130B3 |
ACR30,CLR30..08S..EUR W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71940-2J131B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71940-2J131B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71940-2J130B2 |
ACR30..08S..EUR SEAT = TYPE A-*104,LT. GRAY,TRIM11 |
2 | ||
| 71940-2J130B5 |
ACR30,CLR30..08S..EUR W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11 |
2 | ||
| 71940-2J130B3 |
ACR30,CLR30..08S..EUR W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71940-2J131B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12 |
2 | ||
| 71940-2J131B5 |
ACR30,CLR30..08S..EUR SEAT = TYPE A-*104,BLUISH GRAY,TRIM11 |
2 | ||
| 72058B - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72058-28010B1 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM DK.CHARCOAL,TRIM12 |
1 | ||
| 72058-28010B1 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM DK.CHARCOAL,TRIM12 |
1 | ||
| 72058-28010B0 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM BLUISH GRAY,TRIM11 |
1 | ||
| 72058-28010B0 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM BLUISH GRAY,TRIM11 |
1 | ||
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-28090B1 |
ACR30,CLR30..08S..EUR GRAY,TRIM12 |
1 | ||
| 72065-28090B0 |
ACR30,CLR30..08S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 72210J - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-28050 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM |
1 | ||
| 72210-28050 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM |
1 | ||
| 72210K - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-28060 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM |
1 | ||
| 72210-28060 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM |
1 | ||
| 72210L - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-28070 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM |
1 | ||
| 72210-28070 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM |
1 | ||
| 72213B - KNOB, SEAT TRACK ADJUSTING HANDLE, RH | ||||
| 72213-28050B1 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM DK.CHARCOAL,TRIM12 |
1 | ||
| 72213-28050B1 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM DK.CHARCOAL,TRIM12 |
1 | ||
| 72213-28050B0 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM BLUISH GRAY,TRIM11 |
1 | ||
| 72213-28050B0 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM BLUISH GRAY,TRIM11 |
1 | ||
| 72345E - PIPE, RECLINING CONNECTING | ||||
| 72345-28120 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM |
1 | ||
| 72507A - HANDLE SUB-ASSY, RECLINING RELEASE | ||||
| 72507-28030B1 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM DK.CHARCOAL,TRIM12 |
2 | ||
| 72507-28030B0 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM BLUISH GRAY,TRIM11 |
2 | ||
| 72507-28030B0 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM BLUISH GRAY,TRIM11 |
2 | ||
| 72507-28030B1 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM DK.CHARCOAL,TRIM12 |
2 | ||
| 72507A - HANDLE SUB-ASSY, RECLINING RELEASE | ||||
| 72507-28030B1 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM DK.CHARCOAL,TRIM12 |
2 | ||
| 72507-28030B0 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM BLUISH GRAY,TRIM11 |
2 | ||
| 72507-28030B0 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM BLUISH GRAY,TRIM11 |
2 | ||
| 72507-28030B1 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM DK.CHARCOAL,TRIM12 |
2 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-95J01C0 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM BLACK,TRIM11,12 |
1 | ||
| 72658-95J01C0 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM BLACK,TRIM11,12 |
1 | ||
| 72690B - LEVER ASSY, SEAT CUSHION LOCK RELEASE, RH | ||||
| 72690-28010 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM |
1 | ||
| 72690-28010 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM |
1 | ||
| 72690C - LEVER ASSY, SEAT CUSHION LOCK RELEASE, LH | ||||
| 72690-28020 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM |
1 | ||
| 72690-28020 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM |
1 | ||
| 72695A - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-28010 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM |
1 | ||
| 72695-28010 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM |
1 | ||
| 72748 - WIRE, REAR SEAT RECLINING CONTROL | ||||
| 72748-28030 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM |
2 | ||
| 72748-28030 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM |
2 | ||
| 72748 - WIRE, REAR SEAT RECLINING CONTROL | ||||
| 72748-28030 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM |
2 | ||
| 72748-28030 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM |
2 | ||
| 72750E - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH | ||||
| 72750-28060 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM |
1 | ||
| 72750-28060 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM |
1 | ||
| 72760F - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH | ||||
| 72760-28070 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM |
1 | ||
| 72760-28070 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM |
1 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79031-28500B0 |
ACR30..08S SEAT = TYPE E-*104,LT. GRAY,TRIM11 |
1 | ||
| 79031-28500B1 |
ACR30,CLR30..08S..(ARL,EUR,GEN) SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 79031-28500B3 |
ACR30,CLR30..08S..(ARL,EUR,GEN) SEAT = TYPE E-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79033-28540B6 |
ACR30,CLR30..08S..EUR SEAT = TYPE E-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 79033-28540B3 |
ACR30,CLR30..08S..EUR SEAT = TYPE E-*104,MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 79033-28540B2 |
ACR30..08S..EUR SEAT = TYPE E-*104,LT. GRAY,TRIM11 |
1 | ||
| 79033-28540B9 |
ACR30,CLR30..08S..EUR SEAT = TYPE E-*104,BLUISH GRAY,TRIM11 |
1 | ||
| 79203 - FRAME SUB-ASSY, NO.2 SEAT BACK | ||||
| 79303-28080 |
ACR30..08S..EUR REAR SEAT = TYPE F-*104 |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79030-28040 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM |
1 | ||
| 79030-28040 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79335-28060 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM |
1 | ||
| 79335-28060 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM |
1 | ||
| 79260 - SPRING ASSY, NO.2 SEAT CUSHION | ||||
| 79360-28050 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM |
1 | ||
| 79360-28050 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79375-28090 |
ACR30..08S..EUR REAR SEAT = TYPE F-*104 |
1 | ||
| 79366 - COVER, NO.3 SEAT LEG, NO.1 | ||||
| 79366-28030B0 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM BLUISH GRAY,TRIM11 |
1 | ||
| 79366-28030B0 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM BLUISH GRAY,TRIM11 |
1 | ||
| 79366-28030B1 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM DK.CHARCOAL,TRIM12 |
1 | ||
| 79366-28030B1 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM DK.CHARCOAL,TRIM12 |
1 | ||
| 79367 - COVER, NO.3 SEAT LEG, NO.2 | ||||
| 79367-28020B1 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM DK.CHARCOAL,TRIM12 |
1 | ||
| 79367-28020B0 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM BLUISH GRAY,TRIM11 |
1 | ||
| 79367-28020B0 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM BLUISH GRAY,TRIM11 |
1 | ||
| 79367-28020B1 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM DK.CHARCOAL,TRIM12 |
1 | ||
| 79374 - COVER, NO.3 SEAT LEG, REAR RH | ||||
| 79374-28050B0 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM BLUISH GRAY,TRIM11 |
1 | ||
| 79374-28050B0 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM BLUISH GRAY,TRIM11 |
1 | ||
| 79374-28050B1 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM DK.CHARCOAL,TRIM12 |
1 | ||
| 79374-28050B1 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM DK.CHARCOAL,TRIM12 |
1 | ||
| 79384 - COVER, NO.3 SEAT LEG, REAR LH | ||||
| 79384-28050B1 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM DK.CHARCOAL,TRIM12 |
1 | ||
| 79384-28050B1 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM DK.CHARCOAL,TRIM12 |
1 | ||
| 79384-28050B0 |
ACR30..LHD..GL;ACR30,CLR30..08S;ACR30..RHD..07S..ATM BLUISH GRAY,TRIM11 |
1 | ||
| 79384-28050B0 |
ACR30,CLR30..08S..MTM;ACR30..(07S,08S)..ATM BLUISH GRAY,TRIM11 |
1 | ||
| Common parts | ||||
| 72702-28070 | ||||
| 90109-06195 | ||||
| 90119-08511 | ||||
| 90149-40012 | ||||
| 90159-60280 | ||||
| 90164-50051 | ||||
| 90167-40044 | ||||
| 90168-40011 | ||||
| 90386-08005 | ||||
| 90386-08155 | ||||
| 90463-13003 | ||||
| 90468-18071 | ||||
| 90541-03112 | ||||
| 91511-B0814 | ||||
| 91515-81025 | ||||
| 91611-B0614 | ||||
| 94185-60600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
