ACR30L-MRSDKW (2000)
Toyota Previa/Tarago
Production
Feb 2000
-
Apr 2003
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0002- )

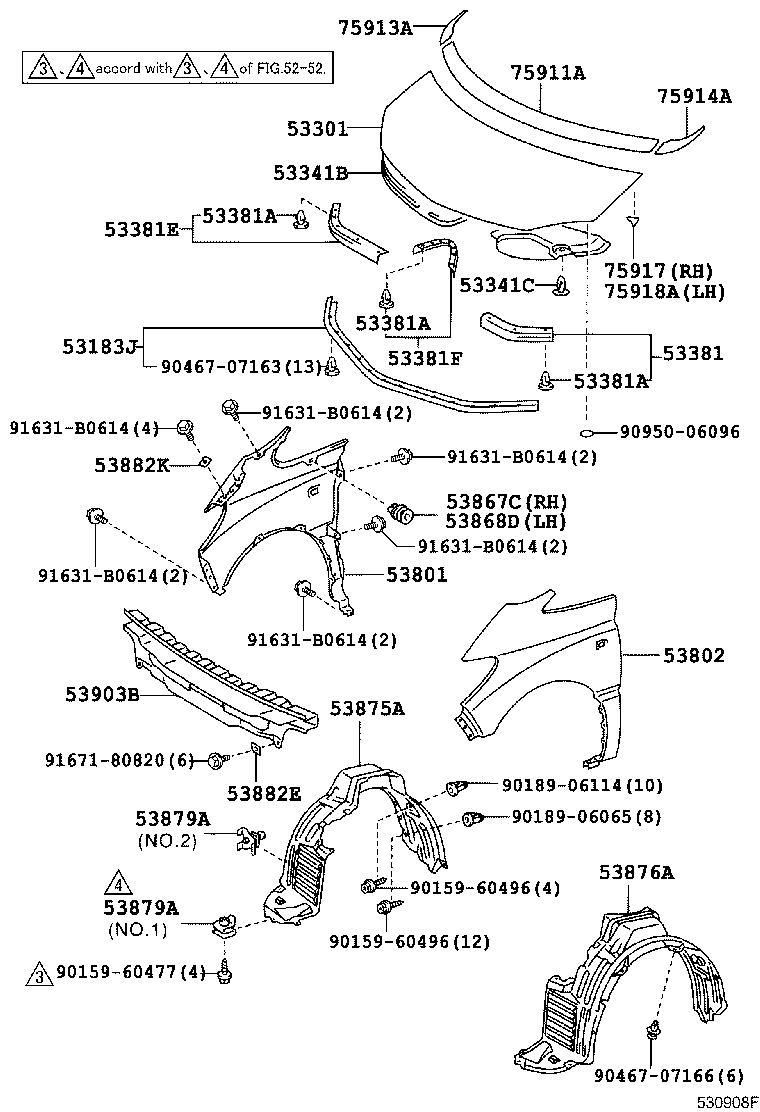

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53183J - SEAL, HEADLAMP COVER TO HOOD | ||||
| 53183-28060 |
ACR30,CLR30 |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-28070 |
ACR30,CLR30 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-28050 |
ACR30,CLR30 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
ACR30,CLR30 |
14 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
ACR30,CLR30 |
14 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
ACR30,CLR30 |
14 | ||
| 53381E - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-28060 |
ACR30,CLR30 |
1 | ||
| 53381F - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-28070 |
ACR30,CLR30 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-28020 |
ACR30,CLR30 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-28020 |
ACR30,CLR30 |
1 | ||
| 53867C - RETAINER, FRONT SIDE PANEL, RH | ||||
| 53867-48010 |
ACR30,CLR30 |
1 | ||
| 53868D - RETAINER, FRONT SIDE PANEL, LH | ||||
| 53867-48010 |
ACR30,CLR30 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-28090 |
ACR30,CLR30 |
1 | ||
| 53875-28060 |
ACR30,CLR30 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-28070 |
ACR30 |
1 | ||
| 53876-28110 |
ACR30 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-16010 |
ACR30,CLR30 NO.1 |
4 | ||
| 53879-16010 |
ACR30,CLR30 |
4 | ||
| 53879-28010 |
ACR30,CLR30 NO.2 |
2 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-16010 |
ACR30,CLR30 NO.1 |
4 | ||
| 53879-16010 |
ACR30,CLR30 |
4 | ||
| 53879-28010 |
ACR30,CLR30 NO.2 |
2 | ||
| 53882E - SEAL, FRONT FENDER, RH | ||||
| 53882-16030 |
ACR30,CLR30 |
6 | ||
| 53882K - SEAL, FRONT FENDER | ||||
| 53882-16030 |
ACR30,CLR30 |
4 | ||
| 53903B - PANEL SUB-ASSY, FRONT END | ||||
| 53903-28060 |
ACR30..EUR COLD SPEC & AM/FM CASSETTE 6 SPEAKER |
1 | ||
| 53903-28010 |
ACR30..ARL,EUR |
1 | ||
| 53903-28040 |
ACR30,CLR30..EUR AM/FM CASSETTE 6 SPEAKER |
1 | ||
| 53903-28030 |
ACR30..EUR,GEN;ACR30..GL..ARL COLD SPEC OR W(AUTOMATIC AIR CONDITIONER) |
1 | ||
| 75911A - TAPE, BLACK OUT HOOD | ||||
| 75911-28010 |
ACR30,CLR30 |
1 | ||
| 75913A - TAPE, BLACK OUT FENDER, RH | ||||
| 75913-28010 |
ACR30,CLR30 |
1 | ||
| 75914A - TAPE, BLACK OUT FENDER, LH | ||||
| 75914-28010 |
ACR30,CLR30 |
1 | ||
| 75917 - TAPE, BLACK OUT HOOD, NO.2 RH | ||||
| 75917-28010 |
ACR30,CLR30 |
1 | ||
| 75918A - TAPE, BLACK OUT HOOD, NO.2 LH | ||||
| 75918-28010 |
ACR30,CLR30 |
1 | ||
| Common parts | ||||
| 90159-60477 | ||||
| 90159-60496 | ||||
| 90189-06065 | ||||
| 90189-06114 | ||||
| 90467-07163 | ||||
| 90467-07166 | ||||
| 90950-06096 | ||||
| 91631-B0614 | ||||
| 91671-80820 | ||||
