ACR30L-MRSDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Apr 2003
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )

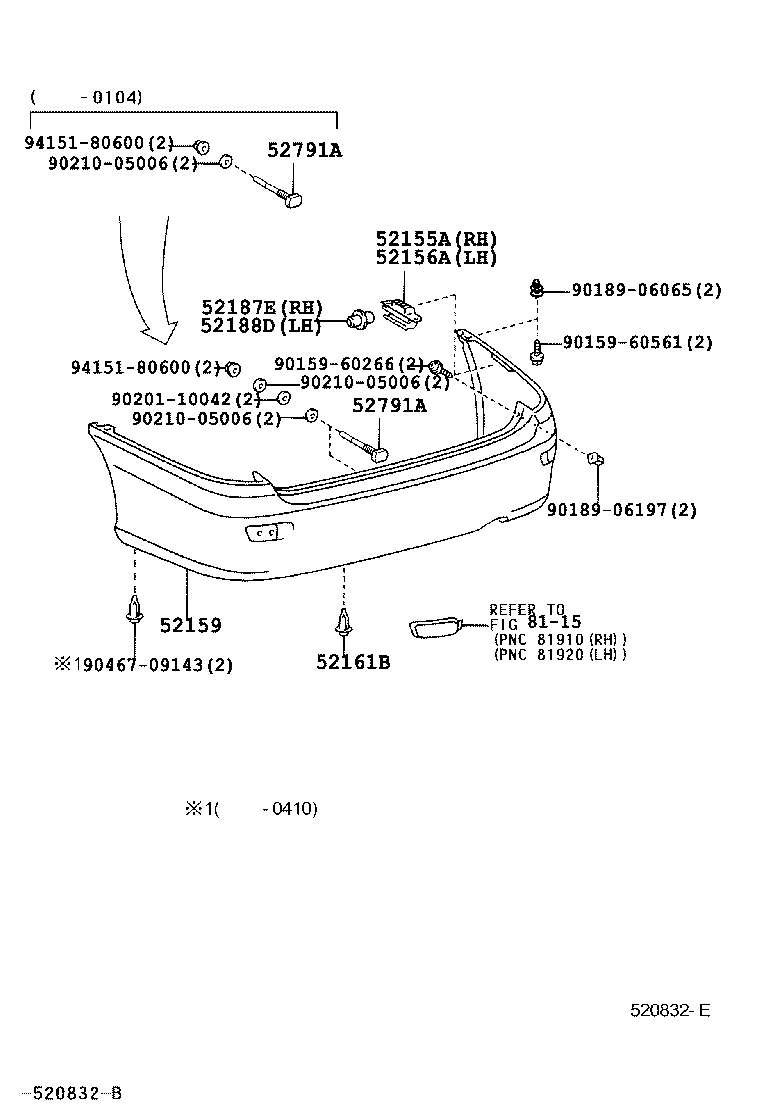

Click highlighted areas on diagram

diagram 52155A 52156A 52159 52161B 52187E 52188D 52791A 52791A 8115 9015960266 9015960561 9018906065 9018906197 9020110042 9021005006 9021005006 9021005006 9046709143 9415180600 9415180600
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-28070

ACR30,CLR30

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52155-28070

ACR30,CLR30

 1
52159 - COVER, REAR BUMPER
52159-28905

ACR30,CLR30..ARL,EUR,GEN

W(CLEARANCE & BACK SONAR)

 1
52159-28904

ACR30,CLR30

 1
52161B - PIECE, REAR BUMPER
52161-16010

ACR30,CLR30

 2
52161-16010

ACR30

 4
52187E - GUIDE, REAR BUMPER LOCATION, RH
52187-16070

ACR30,CLR30

 1
52188D - GUIDE, REAR BUMPER LOCATION, LH
52187-16070

ACR30,CLR30

 1
52791A - BOLT, BUMPER MOULDING SET, NO.2
52791-44020

ACR30,CLR30

 2
52791A - BOLT, BUMPER MOULDING SET, NO.2
52791-44020

ACR30,CLR30

 2
Common parts
90159-60266
90159-60561
90189-06065
90189-06197
90201-10042
90210-05006
90467-09143
94151-80600
Linked diagrams
8115
