ACR30L-MRSDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Apr 2003
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )

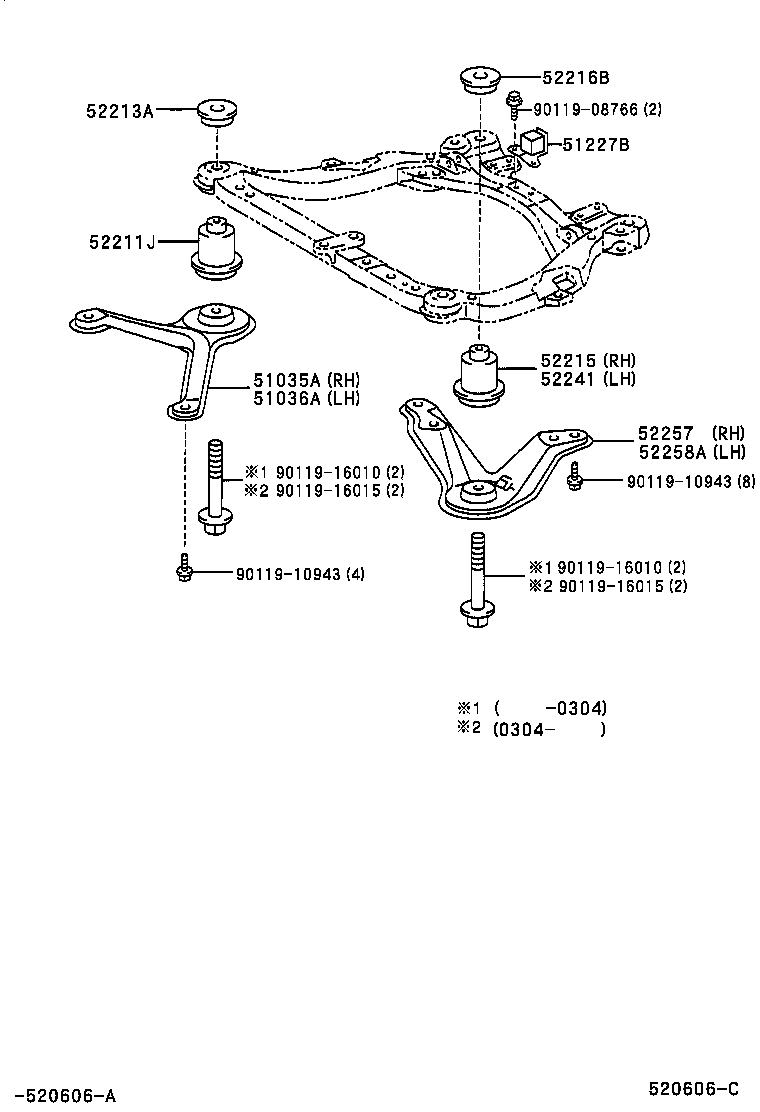

Click highlighted areas on diagram

diagram 51035A 51036A 51227B 52211J 52213A 52215 52216B 52241 52257 52258A 9011908766 9011910943 9011910943 9011916010 9011916010 9011916015 9011916015
Part # Description Qty Price
51035A - PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51035-28030

ACR30,CLR30

 1
51036A - PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51036-28010

ACR30,CLR30

 1
51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51227-28040

ACR30,CLR30..ARL,EUR,GCC

 1
52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52211-28030

ACR30,CLR30..ARL,EUR,GCC

 2
52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213-28030

ACR30,CLR30..ARL,EUR,GCC

 2
52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52215-28010

ACR30,CLR30

 1
52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216-28010

ACR30,CLR30

 2
52241 - CUSHION, BODY MOUNT, NO.4 UPPER
52217-28010

ACR30,CLR30

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
51023-28010

ACR30,CLR30

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
51024-28010

ACR30,CLR30

 1
Common parts
90119-08766
90119-10943
90119-16010
90119-16015
