ACR30L-MRSDKW (2000)
Toyota Previa/Tarago

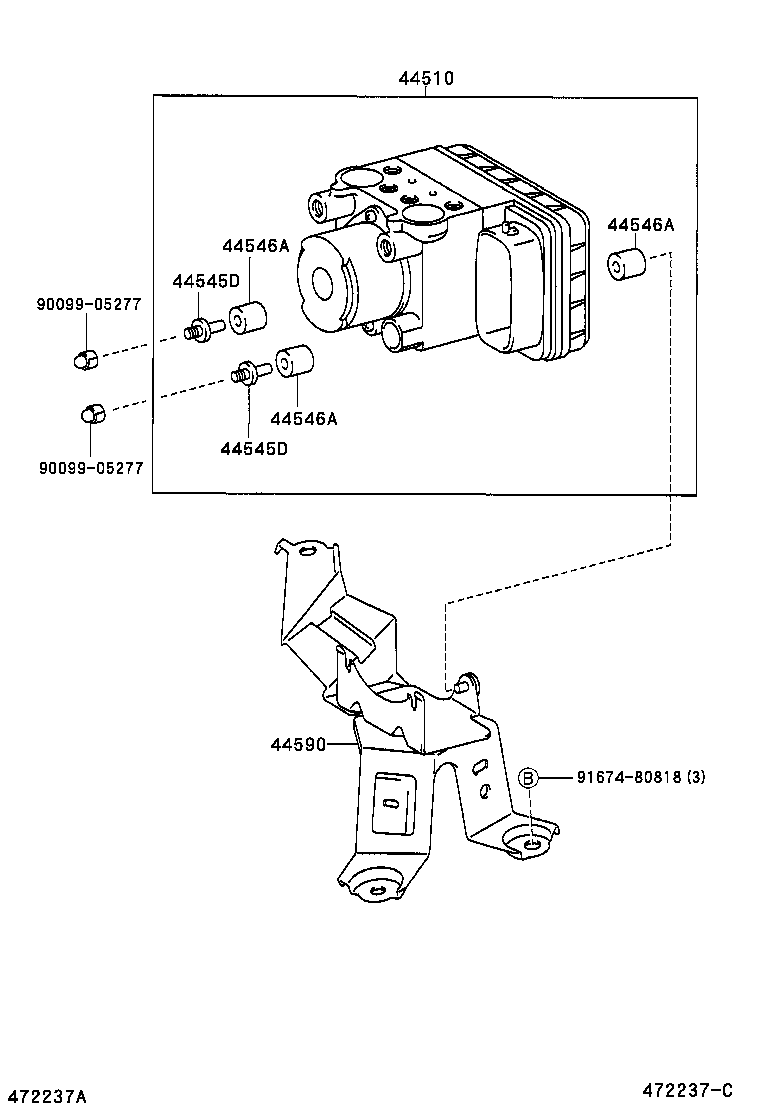

ILLUST NO. 2 OF 2(0002-0007)
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-32010 |
ACR30 |
1 | ||
| 44050-28030 |
ACR30,CLR30 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
ACR30 |
2 | ||
| 44545-42070 |
ACR30,CLR30 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
ACR30 |
2 | ||
| 44545-42070 |
ACR30,CLR30 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
ACR30 |
3 | ||
| 44546-42070 |
ACR30,CLR30 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
ACR30 |
3 | ||
| 44546-42070 |
ACR30,CLR30 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
ACR30 |
3 | ||
| 44546-42070 |
ACR30,CLR30 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-28100 |
ACR30 |
1 | ||
| 44590-28110 |
ACR30,CLR30 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 91621-B0816 | ||||

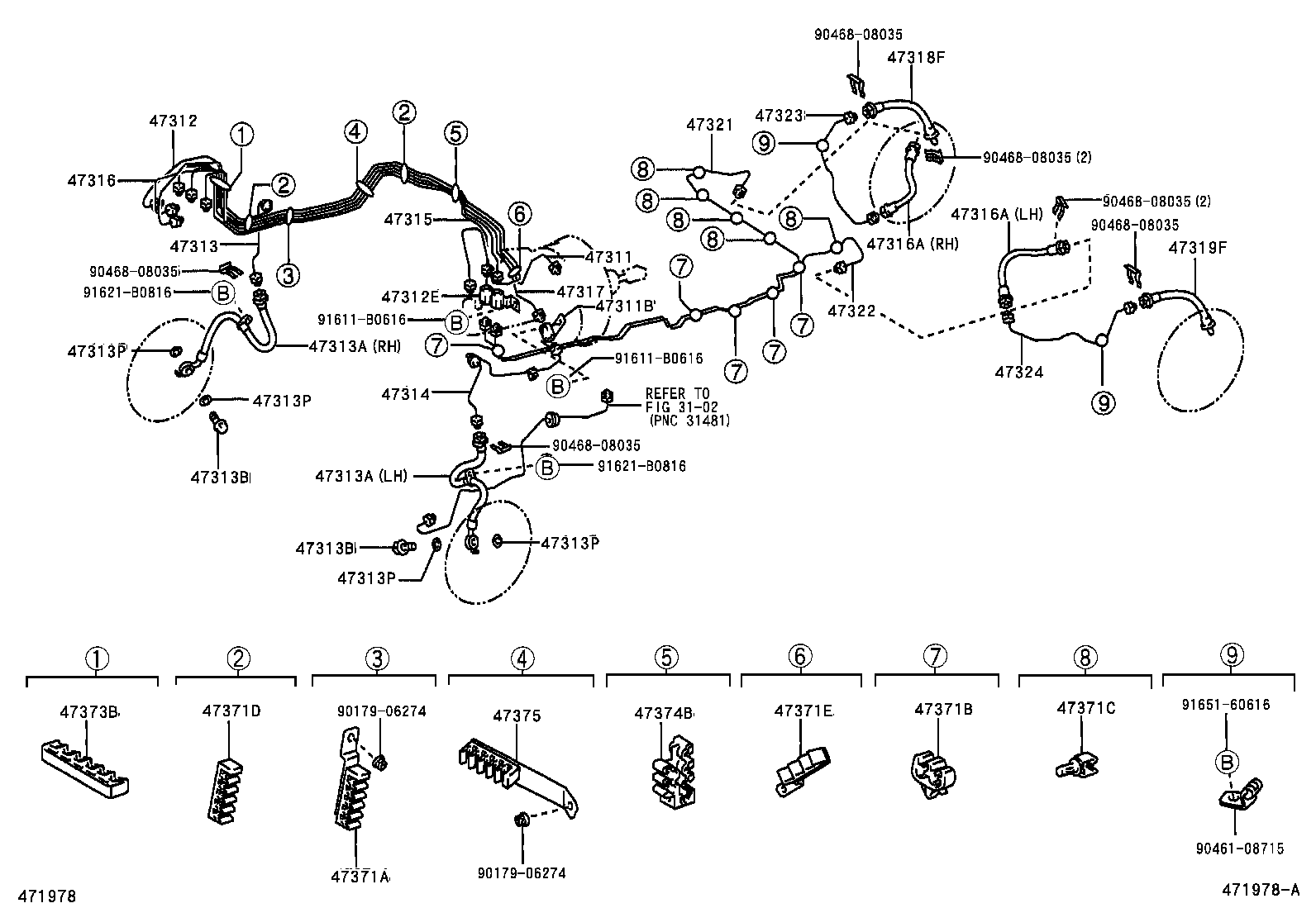

ILLUST NO. 1 OF 2(0002-0007)LHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-28520 |
ACR30..LHD W(ABS) |
1 | ||
| 47311-28540 |
ACR30,CLR30..LHD W(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10144 |
ACR30,CLR30 W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-28300 |
ACR30..LHD W(ABS) |
1 | ||
| 47312-28330 |
ACR30,CLR30..LHD W(ABS) |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10158 |
ACR30,CLR30 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28310 |
ACR30 W(ABS) |
1 | ||
| 47313-28350 |
ACR30,CLR30 W(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02B96 |
ACR30,CLR30 RH |
1 | ||
| 90947-02B97 |
ACR30,CLR30 LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02B96 |
ACR30,CLR30 RH |
1 | ||
| 90947-02B97 |
ACR30,CLR30 LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACR30,CLR30 |
2 | ||
| 90401-10015 |
ACR30,CLR30 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACR30,CLR30 |
2 | ||
| 90401-10015 |
ACR30,CLR30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
ACR30,CLR30 |
4 | ||
| 47389-50020 |
ACR30,CLR30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
ACR30,CLR30 |
4 | ||
| 47389-50020 |
ACR30,CLR30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
ACR30,CLR30 |
4 | ||
| 47389-50020 |
ACR30,CLR30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
ACR30,CLR30 |
4 | ||
| 47389-50020 |
ACR30,CLR30 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-28310 |
ACR30,CLR30..LHD W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-28230 |
ACR30..LHD |
1 | ||
| 47315-28250 |
ACR30,CLR30..LHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-28080 |
ACR30..LHD W(ABS) |
1 | ||
| 47316-28110 |
ACR30,CLR30..LHD W(ABS) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B46 |
ACR30,CLR30 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B46 |
ACR30,CLR30 |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-28140 |
ACR30,CLR30..LHD |
1 | ||
| 47317-28120 |
ACR30..LHD |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02B95 |
ACR30,CLR30 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02B95 |
ACR30,CLR30 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-28460 |
ACR30,CLR30 W(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-28270 |
ACR30,CLR30 W(ABS) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28340 |
ACR30,CLR30 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28240 |
ACR30,CLR30 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-28070 |
ACR30,CLR30 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90469-07012 |
ACR30,CLR30 W(ABS) |
5 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01A84 |
ACR30,CLR30 W(ABS) |
5 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-01A18 |
ACR30,CLR30..LHD |
2 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 47371-28090 |
ACR30,CLR30..LHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01B10 |
ACR30,CLR30 W(ABS) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01C19 |
ACR30,CLR30 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-28080 |
ACR30,CLR30..LHD W(ABS) |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90461-08715 | ||||
| 90468-08035 | ||||
| 91611-B0616 | ||||
| 91621-B0816 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 2 OF 2(0007-0304)
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-32010 |
ACR30 |
1 | ||
| 44050-28030 |
ACR30,CLR30 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
ACR30 |
2 | ||
| 44545-42070 |
ACR30,CLR30 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
ACR30 |
2 | ||
| 44545-42070 |
ACR30,CLR30 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
ACR30 |
3 | ||
| 44546-42070 |
ACR30,CLR30 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
ACR30 |
3 | ||
| 44546-42070 |
ACR30,CLR30 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
ACR30 |
3 | ||
| 44546-42070 |
ACR30,CLR30 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-28100 |
ACR30 |
1 | ||
| 44590-28110 |
ACR30,CLR30 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 91674-80818 | ||||

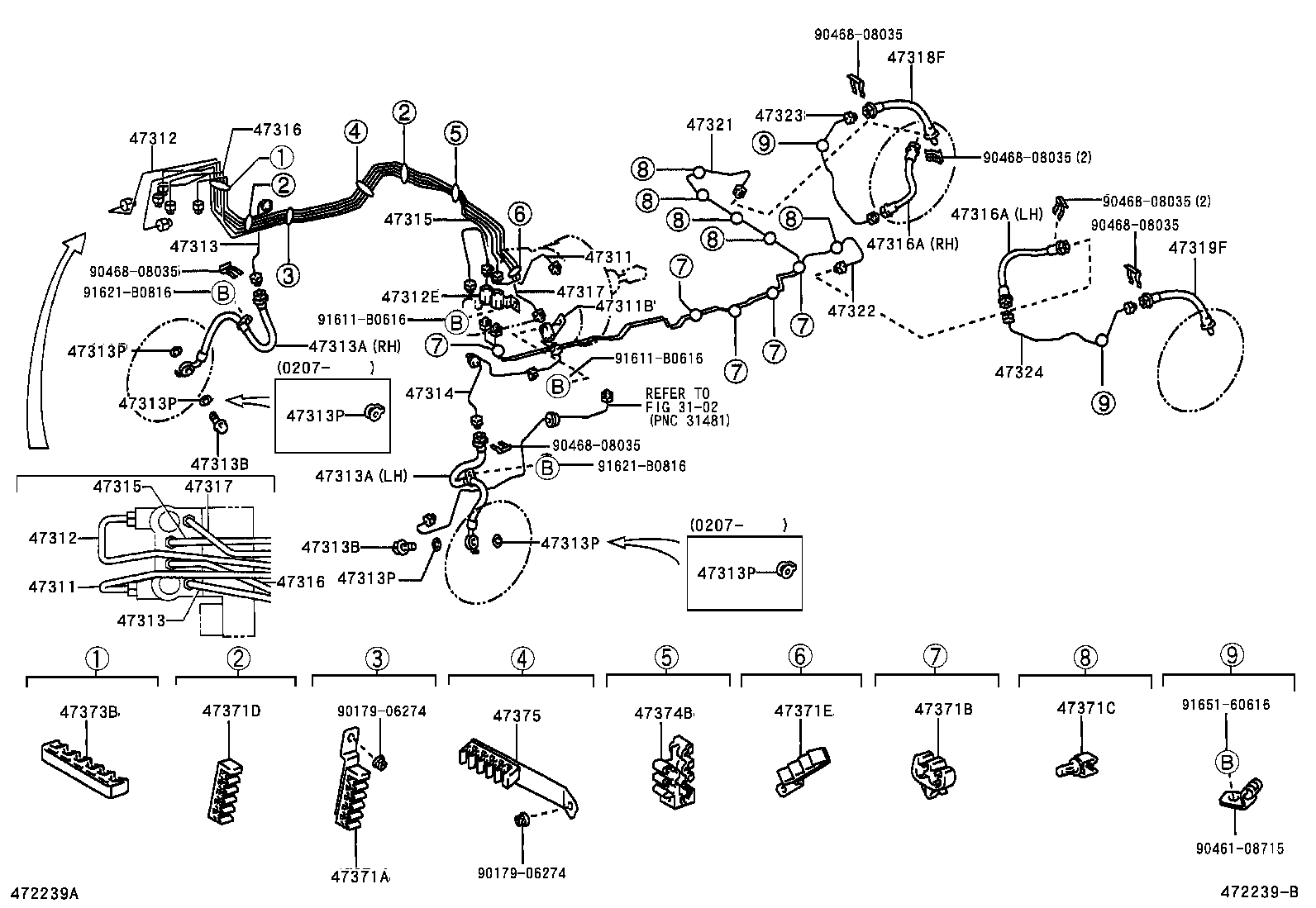

ILLUST NO. 1 OF 2(0007-0304)LHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-28520 |
ACR30..LHD W(ABS) |
1 | ||
| 47311-28540 |
ACR30,CLR30..LHD W(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-28520 |
ACR30..LHD W(ABS) |
1 | ||
| 47311-28540 |
ACR30,CLR30..LHD W(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10144 |
ACR30,CLR30 W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-28300 |
ACR30..LHD W(ABS) |
1 | ||
| 47312-28330 |
ACR30,CLR30..LHD W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-28300 |
ACR30..LHD W(ABS) |
1 | ||
| 47312-28330 |
ACR30,CLR30..LHD W(ABS) |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10158 |
ACR30,CLR30 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28310 |
ACR30 W(ABS) |
1 | ||
| 47313-28350 |
ACR30,CLR30 W(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28310 |
ACR30 W(ABS) |
1 | ||
| 47313-28350 |
ACR30,CLR30 W(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02B96 |
ACR30,CLR30 RH |
1 | ||
| 90947-02B97 |
ACR30,CLR30 LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02B96 |
ACR30,CLR30 RH |
1 | ||
| 90947-02B97 |
ACR30,CLR30 LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACR30,CLR30 |
2 | ||
| 90401-10015 |
ACR30,CLR30 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ACR30,CLR30 |
2 | ||
| 90401-10015 |
ACR30,CLR30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
ACR30,CLR30 |
4 | ||
| 47389-50020 |
ACR30,CLR30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
ACR30,CLR30 |
4 | ||
| 47389-50020 |
ACR30,CLR30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
ACR30,CLR30 |
4 | ||
| 47389-50020 |
ACR30,CLR30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
ACR30,CLR30 |
4 | ||
| 47389-50020 |
ACR30,CLR30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
ACR30,CLR30 |
4 | ||
| 47389-50020 |
ACR30,CLR30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
ACR30,CLR30 |
4 | ||
| 47389-50020 |
ACR30,CLR30 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-28310 |
ACR30,CLR30..LHD W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-28230 |
ACR30..LHD |
1 | ||
| 47315-28250 |
ACR30,CLR30..LHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-28230 |
ACR30..LHD |
1 | ||
| 47315-28250 |
ACR30,CLR30..LHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-28080 |
ACR30..LHD W(ABS) |
1 | ||
| 47316-28110 |
ACR30,CLR30..LHD W(ABS) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-28080 |
ACR30..LHD W(ABS) |
1 | ||
| 47316-28110 |
ACR30,CLR30..LHD W(ABS) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B46 |
ACR30,CLR30 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B46 |
ACR30,CLR30 |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-28140 |
ACR30,CLR30..LHD |
1 | ||
| 47317-28120 |
ACR30..LHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-28140 |
ACR30,CLR30..LHD |
1 | ||
| 47317-28120 |
ACR30..LHD |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02B95 |
ACR30,CLR30 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02B95 |
ACR30,CLR30 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-28460 |
ACR30,CLR30 W(ABS) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-28270 |
ACR30,CLR30 W(ABS) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28340 |
ACR30,CLR30 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28240 |
ACR30,CLR30 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-28070 |
ACR30,CLR30 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90469-07012 |
ACR30,CLR30 W(ABS) |
5 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01A84 |
ACR30,CLR30 W(ABS) |
5 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-01A18 |
ACR30,CLR30..LHD |
2 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 47371-28090 |
ACR30,CLR30..LHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01B10 |
ACR30,CLR30 W(ABS) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01C19 |
ACR30,CLR30 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-28080 |
ACR30,CLR30..LHD W(ABS) |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90461-08715 | ||||
| 90468-08035 | ||||
| 91611-B0616 | ||||
| 91621-B0816 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 3102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
