ACR30L-MRSDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Apr 2003
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002-0304)ATM

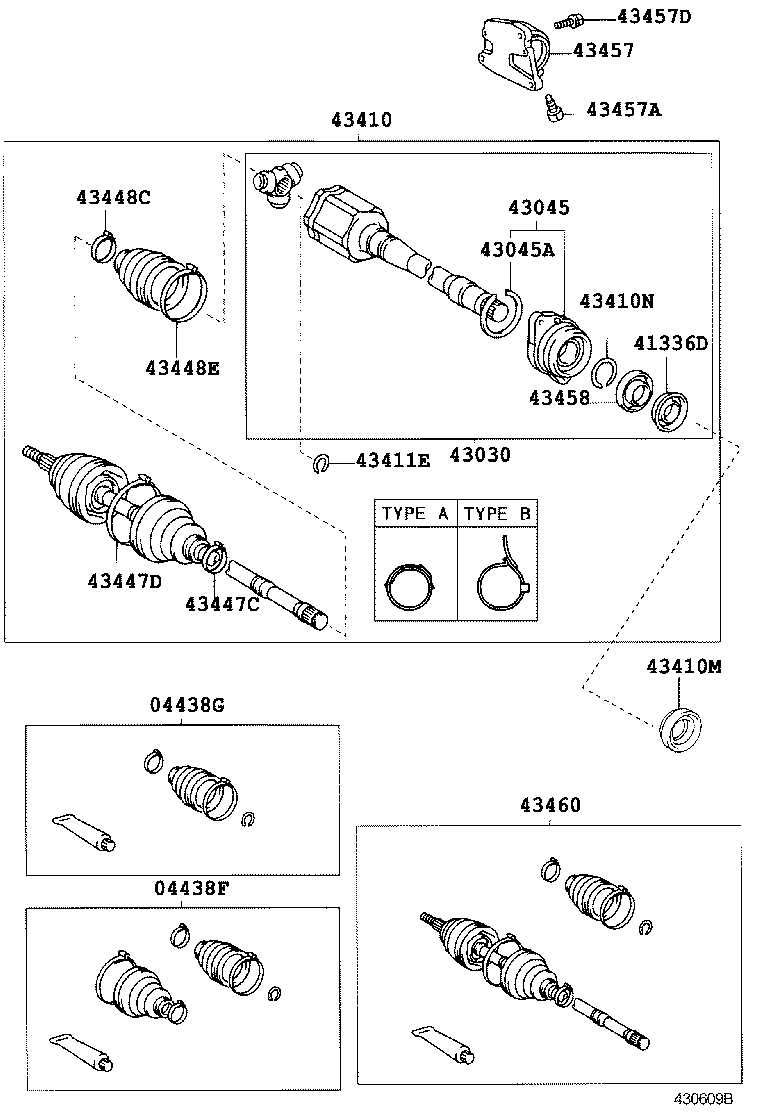

Click highlighted areas on diagram

RH

diagram 04438F 04438G 41336D 43030 43045 43045A 43410 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457 43457A 43457D 43458 43460
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-28051

ACR30..ATM

 1
04438-28052

ACR30..ATM

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-28041

ACR30..ATM

 1
04438-28040

ACR30..ATM

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-12020

ACR30,CLR30

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-28010

ACR30..ATM

 1
43030-28011

ACR30..ATM

 1
43045 - CASE SUB ASSY, DRIVE SHAFT BEARING
43045-20050

ACR30..ATM

 1
43045A - RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
90520-69002

ACR30..ATM

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-28030

ACR30..ATM

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-40026

ACR30..ATM

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-38015

ACR30,CLR30

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-28010

ACR30..ATM

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-20040

ACR30..ATM

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-28020

ACR30..ATM

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01559

ACR30..ATM

 1
42345-42010

ACR30..ATM

TYPE A:REFER TO ILLUSTRATION

 1
90949-01559

ACR30..ATM

TYPE B:REFER TO ILLUSTRATION

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01076

ACR30..ATM

 1
42345-12160

ACR30..ATM

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-28020

ACR30..ATM

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-10285

ACR30..ATM

*10-1.25PX22-19.5

 2
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381

ACR30..ATM

 3
43458 - COVER, FRONT DRIVE SHAFT DUST
43458-12010

ACR30,CLR30

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-29626

ACR30..ATM

 1
43470-29625

ACR30..ATM

 1

(0002-0304)ATM

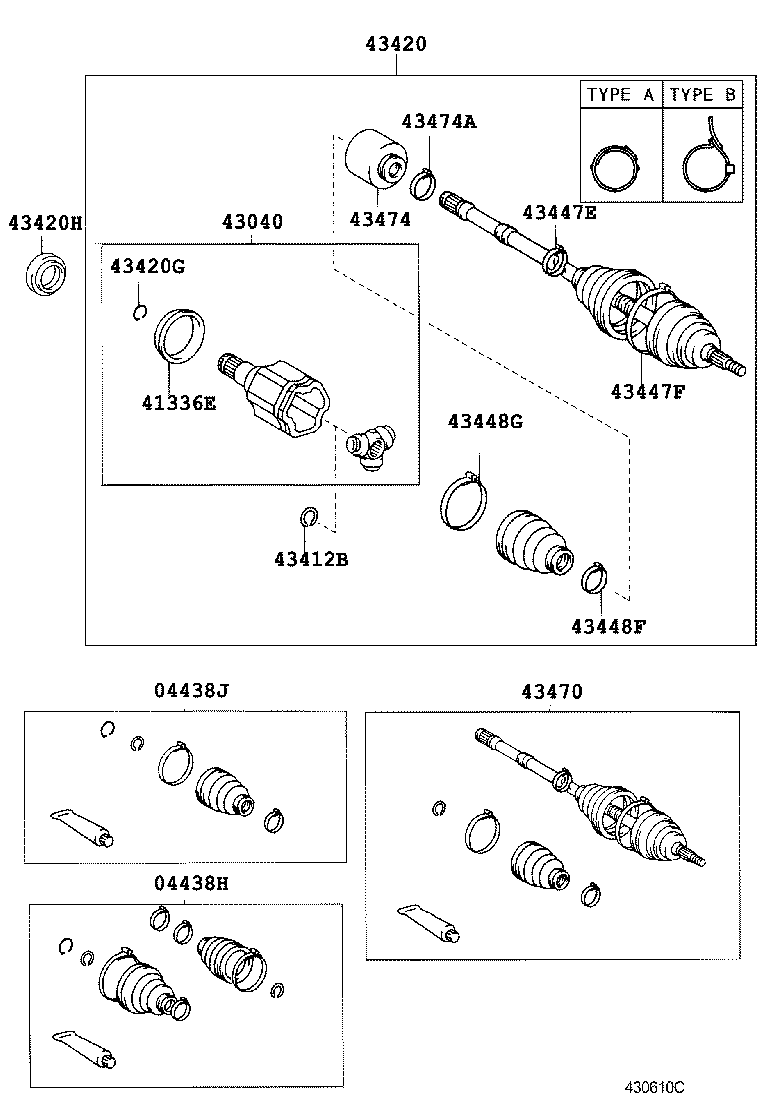

Click highlighted areas on diagram

LH

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470 43474 43474A
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-28051

ACR30..ATM

 1
04438-28052

ACR30..ATM

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-28040

ACR30..ATM

 1
04438-28041

ACR30..ATM

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-28020

ACR30,CLR30

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-28010

ACR30..ATM

 1
43040-28011

ACR30..ATM

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-28010

ACR30..ATM

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-28030

ACR30..ATM

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-33002

ACR30,CLR30

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-50026

ACR30..ATM

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-20040

ACR30..ATM

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-28020

ACR30..ATM

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01559

ACR30..ATM

 1
42345-42010

ACR30..ATM

TYPE A:REFER TO ILLUSTRATION

 1
90949-01559

ACR30..ATM

TYPE B:REFER TO ILLUSTRATION

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01076

ACR30..ATM

 1
42345-12160

ACR30..ATM

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-29625

ACR30..ATM

 1
43470-29626

ACR30..ATM

 1
43474 - DAMPER, DRIVE SHAFT
43474-28010

ACR30..ATM

 1
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
42345-14010

ACR30..ATM

 1
