ACR30L-MRSDKV (2001)
Toyota Previa/Tarago

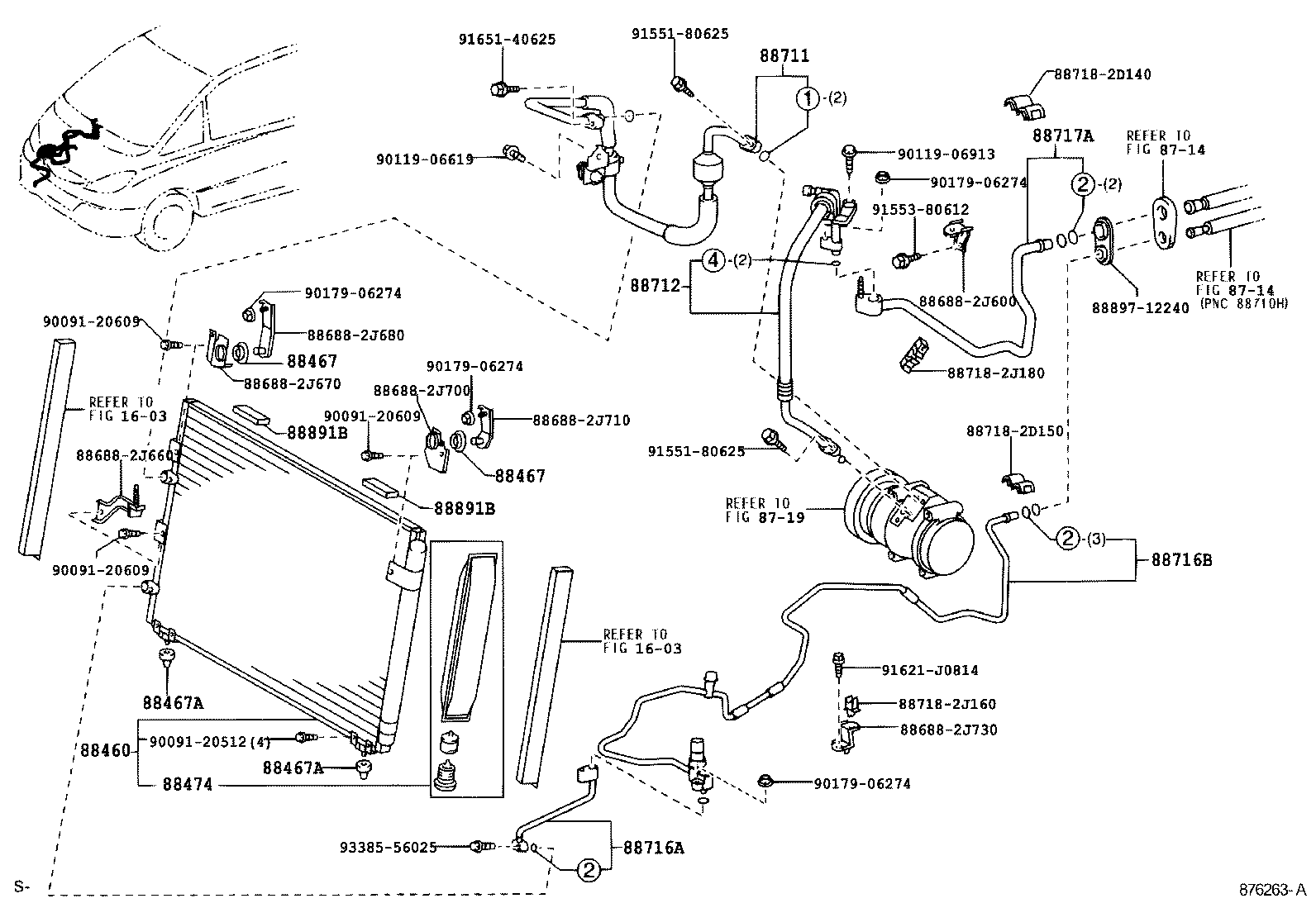

ILLUST NO. 1 OF 3(0002-0304)ACR30..LHD
FRONT--MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ACR30,CLR30 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
ACR30,CLR30 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
ACR30,CLR30 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
ACR30,CLR30 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-28550 |
ACR30,CLR30 |
1 | ||
| 88460-28550 |
ACR30,CLR30 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
ACR30,CLR30 |
1 | ||
| 88474-47010 |
ACR30,CLR30 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
ACR30,CLR30 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88703-28080 |
ACR30..GCC |
1 | ||
| 88703-28110 |
ACR30..GCC MIDDLE EAST SPEC |
1 | ||
| 88711-2J170 |
ACR30..GCC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-28680 |
ACR30..LHD |
1 | ||
| 88704-28110 |
ACR30..LHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2R860 |
ACR30,CLR30 |
1 | ||
| 88716-2R860 |
ACR30,CLR30 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88710-2R790 |
ACR30..LHD W(REAR COOLER) |
1 | ||
| 88716-2R880 |
ACR30..GCC |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2R160 |
ACR30..GCC |
1 | ||
| 88710-2R800 |
ACR30..LHD W(REAR COOLER) |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| Common parts | ||||
| 88467-12030 | ||||
| 88469-28010 | ||||
| 88688-2J030 | ||||
| 88688-2J600 | ||||
| 88688-2J610 | ||||
| 88688-2J660 | ||||
| 88688-2J670 | ||||
| 88688-2J680 | ||||
| 88688-2J700 | ||||
| 88688-2J710 | ||||
| 88688-2J730 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-2J040 | ||||
| 88718-2J060 | ||||
| 88718-2J160 | ||||
| 88718-2J180 | ||||
| 88897-12240 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90099-00264 | ||||
| 90099-32130 | ||||
| 90119-06619 | ||||
| 90119-06913 | ||||
| 90179-06032 | ||||
| 90179-06242 | ||||
| 91511-60625 | ||||
| 91626-60818 | ||||
| 91651-40625 | ||||
| 91651-60616 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
| 8719 | ||||

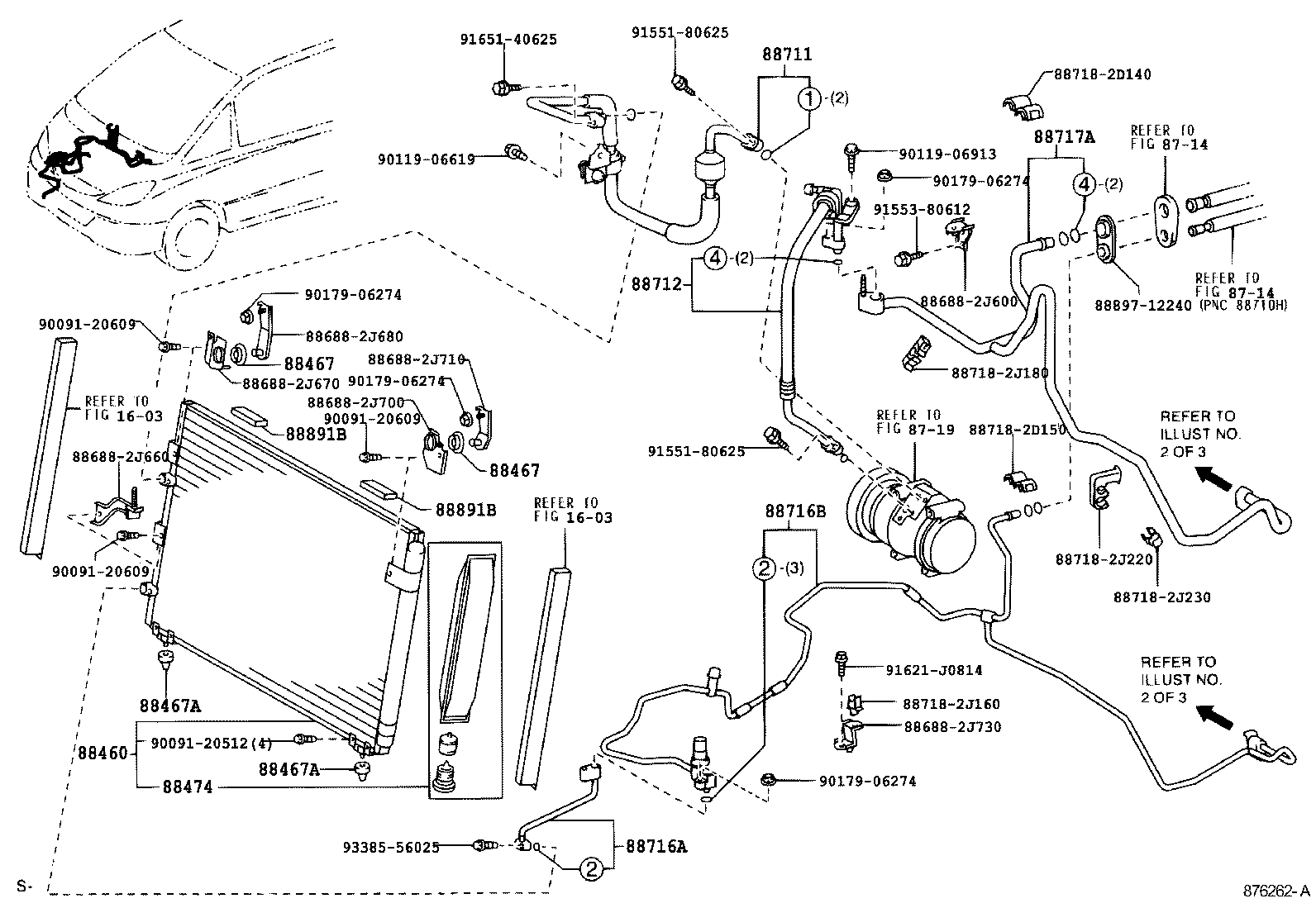

ILLUST NO. 1 OF 3(0002-0304)ACR30..LHD
FRONT--MAKER OPTION--W(REAR COOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ACR30,CLR30 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
ACR30,CLR30 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
ACR30,CLR30 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
ACR30,CLR30 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-28550 |
ACR30,CLR30 |
1 | ||
| 88460-28550 |
ACR30,CLR30 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
ACR30,CLR30 |
1 | ||
| 88474-47010 |
ACR30,CLR30 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
ACR30,CLR30 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88703-28080 |
ACR30..GCC |
1 | ||
| 88703-28110 |
ACR30..GCC MIDDLE EAST SPEC |
1 | ||
| 88711-2J170 |
ACR30..GCC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-28680 |
ACR30..LHD |
1 | ||
| 88704-28110 |
ACR30..LHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2R860 |
ACR30,CLR30 |
1 | ||
| 88716-2R860 |
ACR30,CLR30 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88710-2R790 |
ACR30..LHD W(REAR COOLER) |
1 | ||
| 88716-2R880 |
ACR30..GCC |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2R160 |
ACR30..GCC |
1 | ||
| 88710-2R800 |
ACR30..LHD W(REAR COOLER) |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| Common parts | ||||
| 88467-12030 | ||||
| 88469-28010 | ||||
| 88688-2J030 | ||||
| 88688-2J600 | ||||
| 88688-2J610 | ||||
| 88688-2J660 | ||||
| 88688-2J670 | ||||
| 88688-2J680 | ||||
| 88688-2J700 | ||||
| 88688-2J710 | ||||
| 88688-2J730 | ||||
| 88718-16660 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-2J040 | ||||
| 88718-2J060 | ||||
| 88718-2J110 | ||||
| 88718-2J160 | ||||
| 88718-2J180 | ||||
| 88897-12240 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90099-00264 | ||||
| 90099-32130 | ||||
| 90119-06619 | ||||
| 90119-06913 | ||||
| 90179-06032 | ||||
| 90179-06242 | ||||
| 91511-60625 | ||||
| 91626-60818 | ||||
| 91651-40625 | ||||
| 91651-60616 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 1 OF 3(0002-0304)ACR30..LHD
FRONT--DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ACR30,CLR30 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
ACR30,CLR30 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
ACR30,CLR30 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
ACR30,CLR30 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-28550 |
ACR30,CLR30 |
1 | ||
| 88460-28550 |
ACR30,CLR30 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
ACR30,CLR30 |
1 | ||
| 88474-47010 |
ACR30,CLR30 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
ACR30,CLR30 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88703-28080 |
ACR30..GCC |
1 | ||
| 88703-28110 |
ACR30..GCC MIDDLE EAST SPEC |
1 | ||
| 88711-2J170 |
ACR30..GCC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-28680 |
ACR30..LHD |
1 | ||
| 88704-28110 |
ACR30..LHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2R860 |
ACR30,CLR30 |
1 | ||
| 88716-2R860 |
ACR30,CLR30 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88710-2R790 |
ACR30..LHD W(REAR COOLER) |
1 | ||
| 88716-2R880 |
ACR30..GCC |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2R160 |
ACR30..GCC |
1 | ||
| 88710-2R800 |
ACR30..LHD W(REAR COOLER) |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| Common parts | ||||
| 88467-12030 | ||||
| 88469-28010 | ||||
| 88688-2J030 | ||||
| 88688-2J600 | ||||
| 88688-2J610 | ||||
| 88688-2J660 | ||||
| 88688-2J670 | ||||
| 88688-2J680 | ||||
| 88688-2J700 | ||||
| 88688-2J710 | ||||
| 88688-2J730 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-2J040 | ||||
| 88718-2J060 | ||||
| 88718-2J160 | ||||
| 88718-2J180 | ||||
| 88897-12240 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90099-00264 | ||||
| 90099-32130 | ||||
| 90119-06186 | ||||
| 90119-06479 | ||||
| 90179-06032 | ||||
| 90179-06242 | ||||
| 91511-60625 | ||||
| 91626-60818 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 1 OF 3(0304- )ACR30..LHD
FRONT--W(REAR COOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-28550 |
ACR30,CLR30 |
1 | ||
| 88460-28550 |
ACR30,CLR30 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
ACR30,CLR30 |
1 | ||
| 88474-47010 |
ACR30,CLR30 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88703-28080 |
ACR30..GCC |
1 | ||
| 88703-28110 |
ACR30..GCC MIDDLE EAST SPEC |
1 | ||
| 88711-2J170 |
ACR30..GCC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-28680 |
ACR30..LHD |
1 | ||
| 88704-28110 |
ACR30..LHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2R860 |
ACR30,CLR30 |
1 | ||
| 88716-2R860 |
ACR30,CLR30 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88710-2R790 |
ACR30..LHD W(REAR COOLER) |
1 | ||
| 88716-2R880 |
ACR30..GCC |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2R160 |
ACR30..GCC |
1 | ||
| 88710-2R800 |
ACR30..LHD W(REAR COOLER) |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| Common parts | ||||
| 88688-2J600 | ||||
| 88688-2J660 | ||||
| 88688-2J670 | ||||
| 88688-2J680 | ||||
| 88688-2J700 | ||||
| 88688-2J710 | ||||
| 88688-2J730 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-2J160 | ||||
| 88718-2J180 | ||||
| 88718-2J220 | ||||
| 88718-2J230 | ||||
| 88897-12240 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90119-06619 | ||||
| 90119-06913 | ||||
| 90179-06274 | ||||
| 91551-80625 | ||||
| 91553-80612 | ||||
| 91621-J0814 | ||||
| 91651-40625 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 1 OF 3(0304- )ACR30..LHD
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-28550 |
ACR30,CLR30 |
1 | ||
| 88460-28550 |
ACR30,CLR30 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467-28050 |
ACR30,CLR30 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88467-28040 |
ACR30,CLR30 |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
ACR30,CLR30 |
1 | ||
| 88474-47010 |
ACR30,CLR30 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88703-28080 |
ACR30..GCC |
1 | ||
| 88703-28110 |
ACR30..GCC MIDDLE EAST SPEC |
1 | ||
| 88711-2J170 |
ACR30..GCC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-28680 |
ACR30..LHD |
1 | ||
| 88704-28110 |
ACR30..LHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2R860 |
ACR30,CLR30 |
1 | ||
| 88716-2R860 |
ACR30,CLR30 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88710-2R790 |
ACR30..LHD W(REAR COOLER) |
1 | ||
| 88716-2R880 |
ACR30..GCC |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2R160 |
ACR30..GCC |
1 | ||
| 88710-2R800 |
ACR30..LHD W(REAR COOLER) |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| 88578-28350 |
ACR30,CLR30 |
2 | ||
| Common parts | ||||
| 88688-2J600 | ||||
| 88688-2J660 | ||||
| 88688-2J670 | ||||
| 88688-2J680 | ||||
| 88688-2J700 | ||||
| 88688-2J710 | ||||
| 88688-2J730 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-2J160 | ||||
| 88718-2J180 | ||||
| 88897-12240 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90119-06619 | ||||
| 90119-06913 | ||||
| 90179-06274 | ||||
| 91551-80625 | ||||
| 91553-80612 | ||||
| 91621-J0814 | ||||
| 91651-40625 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
| 8719 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
