ACR30L-MRSDKV (2001)
Toyota Previa/Tarago
ILLUST NO. 3 OF 6(0002-0304)LHD

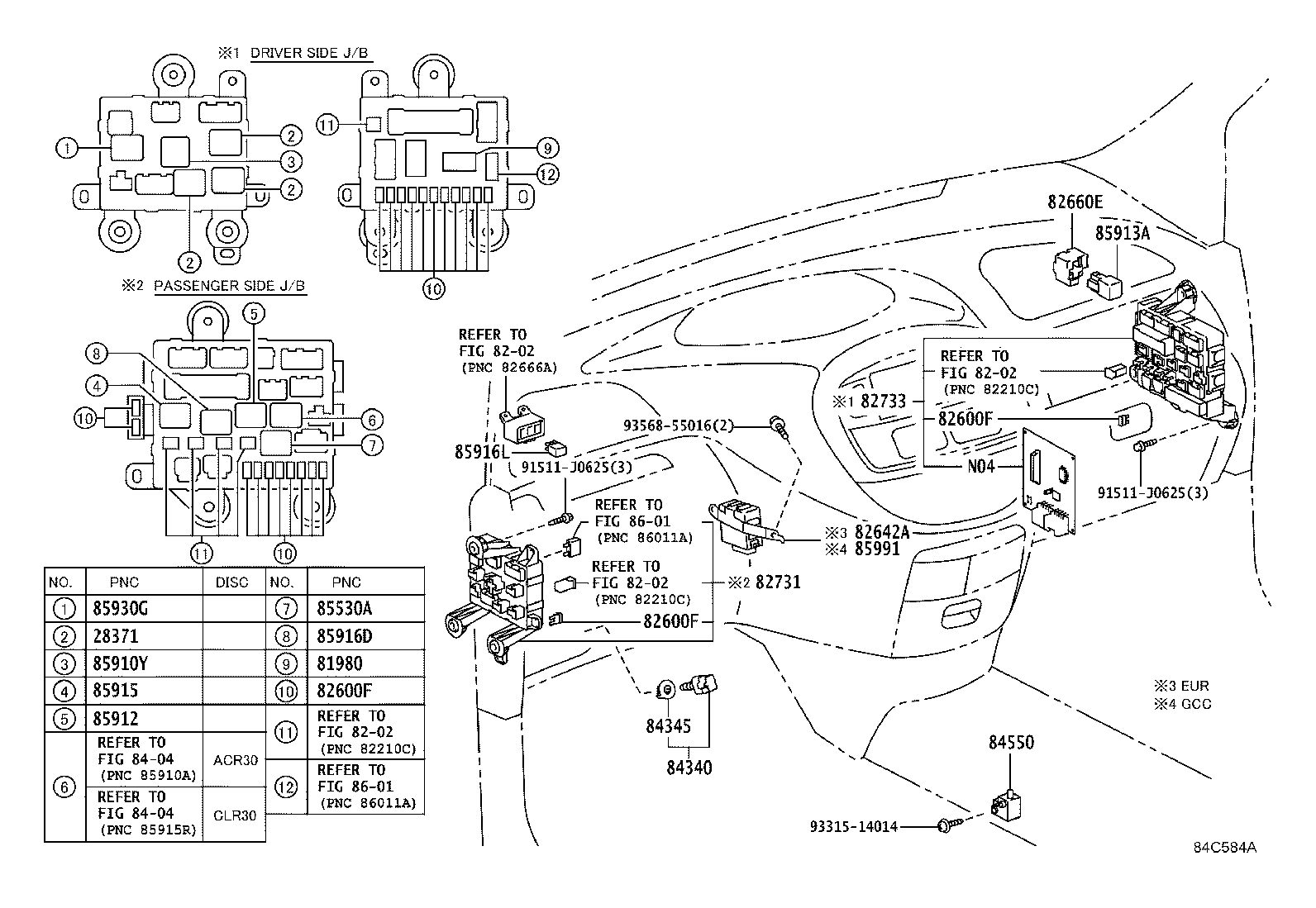

COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02012 |
2AZFE,1CDFTV..ACR30,CLR30 |
2 | ||
| 90987-02027 |
2AZFE..ACR30..08S..ATM;2AZFE,1CDFTV..ACR30,CLR30..06S,07S |
2 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 81980-50030 |
ACR30,CLR30 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
ACR30,CLR30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
ACR30,CLR30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09012 |
CLR30;ACR30..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09013 |
ACR30,CLR30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09007 |
ACR30,CLR30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
ACR30,CLR30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09012 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 25A,MINI FUSE |
1 | ||
| 90982-09011 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 10A,MINI FUSE,RED |
3 | ||
| 90982-09010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 15A,MINI FUSE,BLUE |
7 | ||
| 90982-09007 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
ACR30,CLR30 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
ACR30,CLR30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
ACR30,CLR30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09012 |
CLR30;ACR30..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09013 |
ACR30,CLR30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09007 |
ACR30,CLR30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
ACR30,CLR30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09012 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 25A,MINI FUSE |
1 | ||
| 90982-09011 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 10A,MINI FUSE,RED |
3 | ||
| 90982-09010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 15A,MINI FUSE,BLUE |
7 | ||
| 90982-09007 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
ACR30,CLR30 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
ACR30,CLR30 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
ACR30,CLR30 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09012 |
CLR30;ACR30..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09013 |
ACR30,CLR30 30A,MINI FUSE,GRN |
1 | ||
| 90982-09007 |
ACR30,CLR30 5A,MINI FUSE,TAN |
1 | ||
| 90982-09010 |
ACR30,CLR30 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 7.5A,MINI FUSE,BRN |
3 | ||
| 90982-09012 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 25A,MINI FUSE |
1 | ||
| 90982-09011 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 10A,MINI FUSE,RED |
3 | ||
| 90982-09010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 15A,MINI FUSE,BLUE |
7 | ||
| 90982-09007 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
ACR30,CLR30 10A,MINI FUSE,RED |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-28230 |
ACR30,CLR30 |
1 | ||
| 82660-28230 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-28010 |
ACR30,CLR30 |
1 | ||
| 82731-28040 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32070 |
ACR30..GL..GCC;ACR30..(07S,08S)..DX..(ARL,EUR,GCC) W(CRUISE CONTROL),MATSUSHITA |
1 | ||
| 84340-35020 |
ACR30..GL..GCC;ACR30..(07S,08S)..DX TOKAIRIKA |
1 | ||
| 84340-32050 |
ACR30..GL..GCC;ACR30..(07S,08S)..DX MATSUSHITA |
1 | ||
| 84340-69025 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 84340-35030 |
ACR30..GL..GCC;ACR30..(07S,08S)..DX..(ARL,EUR,GCC) W(CRUISE CONTROL),TOKAIRIKA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 84550-16060 |
ACR30,CLR30..EUR,GCC,GEN |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02027 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02009 |
ACR30,CLR30 |
1 | ||
| 90987-02009 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 90987-02027 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 85913A - RELAY, HEATER CONTROL | ||||
| 90987-02016 |
ACR30,CLR30 |
1 | ||
| 90987-02025 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02027 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
ACR30 |
1 | ||
| 90987-02027 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 90987-02012 |
ACR30,CLR30 |
1 | ||
| 85991 - RELAY, SEAT BELT WARNING | ||||
| 85991-28030 |
ACR30..GCC |
1 | ||
| 85991-28030 |
ACR30..GCC |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 82733-28040 |
ACR30,CLR30..LHD W(POWER WINDOW) |
1 | ||
| 82733-28030 |
ACR30,CLR30..LHD..(07S,08S)..DX |
1 | ||
| Common parts | ||||
| 91511-J0625 | ||||
| 93315-14014 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||
| 8601 | ||||
ILLUST NO. 4 OF 6(0002-0304)LHD

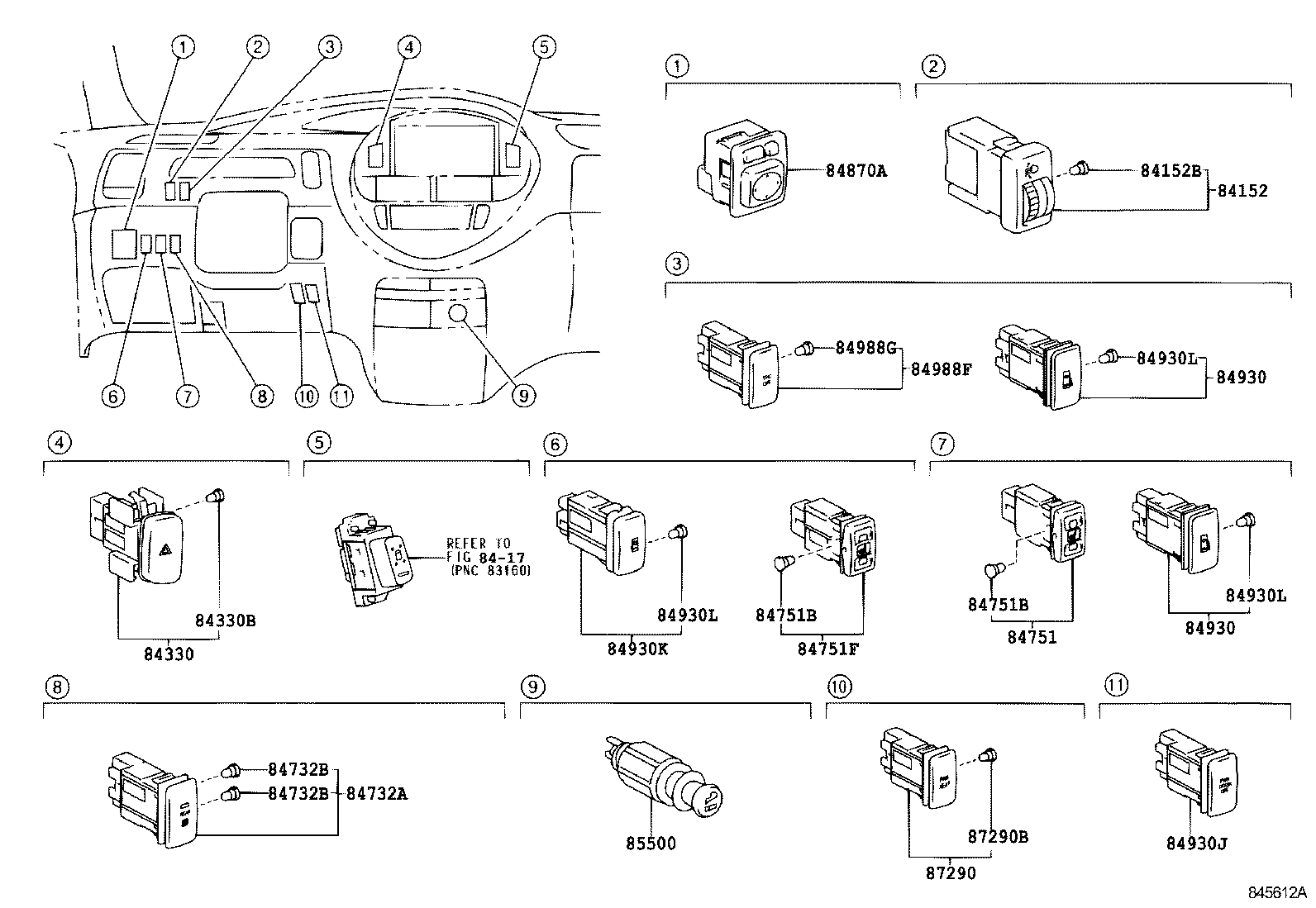

INSTRUMENT PANEL
