ACR30L-MRMDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Apr 2003
Engine 2AZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )MTM

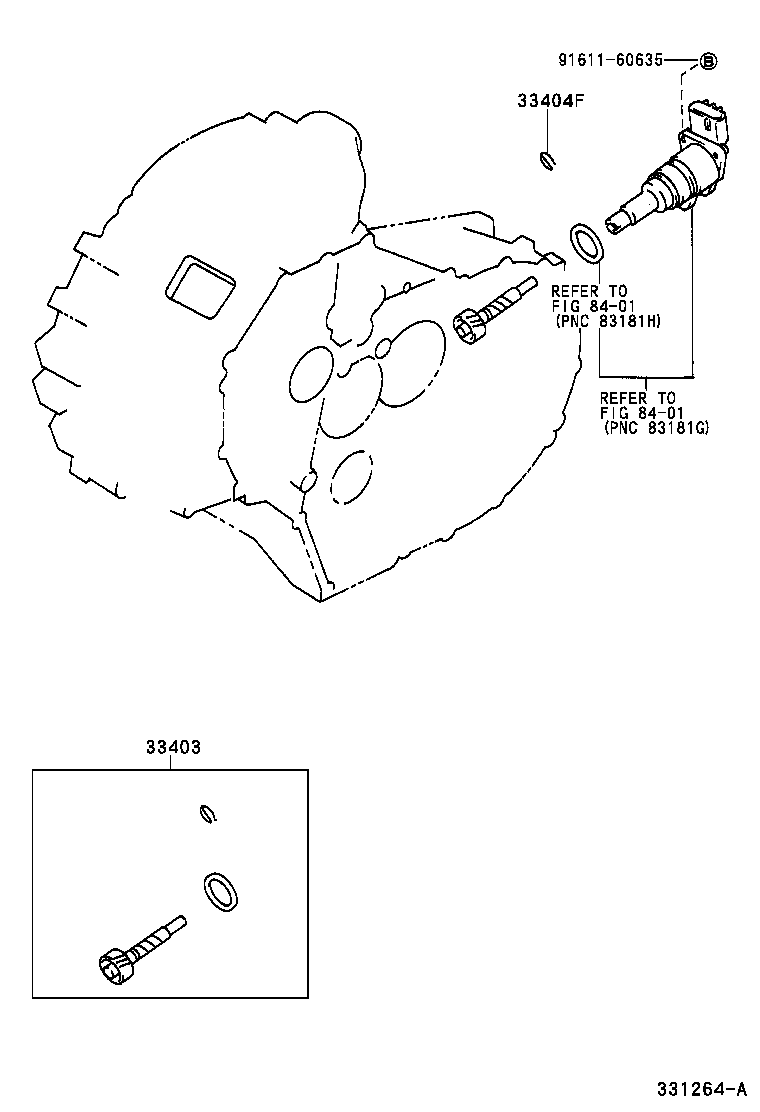

Click highlighted areas on diagram

E352,E353

diagram 33403 33404F 8401 8401 9161160635
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-29565

ACR30,CLR30..MTM

N=26,MARK 26:32

 1
33403-29565

ACR30..(07S,08S)..MTM

N=26,MARK 26:32

 1
33403-29575

ACR30,CLR30..MTM

N=25,MARK 25:32

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

ACR30,CLR30..MTM

 1
Common parts
91611-60635
Linked diagrams
8401
