ACR30L-MFSEKV (2001)

Toyota Previa/Tarago

Production May 2001 - Jan 2006
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

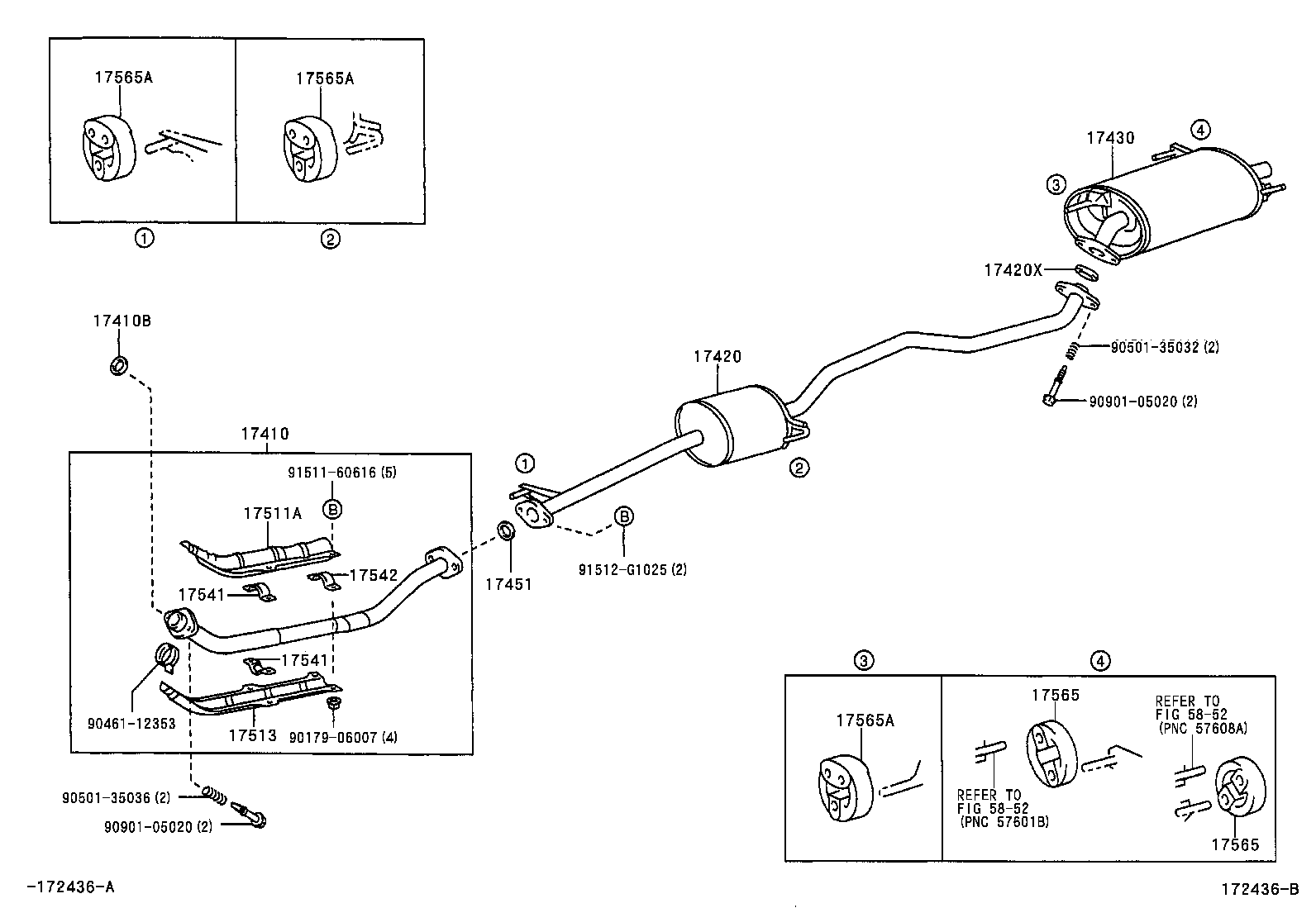

(0002-0304)2AZFE..EUR,GCC,GEN

Click highlighted areas on diagram

diagram 17410 17410B 17420 17420X 17430 17451 17511A 17513 17541 17541 17542 17565 17565 17565A 17565A 17565A 5852 5852 9017906007 9046112353 9050135032 9050135036 9090105020 9090105020 9151160616 91512G1025
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-28140

2AZFE..ACR30..ATM..(EUR,GCC,GEN)

 1
17410-28440

2AZFE..ACR30

*115=TOYOTA/03-/Y

 1
17410B - GASKET, EXHAUST PIPE
17451-74040

2AZFE..ACR30

 1
17451-22070

2AZFE..ACR30

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-28010

2AZFE..ACR30

 1
17420-28301

2AZFE..ACR30

 1
17420-28300

2AZFE..ACR30

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-20010

2AZFE,1CDFTV..ACR30,CLR30

 1
17451-20010

2AZFE,1CDFTV..ACR30,CLR30

 1
17451-74060

2AZFE,1CDFTV..ACR30,CLR30

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-28480

2AZFE..ACR30

 1
17405-28010

2AZFE..ACR30

 1
17405-28011

2AZFE..ACR30

 1
17451 - GASKET, EXHAUST PIPE
90917-06073

2AZFE..ACR30

 1
90917-06073

2AZFE..ACR30

 1
17511A - INSULATOR, EXHAUST PIPE, UPPER NO.1
17511-28020

2AZFE..ACR30..ATM

 1
17513 - INSULATOR, EXHAUST PIPE, LOWER NO.1
17513-28020

2AZFE..ACR30..ATM

 1
17541 - STAY, EXHUST PIPE PROTECTOR, NO.1
17541-68010

2AZFE..ACR30

 2
17541 - STAY, EXHUST PIPE PROTECTOR, NO.1
17541-68010

2AZFE..ACR30

 2
17542 - STAY, EXHAUST PIPE PROTECTOR, NO.2
17541-28040

2AZFE..ACR30

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-15140

2AZFE,1CDFTV..ACR30,CLR30

 2
17565-15140

2AZFE,1CDFTV..ACR30,CLR30

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-15140

2AZFE,1CDFTV..ACR30,CLR30

 2
17565-15140

2AZFE,1CDFTV..ACR30,CLR30

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74320

2AZFE,1CDFTV..ACR30,CLR30

 3
17565-74320

2AZFE,1CDFTV..ACR30,CLR30

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74320

2AZFE,1CDFTV..ACR30,CLR30

 3
17565-74320

2AZFE,1CDFTV..ACR30,CLR30

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74320

2AZFE,1CDFTV..ACR30,CLR30

 3
17565-74320

2AZFE,1CDFTV..ACR30,CLR30

 3
Common parts
90179-06007
90461-12353
90501-35032
90501-35036
90901-05020
91511-60616
91512-G1025
Linked diagrams
5852

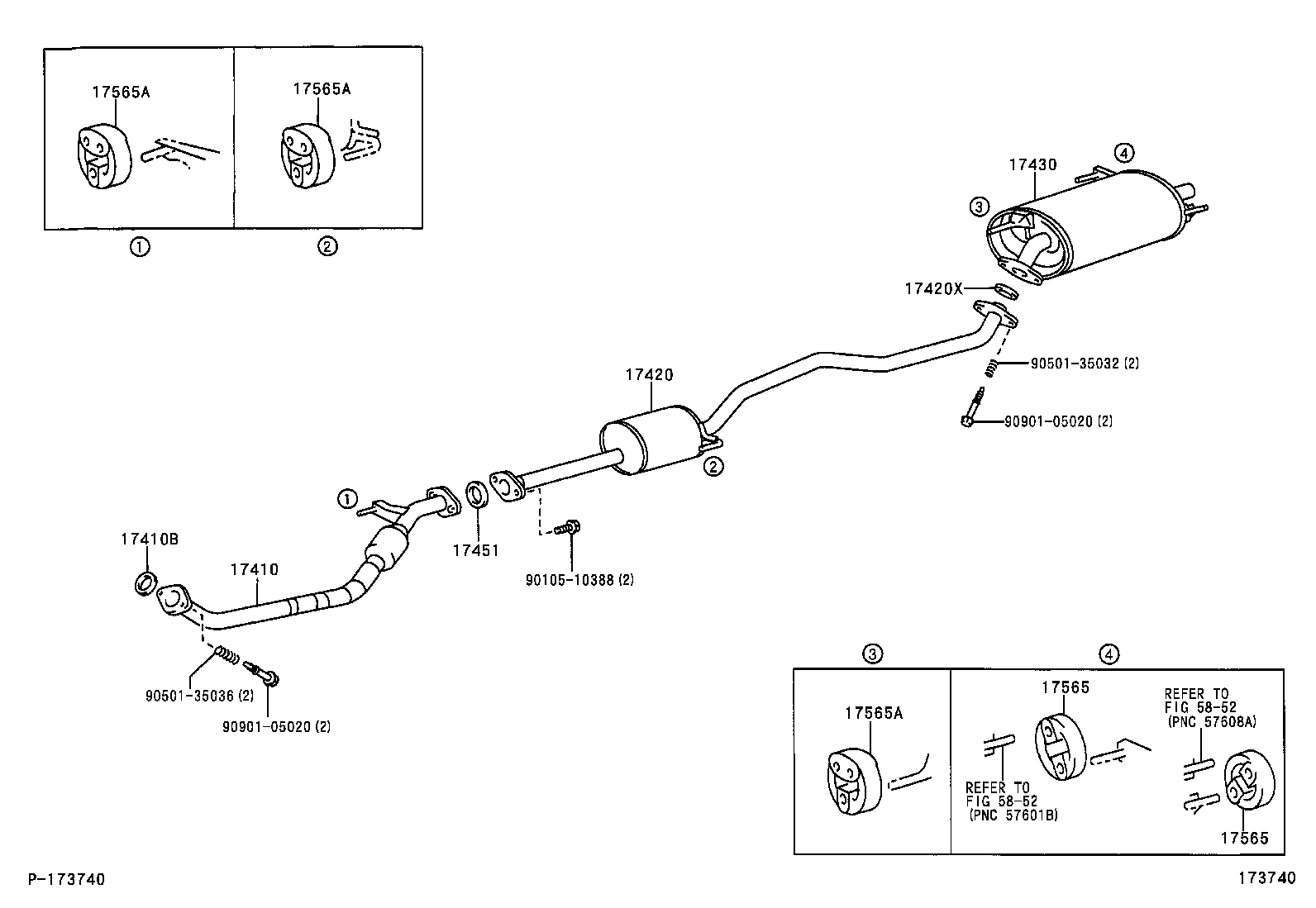

(0304- )2AZFE

Click highlighted areas on diagram

diagram 17410 17410B 17420 17420X 17430 17451 17565 17565 17565A 17565A 17565A 5852 5852 9010510388 9050135032 9050135036 9090105020 9090105020
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-28140

2AZFE..ACR30..ATM..(EUR,GCC,GEN)

 1
17410-28440

2AZFE..ACR30

*115=TOYOTA/03-/Y

 1
17410B - GASKET, EXHAUST PIPE
17451-74040

2AZFE..ACR30

 1
17451-22070

2AZFE..ACR30

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-28010

2AZFE..ACR30

 1
17420-28301

2AZFE..ACR30

 1
17420-28300

2AZFE..ACR30

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-20010

2AZFE,1CDFTV..ACR30,CLR30

 1
17451-20010

2AZFE,1CDFTV..ACR30,CLR30

 1
17451-74060

2AZFE,1CDFTV..ACR30,CLR30

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-28480

2AZFE..ACR30

 1
17405-28010

2AZFE..ACR30

 1
17405-28011

2AZFE..ACR30

 1
17451 - GASKET, EXHAUST PIPE
90917-06073

2AZFE..ACR30

 1
90917-06073

2AZFE..ACR30

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-15140

2AZFE,1CDFTV..ACR30,CLR30

 2
17565-15140

2AZFE,1CDFTV..ACR30,CLR30

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-15140

2AZFE,1CDFTV..ACR30,CLR30

 2
17565-15140

2AZFE,1CDFTV..ACR30,CLR30

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74320

2AZFE,1CDFTV..ACR30,CLR30

 3
17565-74320

2AZFE,1CDFTV..ACR30,CLR30

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74320

2AZFE,1CDFTV..ACR30,CLR30

 3
17565-74320

2AZFE,1CDFTV..ACR30,CLR30

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74320

2AZFE,1CDFTV..ACR30,CLR30

 3
17565-74320

2AZFE,1CDFTV..ACR30,CLR30

 3
Common parts
90105-10388
90501-35032
90501-35036
90901-05020
Linked diagrams
5852
