ACR30L-MFSEK (2000)

Toyota Previa/Tarago

Production Feb 2000 - Jan 2006
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )

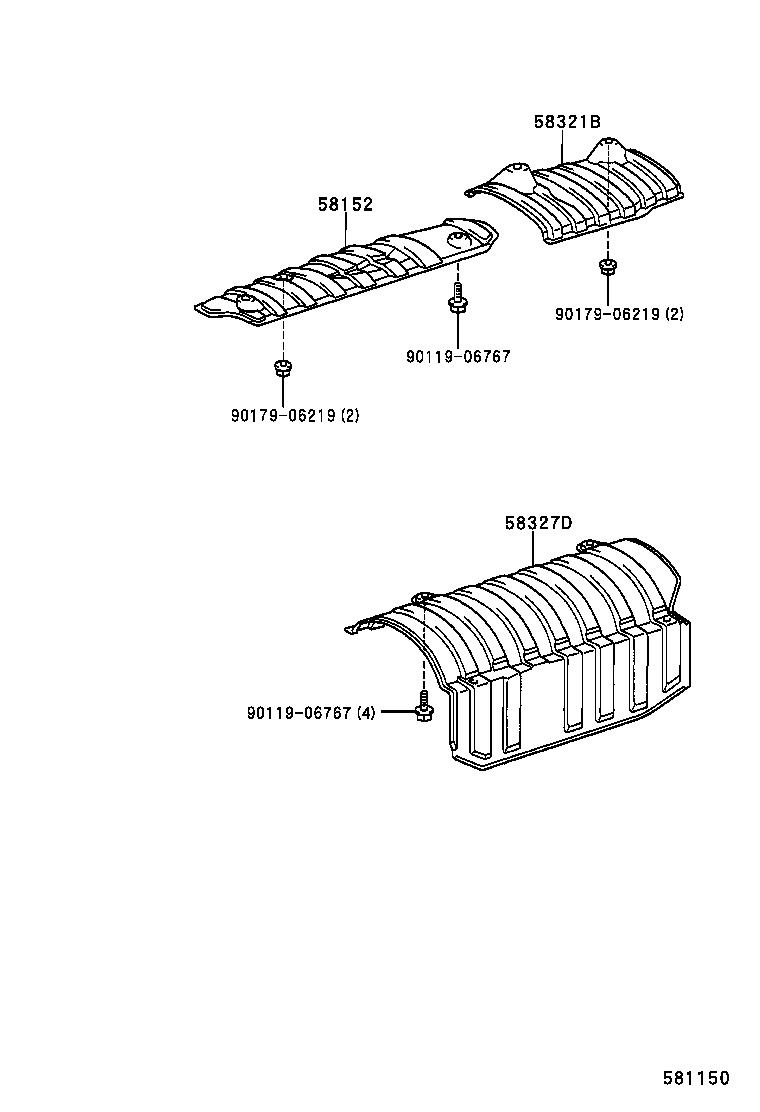

Click highlighted areas on diagram

diagram 58152 58321B 58327D 9011906767 9011906767 9017906219 9017906219
Part # Description Qty Price
58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2
58152-28020

ACR30,CLR30

 1
58152-28030

ACR30

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-28040

ACR30,CLR30

 1
58321-28040

ACR30,CLR30

 1
58327D - INSULATOR, MAIN MUFFLER HEAT, UPPER
58327-28020

ACR30,CLR30

 1
58327-28020

ACR30,CLR30

 1
Common parts
90119-06767
90179-06219
