ACR30L-MFSDKW (2000)
Toyota Previa/Tarago
Production
Feb 2000
-
Jan 2006
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0002- )ACR30

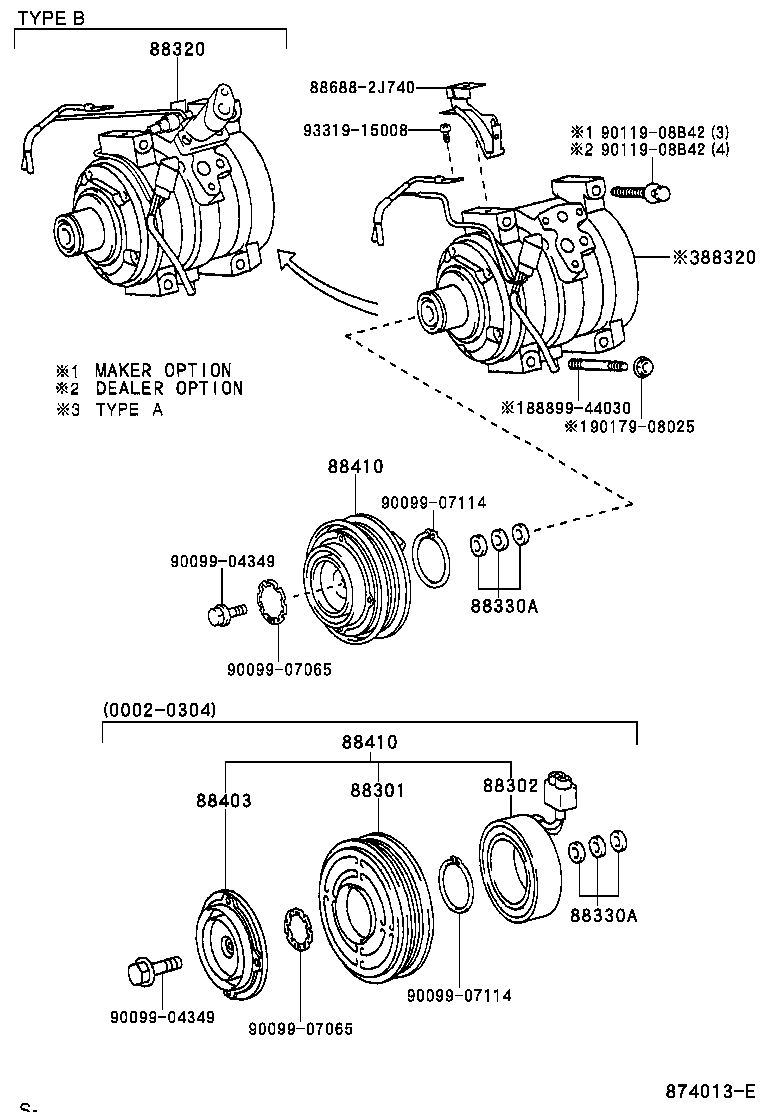

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-28090 |
ACR30 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-44010 |
ACR30,CLR30 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-28350 |
ACR30..ARL,EUR,GEN |
1 | ||
| 88320-28350 |
ACR30..ARL,EUR,GEN |
1 | ||
| 88320-28410 |
ACR30 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-28350 |
ACR30..ARL,EUR,GEN |
1 | ||
| 88320-28350 |
ACR30..ARL,EUR,GEN |
1 | ||
| 88320-28410 |
ACR30 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
ACR30,CLR30 |
1 | ||
| 88335-14020 |
ACR30,CLR30 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
ACR30,CLR30 |
1 | ||
| 88335-14020 |
ACR30,CLR30 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-32010 |
ACR30 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-28200 |
ACR30 |
1 | ||
| 88410-35400 |
ACR30 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-28200 |
ACR30 |
1 | ||
| 88410-35400 |
ACR30 |
1 | ||
| Common parts | ||||
| 88688-2J740 | ||||
| 88899-44030 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B42 | ||||
| 90179-08025 | ||||
| 93319-15008 | ||||
