ACR30L-MFSDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Jan 2006
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )EUR

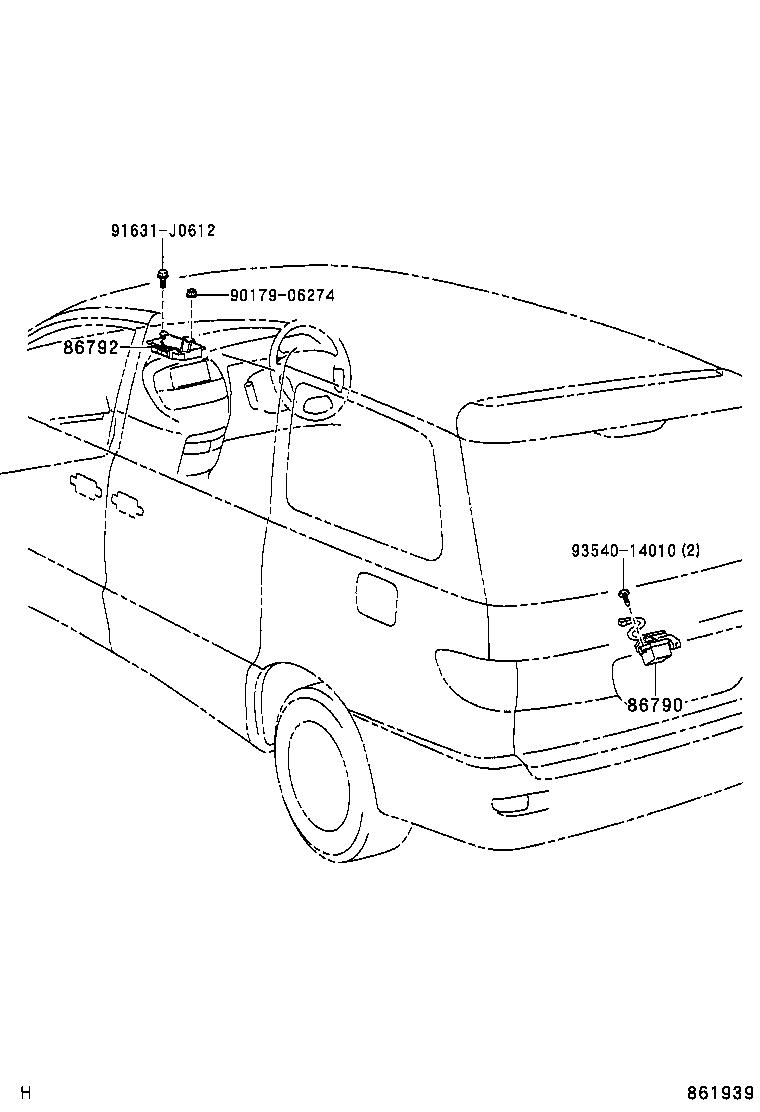

Click highlighted areas on diagram

diagram 86790 86792 9017906274 91631J0612 9354014010
Part # Description Qty Price
86790 - CAMERA ASSY, TELEVISION
86790-28140

ACR30,CLR30..EUR

 1
86792 - CONTROLLER, TELEVISION CAMERA
86792-28090

ACR30,CLR30..LHD..EUR

 1
Common parts
90179-06274
91631-J0612
93540-14010
