ACR30L-MFSDKW (2000)
Toyota Previa/Tarago

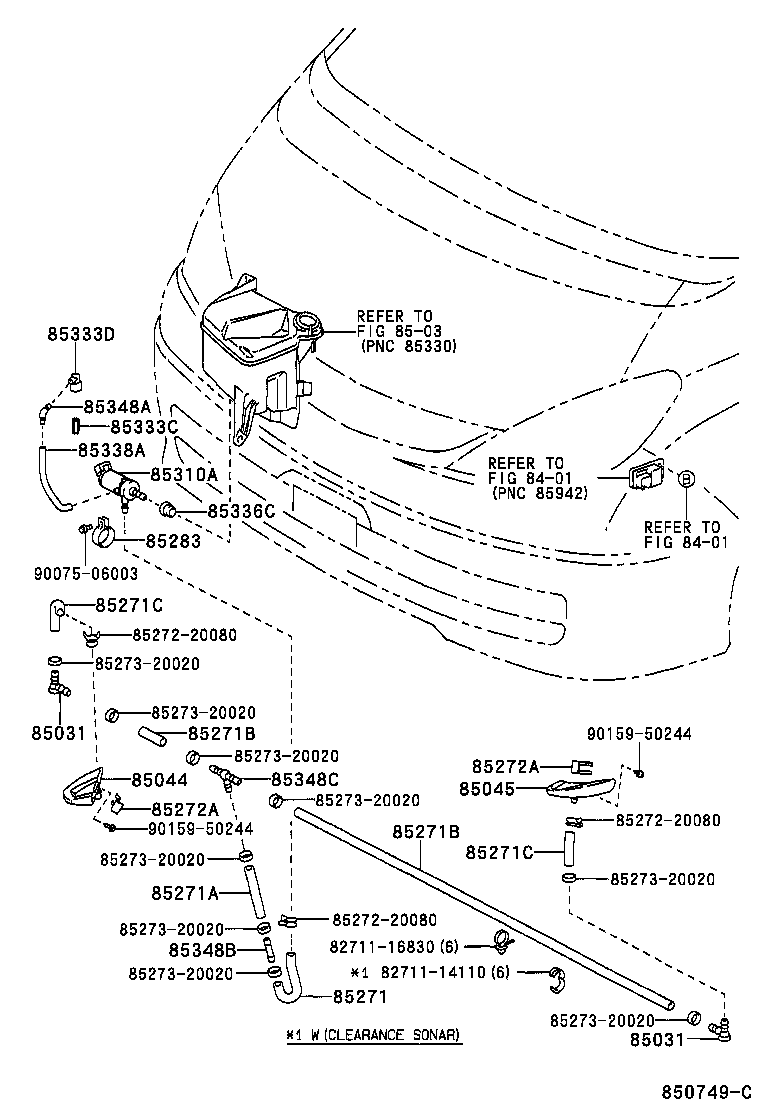

(0002-0304)LHD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031 - VALVE, HEADLAMP CLEANER WASHER HOSE | ||||
| 85031-30020 |
ACR30,CLR30..LHD..EUR |
2 | ||
| 85031 - VALVE, HEADLAMP CLEANER WASHER HOSE | ||||
| 85031-30020 |
ACR30,CLR30..LHD..EUR |
2 | ||
| 85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH | ||||
| 85044-28010 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH | ||||
| 85045-28010 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 85271-14100 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 90075-15011 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85376-12380 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 85289-20590 |
ACR30,CLR30..LHD..EUR L=130 |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85275-42010 |
ACR30,CLR30..LHD..EUR L=45,RH |
1 | ||
| 90075-15012 |
ACR30,CLR30..LHD..EUR L=1600,LH |
1 | ||
| 85375-20171 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) L=60 |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85275-42010 |
ACR30,CLR30..LHD..EUR L=45,RH |
1 | ||
| 90075-15012 |
ACR30,CLR30..LHD..EUR L=1600,LH |
1 | ||
| 85375-20171 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) L=60 |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 90445-14055 |
ACR30,CLR30..LHD..EUR *H,L=60,LH |
1 | ||
| 85275-33020 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) L=34 |
1 | ||
| 85375-32180 |
ACR30,CLR30..LHD..EUR L=70,RH |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 90445-14055 |
ACR30,CLR30..LHD..EUR *H,L=60,LH |
1 | ||
| 85275-33020 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) L=34 |
1 | ||
| 85375-32180 |
ACR30,CLR30..LHD..EUR L=70,RH |
1 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85272-30010 |
ACR30,CLR30..LHD..EUR |
2 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85272-30010 |
ACR30,CLR30..LHD..EUR |
2 | ||
| 85283 - BRACKET, HEADLAMP CLEANER WASHER | ||||
| 85361-33020 |
ACR30..LHD..EUR |
1 | ||
| 85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER | ||||
| 85330-28080 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 85330-28080 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 85333C - FILTER, HEADLAMP CLEANER | ||||
| 90075-16001 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 90075-16001 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 85333D - COVER, HEADLAMP CLEANER | ||||
| 90075-15502 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 90075-15502 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 85336C - PACKING, HEADLAMP CLEANER MOTOR | ||||
| 85336-10010 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 85336-10010 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 85338A - HOSE, BREATHER | ||||
| 90075-15014 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85349-89122 |
ACR30,CLR30..LHD..(EUR,GEN) |
1 | ||
| 85355-20200 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 85379-89131 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 85355-20200 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 85379-89131 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 85352-12010 |
ACR30,CLR30..LHD..EUR |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-16830 | ||||
| 85272-20080 | ||||
| 85273-20020 | ||||
| 90075-06003 | ||||
| 90159-50244 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8503 | ||||

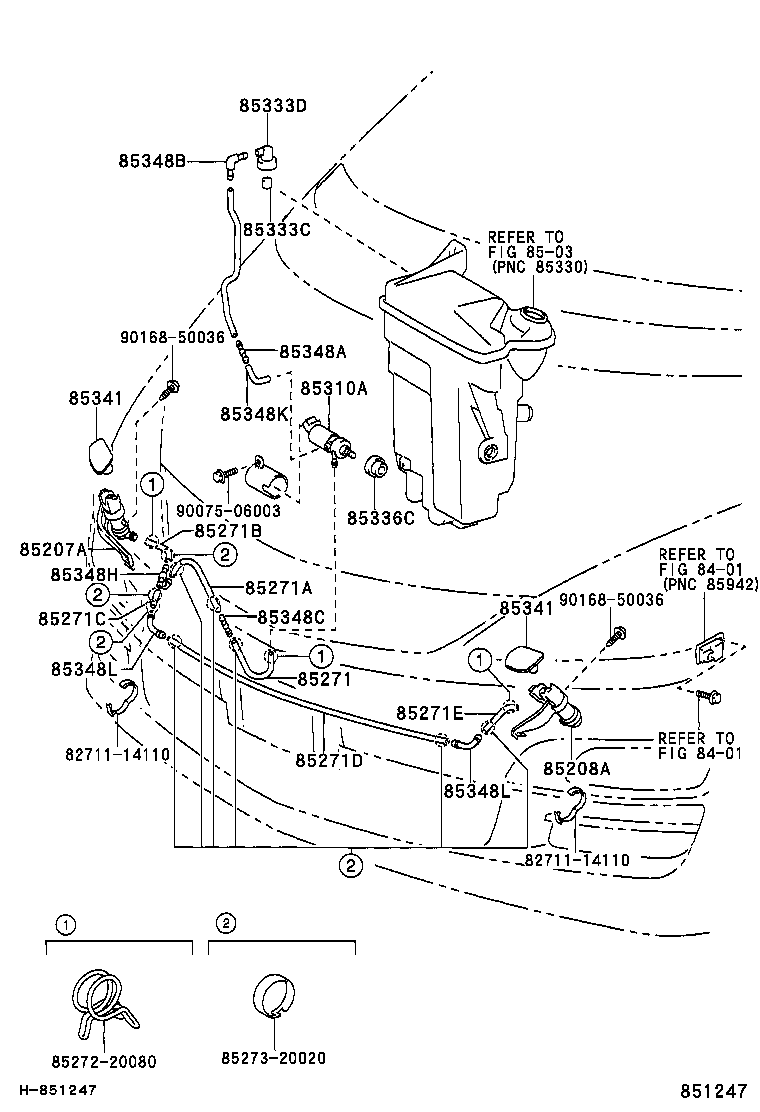

(0304- )LHD..EUR,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-28010 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-28010 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 85271-14100 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 90075-15011 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85376-12380 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 85289-20590 |
ACR30,CLR30..LHD..EUR L=130 |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85275-42010 |
ACR30,CLR30..LHD..EUR L=45,RH |
1 | ||
| 90075-15012 |
ACR30,CLR30..LHD..EUR L=1600,LH |
1 | ||
| 85375-20171 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) L=60 |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 90445-14055 |
ACR30,CLR30..LHD..EUR *H,L=60,LH |
1 | ||
| 85275-33020 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) L=34 |
1 | ||
| 85375-32180 |
ACR30,CLR30..LHD..EUR L=70,RH |
1 | ||
| 85271D - HOSE, HEADLAMP CLEANER, NO.5 | ||||
| 90445-14072 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) L=1320 |
1 | ||
| 85271E - HOSE, HEADLAMP CLEANER, NO.6 | ||||
| 85378-89140 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) L=120 |
1 | ||
| 85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER | ||||
| 85330-28080 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 85330-28080 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 85333C - FILTER, HEADLAMP CLEANER | ||||
| 90075-16001 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 90075-16001 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 85333D - COVER, HEADLAMP CLEANER | ||||
| 90075-15502 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 90075-15502 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 85336C - PACKING, HEADLAMP CLEANER MOTOR | ||||
| 85336-10010 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 85336-10010 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85381-28200B1 |
ACR30,CLR30..LHD..(EUR,GEN) GRAY ME.,1D2,RH |
1 | ||
| 85381-28200G0 |
ACR30,CLR30..LHD..(EUR,GEN) DK.GREEN MC.,6Q7,RH |
1 | ||
| 85381-28200C0 |
ACR30,CLR30..LHD..(EUR,GEN) BLACK,202,RH |
1 | ||
| 85381-28200B0 |
ACR30,CLR30..LHD..(EUR,GEN) SILVER ME.,1C0,RH |
1 | ||
| 85382-28090B0 |
ACR30,CLR30..LHD..(EUR,GEN) SILVER ME.,1C0,LH |
1 | ||
| 85381-28200A0 |
ACR30,CLR30..LHD..(EUR,GEN) WHITE,056,RH |
1 | ||
| 85382-28090A0 |
ACR30,CLR30..LHD..(EUR,GEN) WHITE,056,LH |
1 | ||
| 85381-28200D0 |
ACR30,CLR30..LHD..(EUR,GEN) SUPER RED MC.,3J7,RH |
1 | ||
| 85382-28090C0 |
ACR30,CLR30..LHD..(EUR,GEN) BLACK,202,LH |
1 | ||
| 85382-28090D0 |
ACR30,CLR30..LHD..(EUR,GEN) SUPER RED MC.,3J7,LH |
1 | ||
| 85382-28090J0 |
ACR30,CLR30..LHD..(EUR,GEN) DK.BLUE M.M.,8P4,LH |
1 | ||
| 85381-28200E0 |
ACR30,CLR30..LHD..(EUR,GEN) BEIGE ME.,4R4,RH |
1 | ||
| 85382-28090E0 |
ACR30,CLR30..LHD..(EUR,GEN) BEIGE ME.,4R4,LH |
1 | ||
| 85381-28200J0 |
ACR30,CLR30..LHD..(EUR,GEN) DK.BLUE M.M.,8P4,RH |
1 | ||
| 85382-28090B1 |
ACR30,CLR30..LHD..(EUR,GEN) GRAY ME.,1D2,LH |
1 | ||
| 85382-28090G0 |
ACR30,CLR30..LHD..(EUR,GEN) DK.GREEN MC.,6Q7,LH |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85381-28200B1 |
ACR30,CLR30..LHD..(EUR,GEN) GRAY ME.,1D2,RH |
1 | ||
| 85381-28200G0 |
ACR30,CLR30..LHD..(EUR,GEN) DK.GREEN MC.,6Q7,RH |
1 | ||
| 85381-28200C0 |
ACR30,CLR30..LHD..(EUR,GEN) BLACK,202,RH |
1 | ||
| 85381-28200B0 |
ACR30,CLR30..LHD..(EUR,GEN) SILVER ME.,1C0,RH |
1 | ||
| 85382-28090B0 |
ACR30,CLR30..LHD..(EUR,GEN) SILVER ME.,1C0,LH |
1 | ||
| 85381-28200A0 |
ACR30,CLR30..LHD..(EUR,GEN) WHITE,056,RH |
1 | ||
| 85382-28090A0 |
ACR30,CLR30..LHD..(EUR,GEN) WHITE,056,LH |
1 | ||
| 85381-28200D0 |
ACR30,CLR30..LHD..(EUR,GEN) SUPER RED MC.,3J7,RH |
1 | ||
| 85382-28090C0 |
ACR30,CLR30..LHD..(EUR,GEN) BLACK,202,LH |
1 | ||
| 85382-28090D0 |
ACR30,CLR30..LHD..(EUR,GEN) SUPER RED MC.,3J7,LH |
1 | ||
| 85382-28090J0 |
ACR30,CLR30..LHD..(EUR,GEN) DK.BLUE M.M.,8P4,LH |
1 | ||
| 85381-28200E0 |
ACR30,CLR30..LHD..(EUR,GEN) BEIGE ME.,4R4,RH |
1 | ||
| 85382-28090E0 |
ACR30,CLR30..LHD..(EUR,GEN) BEIGE ME.,4R4,LH |
1 | ||
| 85381-28200J0 |
ACR30,CLR30..LHD..(EUR,GEN) DK.BLUE M.M.,8P4,RH |
1 | ||
| 85382-28090B1 |
ACR30,CLR30..LHD..(EUR,GEN) GRAY ME.,1D2,LH |
1 | ||
| 85382-28090G0 |
ACR30,CLR30..LHD..(EUR,GEN) DK.GREEN MC.,6Q7,LH |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85349-89122 |
ACR30,CLR30..LHD..(EUR,GEN) |
1 | ||
| 85355-20200 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 85379-89131 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 85355-20200 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 85379-89131 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 85352-12010 |
ACR30,CLR30..LHD..EUR |
1 | ||
| 85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4 | ||||
| 85279-33020 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 85336-12230 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
1 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 85279-42010 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
2 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 85279-42010 |
ACR30,CLR30..LHD..(06S,07S)..(EUR,GEN) |
2 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 85272-20080 | ||||
| 85273-20020 | ||||
| 90075-06003 | ||||
| 90168-50036 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8503 | ||||
