ACR30L-MFSDKW (2000)
Toyota Previa/Tarago

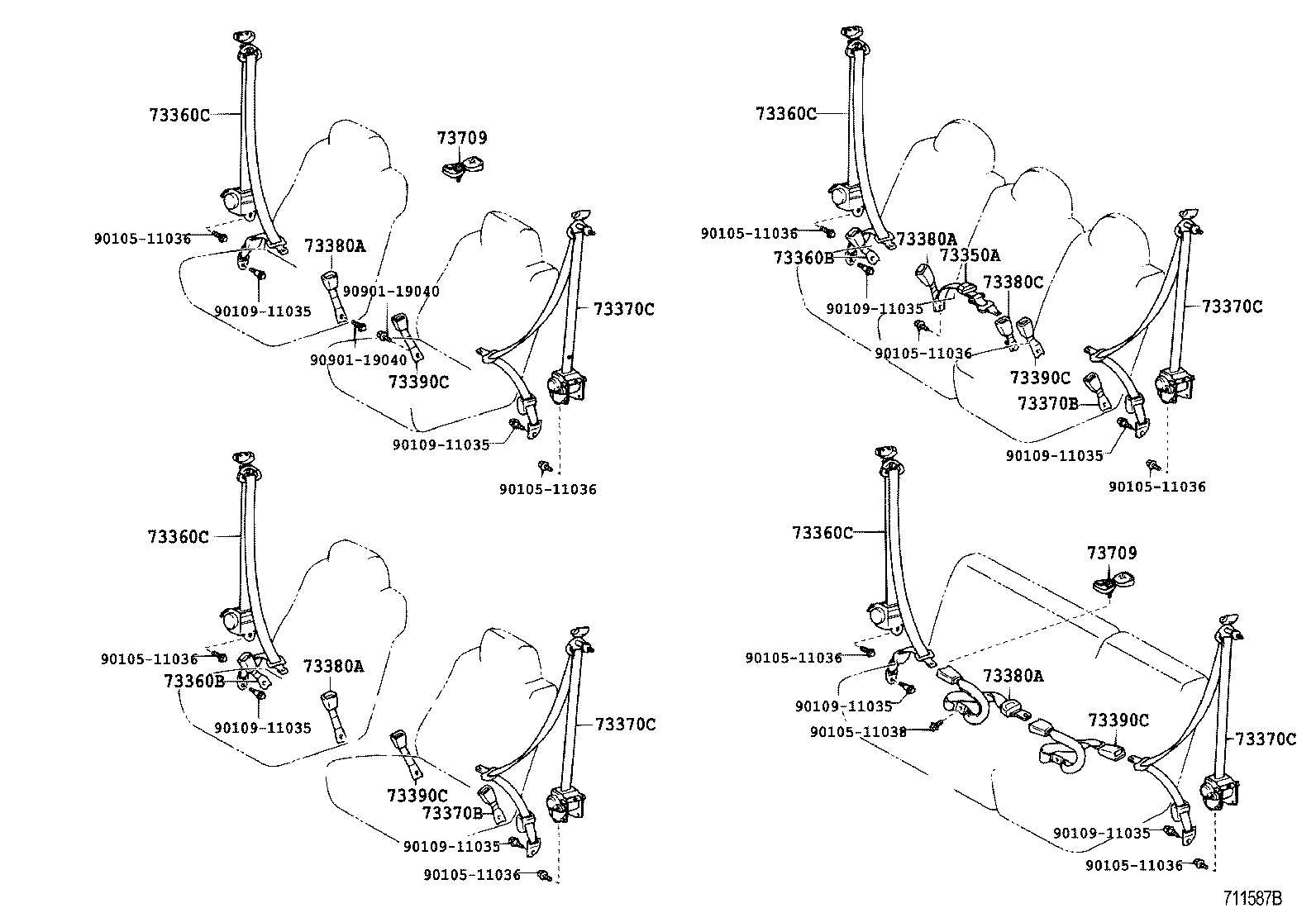

ILLUST NO. 2 OF 3(0002-0304)ARL,EUR,GEN ; (0105-0304)GL..GCC
REAR NO.1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER | ||||
| 73350-28180B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73350-28180B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73350-44040C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28590B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28580B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28630C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73360-28580B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73360-28590B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73360-28640C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28590B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28580B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28630C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73360-28580B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73360-28590B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73360-28640C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28590B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28580B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28630C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73360-28580B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73360-28590B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73360-28640C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28590B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28580B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28630C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73360-28580B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73360-28590B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73360-28640C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..07S..EUR DK.GRAY,TRIM1# |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..07S..EUR DK.GRAY,TRIM1# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28500B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73370-28510B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73370-28550C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73370-28560C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73370-28500B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73370-28510B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28500B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73370-28510B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73370-28550C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73370-28560C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73370-28500B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73370-28510B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28500B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73370-28510B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73370-28550C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73370-28560C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73370-28500B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73370-28510B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28500B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73370-28510B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73370-28550C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73370-28560C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73370-28500B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73370-28510B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390B0 |
ACR30..07S..ATM W(REAR NO.1 SEAT = CAPTAIN SEAT),DK.GRAY,TRIM1# |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28250B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.CHARCOAL,TRIM12 |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390B0 |
ACR30..07S..ATM W(REAR NO.1 SEAT = CAPTAIN SEAT),DK.GRAY,TRIM1# |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28250B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.CHARCOAL,TRIM12 |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390B0 |
ACR30..07S..ATM W(REAR NO.1 SEAT = CAPTAIN SEAT),DK.GRAY,TRIM1# |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28250B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.CHARCOAL,TRIM12 |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390B0 |
ACR30..07S..ATM W(REAR NO.1 SEAT = CAPTAIN SEAT),DK.GRAY,TRIM1# |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28250B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.CHARCOAL,TRIM12 |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-28320B1 |
ACR30,CLR30..07S..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-44040B0 |
ACR30,CLR30..07S..EUR DK.GRAY,TRIM1# |
1 | ||
| 73380-28320B0 |
ACR30,CLR30..07S..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73230-28250B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28390B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.GRAY,TRIM1# |
1 | ||
| 73230-28250B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUE GRAY,TRIM11 |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73230-28250B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28390B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.GRAY,TRIM1# |
1 | ||
| 73230-28250B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUE GRAY,TRIM11 |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73230-28250B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28390B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.GRAY,TRIM1# |
1 | ||
| 73230-28250B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUE GRAY,TRIM11 |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73230-28250B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28390B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.GRAY,TRIM1# |
1 | ||
| 73230-28250B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUE GRAY,TRIM11 |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-11038 | ||||
| 90109-11035 | ||||
| 90901-19040 | ||||
ILLUST NO. 3 OF 3(0002- )
REAR NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S BLACK |
1 | ||
| 73219-33020 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S GRAY |
1 | ||
| 73219-33030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S BEIGE |
1 | ||
| 73380B - BELT ASSY, SEAT LAP TYPE, NO.4 | ||||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
2 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
2 | ||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
2 | ||
| 73380B - BELT ASSY, SEAT LAP TYPE, NO.4 | ||||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
2 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
2 | ||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
2 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-28300B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73560-28300B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73560-28310B0 |
ACR30,CLR30..(06S,07S)..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73560-28350C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73560-28310B1 |
ACR30,CLR30..(06S,07S)..EUR GRAY,TRIM12 |
1 | ||
| 73560-28360C1 |
ACR30,CLR30..(06S,07S)..EUR BLACK,TRIM1# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-28300B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73560-28300B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73560-28310B0 |
ACR30,CLR30..(06S,07S)..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73560-28350C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73560-28310B1 |
ACR30,CLR30..(06S,07S)..EUR GRAY,TRIM12 |
1 | ||
| 73560-28360C1 |
ACR30,CLR30..(06S,07S)..EUR BLACK,TRIM1# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-28310B0 |
ACR30,CLR30..(06S,07S)..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73570-28350C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73570-28300B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73570-28300B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73570-28360C1 |
ACR30,CLR30..(06S,07S)..EUR BLACK,TRIM1# |
1 | ||
| 73570-28310B1 |
ACR30,CLR30..(06S,07S)..EUR GRAY,TRIM12 |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-28310B0 |
ACR30,CLR30..(06S,07S)..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73570-28350C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73570-28300B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73570-28300B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73570-28360C1 |
ACR30,CLR30..(06S,07S)..EUR BLACK,TRIM1# |
1 | ||
| 73570-28310B1 |
ACR30,CLR30..(06S,07S)..EUR GRAY,TRIM12 |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28370C0 |
ACR30..(07S,08S)..ATM BLACK,TRIM1# |
1 | ||
| 73380-28300B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73380-28300B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR W(DETACHABLE SEAT),DK.GRAY,TRIM1# |
1 | ||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28370C0 |
ACR30..(07S,08S)..ATM BLACK,TRIM1# |
1 | ||
| 73380-28300B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73380-28300B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR W(DETACHABLE SEAT),DK.GRAY,TRIM1# |
1 | ||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73590-28120C0 |
ACR30..(07S,08S)..ATM BLACK,TRIM1# |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DTACHBL SEAT,DK.GRAY,TRIM1# |
1 | ||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73590-28090B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73590-28090B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73590-28120C0 |
ACR30..(07S,08S)..ATM BLACK,TRIM1# |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DTACHBL SEAT,DK.GRAY,TRIM1# |
1 | ||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73590-28090B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73590-28090B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| Common parts | ||||
| 90105-11038 | ||||
| 90105-11058 | ||||
| 90109-11035 | ||||

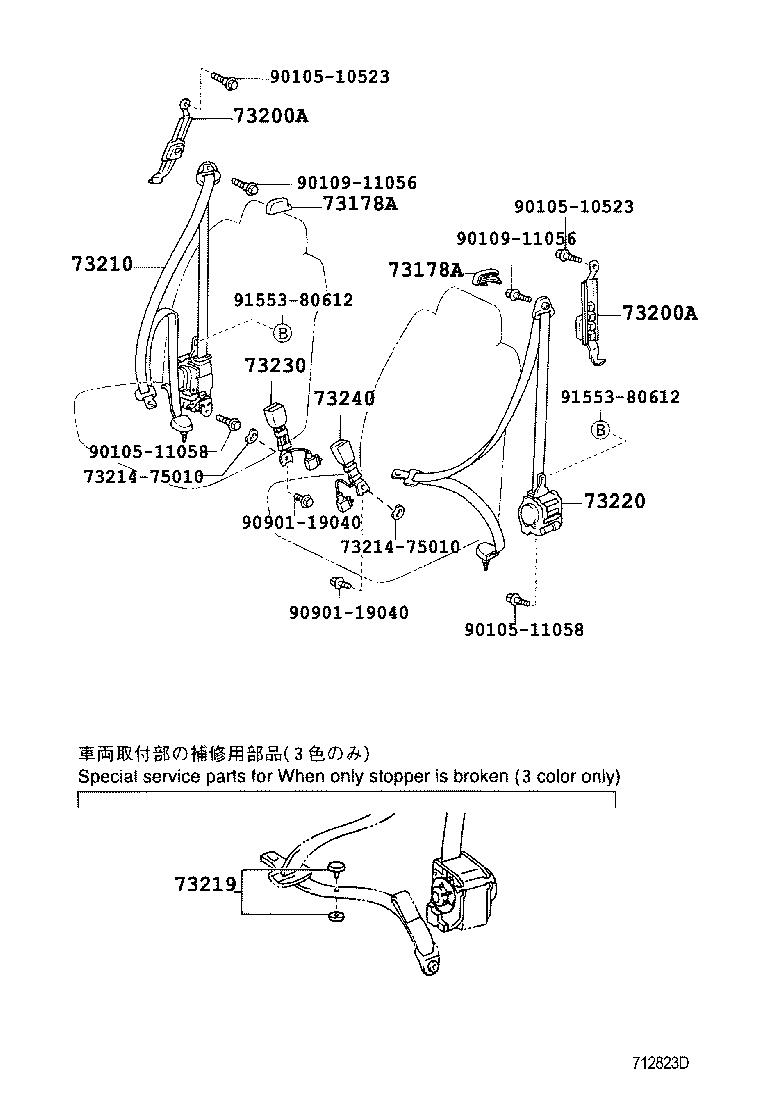

ILLUST NO. 1 OF 3(0002- )
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33010B2 |
ACR30 LT.BLUISH GRAY,TRIM11 |
2 | ||
| 73178-33020B1 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 73178-33020B2 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
2 | ||
| 73178-33010B5 |
ACR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 73178-33020B3 |
ACR30,CLR30 LT.GRAY,TRIM1# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33010B2 |
ACR30 LT.BLUISH GRAY,TRIM11 |
2 | ||
| 73178-33020B1 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 73178-33020B2 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
2 | ||
| 73178-33010B5 |
ACR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 73178-33020B3 |
ACR30,CLR30 LT.GRAY,TRIM1# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-28030B2 |
ACR30,CLR30 LT.GRAY,TRIM1# |
2 | ||
| 73200-28030B0 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
2 | ||
| 73200-28030B1 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-28030B2 |
ACR30,CLR30 LT.GRAY,TRIM1# |
2 | ||
| 73200-28030B0 |
ACR30,CLR30 LT. BLUISH GRAY,TRIM11 |
2 | ||
| 73200-28030B1 |
ACR30,CLR30 MD.CHARCOAL,TRIM12 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-28690B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 73210-28670B0 |
ACR30 BLUISH GRAY,TRIM11 |
1 | ||
| 73210-28690B1 |
ACR30,CLR30 GRAY,TRIM12 |
1 | ||
| 73210-28670B1 |
ACR30 GRAY,TRIM12 |
1 | ||
| 73210-28750C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73210-28750C1 |
ACR30..LHD..07S..ATM..EUR BLACK,TRIM1# |
1 | ||
| 73210-28770C0 |
ACR30,CLR30..LHD..EUR BLACK,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S BLACK |
1 | ||
| 73219-33020 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S GRAY |
1 | ||
| 73219-33030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-28630B0 |
ACR30 BLUISH GRAY,TRIM11 |
1 | ||
| 73220-28650B0 |
ACR30,CLR30 BLUISH GRAY,TRIM11 |
1 | ||
| 73220-28710C1 |
ACR30..ARL,GCC,GEN;ACR30,CLR30..LHD..EUR BLACK,TRIM1# |
1 | ||
| 73220-28650B1 |
ACR30,CLR30 GRAY,TRIM12 |
1 | ||
| 73220-28630B1 |
ACR30 GRAY,TRIM12 |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-28240B0 |
ACR30,CLR30..EUR,GEN BLUE GRAY,TRIM11 |
1 | ||
| 73230-28240B1 |
ACR30,CLR30..EUR,GEN DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28370B0 |
ACR30..(07S,08S)..ATM..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28370B0 |
ACR30..(07S,08S)..ATM..EUR EXCEPT EUROPE,DK.GRAY,TRIM1# |
1 | ||
| 73230-28360B0 |
CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-28240B1 |
ACR30,CLR30 DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28240B0 |
ACR30,CLR30 BLUE GRAY,TRIM11 |
1 | ||
| 73230-28370B0 |
ACR30..(07S,08S)..ATM..EUR EXCEPT EUROPE,DK.GRAY,TRIM1# |
1 | ||
| 73230-28360B0 |
CLR30;ACR30..08S..MTM;ACR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28370B0 |
ACR30..(07S,08S)..ATM..EUR DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11058 | ||||
| 90109-11056 | ||||
| 90901-19040 | ||||
| 91553-80612 | ||||

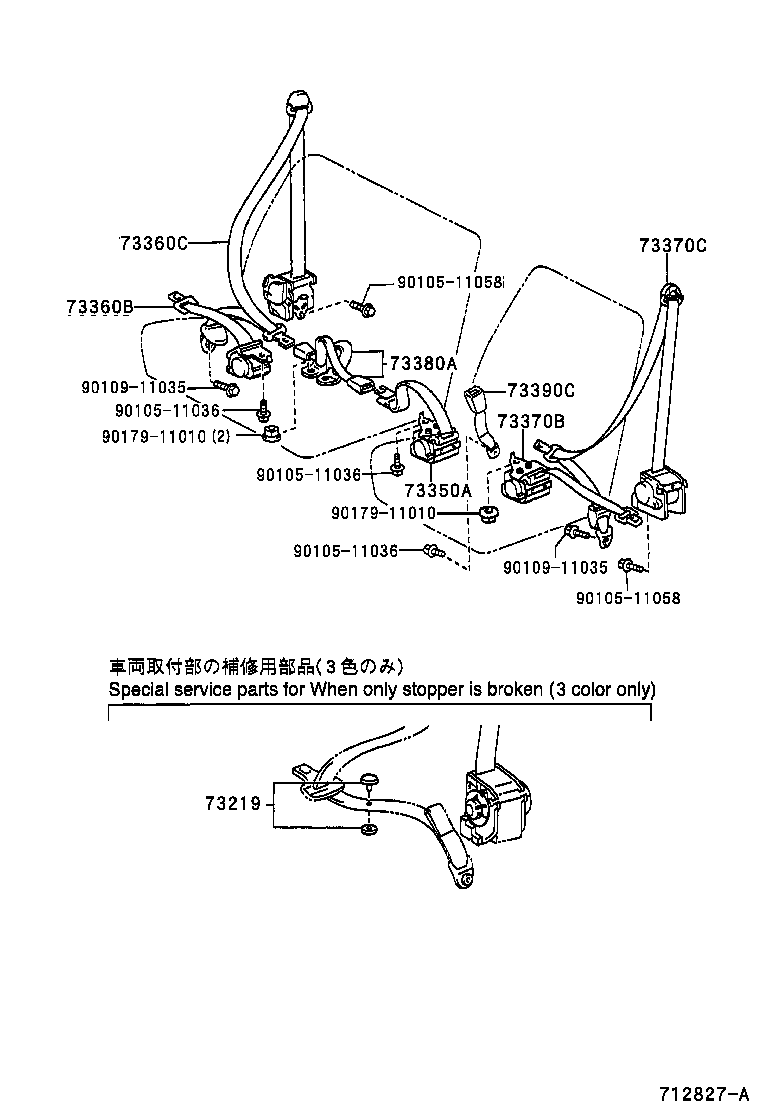

ILLUST NO. 2 OF 3(0304- )
REAR NO.1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S BLACK |
1 | ||
| 73219-33020 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S GRAY |
1 | ||
| 73219-33030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S BEIGE |
1 | ||
| 73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER | ||||
| 73350-28180B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73350-28180B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73350-44040C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28590B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28580B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28630C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73360-28580B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73360-28590B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73360-28640C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28590B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28580B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28630C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73360-28580B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73360-28590B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73360-28640C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28590B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28580B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28630C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73360-28580B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73360-28590B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73360-28640C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28590B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28580B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28630C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73360-28580B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73360-28590B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73360-28640C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..07S..EUR DK.GRAY,TRIM1# |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..07S..EUR DK.GRAY,TRIM1# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28500B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73370-28510B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73370-28550C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73370-28560C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73370-28500B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73370-28510B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28500B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73370-28510B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73370-28550C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73370-28560C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73370-28500B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73370-28510B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28500B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73370-28510B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73370-28550C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73370-28560C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73370-28500B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73370-28510B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28500B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73370-28510B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73370-28550C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73370-28560C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73370-28500B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73370-28510B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-44010 |
ACR30,CLR30..07S..EUR |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390B0 |
ACR30..07S..ATM W(REAR NO.1 SEAT = CAPTAIN SEAT),DK.GRAY,TRIM1# |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28250B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.CHARCOAL,TRIM12 |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390B0 |
ACR30..07S..ATM W(REAR NO.1 SEAT = CAPTAIN SEAT),DK.GRAY,TRIM1# |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28250B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.CHARCOAL,TRIM12 |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390B0 |
ACR30..07S..ATM W(REAR NO.1 SEAT = CAPTAIN SEAT),DK.GRAY,TRIM1# |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28250B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.CHARCOAL,TRIM12 |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390B0 |
ACR30..07S..ATM W(REAR NO.1 SEAT = CAPTAIN SEAT),DK.GRAY,TRIM1# |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28250B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.CHARCOAL,TRIM12 |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390B0 |
ACR30..07S..ATM W(REAR NO.1 SEAT = CAPTAIN SEAT),DK.GRAY,TRIM1# |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28250B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.CHARCOAL,TRIM12 |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-28320B1 |
ACR30,CLR30..07S..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-44040B0 |
ACR30,CLR30..07S..EUR DK.GRAY,TRIM1# |
1 | ||
| 73380-28320B0 |
ACR30,CLR30..07S..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73230-28250B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28390B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.GRAY,TRIM1# |
1 | ||
| 73230-28250B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUE GRAY,TRIM11 |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73230-28250B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28390B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.GRAY,TRIM1# |
1 | ||
| 73230-28250B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUE GRAY,TRIM11 |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73230-28250B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28390B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.GRAY,TRIM1# |
1 | ||
| 73230-28250B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUE GRAY,TRIM11 |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73230-28250B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28390B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.GRAY,TRIM1# |
1 | ||
| 73230-28250B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUE GRAY,TRIM11 |
1 | ||
| Common parts | ||||
| 72702-44060 | ||||
| 90105-11033 | ||||
| 90105-11038 | ||||
| 90105-11058 | ||||
| 90109-11035 | ||||
| 90901-19040 | ||||
| Linked diagrams | ||||
| 7151 | ||||

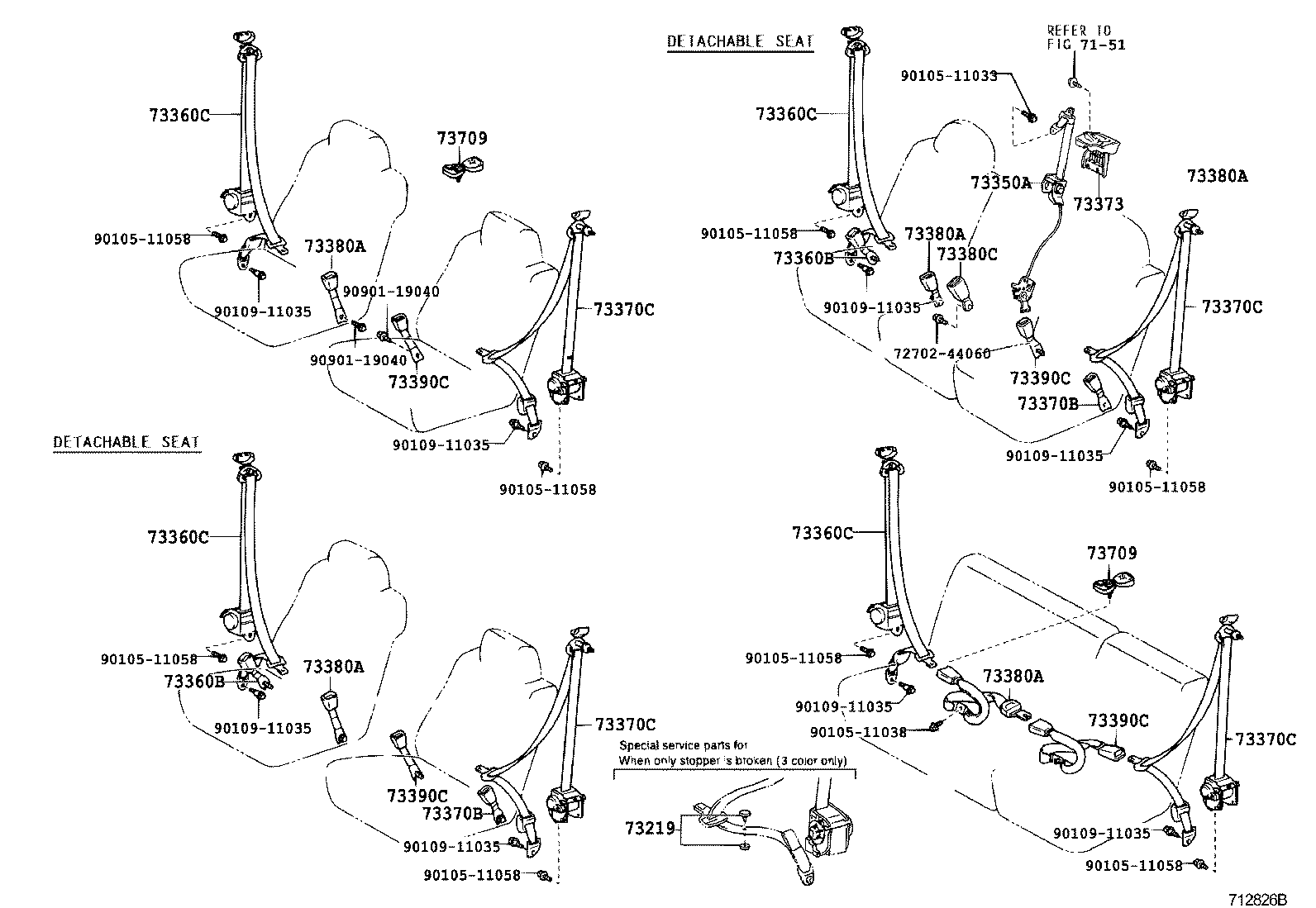

ILLUST NO. 2 OF 3(0304- )07S,08S..EUR,GCC
REAR NO.1(TURN SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S BLACK |
1 | ||
| 73219-33020 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S GRAY |
1 | ||
| 73219-33030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S BEIGE |
1 | ||
| 73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER | ||||
| 73350-28180B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73350-28180B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73350-44040C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28590B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28580B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73360-28630C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73360-28580B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73360-28590B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73360-28640C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..07S..EUR DK.GRAY,TRIM1# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28500B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,GRAY,TRIM12 |
1 | ||
| 73370-28510B1 |
ACR30,CLR30..07S..EUR GRAY,TRIM12 |
1 | ||
| 73370-28550C1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLACK,TRIM1# |
1 | ||
| 73370-28560C1 |
ACR30,CLR30..07S..EUR BLACK,TRIM1# |
1 | ||
| 73370-28500B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUISH GRAY,TRIM11 |
1 | ||
| 73370-28510B0 |
ACR30,CLR30..07S..EUR BLUISH GRAY,TRIM11 |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73230-28250B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUE GRAY,TRIM11 |
1 | ||
| 73230-28390B0 |
ACR30..07S..ATM W(REAR NO.1 SEAT = CAPTAIN SEAT),DK.GRAY,TRIM1# |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28250B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.CHARCOAL,TRIM12 |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-28290B1 |
ACR30,CLR30..(06S,07S)..EUR DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28290B0 |
ACR30,CLR30..(06S,07S)..EUR BLUE GRAY,TRIM11 |
1 | ||
| 73230-28250B1 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.CHARCOAL,TRIM12 |
1 | ||
| 73380-28380B0 |
ACR30,CLR30..(06S,07S)..EUR DK.GRAY,TRIM1# |
1 | ||
| 73230-28390B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,DK.GRAY,TRIM1# |
1 | ||
| 73230-28250B0 |
ACR30..LHD..07S..ATM..EUR TAIWAN SPEC,BLUE GRAY,TRIM11 |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-11058 | ||||
| 90109-11035 | ||||
| 90179-11010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
