ACR30L-MFSDKW (2000)
Toyota Previa/Tarago

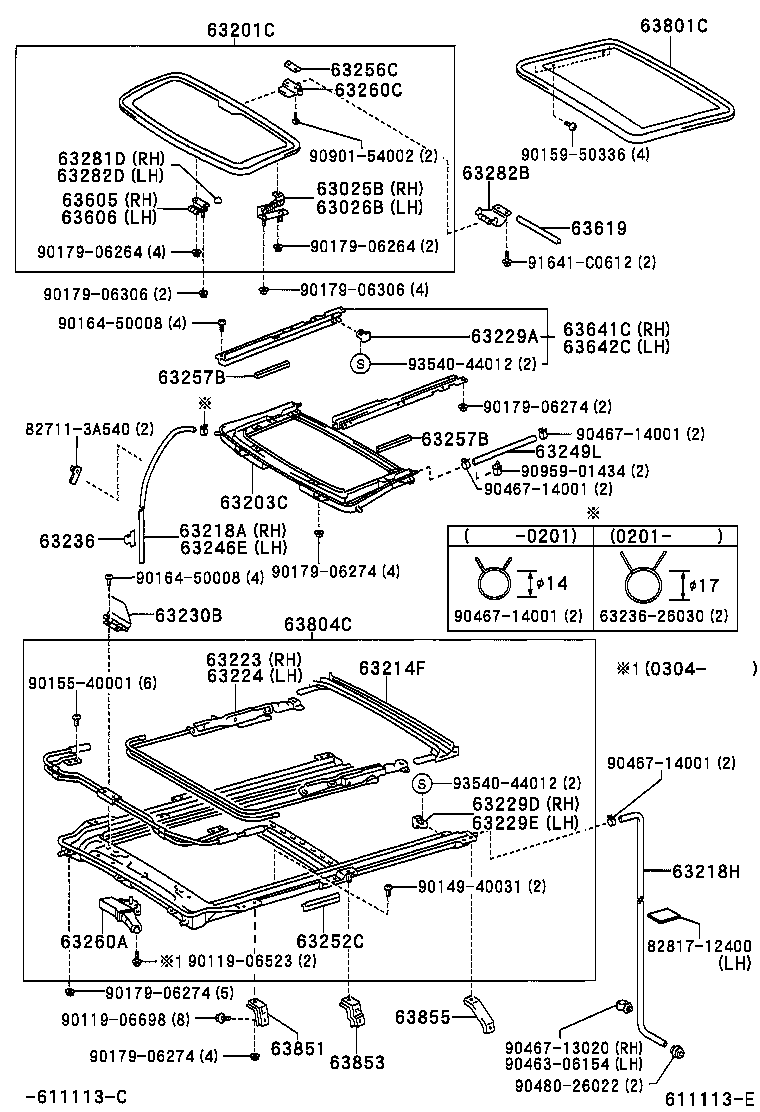

ILLUST NO. 2 OF 3(0002- )
MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63025B - LINK SUB-ASSY, TILT ROOF, RH | ||||
| 63025-32010 |
ACR30,CLR30 |
1 | ||
| 63025-28060 |
ACR30,CLR30 |
1 | ||
| 63025-28060 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63026B - LINK SUB-ASSY, TILT ROOF, LH | ||||
| 63026-32010 |
ACR30,CLR30 |
1 | ||
| 63026-28060 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63026-28060 |
ACR30,CLR30 |
1 | ||
| 63201C - GLASS SUB-ASSY, TILT ROOF | ||||
| 63201-28340 |
ACR30,CLR30 *TT,T=5.0,GREEN |
1 | ||
| 63201-28341 |
ACR30,CLR30 *TT,T=5.0,GREEN |
1 | ||
| 63201-28341 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S *TT,T=5.0,GREEN |
1 | ||
| 63203C - HOUSING SUB-ASSY, TILT ROOF | ||||
| 63203-28140 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63203-28150 |
ACR30,CLR30 |
1 | ||
| 63203-28140 |
ACR30,CLR30 |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-28100 |
ACR30,CLR30 |
1 | ||
| 63214-28100 |
ACR30,CLR30 |
1 | ||
| 63214-28101 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63245-28080 |
ACR30,CLR30 L=1805 |
1 | ||
| 63245-28060 |
ACR30,CLR30 L=1795 |
1 | ||
| 63245-28080 |
ACR30,CLR30 L=1805 |
1 | ||
| 63245-28081 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S L=1805 |
1 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63247-28040 |
ACR30,CLR30 RH |
1 | ||
| 63248-28010 |
ACR30,CLR30 LH |
1 | ||
| 63247-28040 |
ACR30,CLR30 RH |
1 | ||
| 63248-28010 |
ACR30,CLR30 LH |
1 | ||
| 63247-28041 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S RH |
1 | ||
| 63248-28011 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S LH |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-28030 |
ACR30,CLR30 |
1 | ||
| 63223-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63224-28030 |
ACR30,CLR30 |
1 | ||
| 63229A - STOPPER, SLIDING ROOF SUNSHADE | ||||
| 63229-28030 |
ACR30,CLR30 |
2 | ||
| 63229-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 63229D - STOPPER, SLIDING ROOF SUNSHADE, REAR RH | ||||
| 63229-28030 |
ACR30,CLR30 |
1 | ||
| 63229-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63229E - STOPPER, SLIDING ROOF SUNSHADE, REAR LH | ||||
| 63229-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63229-28030 |
ACR30,CLR30 |
1 | ||
| 63230B - PANEL ASSY, ROOF WIND DEFLECTOR | ||||
| 63230-28040 |
ACR30,CLR30 |
2 | ||
| 63230-28040 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-32010 |
ACR30,CLR30 |
4 | ||
| 63236-32010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
4 | ||
| 63246E - HOSE, SLIDE ROOF RAIN CHANNEL, NO.2 | ||||
| 63246-28091 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63246-28080 |
ACR30,CLR30 L=1795 |
1 | ||
| 63246-28090 |
ACR30,CLR30 L=1805 |
1 | ||
| 63246-28090 |
ACR30,CLR30 L=1805 |
1 | ||
| 63249L - HOSE, TILT ROOF DRAIN | ||||
| 63249-28060 |
ACR30,CLR30 |
2 | ||
| 63249-28060 |
ACR30,CLR30 |
2 | ||
| 63249-28061 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 63252C - WEATHERSTRIP, SLIDING ROOF, REAR | ||||
| 63252-44010 |
ACR30,CLR30 |
2 | ||
| 63252-44010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 63256C - SEAL, TILT ROOF GLASS | ||||
| 63256-44010 |
ACR30,CLR30 |
1 | ||
| 63256-44010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63257B - SEAL, SLIDING ROOF | ||||
| 63257-32010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 63257-32010 |
ACR30,CLR30 |
2 | ||
| 63257B - SEAL, SLIDING ROOF | ||||
| 63257-32010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 63257-32010 |
ACR30,CLR30 |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-28100 |
ACR30,CLR30 |
1 | ||
| 63260-28100 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63260C - HANDLE ASSY, TILT ROOF LOCK | ||||
| 63260-26030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63260-26030 |
ACR30,CLR30 |
1 | ||
| 63281D - STOPPER, REMOVABLE ROOF PANEL, RH | ||||
| 63281-28010 |
ACR30,CLR30 |
1 | ||
| 63281-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63282B - STRIKER, TILT ROOF LOCK | ||||
| 63282-28011 |
ACR30,CLR30 |
1 | ||
| 63282-28010 |
ACR30,CLR30 |
1 | ||
| 63282-28011 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63282D - STOPPER, REMOVABLE ROOF PANEL, LH | ||||
| 63281-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63281-28010 |
ACR30,CLR30 |
1 | ||
| 63605 - HINGE SUB-ASSY, TILT ROOF, RH | ||||
| 63605-44020 |
ACR30,CLR30 |
1 | ||
| 63605-44010 |
ACR30,CLR30 |
1 | ||
| 63605-44020 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63606 - HINGE SUB-ASSY, TILT ROOF, LH | ||||
| 63606-44010 |
ACR30,CLR30 |
1 | ||
| 63606-44020 |
ACR30,CLR30 |
1 | ||
| 63606-44020 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63619 - COVER, TILT ROOF PANEL | ||||
| 63619-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 63619-28030 |
ACR30,CLR30 |
2 | ||
| 63641C - RAIL, SUNSHADE, NO.1 FRONT RH | ||||
| 63641-28050 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63641-28050 |
ACR30,CLR30 |
1 | ||
| 63642C - RAIL, SUNSHADE, NO.1 FRONT LH | ||||
| 63642-28050 |
ACR30,CLR30 |
1 | ||
| 63642-28050 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63801C - GLASS SUB-ASSY, REAR SLIDE ROOF | ||||
| 63801-28120 |
ACR30,CLR30 *TT,T=5.0,GREEN |
1 | ||
| 63801-28121 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S *TT,T=5.0,GREEN |
1 | ||
| 63801-28121 |
ACR30,CLR30 *TT,T=5.0,GREEN |
1 | ||
| 63804C - HOUSING SUB-ASSY, REAR SLIDE ROOF | ||||
| 63804-28020B1 |
ACR30,CLR30 LT. BL. GRAY,TRIM11 |
1 | ||
| 63804-28020B0 |
ACR30,CLR30 MEDIUM CHARCOAL,TRIM12 |
1 | ||
| 63804-28041B0 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S LT.GRAY,TRIM1# |
1 | ||
| 63804-28040B0 |
ACR30,CLR30 LT. GRAY,TRIM1# |
1 | ||
| 63851 - BRACKET, REAR SLIDE ROOF HOUSING, NO.1 RH | ||||
| 63851-28030 |
ACR30,CLR30 |
2 | ||
| 63851-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 63853 - BRACKET, REAR SLIDE ROOF HOUSING, NO.2 RH | ||||
| 63853-28031 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 63853-28030 |
ACR30 |
2 | ||
| 63853-28031 |
ACR30,CLR30 |
2 | ||
| 63855 - BRACKET, REAR SLIDE ROOF HOUSING, NO.3 | ||||
| 63855-28010 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
2 | ||
| 63855-28010 |
ACR30,CLR30 |
2 | ||
| Common parts | ||||
| 63236-26030 | ||||
| 82711-3A540 | ||||
| 82817-12400 | ||||
| 90119-06523 | ||||
| 90119-06698 | ||||
| 90149-40031 | ||||
| 90155-40001 | ||||
| 90159-50336 | ||||
| 90164-50008 | ||||
| 90179-06264 | ||||
| 90179-06274 | ||||
| 90179-06306 | ||||
| 90463-06154 | ||||
| 90467-13020 | ||||
| 90467-14001 | ||||
| 90480-26022 | ||||
| 90901-54002 | ||||
| 90959-01434 | ||||
| 91641-C0612 | ||||
| 93540-44012 | ||||

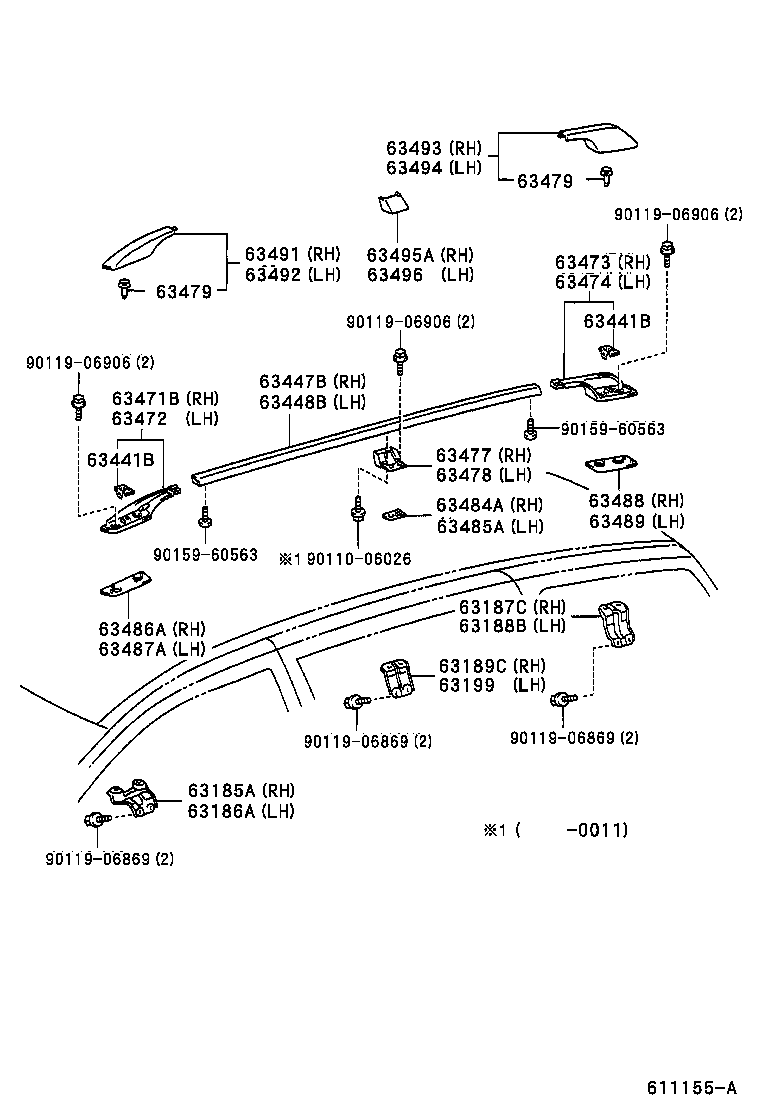

ILLUST NO. 3 OF 3(0002- )
ROOF RAIL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-28040 |
ACR30,CLR30 |
1 | ||
| 63185-28040 |
ACR30,CLR30 |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-28030 |
ACR30,CLR30 |
1 | ||
| 63186-28030 |
ACR30,CLR30 |
1 | ||
| 63187C - BRACKET, ROOF RACK, NO.1 REAR RH | ||||
| 63187-28040 |
ACR30,CLR30 |
1 | ||
| 63187-28040 |
ACR30,CLR30 |
1 | ||
| 63188B - BRACKET, ROOF RACK, NO.1 REAR LH | ||||
| 63188-28030 |
ACR30,CLR30 |
1 | ||
| 63188-28030 |
ACR30,CLR30 |
1 | ||
| 63189C - BRACKET, ROOF RACK, CENTER RH | ||||
| 63189-28050 |
ACR30,CLR30 |
1 | ||
| 63189-28050 |
ACR30,CLR30 |
1 | ||
| 63199 - BRACKET, ROOF RACK, CENTER LH | ||||
| 63199-28040 |
ACR30,CLR30 |
1 | ||
| 63199-28040 |
ACR30,CLR30 |
1 | ||
| 63441B - PLATE, ROOF RACK SUPPORT, NO.1 | ||||
| 63441-31020 |
ACR30,CLR30 |
4 | ||
| 63441-31020 |
ACR30,CLR30 |
4 | ||
| 63441B - PLATE, ROOF RACK SUPPORT, NO.1 | ||||
| 63441-31020 |
ACR30,CLR30 |
4 | ||
| 63441-31020 |
ACR30,CLR30 |
4 | ||
| 63447B - BAR, ROOF CARRIER, RH | ||||
| 63447-28010 |
ACR30,CLR30 |
1 | ||
| 63447-28010 |
ACR30,CLR30 |
1 | ||
| 63448B - BAR, ROOF CARRIER, LH | ||||
| 63448-28020 |
ACR30,CLR30 |
1 | ||
| 63448-28020 |
ACR30,CLR30 |
1 | ||
| 63471B - LEG, ROOF RACK, FRONT RH | ||||
| 63471-28010 |
ACR30,CLR30 |
1 | ||
| 63471-28010 |
ACR30,CLR30 |
1 | ||
| 63472 - LEG, ROOF RACK, FRONT LH | ||||
| 63472-28010 |
ACR30,CLR30 |
1 | ||
| 63472-28010 |
ACR30,CLR30 |
1 | ||
| 63473 - LEG, ROOF RACK, REAR RH | ||||
| 63473-28010 |
ACR30,CLR30 |
1 | ||
| 63473-28010 |
ACR30,CLR30 |
1 | ||
| 63474 - LEG, ROOF RACK, REAR LH | ||||
| 63474-28010 |
ACR30,CLR30 |
1 | ||
| 63474-28010 |
ACR30,CLR30 |
1 | ||
| 63477 - SUPPORT, ROOF RACK, CENTER RH | ||||
| 63477-28010 |
ACR30,CLR30 |
1 | ||
| 63477-28010 |
ACR30,CLR30 |
1 | ||
| 63478 - SUPPORT, ROOF RACK, CENTER LH | ||||
| 63478-28010 |
ACR30,CLR30 |
1 | ||
| 63478-28010 |
ACR30,CLR30 |
1 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-31010 |
ACR30,CLR30 |
4 | ||
| 63479-31010 |
ACR30,CLR30 |
4 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-31010 |
ACR30,CLR30 |
4 | ||
| 63479-31010 |
ACR30,CLR30 |
4 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-28020 |
ACR30,CLR30 |
1 | ||
| 63484-28020 |
ACR30,CLR30 |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-28020 |
ACR30,CLR30 |
1 | ||
| 63485-28020 |
ACR30,CLR30 |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-28020 |
ACR30,CLR30 |
1 | ||
| 63486-28020 |
ACR30,CLR30 |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-28020 |
ACR30,CLR30 |
1 | ||
| 63487-28020 |
ACR30,CLR30 |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-28020 |
ACR30,CLR30 |
1 | ||
| 63488-28020 |
ACR30,CLR30 |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-28020 |
ACR30,CLR30 |
1 | ||
| 63489-28020 |
ACR30,CLR30 |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-28010 |
ACR30,CLR30 |
1 | ||
| 63491-28010 |
ACR30,CLR30 |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-28010 |
ACR30,CLR30 |
1 | ||
| 63492-28010 |
ACR30,CLR30 |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-28010 |
ACR30,CLR30 |
1 | ||
| 63493-28010 |
ACR30,CLR30 |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-28010 |
ACR30,CLR30 |
1 | ||
| 63494-28010 |
ACR30,CLR30 |
1 | ||
| 63495A - COVER, ROOF RACK LEG, CENTER | ||||
| 63495-28010 |
ACR30,CLR30 |
1 | ||
| 63495-28010 |
ACR30,CLR30 |
1 | ||
| 63496 - COVER, ROOF RACK LEG, CENTER LH | ||||
| 63496-28010 |
ACR30,CLR30 |
1 | ||
| 63496-28010 |
ACR30,CLR30 |
1 | ||
| Common parts | ||||
| 90110-06026 | ||||
| 90119-06869 | ||||
| 90119-06906 | ||||
| 90159-60563 | ||||

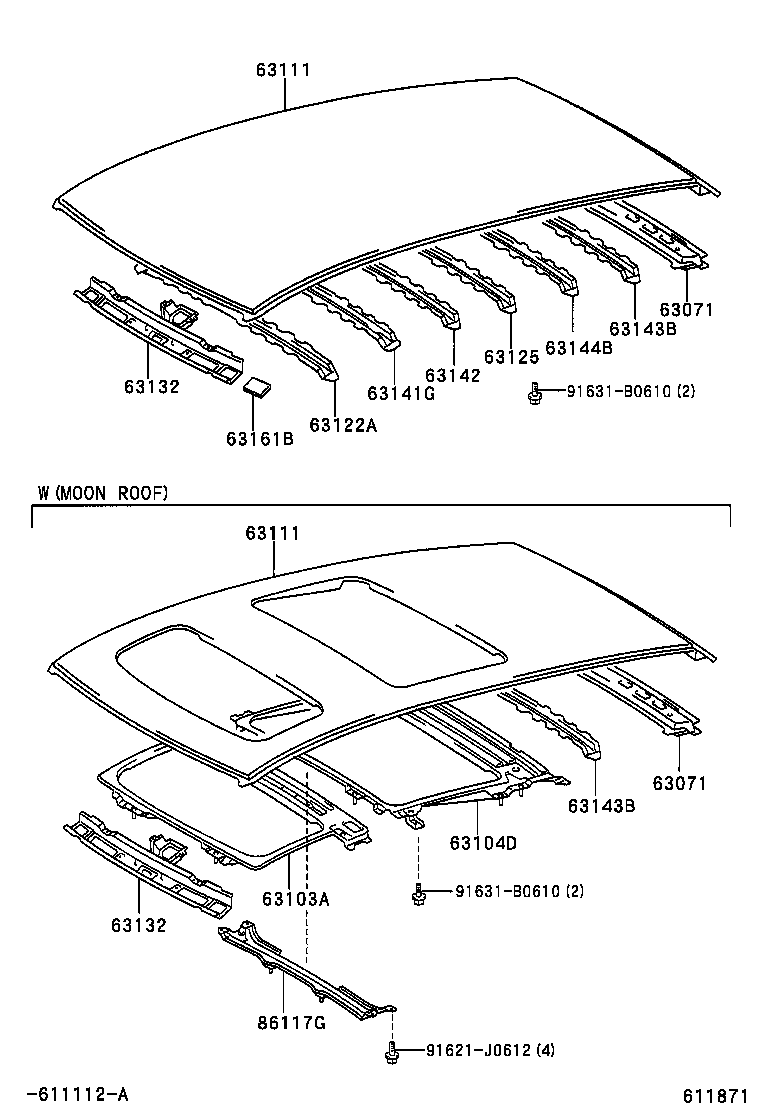

ILLUST NO. 1 OF 3(0002- )
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-28020 |
ACR30,CLR30 |
1 | ||
| 63071-28020 |
ACR30,CLR30 |
1 | ||
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-28020 |
ACR30,CLR30 |
1 | ||
| 63071-28020 |
ACR30,CLR30 |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-28030 |
ACR30,CLR30 |
1 | ||
| 63103-28030 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-28050 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| 63104-28050 |
ACR30,CLR30 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-28190 |
ACR30,CLR30 W(ROOF RAIL) |
1 | ||
| 63111-28210 |
ACR30,CLR30 W(MOON ROOF) |
1 | ||
| 63111-28210 |
ACR30,CLR30 W(MOON ROOF) |
1 | ||
| 63111-28190 |
ACR30,CLR30 W(ROOF RAIL) |
1 | ||
| 63111-28170 |
ACR30,CLR30 |
1 | ||
| 63111-28220 |
ACR30,CLR30 W(MOON ROOF & ROOF RAIL) |
1 | ||
| 63111-28220 |
ACR30,CLR30 W(MOON ROOF & ROOF RAIL) |
1 | ||
| 63111-28170 |
ACR30,CLR30 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-28190 |
ACR30,CLR30 W(ROOF RAIL) |
1 | ||
| 63111-28210 |
ACR30,CLR30 W(MOON ROOF) |
1 | ||
| 63111-28210 |
ACR30,CLR30 W(MOON ROOF) |
1 | ||
| 63111-28190 |
ACR30,CLR30 W(ROOF RAIL) |
1 | ||
| 63111-28170 |
ACR30,CLR30 |
1 | ||
| 63111-28220 |
ACR30,CLR30 W(MOON ROOF & ROOF RAIL) |
1 | ||
| 63111-28220 |
ACR30,CLR30 W(MOON ROOF & ROOF RAIL) |
1 | ||
| 63111-28170 |
ACR30,CLR30 |
1 | ||
| 63122A - REINFORCEMENT, ROOF PANEL, FRONT | ||||
| 63122-28060 |
ACR30,CLR30 |
1 | ||
| 63122-28060 |
ACR30,CLR30 |
1 | ||
| 63125 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63125-28050 |
ACR30,CLR30 |
1 | ||
| 63125-28050 |
ACR30,CLR30 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-28010 |
ACR30,CLR30 |
1 | ||
| 63102-28010 |
ACR30,CLR30 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-28010 |
ACR30,CLR30 |
1 | ||
| 63102-28010 |
ACR30,CLR30 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-28110 |
ACR30,CLR30 |
1 | ||
| 63141-28110 |
ACR30,CLR30 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-28060 |
ACR30,CLR30 |
1 | ||
| 63142-28060 |
ACR30,CLR30 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-28050 |
ACR30,CLR30 |
1 | ||
| 63143-28050 |
ACR30,CLR30 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-28050 |
ACR30,CLR30 |
1 | ||
| 63143-28050 |
ACR30,CLR30 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-28050 |
ACR30,CLR30 |
1 | ||
| 63144-28050 |
ACR30,CLR30 |
1 | ||
| 63161B - PLATE, ROOF HEADER PANEL, NO.1 | ||||
| 61815-28010 |
ACR30,CLR30 |
2 | ||
| 61815-28010 |
ACR30,CLR30 |
2 | ||
| 61815-32020 |
ACR30,CLR30 |
2 | ||
| 86117G - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-28061 |
ACR30..08S..ATM;ACR30,CLR30..06S,07S |
1 | ||
| Common parts | ||||
| 91621-J0612 | ||||
| 91631-B0610 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
