ACR30L-MFSDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Jan 2006
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )EUR,GCC,GEN

Click highlighted areas on diagram

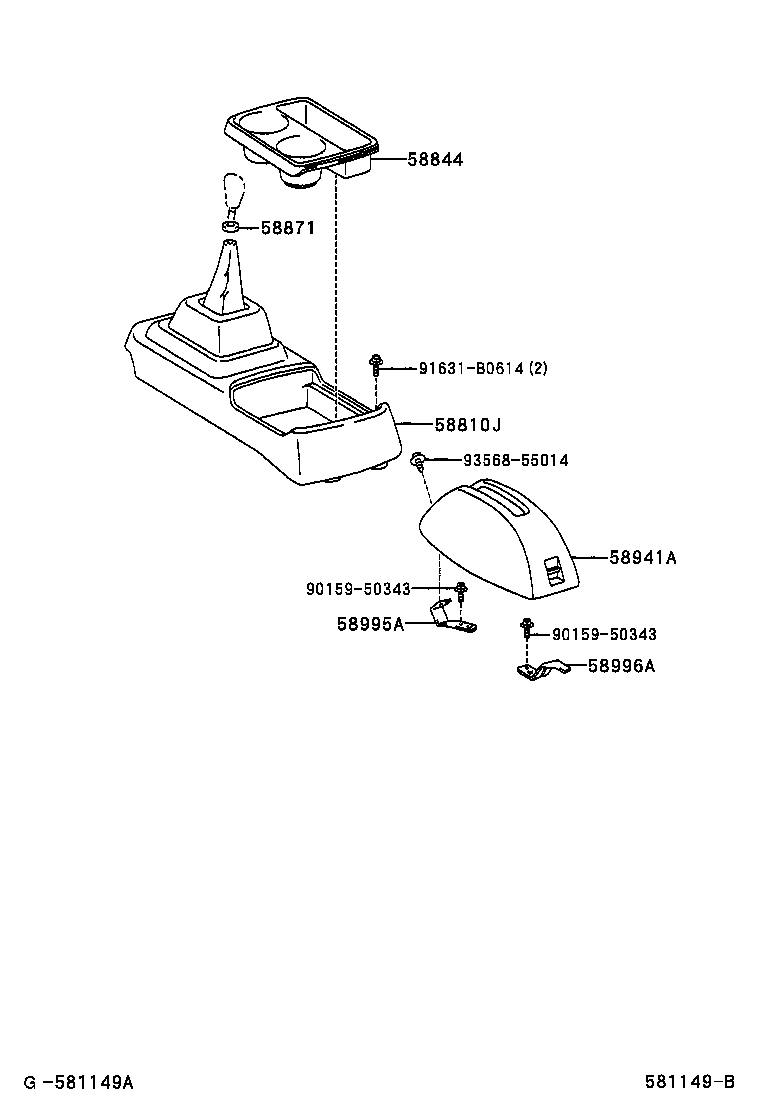

diagram 58810J 58844 58871 58941A 58995A 58996A 9015950343 9015950343 91631B0614 9356855014
Part # Description Qty Price
58941A - COVER, PARKING BRAKE HOLE
58941-28060B0

ACR30,CLR30..EUR,GCC,GEN

LT. BLUISH GRAY,TRIM11

 1
58941-28060B2

ACR30..08S..ATM..(EUR,GCC);ACR30,CLR30..(06S,07S)..(EUR,GCC,GEN)

MD.GRAY,TRIM1#

 1
58941-28060B1

ACR30,CLR30..EUR,GCC,GEN

MD.CHARCOAL,TRIM12

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-28010

ACR30..08S..ATM..(EUR,GCC);ACR30,CLR30..(06S,07S)..(EUR,GCC,GEN)

 1
58995-28010

ACR30,CLR30..EUR,GCC,GEN

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-28010

ACR30..08S..ATM..(EUR,GCC);ACR30,CLR30..(06S,07S)..(EUR,GCC,GEN)

 1
58996-28010

ACR30,CLR30..EUR,GCC,GEN

 1
Common parts
90159-50343
91631-B0614
93568-55014
