ACR30L-MFSDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Jan 2006
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )

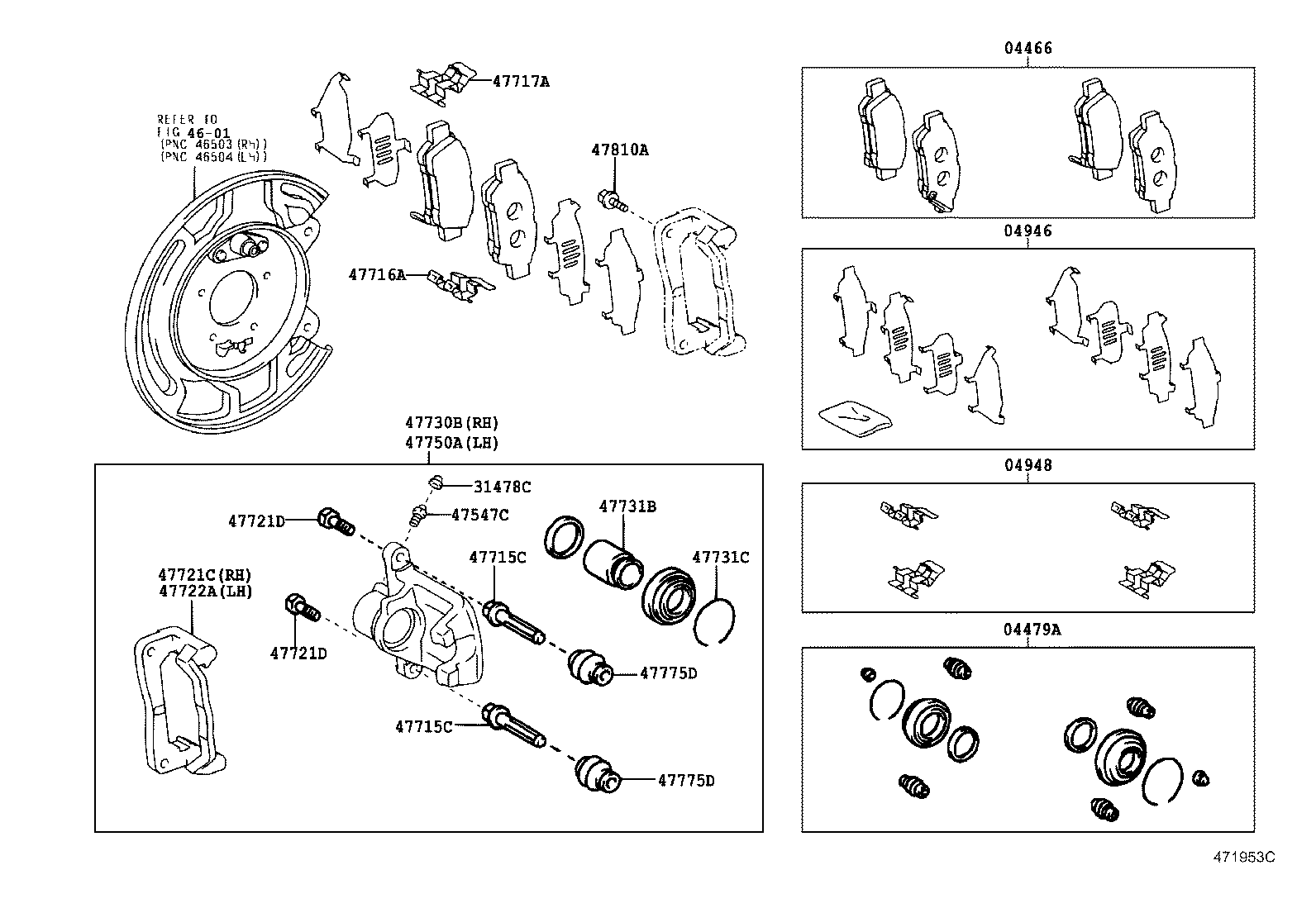

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 4601 47547C 47715C 47715C 47716A 47717A 47721C 47721D 47721D 47722A 47730B 47731B 47731C 47750A 47775D 47775D 47810A
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-28070

ACR30,CLR30..EUR,GEN

MARK SUMITOMO PS506H

 1
04466-28070

ACR30,CLR30..EUR

MARK SUMITOMO PS506H

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-28170

ACR30,CLR30

 1
04479-28120

ACR30,CLR30

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-28020

ACR30,CLR30

 1
04946-28020

ACR30,CLR30

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-28010

ACR30,CLR30

 1
04948-28010

ACR30,CLR30

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

ACR30,CLR30

 2
31478-30010

ACR30,CLR30

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-20010

ACR30,CLR30

 2
47547-20010

ACR30,CLR30

 2
47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-52010

ACR30,CLR30

 4
47715-52010

ACR30,CLR30

 4
47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-52010

ACR30,CLR30

 4
47715-52010

ACR30,CLR30

 4
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-28030

ACR30,CLR30

 2
47716-28030

ACR30,CLR30

 2
47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47717-28010

ACR30,CLR30

 2
47717-28010

ACR30,CLR30

 2
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47721-28020

ACR30,CLR30

 1
47721-28020

ACR30,CLR30

 1
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-08164

ACR30,CLR30

*8-1.00PX23-15

 4
90105-08164

ACR30,CLR30

*8-1.00PX23-15

 4
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-08164

ACR30,CLR30

*8-1.00PX23-15

 4
90105-08164

ACR30,CLR30

*8-1.00PX23-15

 4
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47722-28010

ACR30,CLR30

 1
47722-28010

ACR30,CLR30

 1
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-28270

ACR30,CLR30

 1
47730-28270

ACR30,CLR30

 1
47731B - PISTON, REAR DISC BRAKE
47731-28090

ACR30,CLR30

 2
47731-28090

ACR30,CLR30

 2
47731C - RING, SET(FOR REAR DISC BRAKE PISTON)
90522-53001

ACR30,CLR30

 2
90522-53001

ACR30,CLR30

 2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-28270

ACR30,CLR30

 1
47750-28270

ACR30,CLR30

 1
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-52010

ACR30,CLR30

 4
47775-52010

ACR30,CLR30

 4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-52010

ACR30,CLR30

 4
47775-52010

ACR30,CLR30

 4
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90119-12185

ACR30,CLR30

 4
90119-12185

ACR30,CLR30

 4
Linked diagrams
4601
