ACR30L-MDSDKW (2000)
Toyota Previa/Tarago

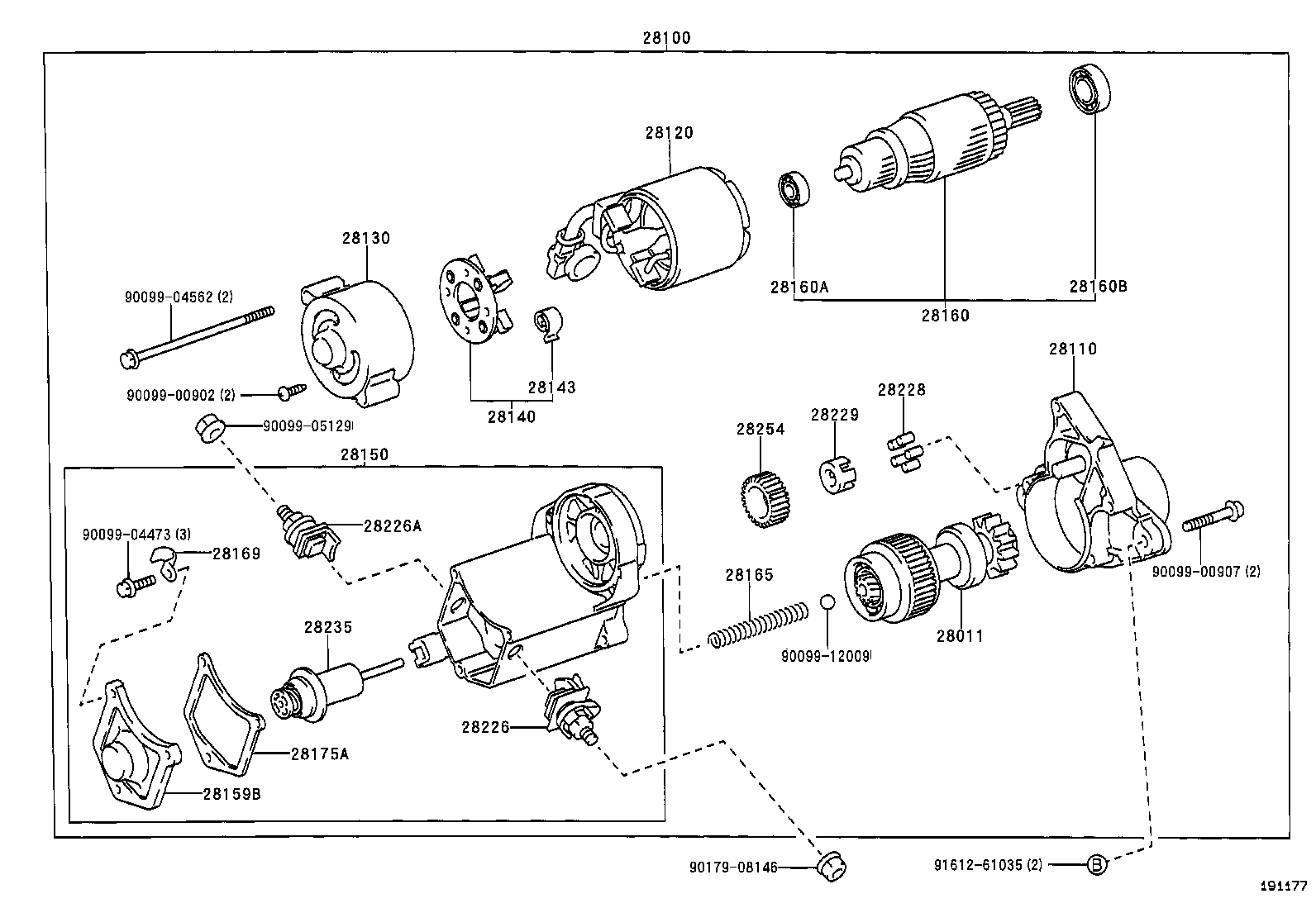

(0002-0304)2AZFE..ARL,EUR
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-74060 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28011-74070 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28011-74070 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..08S..ATM |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-28020 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28100-74260 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28100-74270 |
2AZFE..ACR30..RHD..08S..ATM;2AZFE..ACR30..(06S,07S)..(ARL,EUR) 12V 1.2KW |
1 | ||
| 28100-74260 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..DX..(ARL,GCC) 12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-74270 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28110-74300 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28120-66040 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28120-16180 |
2AZFE..ACR30..RHD..08S..ATM;2AZFE..ACR30..(06S,07S)..(ARL,EUR) 12V 1.2KW |
1 | ||
| 28120-66040 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..DX..(ARL,GCC) 12V 1.4KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-74260 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28130-74300 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-74070 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28140-74070 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..DX..(ARL,GCC) 12V 1.4KW |
1 | ||
| 28140-74010 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28140-74120 |
2AZFE..ACR30..RHD..08S..ATM;2AZFE..ACR30..(06S,07S)..(ARL,EUR) 12V 1.2KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
2AZFE..ACR30 |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-74270 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28150-74270 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..08S..ATM |
1 | ||
| 28150-28020 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-55050 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28159-10040 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-74070 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28160-26071 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28160-74070 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..DX..(ARL,GCC) 12V 1.4KW |
1 | ||
| 28160-76060 |
2AZFE..ACR30..RHD..08S..ATM;2AZFE..ACR30..(06S,07S)..(ARL,EUR) 12V 1.2KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10196 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28253-45020 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28160B - BEARING, STARTER ARMATURE, NO.2 | ||||
| 90099-10197 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 90099-10113 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-74070 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28165-74010 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
2AZFE..ACR30..ARL,EUR |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-55050 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28175-10040 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-55050 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28226-74300 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28226-74070 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2AZFE..ACR30 |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28229-26040 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-74130 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28235-74060 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28254 - PINION, STARTER IDLE GEAR | ||||
| 28254-74070 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28254-54070 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91612-61035 | ||||

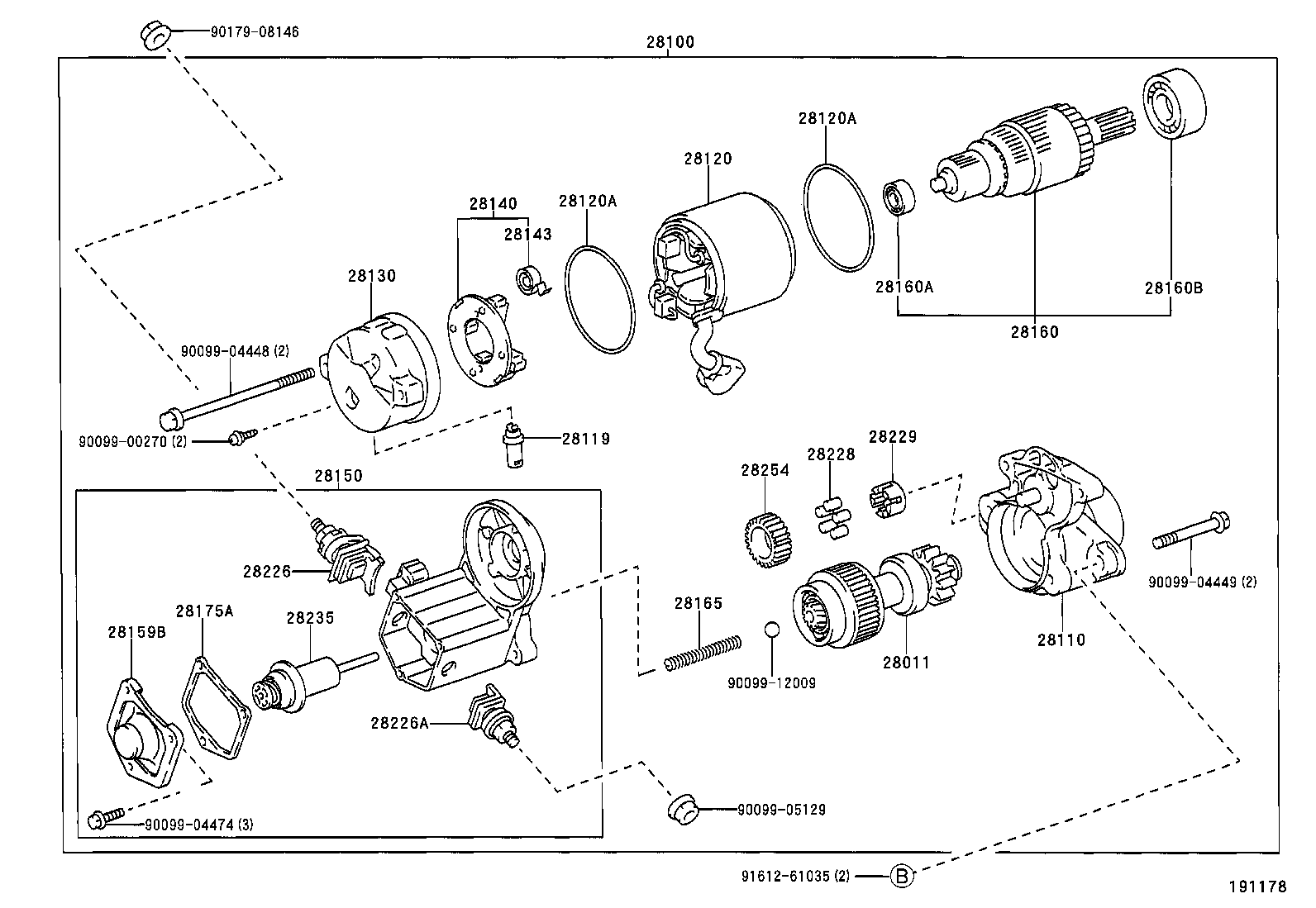

(0002-0304)2AZFE
12V 1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-74060 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28011-74070 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28011-74070 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..08S..ATM |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-28020 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28100-74260 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28100-74270 |
2AZFE..ACR30..RHD..08S..ATM;2AZFE..ACR30..(06S,07S)..(ARL,EUR) 12V 1.2KW |
1 | ||
| 28100-74260 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..DX..(ARL,GCC) 12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-74270 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28110-74300 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-74110 |
2AZFE..ACR30 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28120-66040 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28120-16180 |
2AZFE..ACR30..RHD..08S..ATM;2AZFE..ACR30..(06S,07S)..(ARL,EUR) 12V 1.2KW |
1 | ||
| 28120-66040 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..DX..(ARL,GCC) 12V 1.4KW |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
2AZFE..ACR30 |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
2AZFE..ACR30 |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-74260 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28130-74300 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-74070 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28140-74070 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..DX..(ARL,GCC) 12V 1.4KW |
1 | ||
| 28140-74010 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28140-74120 |
2AZFE..ACR30..RHD..08S..ATM;2AZFE..ACR30..(06S,07S)..(ARL,EUR) 12V 1.2KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
2AZFE..ACR30 |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-74270 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28150-74270 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..08S..ATM |
1 | ||
| 28150-28020 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-55050 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28159-10040 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-74070 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28160-26071 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28160-74070 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..DX..(ARL,GCC) 12V 1.4KW |
1 | ||
| 28160-76060 |
2AZFE..ACR30..RHD..08S..ATM;2AZFE..ACR30..(06S,07S)..(ARL,EUR) 12V 1.2KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10196 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28253-45020 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28160B - BEARING, STARTER ARMATURE, NO.2 | ||||
| 90099-10197 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 90099-10113 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-74070 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28165-74010 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-55050 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28175-10040 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-55050 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28226-74300 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28226-74070 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2AZFE..ACR30 |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28229-26040 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-74130 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28235-74060 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28254 - PINION, STARTER IDLE GEAR | ||||
| 28254-74070 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28254-54070 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90099-00270 | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 90099-04474 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91612-61035 | ||||

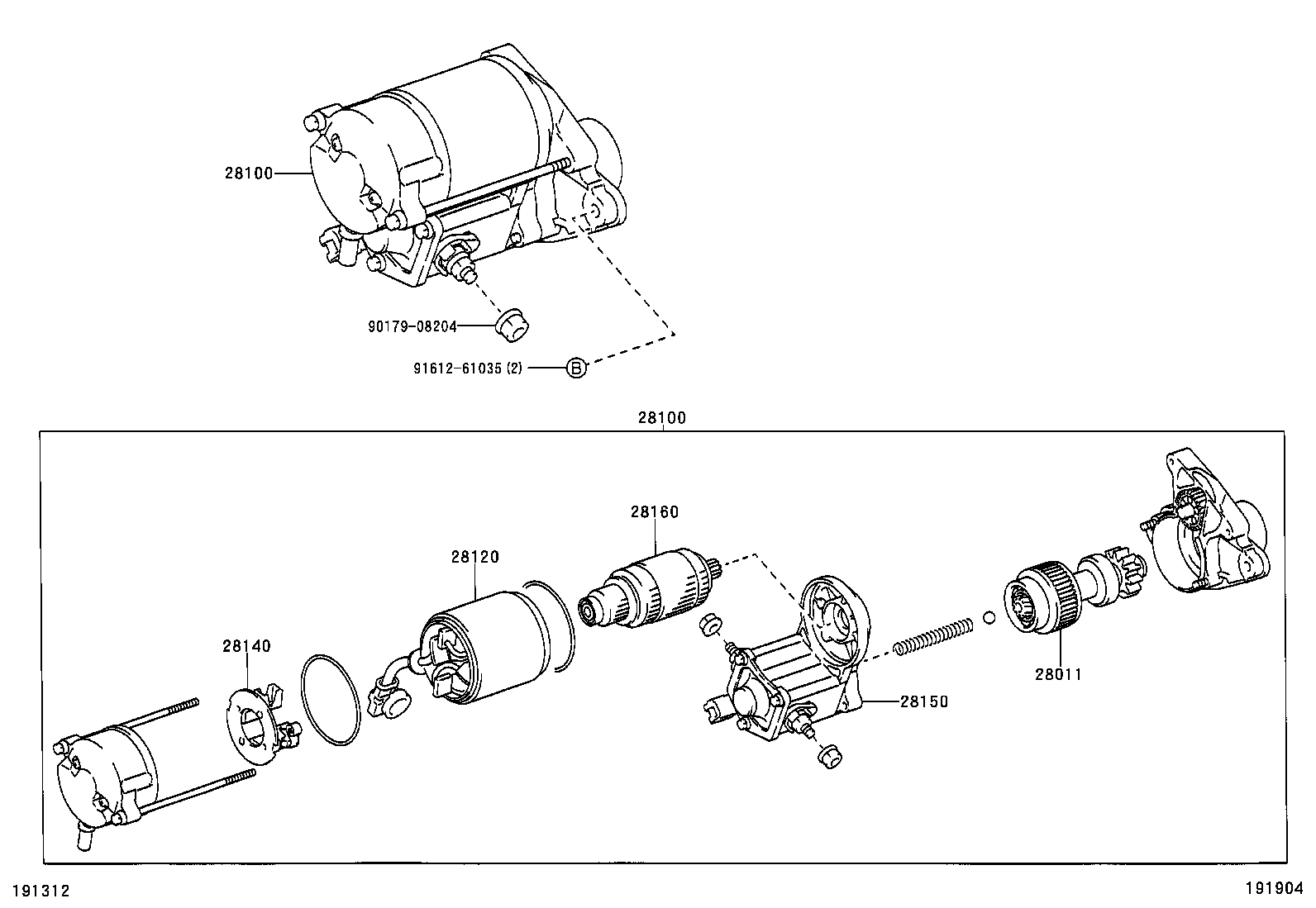

(0304- )2AZFE
12V 1.2KW,1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-74060 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28011-74070 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28011-74070 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..08S..ATM |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-28020 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28100-74260 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28100-74270 |
2AZFE..ACR30..RHD..08S..ATM;2AZFE..ACR30..(06S,07S)..(ARL,EUR) 12V 1.2KW |
1 | ||
| 28100-74260 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..DX..(ARL,GCC) 12V 1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-28020 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28100-74260 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28100-74270 |
2AZFE..ACR30..RHD..08S..ATM;2AZFE..ACR30..(06S,07S)..(ARL,EUR) 12V 1.2KW |
1 | ||
| 28100-74260 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..DX..(ARL,GCC) 12V 1.4KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28120-66040 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28120-16180 |
2AZFE..ACR30..RHD..08S..ATM;2AZFE..ACR30..(06S,07S)..(ARL,EUR) 12V 1.2KW |
1 | ||
| 28120-66040 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..DX..(ARL,GCC) 12V 1.4KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-74070 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28140-74070 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..DX..(ARL,GCC) 12V 1.4KW |
1 | ||
| 28140-74010 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28140-74120 |
2AZFE..ACR30..RHD..08S..ATM;2AZFE..ACR30..(06S,07S)..(ARL,EUR) 12V 1.2KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-74270 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28150-74270 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..08S..ATM |
1 | ||
| 28150-28020 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-74070 |
2AZFE..ACR30 12V 1.4KW |
1 | ||
| 28160-26071 |
2AZFE..ACR30..ARL,EUR 12V 1.0KW |
1 | ||
| 28160-74070 |
2AZFE..ACR30..06S,07S;2AZFE..ACR30..DX..(ARL,GCC) 12V 1.4KW |
1 | ||
| 28160-76060 |
2AZFE..ACR30..RHD..08S..ATM;2AZFE..ACR30..(06S,07S)..(ARL,EUR) 12V 1.2KW |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 91612-61035 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
