ACR30L-MDSDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Jan 2006
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )2AZFE

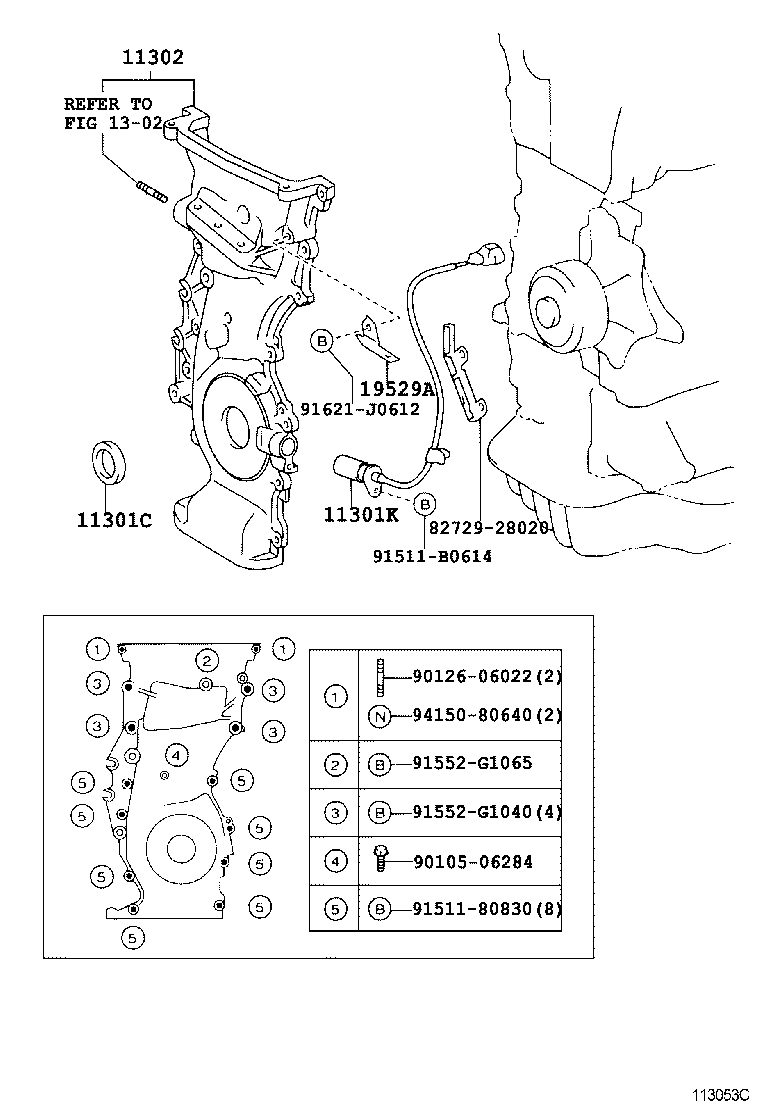

Click highlighted areas on diagram

diagram 11301C 11301K 11302 1302 19529A 8272928020 9010506284 9012606022 9151180830 91511B0614 91552G1040 91552G1065 91621J0612 9415080640
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-38089

2AZFE..ACR30

 1
90311-38084

2AZFE..ACR30

 1
90311-38088

2AZFE..ACR30

KOYO

 1
90311-38078

2AZFE..ACR30

 1
90311-38084

2AZFE..ACR30

NOK

 1
11301K - SENSOR, CRANK POSITION
90919-05047

2AZFE..ACR30

 1
90919-05047

2AZFE..ACR30

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-28070

2AZFE..ACR30

 1
11321-28020

2AZFE..ACR30

 1
11310-28070

2AZFE..ACR30

 1
11310-28071

2AZFE..ACR30

 1
19529A - CLAMP
19529-28010

2AZFE..ACR30

 1
19529-28010

2AZFE..ACR30

 1
Common parts
82729-28020
90105-06284
90126-06022
91511-80830
91511-B0614
91552-G1040
91552-G1065
91621-J0612
94150-80640
Linked diagrams
1302
