ACR30L-MDMDKW (2000)

Toyota Previa/Tarago

Production Feb 2000 - Jan 2006
Engine 2AZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0002- )LHD..MTM

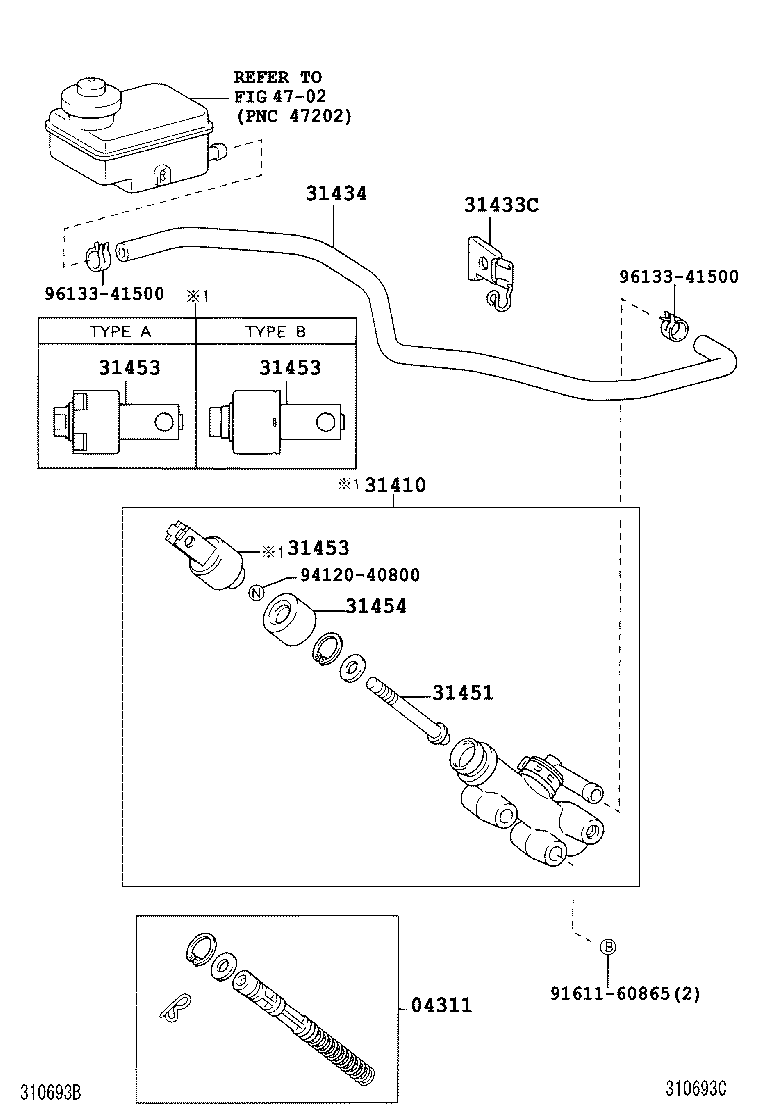

Click highlighted areas on diagram

diagram 04311 31410 31433C 31434 31451 31453 31453 31453 31454 4702 9161160865 9412040800 9613341500 9613341500
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-28030

ACR30,CLR30..LHD..MTM

 1
04311-28030

ACR30,CLR30..LHD..MTM

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-28151

ACR30,CLR30..LHD..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31420-28151

ACR30,CLR30..LHD..(06S,07S)..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31420-28150

ACR30..LHD..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31433C - CLAMP, CLUTCH RESERVOIR HOSE
31433-28030

ACR30,CLR30..LHD..MTM

 1
31433-28020

ACR30,CLR30..LHD..MTM

W(VSC)

 1
31433-28010

ACR30,CLR30..LHD..MTM

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-28110

ACR30..LHD..MTM

 1
31434-28190

ACR30..LHD..MTM

 1
31434-28111

ACR30..LHD..MTM

 1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-36040

ACR30,CLR30..LHD..(06S,07S)..MTM

 1
31451-36040

ACR30,CLR30..LHD..MTM

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-35030

ACR30,CLR30..LHD..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31404-28020

ACR30..LHD..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31404-35030

ACR30,CLR30..LHD..(06S,07S)..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-35030

ACR30,CLR30..LHD..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31404-28020

ACR30..LHD..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31404-35030

ACR30,CLR30..LHD..(06S,07S)..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-35030

ACR30,CLR30..LHD..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31404-28020

ACR30..LHD..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31404-35030

ACR30,CLR30..LHD..(06S,07S)..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-14010

ACR30,CLR30..LHD..(06S,07S)..MTM

 1
31454-14010

ACR30,CLR30..LHD..MTM

 1
Common parts
91611-60865
94120-40800
96133-41500
Linked diagrams
4702
