SXM10R-ARSEK (1999)

Toyota Picnic

Production Aug 1999 - May 2001
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

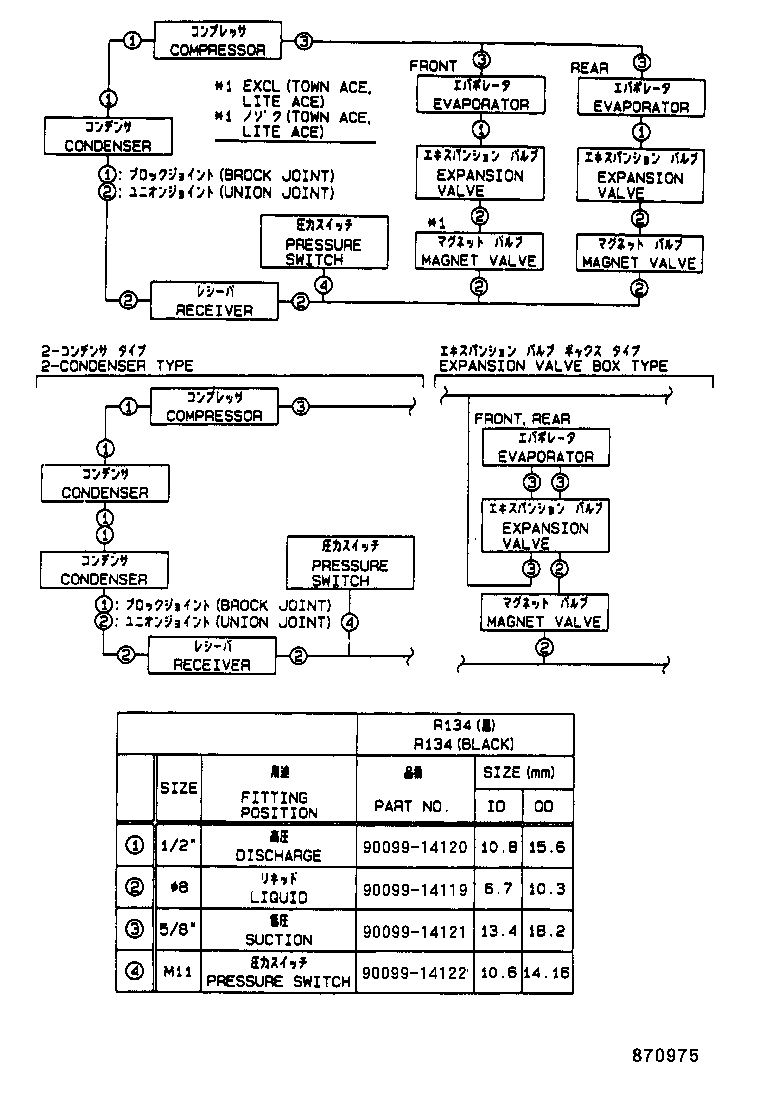

ILLUST NO. 3 OF 3(9908- )

Click highlighted areas on diagram

O RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

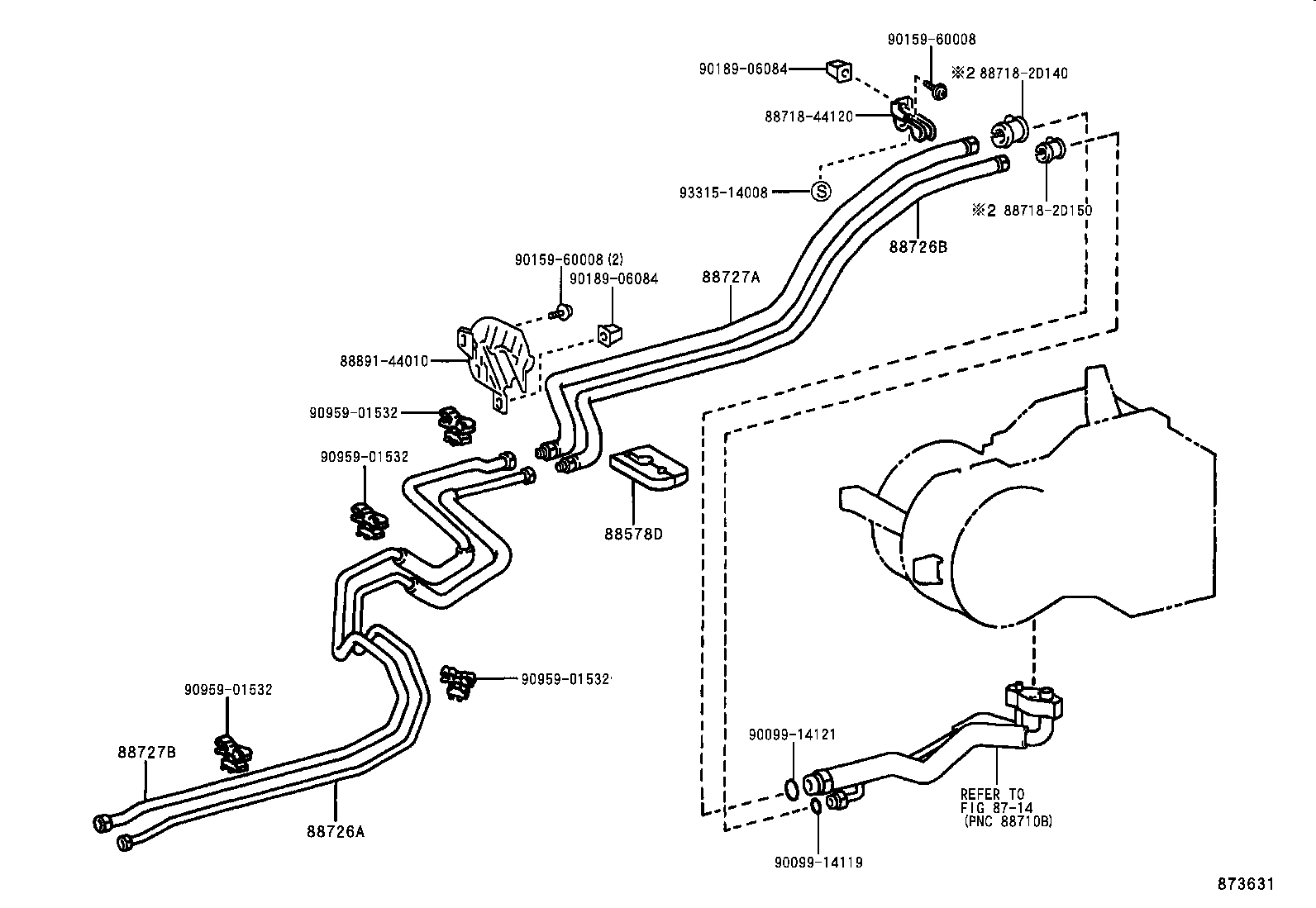

ILLUST NO. 2 OF 3(9908- )

Click highlighted areas on diagram

REAR

diagram 8714 88578D 887182D140 887182D150 8871844120 88726A 88726B 88727A 88727B 8889144010 9009914119 9009914121 9015960008 9015960008 9018906084 9018906084 9095901532 9095901532 9095901532 9095901532 9331514008
Part # Description Qty Price
88578D - PACKING, COOLER PIPE, NO.1
88578-44020

SXM10

 1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-44070

SXM10

 1
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-44260

SXM10

 1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-44110

SXM10

 1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-44030

SXM10

 1
Common parts
88718-2D140
88718-2D150
88718-44120
88891-44010
90099-14119
90099-14121
90159-60008
90189-06084
90959-01532
93315-14008
Linked diagrams
8714

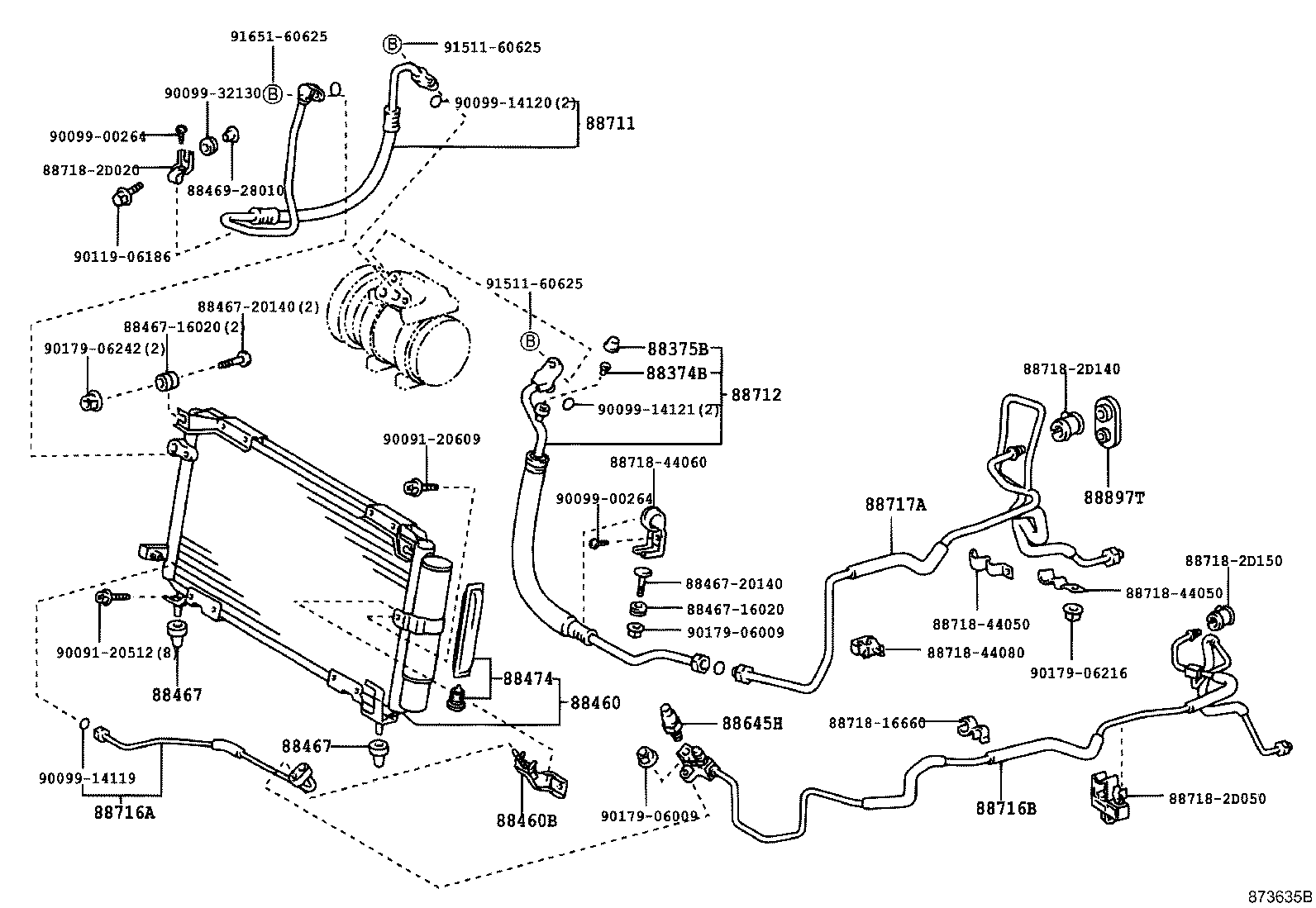

ILLUST NO. 1 OF 3(9908- )

Click highlighted areas on diagram

FRONT---DUAL

diagram 88374B 88375B 88460 88460B 88467 88467 8846716020 8846716020 8846720140 8846720140 8846928010 88474 88645H 88711 88712 88716A 88716B 88717A 8871816660 887182D020 887182D050 887182D140 887182D150 8871844050 8871844050 8871844060 8871844080 88897T 9009120512 9009120609 9009900264 9009900264 9009914119 9009914120 9009914121 9009932130 9011906186 9017906009 9017906009 9017906216 9017906242 9151160625 9151160625 9165160625
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

SXM10

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

SXM10

 1
88460 - CONDENSER ASSY, COOLER
88460-44310

SXM10

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-44110

SXM10

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060

SXM10

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32060

SXM10

 2
88474 - DRYER, COOLER
88474-22010

SXM10

 1
88474-47010

SXM10

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

SXM10

PLANT NO. C21-C26

 1
88645-44010

SXM10

PLANT NO. A21-A26

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-44150

SXM10

 1
88711-44220

SXM10

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-44150

SXM10

 1
88712-44290

SXM10

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-44210

SXM10

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-44230

SXM10

PLANT NO. A21-A26

 1
88716-44440

SXM10

PLANT NO. C21-C26

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-44090

SXM10

 1
88897T - GROMMET, COOLER
88897-44010

SXM10

 1
Common parts
88467-16020
88467-20140
88469-28010
88718-16660
88718-2D020
88718-2D050
88718-2D140
88718-2D150
88718-44050
88718-44060
88718-44080
90091-20512
90091-20609
90099-00264
90099-14119
90099-14120
90099-14121
90099-32130
90119-06186
90179-06009
90179-06216
90179-06242
91511-60625
91651-60625
