SXM10R-ARSEK (1999)

Toyota Picnic

Production Aug 1999 - May 2001
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

Click highlighted areas on diagram

A247E

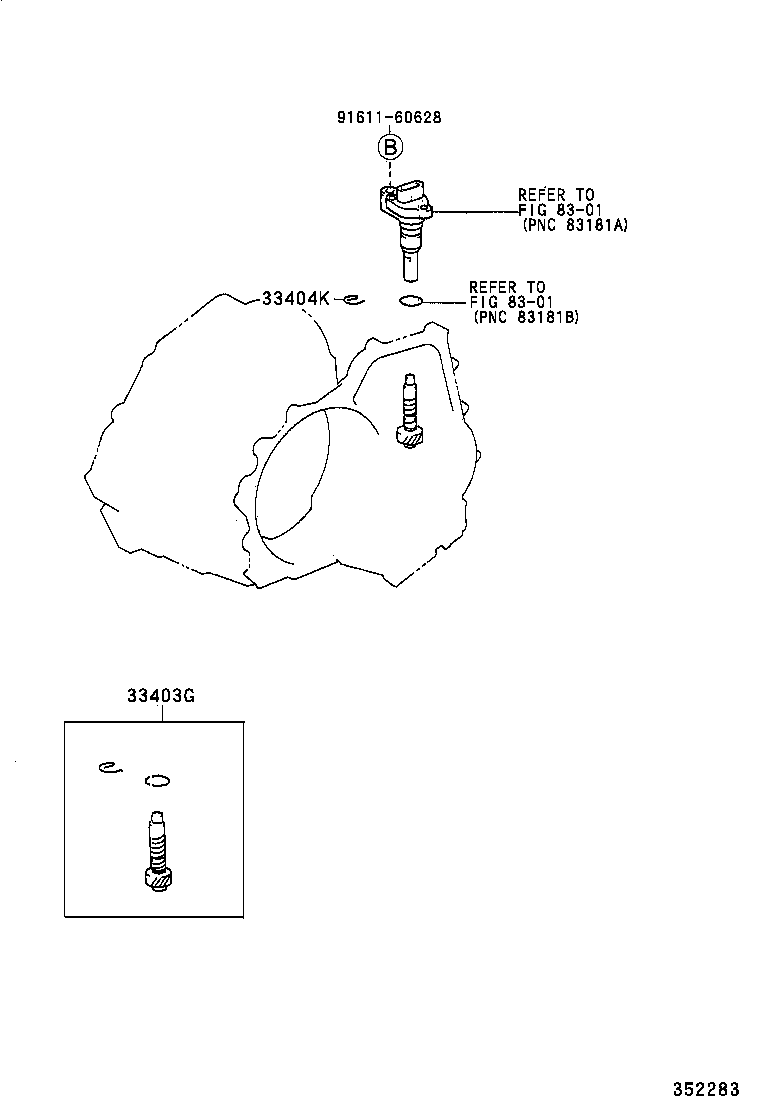

diagram 33403G 33404K 8301 8301 9161160628
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-19525

SXM10

N=21,MARK 21:25

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

SXM10

 1
Common parts
91611-60628
Linked diagrams
8301
