CLM20R-ANMDYW (2001)

Toyota Picnic/Avensis Verso

Production May 2001 - Oct 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )1CDFTV

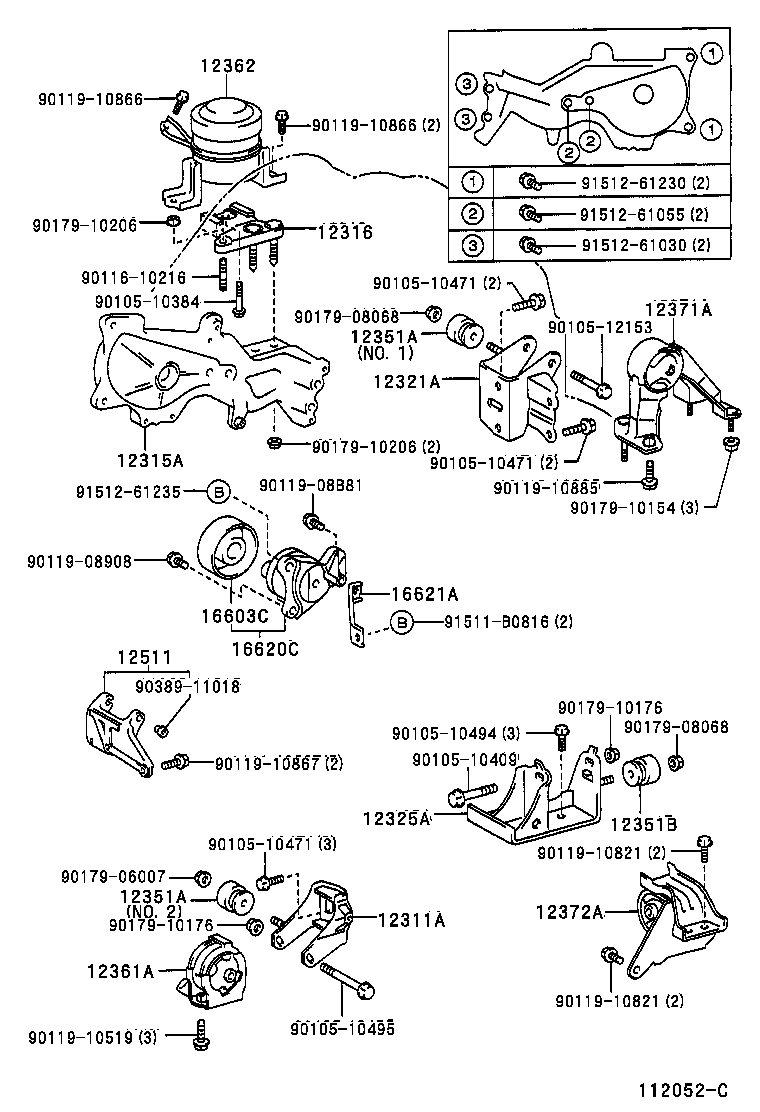

Click highlighted areas on diagram

diagram 12311A 12315A 12316 12321A 12325A 12351A 12351A 12351B 12361A 12362 12371A 12372A 12511 16603C 16620C 16621A 9010510384 9010510409 9010510471 9010510471 9010510471 9010510494 9010510495 9010512153 9011610216 9011908908 9011908B81 9011910519 9011910821 9011910821 9011910866 9011910866 9011910867 9011910885 9017906007 9017908068 9017908068 9017910154 9017910176 9017910176 9017910206 9017910206 9038911018 91511B0816 9151261030 9151261055 9151261230 9151261235
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-27040

1CDFTV..CLM20

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-27030

1CDFTV..CLM20

 1
12316 - BRACKET, ENGINE MOUNTING, NO.2 RH
12316-27030

1CDFTV..CLM20

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-27040

1CDFTV..CLM20

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-27040

1CDFTV..CLM20

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-27030

1CDFTV..CLM20

NO.1

 1
12351-74010

1CDFTV..CLM20

NO.2

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-27030

1CDFTV..CLM20

NO.1

 1
12351-74010

1CDFTV..CLM20

NO.2

 1
12351B - DAMPER, ENGINE MOUNTING
12351-27050

1CDFTV..CLM20

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-27020

1CDFTV..CLM20

 1
12361-27021

1CDFTV..CLM20

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-27030

1CDFTV..CLM20

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-27031

1CDFTV..CLM20

 1
12371-27030

1CDFTV..CLM20

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-27040

1CDFTV..CLM20

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-27010

1CDFTV..CLM20

 1
16603C - PULLEY SUB-ASSY, IDLER
16603-27010

1CDFTV..CLM20

 1
16620C - TENSIONER ASSY, V-RIBBED BELT
16620-27020

1CDFTV..CLM20

 1
16621A - BRACKET, V-RIBBED BELT TENSIONER
16621-27010

1CDFTV..CLM20

 1
Common parts
90105-10384
90105-10409
90105-10471
90105-10494
90105-10495
90105-12153
90116-10216
90119-08908
90119-08B81
90119-10519
90119-10821
90119-10866
90119-10867
90119-10885
90179-06007
90179-08068
90179-10154
90179-10176
90179-10206
90389-11018
91511-B0816
91512-61030
91512-61055
91512-61230
91512-61235
