CLM20L-ARMDYW (2001)
Toyota Picnic/Avensis Verso
Production
May 2001
-
Jul 2005
Engine
1CDFTV
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )1CDFTV

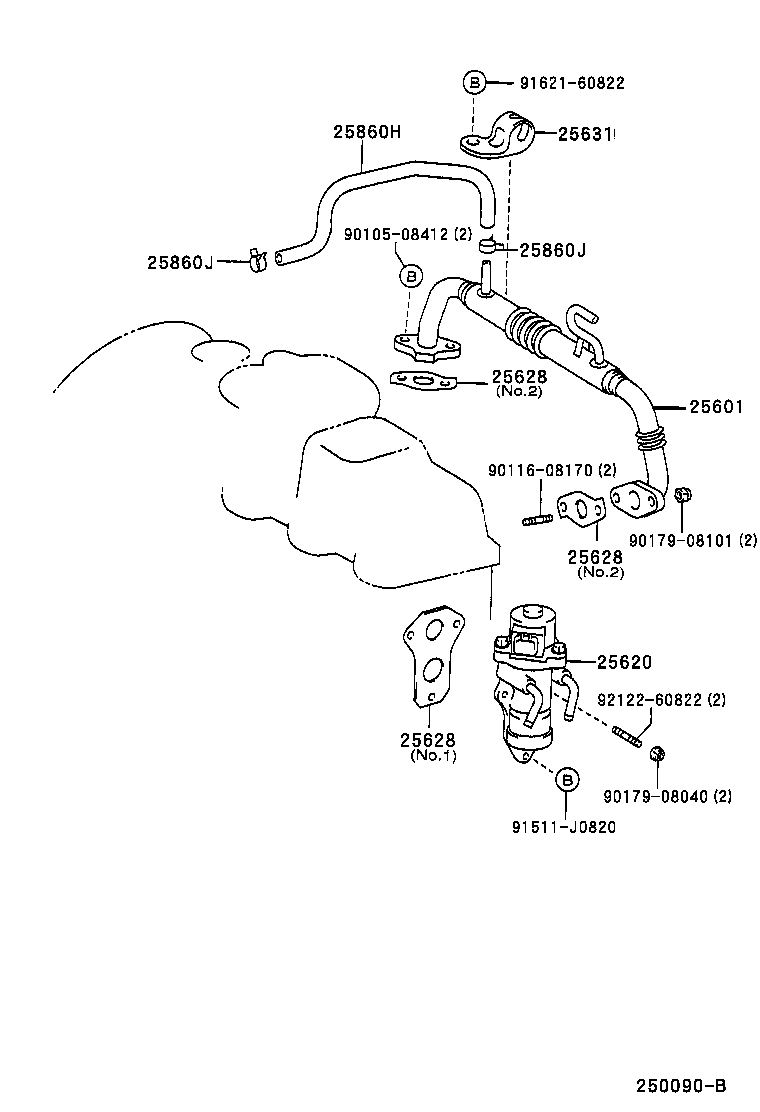

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-27010 |
1CDFTV..CLM20 |
1 | ||
| 25601-27010 |
1CDFTV..CLM20 |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-27080 |
1CDFTV..CLM20 |
1 | ||
| 25620-27080 |
1CDFTV..CLM20 |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-64030 |
1CDFTV..CLM20 NO.2 |
2 | ||
| 25628-64030 |
1CDFTV..CLM20 NO.2 |
2 | ||
| 25628-27010 |
1CDFTV..CLM20 NO.1 |
1 | ||
| 25628-27010 |
1CDFTV..CLM20 NO.1 |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-64030 |
1CDFTV..CLM20 NO.2 |
2 | ||
| 25628-64030 |
1CDFTV..CLM20 NO.2 |
2 | ||
| 25628-27010 |
1CDFTV..CLM20 NO.1 |
1 | ||
| 25628-27010 |
1CDFTV..CLM20 NO.1 |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-64030 |
1CDFTV..CLM20 NO.2 |
2 | ||
| 25628-64030 |
1CDFTV..CLM20 NO.2 |
2 | ||
| 25628-27010 |
1CDFTV..CLM20 NO.1 |
1 | ||
| 25628-27010 |
1CDFTV..CLM20 NO.1 |
1 | ||
| 25631 - STAY, EGR PIPE, NO.1 | ||||
| 25631-27010 |
1CDFTV..CLM20 |
1 | ||
| 25631-27010 |
1CDFTV..CLM20 |
1 | ||
| 25860H - HOSE, WATER BY-PASS HOSE NO.2(FOR EGR COOLER) | ||||
| 16267-27010 |
1CDFTV..CLM20 |
1 | ||
| 16267-27010 |
1CDFTV..CLM20 |
1 | ||
| 25860J - HOSE, CLIP NO.1(FOR EGR COOLER) | ||||
| 90467-15022 |
1CDFTV..CLM20 |
2 | ||
| 90467-15022 |
1CDFTV..CLM20 |
2 | ||
| 25860J - HOSE, CLIP NO.1(FOR EGR COOLER) | ||||
| 90467-15022 |
1CDFTV..CLM20 |
2 | ||
| 90467-15022 |
1CDFTV..CLM20 |
2 | ||
| Common parts | ||||
| 90105-08412 | ||||
| 90116-08170 | ||||
| 90179-08040 | ||||
| 90179-08101 | ||||
| 91511-J0820 | ||||
| 91621-60822 | ||||
| 92122-60822 | ||||
