ACM20R-ARSEK (2001)

Toyota Picnic/Avensis Verso

Production May 2001 - Dec 2009
Engine 1AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )ACM20

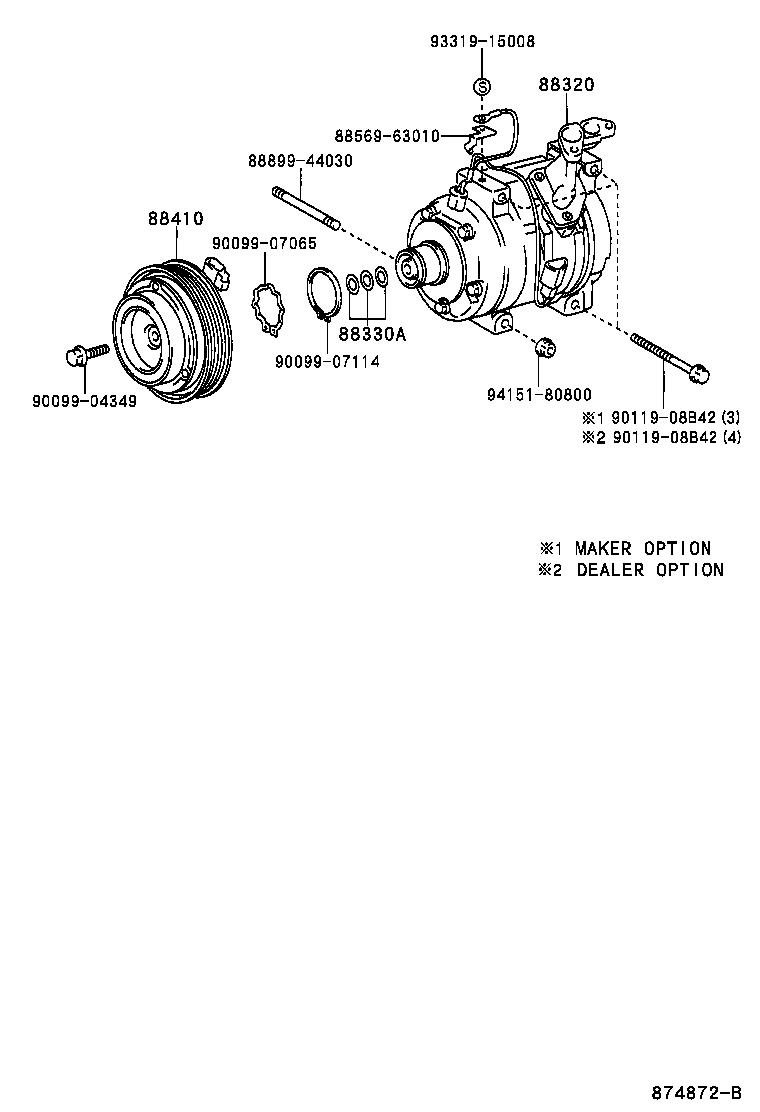

Click highlighted areas on diagram

diagram 88320 88330A 88410 8856963010 8889944030 9009904349 9009907065 9009907114 9011908B42 9011908B42 9331915008 9415180800
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-44130

ACM20

W(MANUAL AIR CONDITIONER & REAR COOLER)

 1
88320-44130

ACM20..GEN

W(REAR COOLER)

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

ACM20..GEN

 1
88335-14020

ACM20,CLM20

 1
88410 - CLUTCH ASSY, MAGNET
88410-28200

ACM20

 1
88410-35400

ACM20..GEN

 1
Common parts
88569-63010
88899-44030
90099-04349
90099-07065
90099-07114
90119-08B42
93319-15008
94151-80800
