ACM20R-ARSEK (2001)

Toyota Picnic/Avensis Verso

Production May 2001 - Dec 2009
Engine 1AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

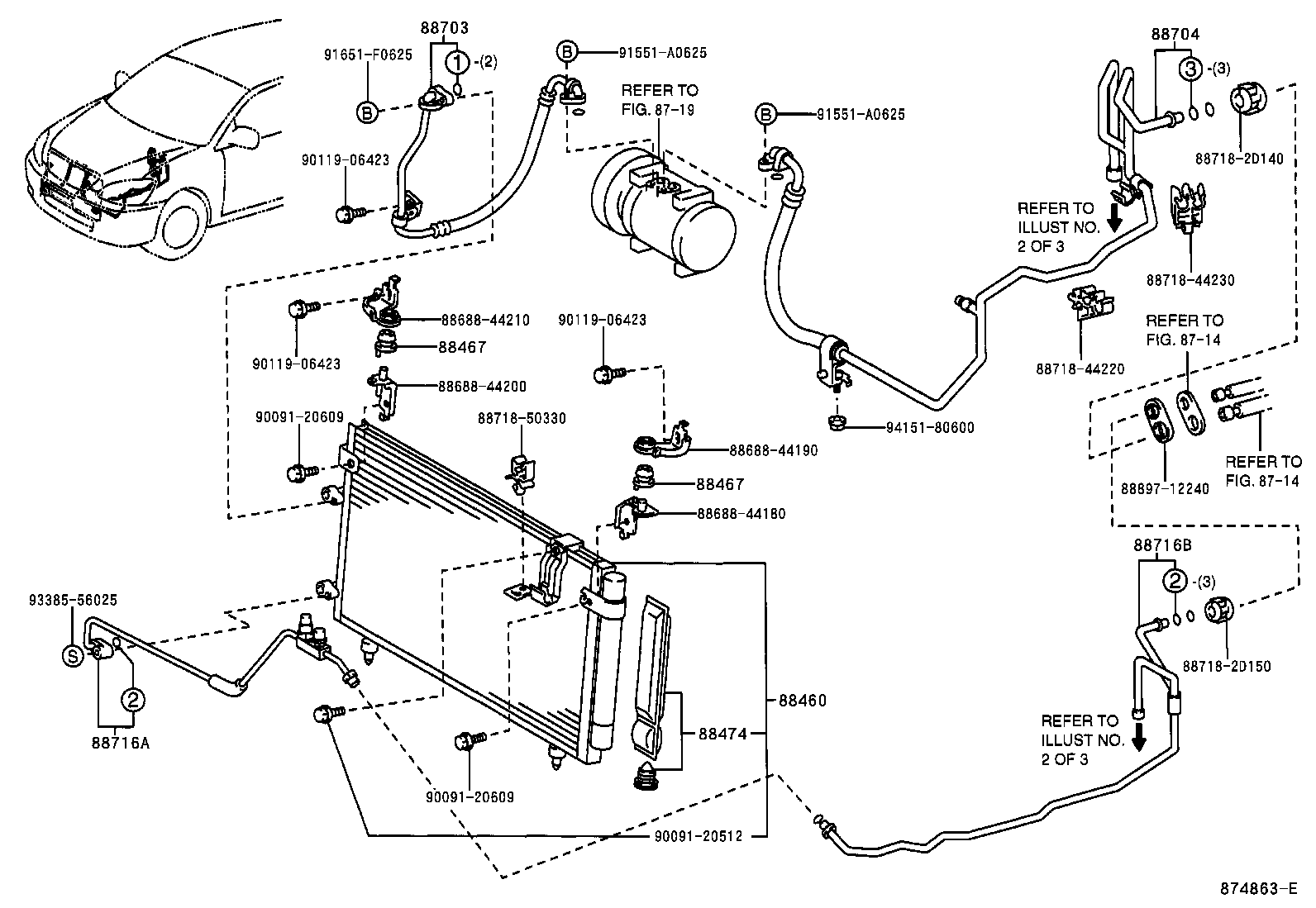

ILLUST NO. 1 OF 3(0105-0310)RHD

Click highlighted areas on diagram

FRONT--MAKER OPTION

diagram 8714 8714 8719 88460 88467 88467 88474 8868844180 8868844190 8868844200 8868844210 88703 88704 88716A 88716B 887182D140 887182D150 8871844220 8871844230 8871850330 8889712240 9009120512 9009120609 9009120609 9011906423 9011906423 9011906423 91551A0625 91551A0625 91651F0625 9338556025 9415180600
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-44430

ACM20,CLM20..RHD..(EUR,GEN)

W(MANUAL AIR CONDITIONER & REAR COOLER)

 1
88460-44510

ACM2#,CLM20..RHD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACM20,CLM20

 2
88467-28050

ACM2#,CLM20

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACM20,CLM20

 2
88467-28050

ACM2#,CLM20

 2
88474 - DRYER, COOLER
88474-17010

ACM2#,CLM20

 1
88474-47010

ACM20,CLM20

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-44270

ACM20

W(MANUAL AIR CONDITIONER & REAR COOLER)

 1
88703-44270

ACM20

W(MANUAL AIR CONDITIONER & REAR COOLER)

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-44261

ACM20..RHD

MAKER OPTION,W(REAR COOLER)

 1
88704-44450

ACM20..RHD

MAKER OPTION,W(REAR COOLER)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-44710

ACM20,CLM20..RHD

 1
88710-44490

ACM20,CLM20..RHD

MAKER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-44511

ACM20,CLM20..RHD

W(MANUAL AIR CONDITIONER & REAR COOLER)

 1
88716-44720

ACM2#,CLM20..RHD

MAKER OPTION,W(REAR COOLER)

 1
Common parts
88688-44180
88688-44190
88688-44200
88688-44210
88718-2D140
88718-2D150
88718-44220
88718-44230
88718-50330
88897-12240
90091-20512
90091-20609
90119-06423
91551-A0625
91651-F0625
93385-56025
94151-80600
Linked diagrams
8714
8719

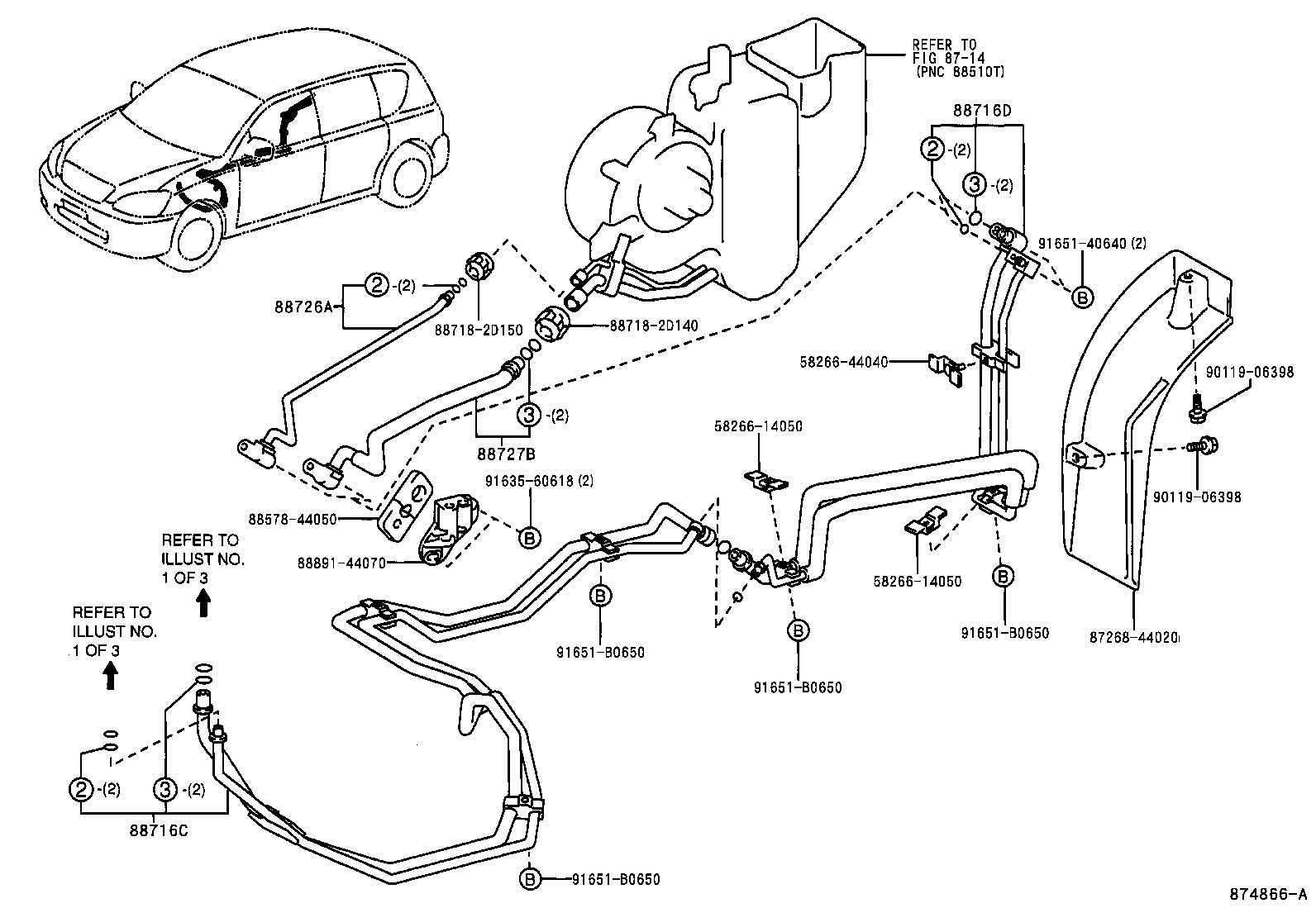

ILLUST NO. 2 OF 3(0105-0310)RHD

Click highlighted areas on diagram

REAR

diagram 5826614050 5826614050 5826644040 8714 8726844020 8857844050 88716C 88716D 887182D140 887182D150 88726A 88727B 8889144070 9011906398 9011906398 9163560618 9165140640 91651B0650 91651B0650 91651B0650 91651B0650
Part # Description Qty Price
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88710-44531

ACM20..GEN

MAKER OPTION

 1
88716-44531

ACM2#,CLM20..RHD

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88710-44560

ACM20,CLM20

 1
88716-44550

ACM2#,CLM20

 1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-44490

ACM20,CLM20

 1
88716-44490

ACM2#,CLM20

 1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-44160

ACM2#,CLM20

 1
88717-44160

ACM20,CLM20

 1
Common parts
58266-14050
58266-44040
87268-44020
88578-44050
88718-2D140
88718-2D150
88891-44070
90119-06398
91635-60618
91651-40640
91651-B0650
Linked diagrams
8714

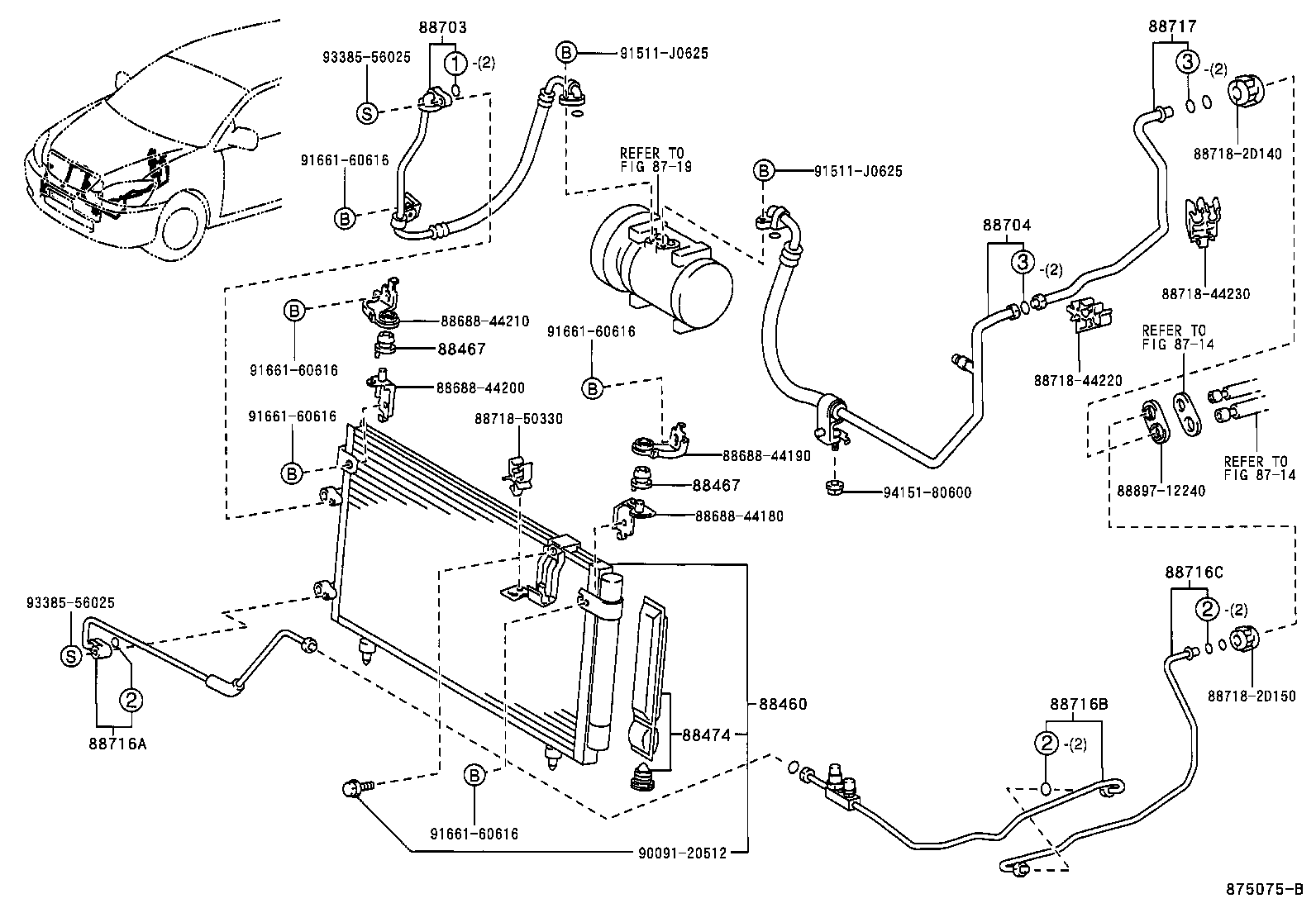

ILLUST NO. 1 OF 3(0105-0310)RHD

Click highlighted areas on diagram

FRONT--DEALER OPTION

diagram 8714 8714 8719 88460 88467 88467 88474 8868844180 8868844190 8868844200 8868844210 88703 88704 88716A 88716B 88716C 88717 887182D140 887182D150 8871844220 8871844230 8871850330 8889712240 9009120512 91511J0625 91511J0625 9166160616 9166160616 9166160616 9166160616 9166160616 9338556025 9338556025 9415180600
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-44430

ACM20,CLM20..RHD..(EUR,GEN)

W(MANUAL AIR CONDITIONER & REAR COOLER)

 1
88460-44510

ACM2#,CLM20..RHD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACM20,CLM20

 2
88467-28050

ACM2#,CLM20

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACM20,CLM20

 2
88467-28050

ACM2#,CLM20

 2
88474 - DRYER, COOLER
88474-17010

ACM2#,CLM20

 1
88474-47010

ACM20,CLM20

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-44270

ACM20

W(MANUAL AIR CONDITIONER & REAR COOLER)

 1
88703-44270

ACM20

W(MANUAL AIR CONDITIONER & REAR COOLER)

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-44261

ACM20..RHD

MAKER OPTION,W(REAR COOLER)

 1
88704-44450

ACM20..RHD

MAKER OPTION,W(REAR COOLER)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-44710

ACM20,CLM20..RHD

 1
88710-44490

ACM20,CLM20..RHD

MAKER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-44511

ACM20,CLM20..RHD

W(MANUAL AIR CONDITIONER & REAR COOLER)

 1
88716-44720

ACM2#,CLM20..RHD

MAKER OPTION,W(REAR COOLER)

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88710-44531

ACM20..GEN

MAKER OPTION

 1
88716-44531

ACM2#,CLM20..RHD

 1
Common parts
88688-44180
88688-44190
88688-44200
88688-44210
88718-2D140
88718-2D150
88718-44220
88718-44230
88718-50330
88897-12240
90091-20512
91511-J0625
91661-60616
93385-56025
94151-80600
Linked diagrams
8714
8719

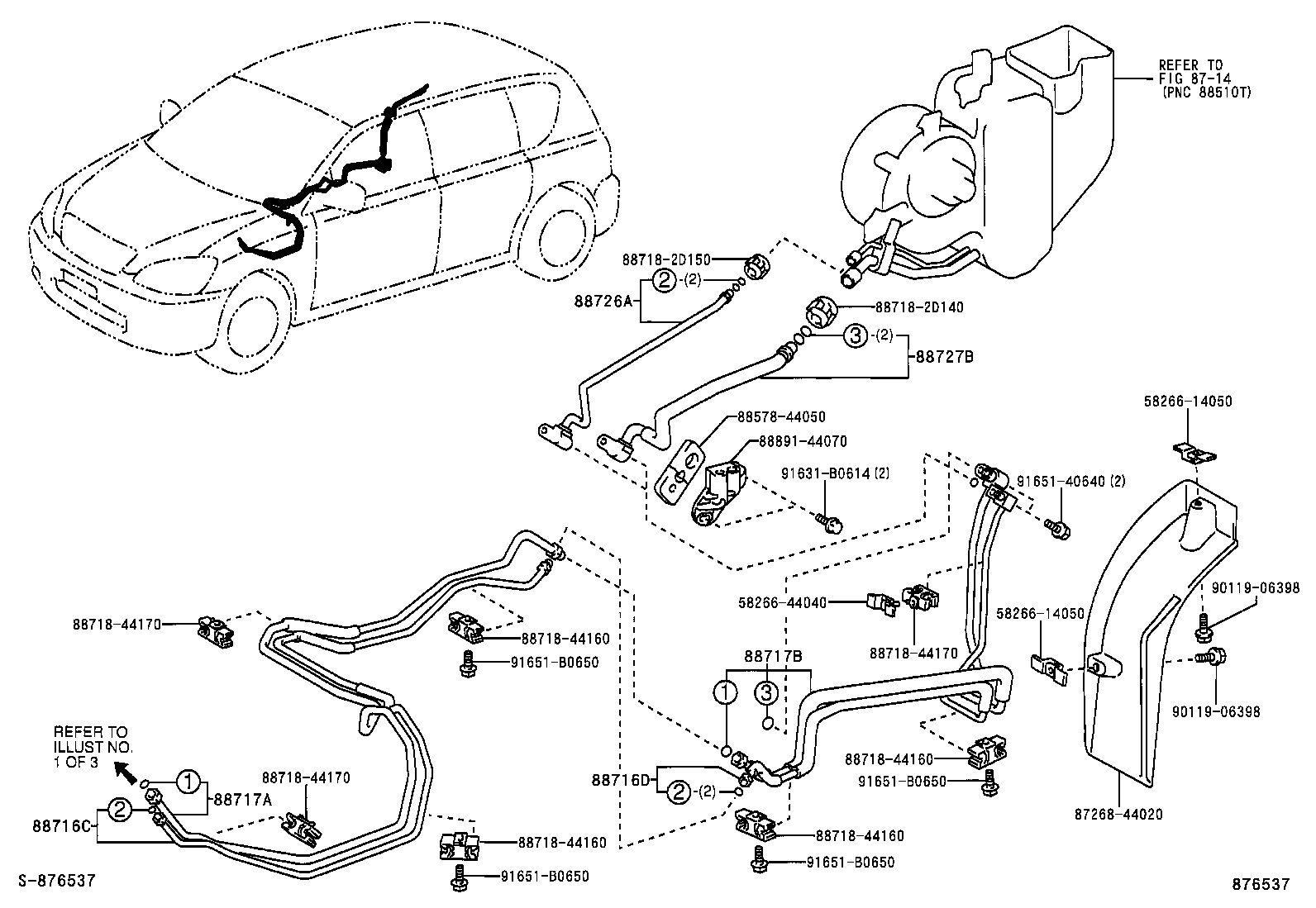

ILLUST NO. 2 OF 3(0310- )RHD

Click highlighted areas on diagram

REAR

diagram 5826614050 5826614050 5826644040 8714 8726844020 8857844050 88716C 88716D 88717A 88717B 887182D140 887182D150 8871844160 8871844160 8871844160 8871844160 8871844170 8871844170 8871844170 88726A 88727B 8889144070 9011906398 9011906398 91631B0614 9165140640 91651B0650 91651B0650 91651B0650 91651B0650
Part # Description Qty Price
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88710-44531

ACM20..GEN

MAKER OPTION

 1
88716-44531

ACM2#,CLM20..RHD

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88710-44560

ACM20,CLM20

 1
88716-44550

ACM2#,CLM20

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-44240

ACM2#,CLM20..RHD

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-44250

ACM2#,CLM20

 1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-44490

ACM20,CLM20

 1
88716-44490

ACM2#,CLM20

 1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-44160

ACM2#,CLM20

 1
88717-44160

ACM20,CLM20

 1
Common parts
58266-14050
58266-44040
87268-44020
88578-44050
88718-2D140
88718-2D150
88718-44160
88718-44170
88891-44070
90119-06398
91631-B0614
91651-40640
91651-B0650
Linked diagrams
8714

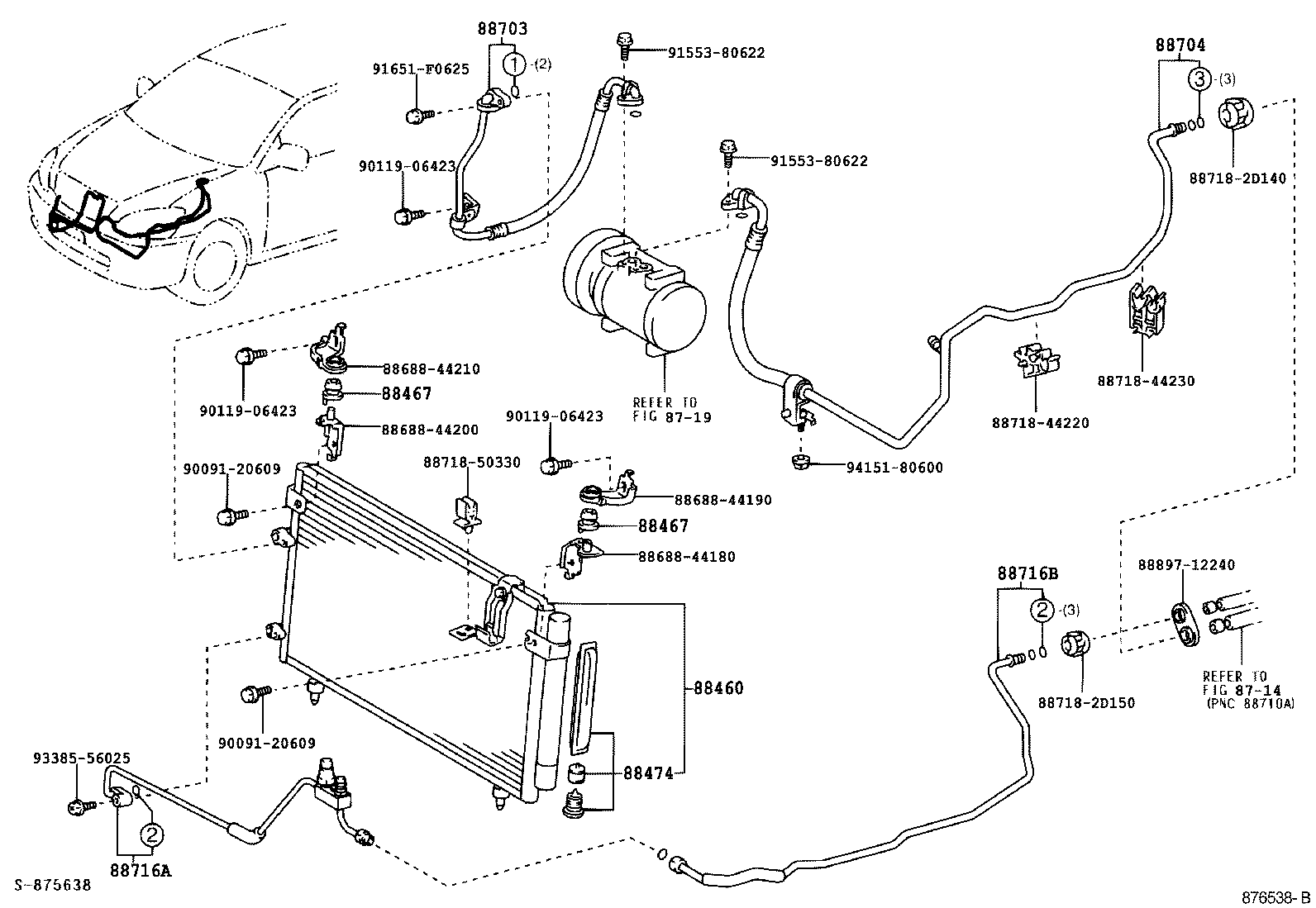

ILLUST NO. 1 OF 3(0310- )ACM20,CLM20..RHD

Click highlighted areas on diagram

FRONT--MAKER OPTION

diagram 8714 8719 88460 88467 88467 88474 8868844180 8868844190 8868844200 8868844210 88703 88704 88716A 88716B 887182D140 887182D150 8871844220 8871844230 8871850330 8889712240 9009120609 9009120609 9011906423 9011906423 9011906423 9155380622 9155380622 91651F0625 9338556025 9415180600
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-44430

ACM20,CLM20..RHD..(EUR,GEN)

W(MANUAL AIR CONDITIONER & REAR COOLER)

 1
88460-44510

ACM2#,CLM20..RHD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACM20,CLM20

 2
88467-28050

ACM2#,CLM20

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACM20,CLM20

 2
88467-28050

ACM2#,CLM20

 2
88474 - DRYER, COOLER
88474-17010

ACM2#,CLM20

 1
88474-47010

ACM20,CLM20

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-44270

ACM20

W(MANUAL AIR CONDITIONER & REAR COOLER)

 1
88703-44270

ACM20

W(MANUAL AIR CONDITIONER & REAR COOLER)

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-44261

ACM20..RHD

MAKER OPTION,W(REAR COOLER)

 1
88704-44450

ACM20..RHD

MAKER OPTION,W(REAR COOLER)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-44710

ACM20,CLM20..RHD

 1
88710-44490

ACM20,CLM20..RHD

MAKER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-44511

ACM20,CLM20..RHD

W(MANUAL AIR CONDITIONER & REAR COOLER)

 1
88716-44720

ACM2#,CLM20..RHD

MAKER OPTION,W(REAR COOLER)

 1
Common parts
88688-44180
88688-44190
88688-44200
88688-44210
88718-2D140
88718-2D150
88718-44220
88718-44230
88718-50330
88897-12240
90091-20609
90119-06423
91553-80622
91651-F0625
93385-56025
94151-80600
Linked diagrams
8714
8719

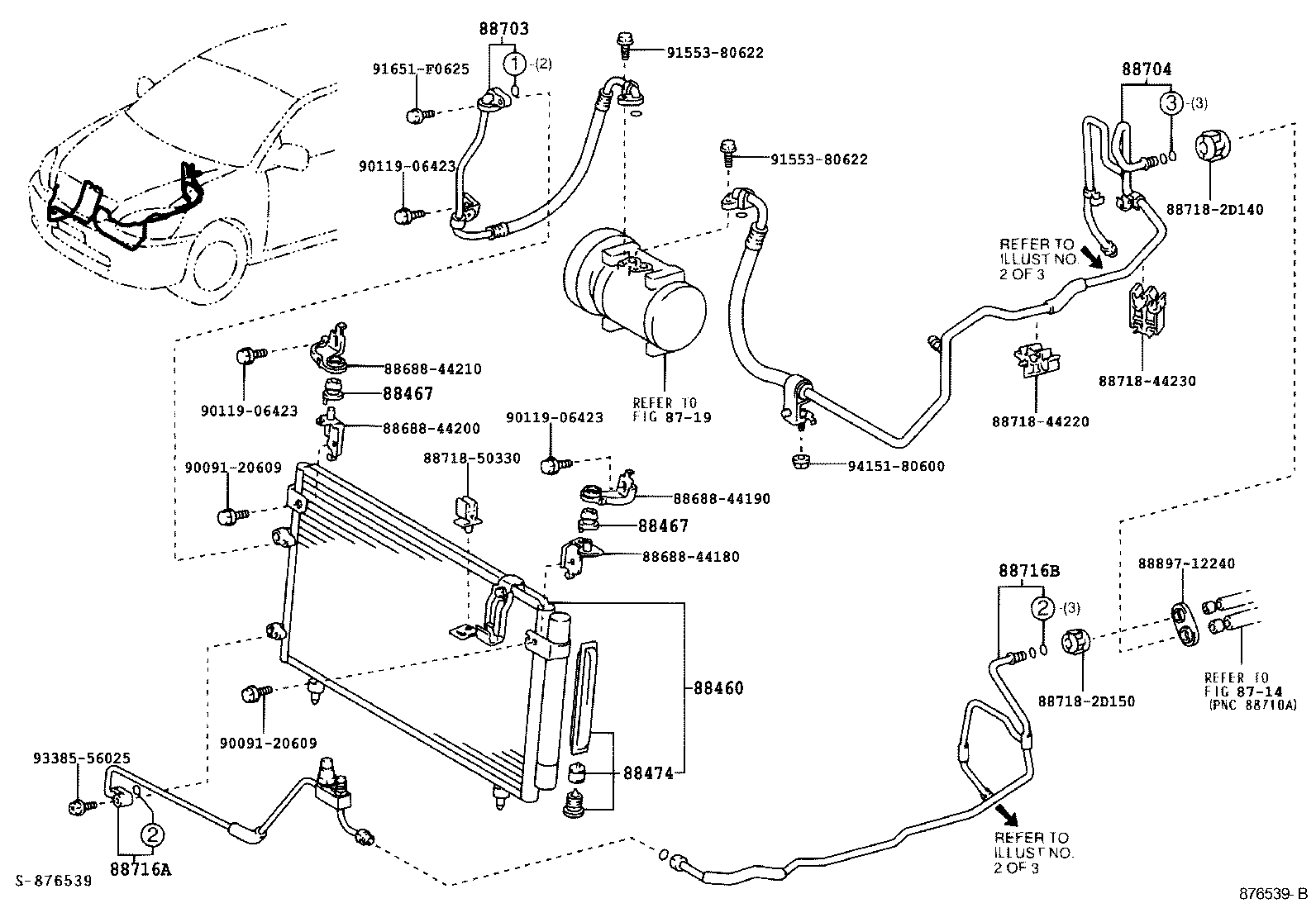

ILLUST NO. 1 OF 3(0310- )ACM20,CLM20..RHD

Click highlighted areas on diagram

FRONT--MAKER OPTION--W(REAR COOLER)

diagram 8714 8719 88460 88467 88467 88474 8868844180 8868844190 8868844200 8868844210 88703 88704 88716A 88716B 887182D140 887182D150 8871844220 8871844230 8871850330 8889712240 9009120609 9009120609 9011906423 9011906423 9011906423 9155380622 9155380622 91651F0625 9338556025 9415180600
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-44430

ACM20,CLM20..RHD..(EUR,GEN)

W(MANUAL AIR CONDITIONER & REAR COOLER)

 1
88460-44510

ACM2#,CLM20..RHD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACM20,CLM20

 2
88467-28050

ACM2#,CLM20

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

ACM20,CLM20

 2
88467-28050

ACM2#,CLM20

 2
88474 - DRYER, COOLER
88474-17010

ACM2#,CLM20

 1
88474-47010

ACM20,CLM20

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-44270

ACM20

W(MANUAL AIR CONDITIONER & REAR COOLER)

 1
88703-44270

ACM20

W(MANUAL AIR CONDITIONER & REAR COOLER)

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-44261

ACM20..RHD

MAKER OPTION,W(REAR COOLER)

 1
88704-44450

ACM20..RHD

MAKER OPTION,W(REAR COOLER)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-44710

ACM20,CLM20..RHD

 1
88710-44490

ACM20,CLM20..RHD

MAKER OPTION

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-44511

ACM20,CLM20..RHD

W(MANUAL AIR CONDITIONER & REAR COOLER)

 1
88716-44720

ACM2#,CLM20..RHD

MAKER OPTION,W(REAR COOLER)

 1
Common parts
88688-44180
88688-44190
88688-44200
88688-44210
88718-2D140
88718-2D150
88718-44220
88718-44230
88718-50330
88897-12240
90091-20609
90119-06423
91553-80622
91651-F0625
93385-56025
94151-80600
Linked diagrams
8714
8719

ILLUST NO. 3 OF 3(0105- )ACM20,CLM20

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
