Toyota Picnic/avensis verso ACM20 RADIO RECEIVER & AMPLIFIER & CONDENSER

Part #	Description	Period	Qty
86011A - CONDENSER, RADIO SETTING
90980-04167	ACM20	05/2001 - 10/2003	1
90980-04167	ACM20	10/2003 - 12/2999	1
86120 - RECEIVER ASSY, RADIO
86120-2B610	ACM20..ARL,GEN;ACM20..RHD..07S..ATM..EUR FUJITSU TEN,ID=17411,TYPE C:REFER TO ILLUSTRATION	05/2001 - 08/2002	1
86120-2B610	ACM20..RHD..07S FUJITSU TEN,ID=17411,TYPE C:REFER TO ILLUSTRATION	08/2002 - 10/2003	1
86120-33460	ACM2#..ARL,GEN MATSUSHITA,ID=57412,TYPE D:REFER TO ILLUSTRATION	10/2003 - 12/2999	1
86120 - RECEIVER ASSY, RADIO
86120-2B610	ACM20..ARL,GEN;ACM20..RHD..07S..ATM..EUR FUJITSU TEN,ID=17411,TYPE C:REFER TO ILLUSTRATION	05/2001 - 08/2002	1
86120-2B610	ACM20..RHD..07S FUJITSU TEN,ID=17411,TYPE C:REFER TO ILLUSTRATION	08/2002 - 10/2003	1
86120-33460	ACM2#..ARL,GEN MATSUSHITA,ID=57412,TYPE D:REFER TO ILLUSTRATION	10/2003 - 12/2999	1
86211 - BRACKET, RADIO, NO.1
86211-44050	ACM20,CLM20	05/2001 - 10/2003	1
86211-44050	ACM2#,CLM20	10/2003 - 12/2009	1
86211 - BRACKET, RADIO, NO.1
86211-44050	ACM20,CLM20	05/2001 - 10/2003	1
86211-44050	ACM2#,CLM20	10/2003 - 12/2009	1
86211 - BRACKET, RADIO, NO.1
86211-44050	ACM20,CLM20	05/2001 - 10/2003	1
86211-44050	ACM2#,CLM20	10/2003 - 12/2009	1
86212 - BRACKET, RADIO, NO.2
86212-44050	ACM2#,CLM20	10/2003 - 12/2009	1
86212-44050	ACM20,CLM20	05/2001 - 10/2003	1
86212 - BRACKET, RADIO, NO.2
86212-44050	ACM2#,CLM20	10/2003 - 12/2009	1
86212-44050	ACM20,CLM20	05/2001 - 10/2003	1
86212 - BRACKET, RADIO, NO.2
86212-44050	ACM2#,CLM20	10/2003 - 12/2009	1
86212-44050	ACM20,CLM20	05/2001 - 10/2003	1
86221A - PANEL, RADIO RECEIVER
86221-52050	ACM2#,CLM20	10/2003 - 12/2009	1
86221D - PANEL, RADIO RECEIVER
86221-52060	ACM2#,CLM20	10/2003 - 12/2009	1
Common parts
90153-50010
91621-J0612
93568-55016

ACM20R-ARSEK (2001)

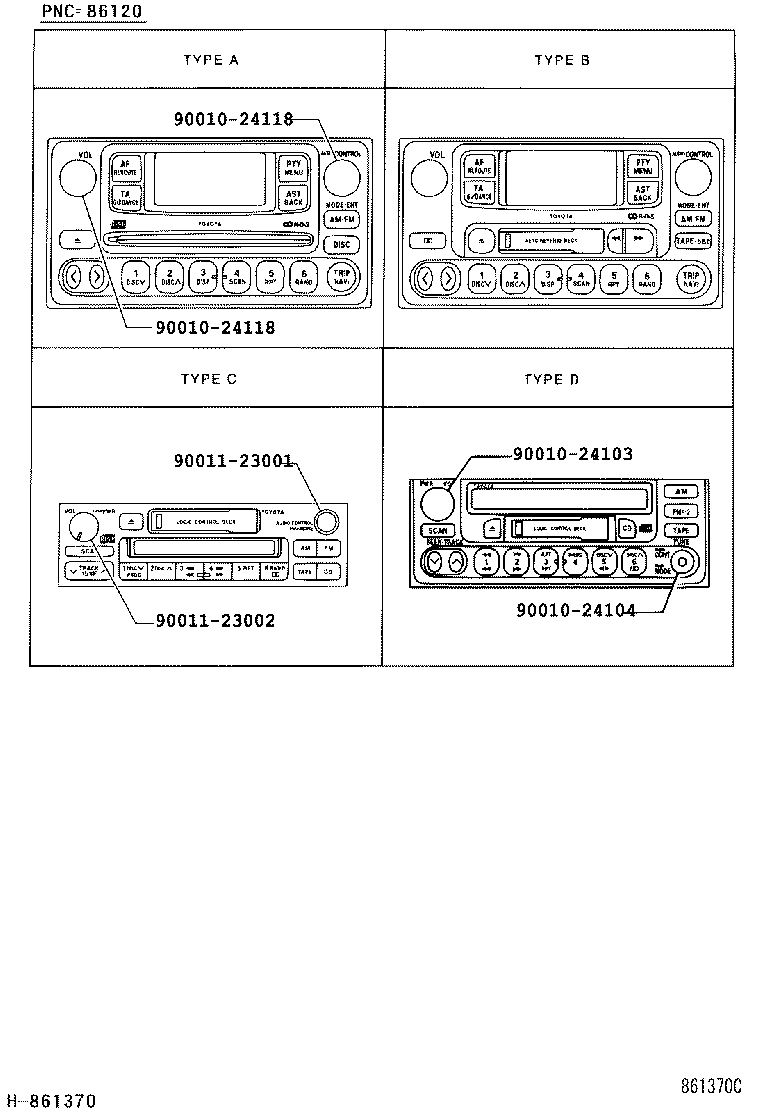

ILLUST NO. 1 OF 2(0105- )

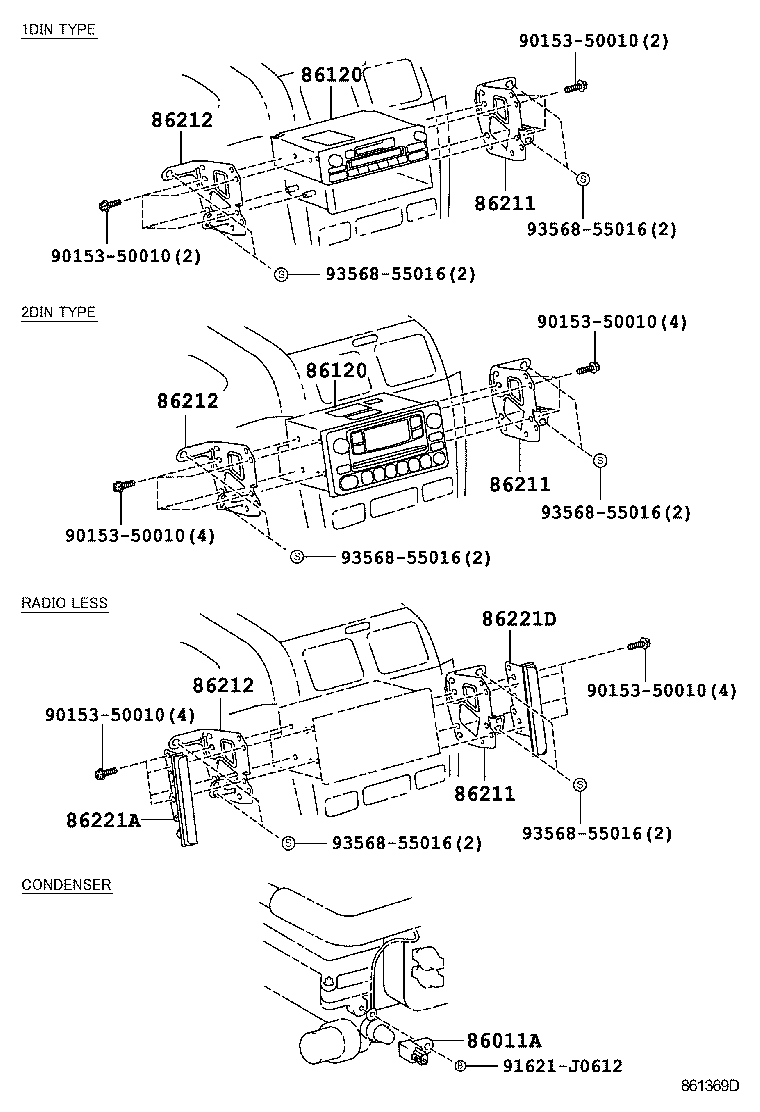

ILLUST NO. 2 OF 2(0105- )

Part Price Details

Part #	Description	Period	Qty	Price
Common parts
90010-24103
90010-24104
90010-24118
90011-23001
90011-23002
