ACM20R-ARSEK (2001)
Toyota Picnic/Avensis Verso

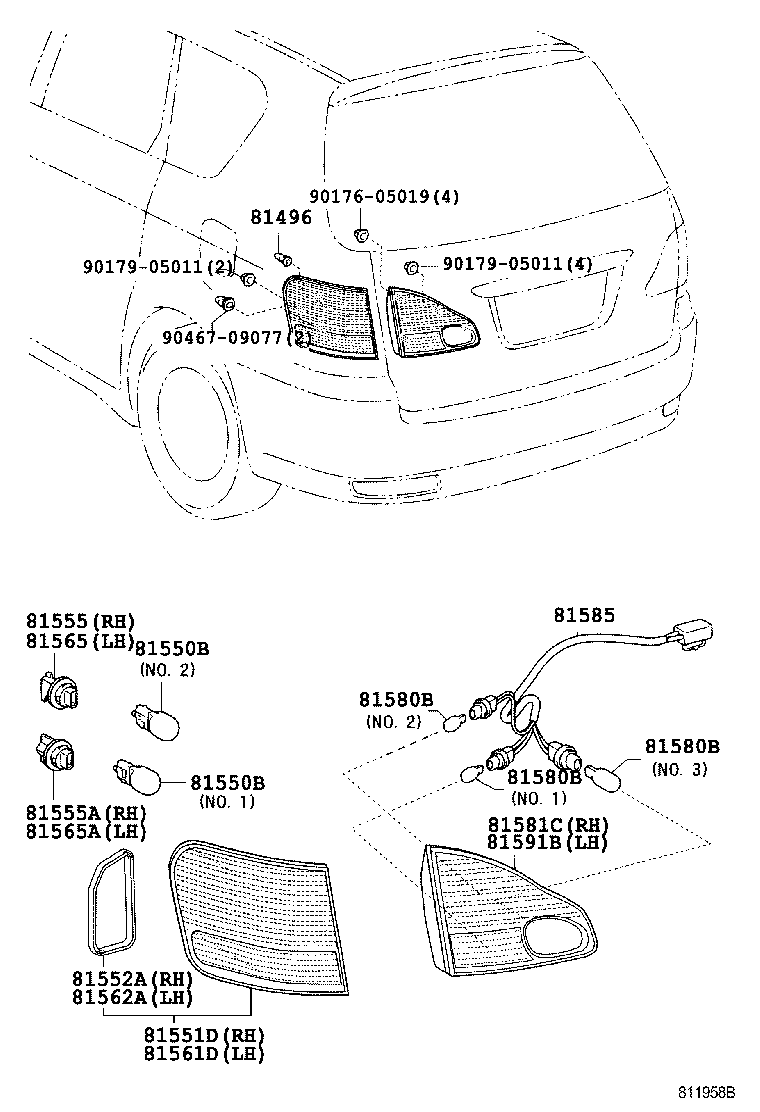

(0105-0310)GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-44030 |
ACM20,CLM20 |
2 | ||
| 81496-44030 |
ACM2#,CLM20 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-15011 |
ACM20,CLM20 12V 21W,AMBER,NO.1 |
2 | ||
| 90981-15011 |
ACM2#,CLM20 12V 21W,AMBER,NO.1 |
2 | ||
| 90981-13044 |
ACM2#,CLM20 12V 21/5W,NO.2 |
2 | ||
| 90981-11048 |
ACM20,CLM20 12V 21/5W,NO.2 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-15011 |
ACM20,CLM20 12V 21W,AMBER,NO.1 |
2 | ||
| 90981-15011 |
ACM2#,CLM20 12V 21W,AMBER,NO.1 |
2 | ||
| 90981-13044 |
ACM2#,CLM20 12V 21/5W,NO.2 |
2 | ||
| 90981-11048 |
ACM20,CLM20 12V 21/5W,NO.2 |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-44070 |
ACM20..GEN |
1 | ||
| 81551-44160 |
ACM2#,CLM20 |
1 | ||
| 81552A - GASKET, REAR COMBINATION LAMP, RH | ||||
| 81552-44160 |
ACM2#,CLM20 |
1 | ||
| 81552-44160 |
ACM20,CLM20 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 90075-60002 |
ACM2#,CLM20 |
1 | ||
| 90075-60002 |
ACM20,CLM20 |
1 | ||
| 81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 90075-60026 |
ACM20,CLM20 |
1 | ||
| 90075-60026 |
ACM2#,CLM20 |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-44070 |
ACM20..GEN |
1 | ||
| 81561-44160 |
ACM2#,CLM20 |
1 | ||
| 81562A - GASKET, REAR COMBINATION LAMP, LH | ||||
| 81562-44160 |
ACM2#,CLM20 |
1 | ||
| 81562-44160 |
ACM20,CLM20 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 90075-60002 |
ACM2#,CLM20 |
1 | ||
| 90075-60002 |
ACM20,CLM20 |
1 | ||
| 81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 90075-60026 |
ACM2#,CLM20 |
1 | ||
| 90075-60026 |
ACM20,CLM20 |
1 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 90981-13043 |
ACM20,CLM20..EUR,GEN 12V 21W,NO.3 |
2 | ||
| 99132-12050 |
ACM20..GEN 12V 5W,NO.2 |
2 | ||
| 90981-11059 |
ACM20,CLM20 12V 16W,NO.1 |
2 | ||
| 99132-12050 |
ACM2#,CLM20 12V 5W,NO.2 |
2 | ||
| 90981-11059 |
ACM2#,CLM20 12V 16W,NO.1 |
2 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 90981-13043 |
ACM20,CLM20..EUR,GEN 12V 21W,NO.3 |
2 | ||
| 99132-12050 |
ACM20..GEN 12V 5W,NO.2 |
2 | ||
| 90981-11059 |
ACM20,CLM20 12V 16W,NO.1 |
2 | ||
| 99132-12050 |
ACM2#,CLM20 12V 5W,NO.2 |
2 | ||
| 90981-11059 |
ACM2#,CLM20 12V 16W,NO.1 |
2 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 90981-13043 |
ACM20,CLM20..EUR,GEN 12V 21W,NO.3 |
2 | ||
| 99132-12050 |
ACM20..GEN 12V 5W,NO.2 |
2 | ||
| 90981-11059 |
ACM20,CLM20 12V 16W,NO.1 |
2 | ||
| 99132-12050 |
ACM2#,CLM20 12V 5W,NO.2 |
2 | ||
| 90981-11059 |
ACM2#,CLM20 12V 16W,NO.1 |
2 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-44050 |
ACM20..GEN |
1 | ||
| 81581-44160 |
ACM2#..ARL,GEN |
1 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81585-44160 |
ACM2#..ARL,GEN |
2 | ||
| 81585-44050 |
ACM20..GEN |
2 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-44160 |
ACM2#..ARL,GEN |
1 | ||
| 81591-44050 |
ACM20..GEN |
1 | ||
| Common parts | ||||
| 90176-05019 | ||||
| 90179-05011 | ||||
| 90467-09077 | ||||

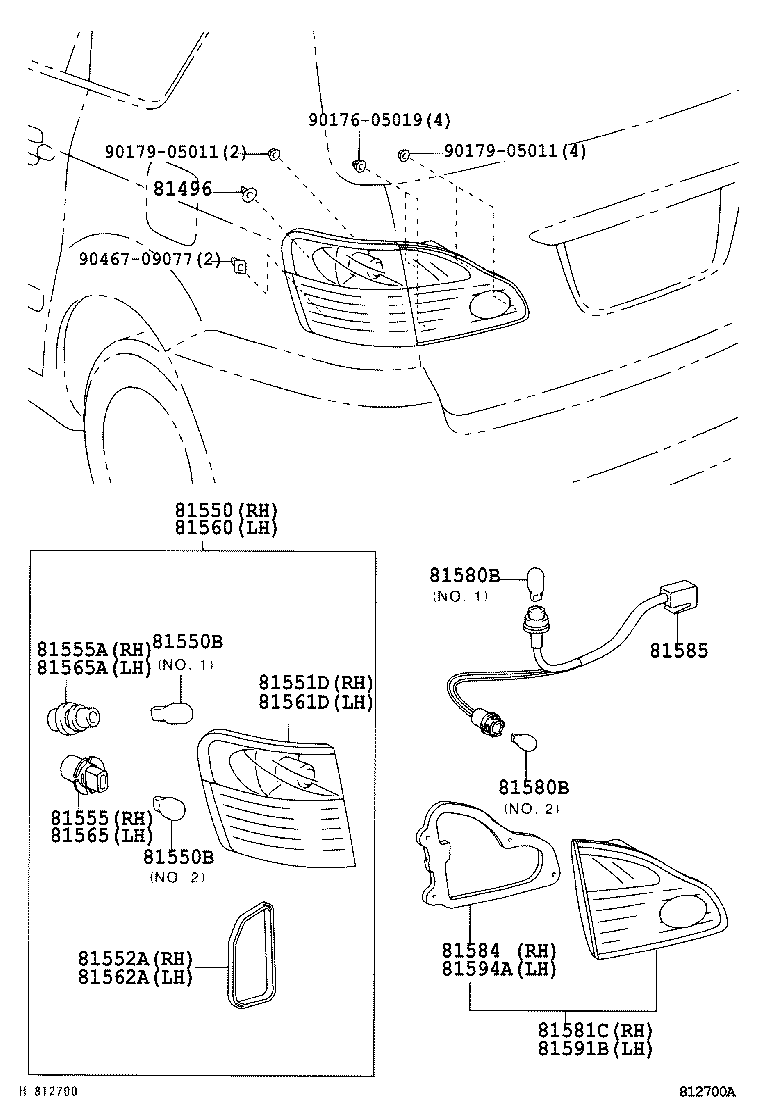

(0310- )ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-44030 |
ACM20,CLM20 |
2 | ||
| 81496-44030 |
ACM2#,CLM20 |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-44160 |
ACM2#,CLM20 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-15011 |
ACM20,CLM20 12V 21W,AMBER,NO.1 |
2 | ||
| 90981-15011 |
ACM2#,CLM20 12V 21W,AMBER,NO.1 |
2 | ||
| 90981-13044 |
ACM2#,CLM20 12V 21/5W,NO.2 |
2 | ||
| 90981-11048 |
ACM20,CLM20 12V 21/5W,NO.2 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-15011 |
ACM20,CLM20 12V 21W,AMBER,NO.1 |
2 | ||
| 90981-15011 |
ACM2#,CLM20 12V 21W,AMBER,NO.1 |
2 | ||
| 90981-13044 |
ACM2#,CLM20 12V 21/5W,NO.2 |
2 | ||
| 90981-11048 |
ACM20,CLM20 12V 21/5W,NO.2 |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-44070 |
ACM20..GEN |
1 | ||
| 81551-44160 |
ACM2#,CLM20 |
1 | ||
| 81552A - GASKET, REAR COMBINATION LAMP, RH | ||||
| 81552-44160 |
ACM2#,CLM20 |
1 | ||
| 81552-44160 |
ACM20,CLM20 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 90075-60002 |
ACM2#,CLM20 |
1 | ||
| 90075-60002 |
ACM20,CLM20 |
1 | ||
| 81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 90075-60026 |
ACM20,CLM20 |
1 | ||
| 90075-60026 |
ACM2#,CLM20 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-44160 |
ACM2#,CLM20 |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-44070 |
ACM20..GEN |
1 | ||
| 81561-44160 |
ACM2#,CLM20 |
1 | ||
| 81562A - GASKET, REAR COMBINATION LAMP, LH | ||||
| 81562-44160 |
ACM2#,CLM20 |
1 | ||
| 81562-44160 |
ACM20,CLM20 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 90075-60002 |
ACM2#,CLM20 |
1 | ||
| 90075-60002 |
ACM20,CLM20 |
1 | ||
| 81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 90075-60026 |
ACM2#,CLM20 |
1 | ||
| 90075-60026 |
ACM20,CLM20 |
1 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 90981-13043 |
ACM20,CLM20..EUR,GEN 12V 21W,NO.3 |
2 | ||
| 99132-12050 |
ACM20..GEN 12V 5W,NO.2 |
2 | ||
| 90981-11059 |
ACM20,CLM20 12V 16W,NO.1 |
2 | ||
| 99132-12050 |
ACM2#,CLM20 12V 5W,NO.2 |
2 | ||
| 90981-11059 |
ACM2#,CLM20 12V 16W,NO.1 |
2 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 90981-13043 |
ACM20,CLM20..EUR,GEN 12V 21W,NO.3 |
2 | ||
| 99132-12050 |
ACM20..GEN 12V 5W,NO.2 |
2 | ||
| 90981-11059 |
ACM20,CLM20 12V 16W,NO.1 |
2 | ||
| 99132-12050 |
ACM2#,CLM20 12V 5W,NO.2 |
2 | ||
| 90981-11059 |
ACM2#,CLM20 12V 16W,NO.1 |
2 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-44050 |
ACM20..GEN |
1 | ||
| 81581-44160 |
ACM2#..ARL,GEN |
1 | ||
| 81584 - PACKING, REAR LAMP RH | ||||
| 81584-44120 |
ACM2#,CLM20 |
1 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81585-44160 |
ACM2#..ARL,GEN |
2 | ||
| 81585-44050 |
ACM20..GEN |
2 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-44160 |
ACM2#..ARL,GEN |
1 | ||
| 81591-44050 |
ACM20..GEN |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-44120 |
ACM2#,CLM20 |
1 | ||
| Common parts | ||||
| 90176-05019 | ||||
| 90179-05011 | ||||
| 90467-09077 | ||||
