ACM20R-ARSEK (2001)
Toyota Picnic/Avensis Verso
Production
May 2001
-
Dec 2009
Engine
1AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )

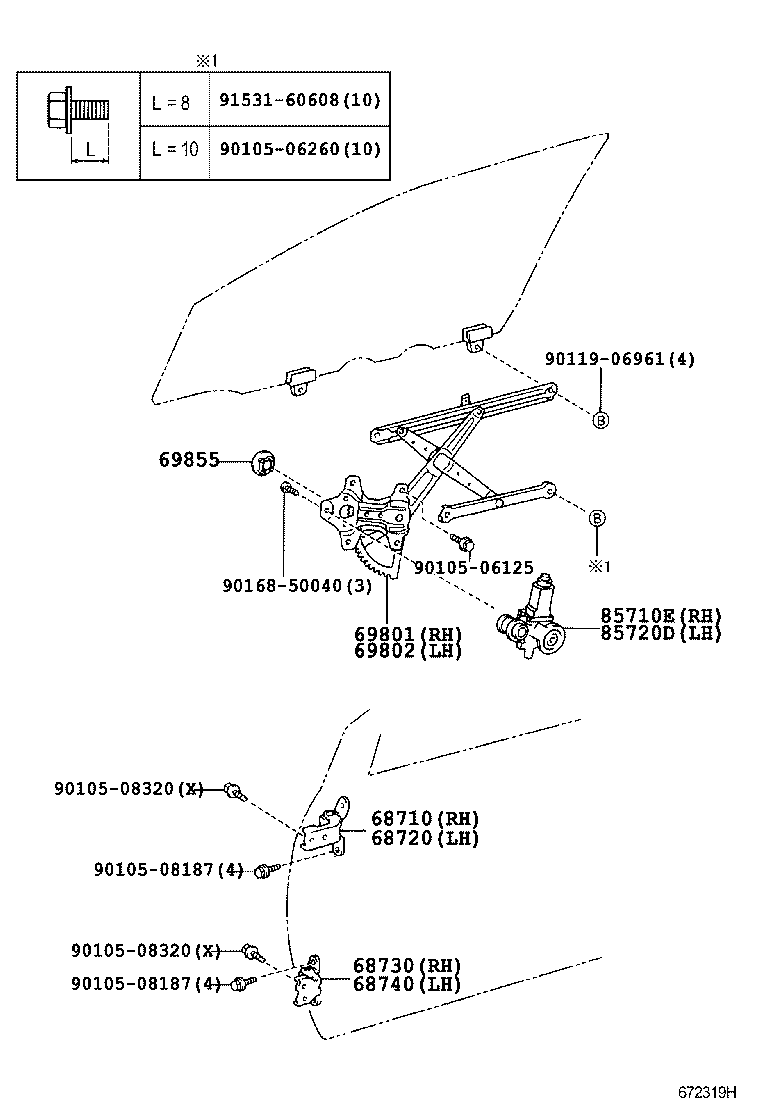

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-52010 |
ACM20,CLM20 |
1 | ||
| 68710-52010 |
ACM2#,CLM20 |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-52010 |
ACM20,CLM20 |
1 | ||
| 68720-52010 |
ACM2#,CLM20 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68720-44010 |
ACM20,CLM20 |
1 | ||
| 68720-44010 |
ACM2#,CLM20 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68710-44010 |
ACM20,CLM20 |
1 | ||
| 68710-44010 |
ACM2#,CLM20 |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-44020 |
ACM20,CLM20 |
1 | ||
| 69801-44020 |
ACM2#,CLM20 |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-44020 |
ACM20,CLM20 |
1 | ||
| 69802-44020 |
ACM2#,CLM20 |
1 | ||
| 69855 - COVER, DOOR WINDOW REGULATOR GEAR | ||||
| 69855-20010 |
ACM20,CLM20 |
2 | ||
| 69855-20010 |
ACM2#,CLM20 |
2 | ||
| 85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85710-42080 |
ACM20,CLM20 |
1 | ||
| 85710-42080 |
ACM2#,CLM20 |
1 | ||
| 85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85720-42070 |
ACM20,CLM20 |
1 | ||
| 85720-42070 |
ACM2#,CLM20 |
1 | ||
| Common parts | ||||
| 90105-06125 | ||||
| 90105-06260 | ||||
| 90105-08187 | ||||
| 90105-08320 | ||||
| 90119-06961 | ||||
| 90168-50040 | ||||
| 91531-60608 | ||||
