ACM20R-ARSEK (2001)
Toyota Picnic/Avensis Verso
(0105- )

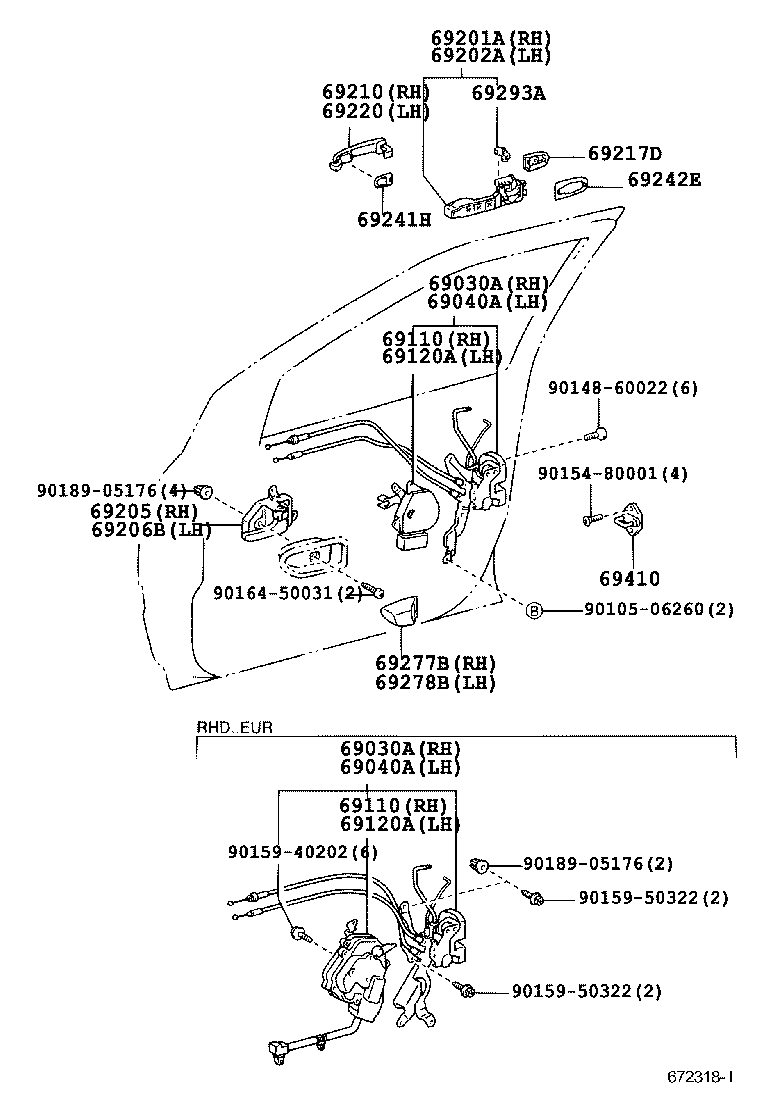

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-44080 |
ACM2#..ARL,GEN |
1 | ||
| 69030-44080 |
ACM20..ARL,GEN |
1 | ||
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-44080 |
ACM2#..ARL,GEN |
1 | ||
| 69030-44080 |
ACM20..ARL,GEN |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-44080 |
ACM2#..ARL,GEN |
1 | ||
| 69040-44080 |
ACM20..ARL,GEN |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-44080 |
ACM2#..ARL,GEN |
1 | ||
| 69040-44080 |
ACM20..ARL,GEN |
1 | ||
| 69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH | ||||
| 69110-53010 |
ACM2#..ARL,GEN |
1 | ||
| 69110-53010 |
ACM20..ARL,GEN |
1 | ||
| 69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH | ||||
| 69110-53010 |
ACM2#..ARL,GEN |
1 | ||
| 69110-53010 |
ACM20..ARL,GEN |
1 | ||
| 69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH | ||||
| 69120-53010 |
ACM20..ARL,GEN |
1 | ||
| 69120-53010 |
ACM2#..ARL,GEN |
1 | ||
| 69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH | ||||
| 69120-53010 |
ACM20..ARL,GEN |
1 | ||
| 69120-53010 |
ACM2#..ARL,GEN |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-52010 |
ACM2#..ARL,GEN;ACM20,CLM20..LHD |
1 | ||
| 69201-42010 |
ACM20..ARL,GEN;ACM20,CLM20..LHD |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-52010 |
ACM2#..ARL,GEN;ACM20,CLM20..LHD |
1 | ||
| 69202-42010 |
ACM20..ARL,GEN;ACM20,CLM20..LHD |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-44020A0 |
ACM20..ARL,GEN IVORY,TRIM0# |
1 | ||
| 69205-20180C0 |
ACM20..GEN *CR,BLACK,TRIM0# |
1 | ||
| 69205-44020A0 |
ACM20..GEN IVORY,TRIM0# |
1 | ||
| 69205-20180C0 |
ACM20..ARL,GEN *CR,BLACK,TRIM0# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-20180C0 |
ACM20..ARL,GEN *CR,BLACK,TRIM0# |
1 | ||
| 69206-44020A0 |
ACM20..ARL,GEN IVORY,TRIM0# |
1 | ||
| 69206-20180C0 |
ACM20..GEN *CR,BLACK,TRIM0# |
1 | ||
| 69206-44020A0 |
ACM20..GEN IVORY,TRIM0# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69211-12220B2 |
ACM20,CLM20 SILVER ME.,1C0 |
1 | ||
| 69211-12220A0 |
ACM20,CLM20 SUPER WHITE 2,040 |
1 | ||
| 69211-12220D3 |
ACM20,CLM20 RED MC.,3M8 |
1 | ||
| 69211-12220F6 |
ACM2#,CLM20 YELLOW M.M.,580 |
1 | ||
| 69211-12220J0 |
ACM20,CLM20 DK.BLUE M.M.,8P4 |
1 | ||
| 69211-12220F2 |
ACM20,CLM20 CHAMPAGNE M.M.,587 |
1 | ||
| 69211-12220B3 |
ACM20,CLM20 DARK GRAY M.M.,1E2 |
1 | ||
| 69211-12220G0 |
ACM20,CLM20 DARK GREEN MC.,6R4 |
1 | ||
| 69211-12220A0 |
ACM2#,CLM20 SUPER WHITE 2,040 |
1 | ||
| 69211-12220H2 |
ACM20,CLM20 AQUA ME.,771 |
1 | ||
| 69211-12220C1 |
ACM2#,CLM20 BLACK,202 |
1 | ||
| 69211-12220X2 |
ACM2#,CLM20 DK. RED M.M.,3Q3 |
1 | ||
| 69211-12220R1 |
ACM2#,CLM20 LT.PURPLISH BLUE M.M.,8K2 |
1 | ||
| 69211-12220B6 |
ACM2#,CLM20 SILVER ME.,1D4 |
1 | ||
| 69211-12220G0 |
ACM2#,CLM20 DARK GREEN MC.,6R4 |
1 | ||
| 69211-12220J3 |
ACM2#,CLM20 BLUE MC.,8M6 |
1 | ||
| 69217D - COVER, FRONT DOOR OUTSIDE HANDLE | ||||
| 69217-42020B3 |
ACM20,CLM20 SILVER ME.,1C0 |
2 | ||
| 69217-42020H2 |
ACM20,CLM20 AQUA ME.,771 |
2 | ||
| 69217-42020B5 |
ACM20,CLM20 DARK GRAY M.M.,1E2 |
2 | ||
| 69217-42020A3 |
ACM20,CLM20 SUPER WHITE 2,040 |
2 | ||
| 69217-42020F2 |
ACM20,CLM20 CHAMPAGNE M.M.,587 |
2 | ||
| 69217-42020D6 |
ACM20,CLM20 RED MC.,3M8 |
2 | ||
| 69217-42020X2 |
ACM2#,CLM20 DK. RED M.M.,3Q3 |
2 | ||
| 69217-42020C0 |
ACM2#,CLM20 BLACK,202 |
2 | ||
| 69217-42020F6 |
ACM2#,CLM20 YELLOW M.M.,580 |
2 | ||
| 69217-42020J2 |
ACM20,CLM20 DK.BLUE M.M.,8P4 |
2 | ||
| 69217-42020J0 |
ACM2#,CLM20 BLUE MC.,8M6 |
2 | ||
| 69217-42020B0 |
ACM2#,CLM20 SILVER ME.,1D4 |
2 | ||
| 69217-42020R3 |
ACM2#,CLM20 LT.PURPLISH BLUE M.M.,8K2 |
2 | ||
| 69217-42020G1 |
ACM20,CLM20 DARK GREEN MC.,6R4 |
2 | ||
| 69217-42020A3 |
ACM2#,CLM20 SUPER WHITE 2,040 |
2 | ||
| 69217-42020G1 |
ACM2#,CLM20 DARK GREEN MC.,6R4 |
2 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69211-12220A0 |
ACM20,CLM20 SUPER WHITE 2,040 |
1 | ||
| 69211-12220D3 |
ACM20,CLM20 RED MC.,3M8 |
1 | ||
| 69211-12220B3 |
ACM20,CLM20 DARK GRAY M.M.,1E2 |
1 | ||
| 69211-12220B2 |
ACM20,CLM20 SILVER ME.,1C0 |
1 | ||
| 69211-12220G0 |
ACM20,CLM20 DARK GREEN MC.,6R4 |
1 | ||
| 69211-12220F6 |
ACM2#,CLM20 YELLOW M.M.,580 |
1 | ||
| 69211-12220C1 |
ACM2#,CLM20 BLACK,202 |
1 | ||
| 69211-12220J0 |
ACM20,CLM20 DK.BLUE M.M.,8P4 |
1 | ||
| 69211-12220F2 |
ACM20,CLM20 CHAMPAGNE M.M.,587 |
1 | ||
| 69211-12220H2 |
ACM20,CLM20 AQUA ME.,771 |
1 | ||
| 69211-12220J3 |
ACM2#,CLM20 BLUE MC.,8M6 |
1 | ||
| 69211-12220B6 |
ACM2#,CLM20 SILVER ME.,1D4 |
1 | ||
| 69211-12220G0 |
ACM2#,CLM20 DARK GREEN MC.,6R4 |
1 | ||
| 69211-12220A0 |
ACM2#,CLM20 SUPER WHITE 2,040 |
1 | ||
| 69211-12220R1 |
ACM2#,CLM20 LT.PURPLISH BLUE M.M.,8K2 |
1 | ||
| 69211-12220X2 |
ACM2#,CLM20 DK. RED M.M.,3Q3 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-42020 |
ACM20,CLM20 |
2 | ||
| 69241-42020 |
ACM2#,CLM20 |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-42010 |
ACM2#,CLM20 |
2 | ||
| 69242-42010 |
ACM20,CLM20 |
2 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69297-30030A0 |
ACM20..ARL,GEN IVORY,TRIM0# |
1 | ||
| 69297-30030C0 |
ACM20..GEN W(CHROME PLATED INSIDE HANDLE),BLACK,TRIM07 |
1 | ||
| 69297-30030A0 |
ACM20..GEN IVORY,TRIM0# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69298-30030C0 |
ACM20..GEN W(CHROME PLATED INSIDE HANDLE),BLACK,TRIM07 |
1 | ||
| 69298-30030A0 |
ACM20..GEN IVORY,TRIM0# |
1 | ||
| 69298-30030A0 |
ACM20..ARL,GEN IVORY,TRIM0# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12040 |
ACM20..ARL,GEN;ACM20,CLM20..LHD |
1 | ||
| 69293-12040 |
ACM2#,CLM20 LH |
1 | ||
| 69293-12030 |
ACM2#,CLM20 RH |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-20110 |
ACM2#,CLM20 |
2 | ||
| 69410-20110 |
ACM20,CLM20 |
2 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90148-60022 | ||||
| 90154-80001 | ||||
| 90159-40202 | ||||
| 90159-50322 | ||||
| 90164-50031 | ||||
| 90189-05176 | ||||
