ACM20R-ARSEK (2001)
Toyota Picnic/Avensis Verso
Production
May 2001
-
Dec 2009
Engine
1AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )

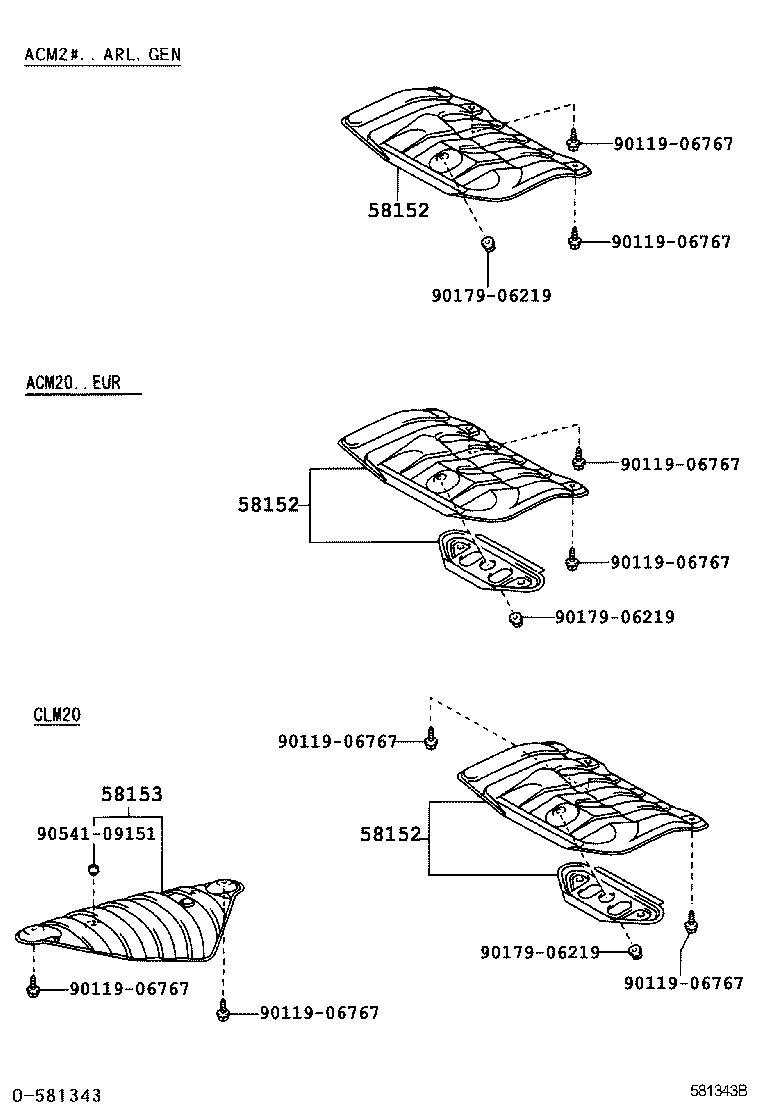

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2 | ||||
| 58152-44010 |
ACM20..ARL,GEN |
1 | ||
| 58152-44010 |
ACM2#..ARL,GEN |
1 | ||
| 58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2 | ||||
| 58152-44010 |
ACM20..ARL,GEN |
1 | ||
| 58152-44010 |
ACM2#..ARL,GEN |
1 | ||
| 58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2 | ||||
| 58152-44010 |
ACM20..ARL,GEN |
1 | ||
| 58152-44010 |
ACM2#..ARL,GEN |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90179-06219 | ||||
| 90541-09151 | ||||
